The unshielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

RJ45 patch cable Cat.6 U/UTP LSZH CCA The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.

RJ45 flat patch cable Cat.6A U/FTP PVC The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet. Technical product features • Cat.6A ( TIA) • U/FTP cable with AWG30/7 • Sheath material made of polyvinyl chloride (PVC) • Plug connection: RJ45 to RJ45 • With locking lever protection • Has gold-plated contacts < br>The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af. The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B. Suitable for the temperature range -20 - 55 °C. The Ethernet cable has a copper conductor material and is ideal for applications in structured building cabling, industrial Ethernet and data centers. This achieves a bandwidth of 500 MHz.

Modular-Connector unshielded RJ45 8P8C For round cable Suitable crimping tool for RJ10/RJ11/RJ12/RJ45: Art.-No. E-MUC410 Suitable crimping tool for RJ69: Art.-No. 39945.2

Steel sheet housing, self-ventilated, screwed, pre-assembled Front door lockable, with latch, door opening angle 120° Front door fully made of certified safety glass (4 mm) Door stop left-sided Roof and bottom with cable entry 145 x 70 mm Inside 2 x 10“ profile rails, depth adjustable in 60 mm raster Max. mounting depth 230 mm (at delivery: ca. 170 mm) Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure white Width 312 mm, height 300 mm Max. load 30 kg, protection degree IP20 Delivery incl. 1 x brush, 1 x plastic cover, key

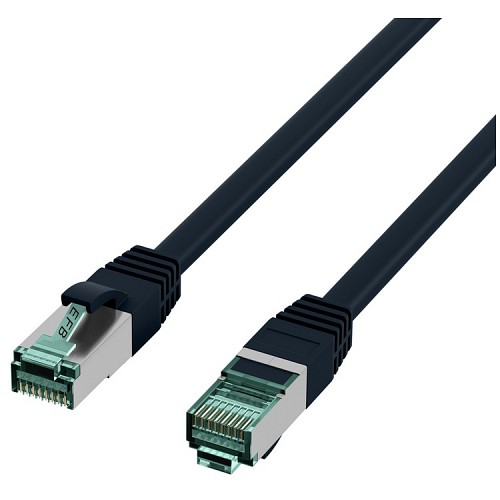

RJ45 patch cable Cat.6A S/FTP LSZH The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts. Technical product features • Cat.6A (TIA) • S/FTP cable with AWG26/7 • Sheath material made of halogen-free LSZH • Fire protection: flame-retardant, halogen-free , low smoke • Plug connection: RJ45 to RJ45 • With locking lever protection • Has gold-plated contacts The jacket of the shielded patch cable is made of halogen-free LSZH material and has a long imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt. The assignment of the yellow RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range -20 - 60 °C. The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. The frequency range is 500MHz.

Product information for RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable red 0,5m The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions. Cross section 4 x 2 x AWG26 / 7 Moulded grommet, slim design

Front plates for 53705.1V3 Without adapters

The pair-shielded Cat.6A RJ45 flat patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The flat patch cable impresses with its flat construction and is with 2.2mm height ideal for laying e.g. behind ledges or under a carpet. The cast grommet captivates with its slim design and thus simplifies the plugging process in confined spaces. Sheath material: PVC Cross section: 4 x 2 x AWG30 / 7 Cable diameter: 7.0x2.2mm Plug type: short plug

Steel sheet housing, self-ventilated, screwed, pre-assembled Front door lockable, with latch, door opening angle 120° Front door fully made of certified safety glass (4 mm) Door stop left-sided Roof and bottom with cable entry 145 x 70 mm Inside 2 x 10“ profile rails, depth adjustable in 60 mm raster Max. mounting depth 230 mm (at delivery: ca. 170 mm) Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure white Width 312 mm, height 300 mm Max. load 30 kg, protection degree IP20 Delivery incl. 1 x brush, 1 x plastic cover, key

The pair-shielded Cat.6A RJ45 flat patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The flat patch cable impresses with its flat construction and is with 2.2mm height ideal for laying e.g. behind ledges or under a carpet. The cast grommet captivates with its slim design and thus simplifies the plugging process in confined spaces. Sheath material: PVC Cross section: 4 x 2 x AWG30 / 7 Cable diameter: 7.0x2.2mm Plug type: short plug

The shielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications.

RJ45 patch cable Cat.6 S/FTP LSZH The Cat.6 patch cable meets the requirements for 5Gbit Ethernet and has gold-plated contacts. Technical product features • Cat.6 • S/FTP cable with AWG27/7 • Sheath material made of halogen-free LSZH • Fire protection: flame-retardant, halogen-free, low smoke • Plug connection: RJ45 to RJ45 • With locking lever protection • Has gold-plated contacts< br> The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt. The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C. The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This achieves a bandwidth of 250 MHz.

Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801. Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP. Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper Features of EFB fiber optic patch cables Tension relief reinforced with aramid yarn Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034 EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut) 100% tested and with individual measurement report

RJ45 patch cable Cat.6 U/UTP LSZH CCA The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.

RJ45 patch cable Cat.6A S/FTP LSZH The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts. Technical product features • Cat.6A ( TIA) • S/FTP cable with AWG27/7 • Jacket material made of halogen-free LSZH • Fire protection: flame-retardant, halogen-free, low smoke • Plug connection: RJ45 to RJ45 • With locking lever protection • Has gold-plated contacts The sheath of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt. The assignment of the green RJ45 plugs is according to TIA/EIA 568B and is 1 :1. Suitable for the temperature range -20 - 60 °C. The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is 500 MHz.

Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801. Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.

RJ45 patch cable Cat.6 U/UTP LSZH CCA The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet. Technical product features • Cat.6 • U/UTP cable with AWG24/7 • Jacket material made of halogen-free LSZH • Fire protection: flame-retardant, halogen-free, low smoke • Plug connection: RJ45 to RJ45 • With locking lever protection • Has gold-plated contacts The jacket of the patch cable is made of halogen-free LSZH material. The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . The data cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 250 MHz.
