Product information for RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable red 0,5m
The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design

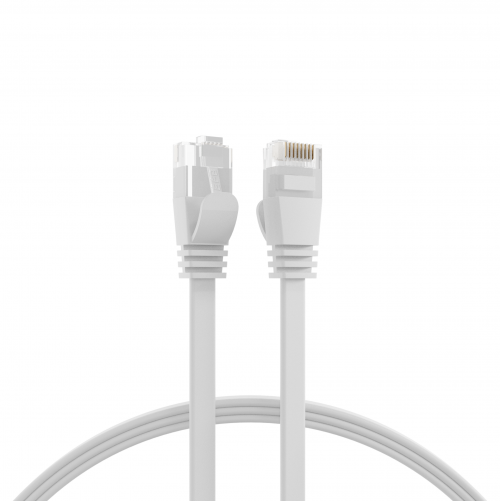

The pair-shielded Cat.6A RJ45 flat patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The flat patch cable impresses with its flat construction and is with 2.2mm height ideal for laying e.g. behind ledges or under a carpet. The cast grommet captivates with its slim design and thus simplifies the plugging process in confined spaces.
Sheath material: PVC
Cross section: 4 x 2 x AWG30 / 7
Cable diameter: 7.0x2.2mm
Plug type: short plug
The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
The pair-shielded Cat.6A RJ45 flat patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The flat patch cable impresses with its flat construction and is with 2.2mm height ideal for laying e.g. behind ledges or under a carpet. The cast grommet captivates with its slim design and thus simplifies the plugging process in confined spaces.
Sheath material: PVC
Cross section: 4 x 2 x AWG30 / 7
Cable diameter: 7.0x2.2mm
Plug type: short plug
Steel sheet housing, self-ventilated, screwed, pre-assembled
Front door lockable, with latch, door opening angle 120°
Front door fully made of certified safety glass (4 mm)
Door stop left-sided
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 10“ profile rails, depth adjustable in 60 mm raster
Max. mounting depth 230 mm (at delivery: ca. 170 mm)
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure white
Width 312 mm, height 300 mm
Max. load 30 kg, protection degree IP20
Delivery incl. 1 x brush, 1 x plastic cover, key
Product information for RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable red 0,25m
The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
The high quality of the unshielded Cat.6 RJ45 patch panel ensures excellent performance for 5 Gigabit Ethernet applications. The patch panel is very compact with a total depth of 28.5 mm.
19 "mounting, 1U
24 ports
LSA connection strip for installation cable AWG26..AWG22
Color code according to TIA / EIA 568 A / B: gold plated
The IEC C20 to CEE7/3 power adapter from EFB-Elektronik connects an IEC plug to a safety socket. The black version is designed for practical integration into technical environments.
• Connection of IEC plug to CEE7/3 coupling
• Black outer jacket colour for a discreet finish
• Three-pole design with protective conductor
The polyvinyl chloride (PVC) jacket supports a robust and at the same time functional design. With three wires and protective conductors, a technically clean adapter solution is created for applications in which a connection between IEC C20 and CEE7/3 is required.

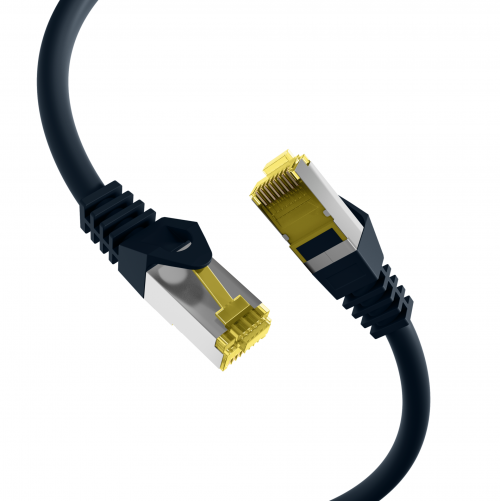

RJ45 patch cable Cat.6A S/FTP LSZH Cat.7 raw cable
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
RJ45 patch cable Cat.6 U/UTP PVC CCA
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the patch cable is made of polyvinyl chloride (PVC ) material and has a length print on the nozzle. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B . Suitable for the extended temperature range -20 - 70 °C.
The Ethernet cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. A bandwidth of up to 250 MHz is achieved.
The IEC C14 to IEC C5 power adapter from EFB-Elektronik is designed for a standard-compliant connection between the IEC plug and the C5 cloverleaf coupling. The black version with polyvinyl chloride (PVC) jacket is suitable for practical cable applications where a robust and compact adapter solution is required.
• AC adapter for IEC C14 to IEC C5, also known as Mickey Mouse plug
• 3-wire version with protective conductor
• Black outer jacket made of polyvinyl chloride (PVC)
The technical design supports safe and clean integration into existing power supply environments. Connection 1 as an IEC connector and connection 2 as a C5 cloverleaf coupling achieve a clear assignment of the interfaces, while the protective conductor ensures the intended grounding guide.

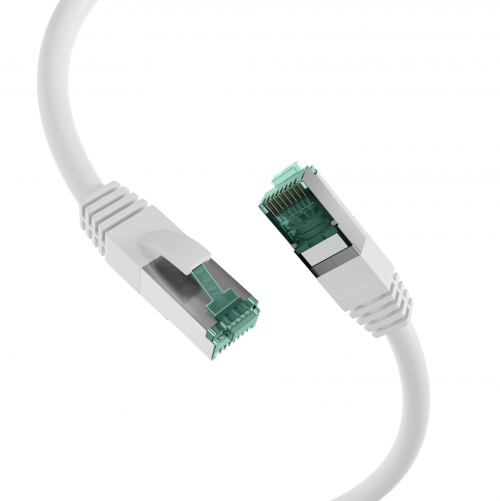

This Cat.6A (TIA) LAN cable from the EFB-Elektronik brand transmits data up to 10Gbit. The S/FTP shielding reliably protects against interference and ensures high-quality signal. Since it is a Cat.6A (TIA) network cable, it supports a frequency range up to 500MHz, which provides high data transmission performance.
• Increase interference immunity in electromagnetically charged environments – double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.
• Cover fire protection requirements in compliance with standards – flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
• Power and connect end devices via one cable – reduces cabling effort because data and power are transmitted via 4PPoE according to IEEE802.3bt on one line (fewer power supplies/sockets, faster installation).
19" 1U socket strip in aluminium profile
Outlets 8 x CEE 7/3
With overload protection 10 A
With increased personal protection against electric shock
Cable 2.0 m H03VV-F 3G 1.0 mm² with plug IEC C14
Colour outlets red, housing aluminium
Certifications CE, RoHS
