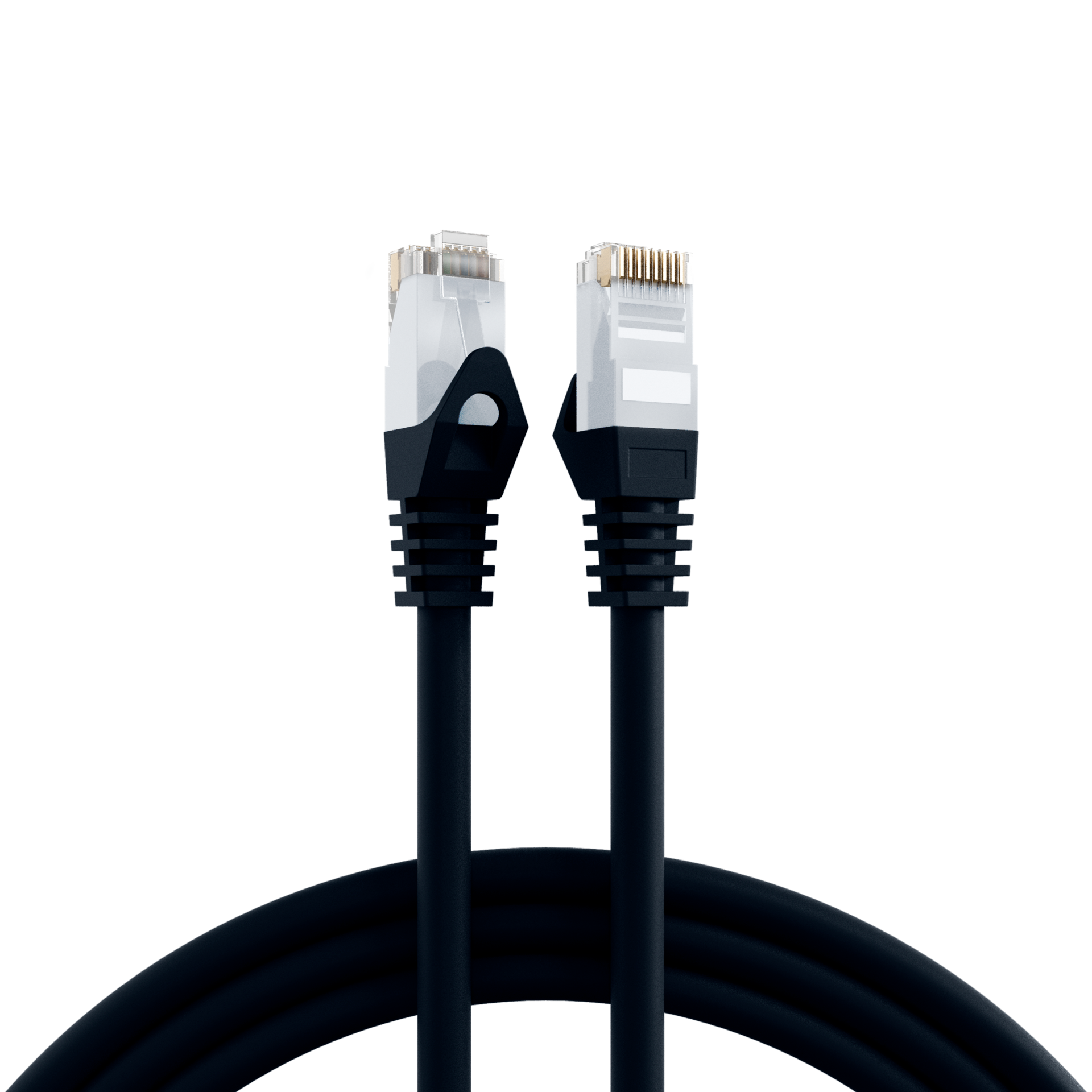

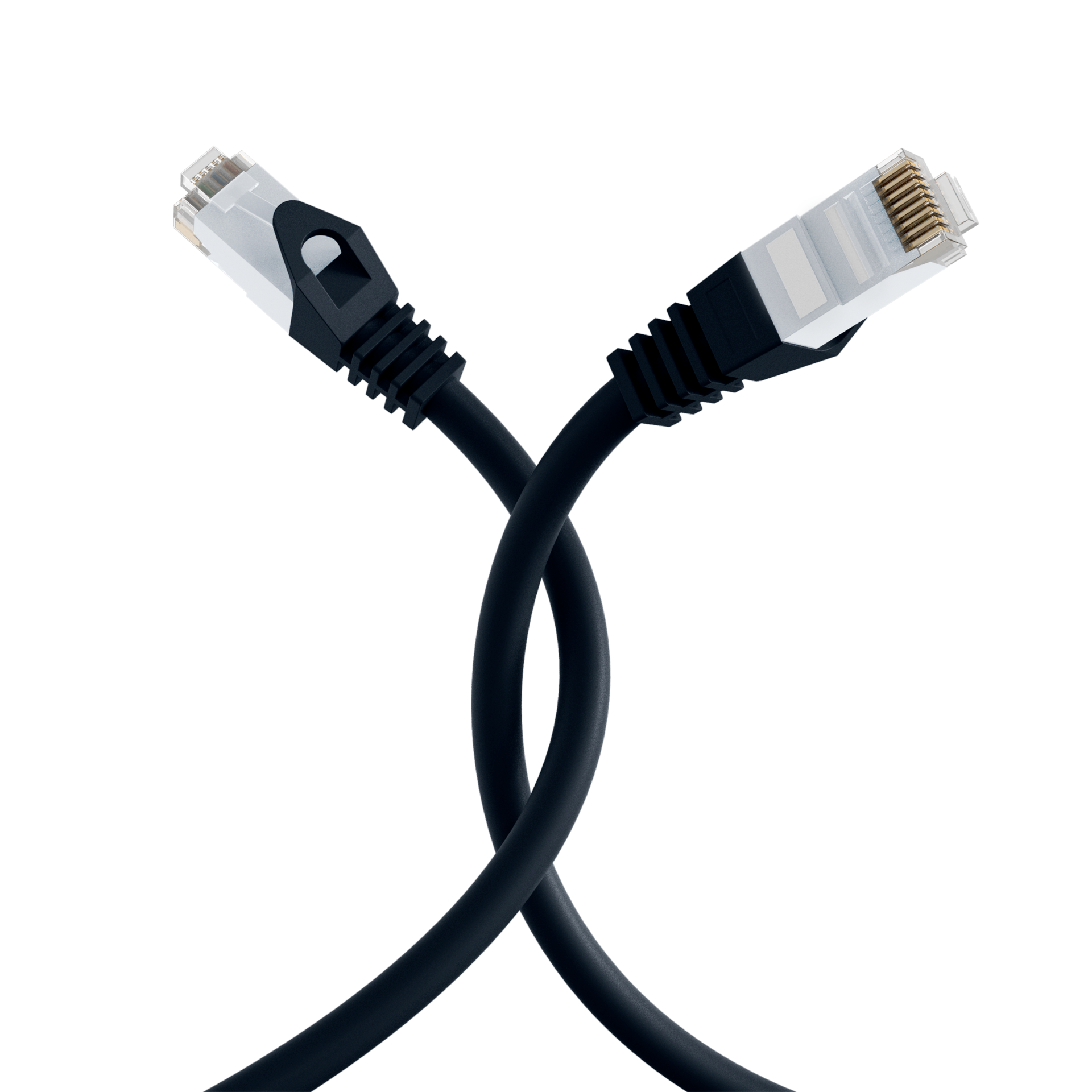

RJ45 patch cable Cat.6 U/UTP LSZH CCA
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B .
The data cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 250 MHz.
- (Halogenfree): True
- AWG-size: 24/7
- Allocation: acc. TIA/EIA 568B
- Anti-kink sleeve: plugged in
- Area of Application: Data center
- Industrial Ethernet
- Structured cabling
- Bandwidth: 250MHz
- Bending radius: 30 mm
- Cable construction: 4x2
- Cable type: U/UTP
- Cabling Standard: ANSI/TIA-568-C.2
- EN50173
- ISO/IEC 11801
- Category: 6
- Colour anti-kink sleeve: black
- Colour outer sheath: black
- Conductor Material: CCA
- Connector: IEC 60603-7-4
- Connector type: RJ45 Standard
- Contacts: Gold plated µ" gold plated
- Current Rating: max. 1 A
- Fire retardant version: True
- Flame-retardant: True
- Halogen-free: True
- Jacket Material: LSZH
- Length imprint: True
- Locking lever: True
- Low smoke: True
- Mating cycles: ≥750
- Model: Unshielded
- NVP value: - %
- Oil resistant (acc. EN 60811-2-1): False
- Oil resistant (according to EN 60811-404): False
- Operating-/ tempering voltage: max. 50 V DC
- Outer diameter of the cable: 5.9 mm
- POE class: 4PPoE acc. to IEEE802.3bt
- PoE+ acc. to IEEE802.3at
- PoE acc. to IEEE802.3af
- Pin assignment: 1:1
- Printing: Cat.6 U/UTP AWG24/7 stranded x 4pairs LSZH cable www.efb-elektronik.de
- Silicone-free: True
- Suitable for degree of protection (IP): IP20
- Test voltage: 1000 (V DC, 1min) core/core und core/screen
- Transmission: 5Gbit
- Type of connector connection 1: RJ45 8(8)
- Type of connector connection 2: RJ45 8(8)
