EFB UTP 0.25m Cat6 Λευκο LSZH
Κωδικός plus26: 173-439077
Κωδικός Εργοστασίου (MPN): K8104WS.0.25

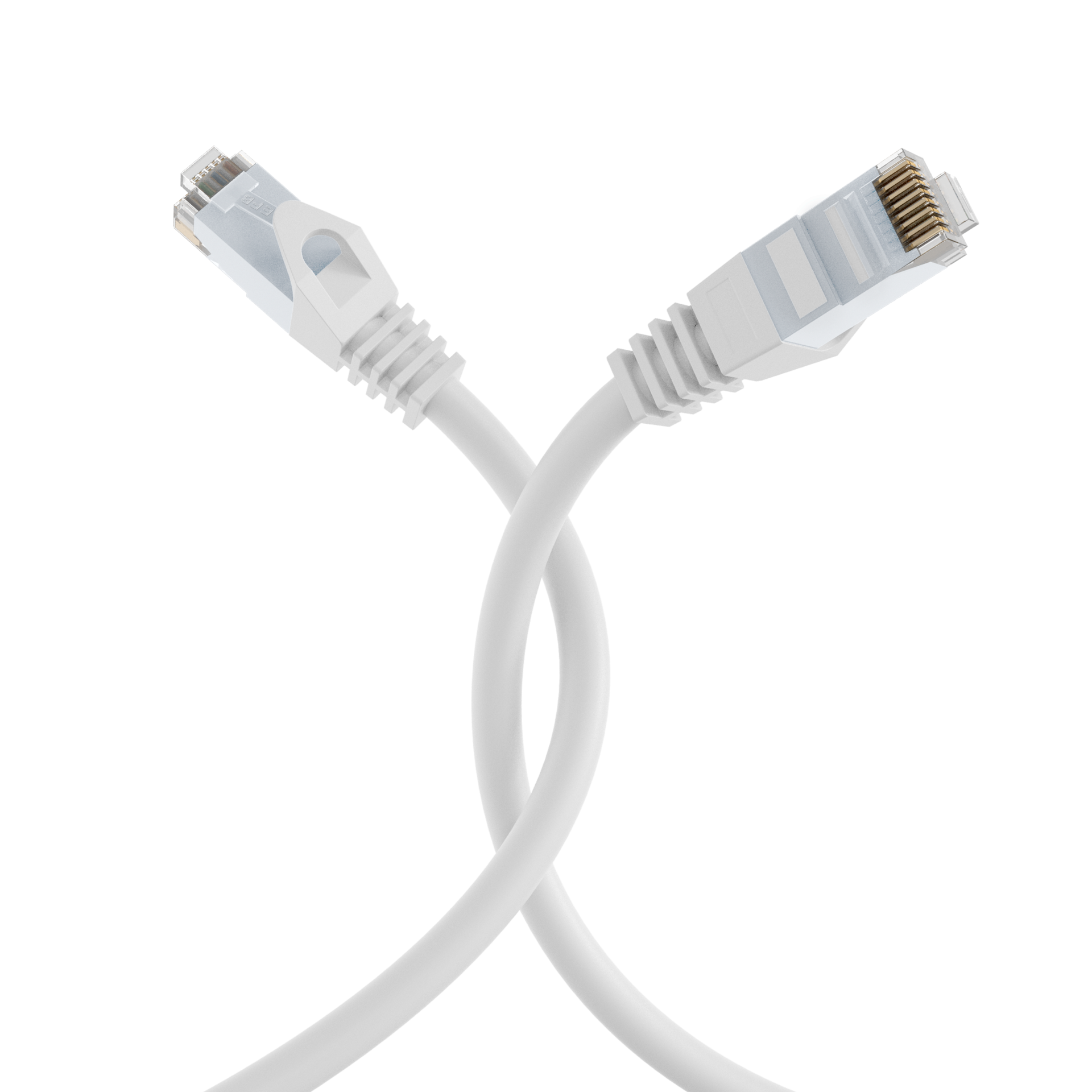

RJ45 patch cable Cat.6 U/UTP LSZH CCA
The Cat.6 patch cable has gold-plated contacts and meets the requirements for 5Gbit Ethernet.
Technical product features
• Cat.6
• U/UTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the patch cable is made of halogen-free LSZH material.
The assignment of the RJ45 plugs is 1:1 and follows TIA/EIA 568B .
The data cable has a conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet and data centers. The frequency range is up to 250 MHz.
- (Halogenfree): acc. IEC60754-2
- AWG-size: 24/7
- Allocation: acc. TIA/EIA 568B
- Anti-kink sleeve: angespritzt
- Area of application: Industrial Ethernet
- Area of application: Structured cabling
- Bending radius: >30 mm
- Cable construction: 4x2
- Cable shape: rund
- Cable type: U/UTP
- Cabling standard: EN50173
- Cabling standard: ISO/IEC 11801
- Cabling standard: ANSI/TIA-568
- Category: 6
- Colour anti-kink sleeve: white
- Colour outer sheath: weiß
- Conductive shield: No
- Conductor Material: CCA
- Connector: IEC 60603-7-4
- Connector type: RJ45 standard
- Contacts: Gold plated
- Current capacity: max. 1 A
- Fire retardant version: acc. IEC60332-1
- Harmonised Standard: EN 50575
- Impedance: 100
- Jacket material: LSZH
- Length imprint: True
- Locking lever: Ja
- Low smoke: acc. IEC61034
- Mating cycles: >750
- Model: unshielded
- Oil resistant: No
- Operating-/ tempering voltage: max. 50 V DC
- Operating Temperature: 0 – 60 °C
- Outer diameter of the cable: 5,9 mm
- Ozone resistance: No
- Pin assignment: 1:1
- Printing: Cat.6 UTP AWG24 stranded x 4pairs cable www.efb-elektronik.de
- Resistant to chemicals: False
- Silicone-free: True
- Suitable for degree of protection (IP): IP20
- Tape width: 250MHz
- Test voltage: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
- Transmission: 5Gbit
- Type of connector connection 1: RJ45 8(8)
- Type of connector connection 2: RJ45 8(8)
- UL approbated: False
- UV resistant: Nein
