EFB SFTP 5m Cat6 magenta LSZH

Κωδικός plus26: 173-439053

Κωδικός Εργοστασίου (MPN): K5519.5

Εγγραφείτε για τιμή

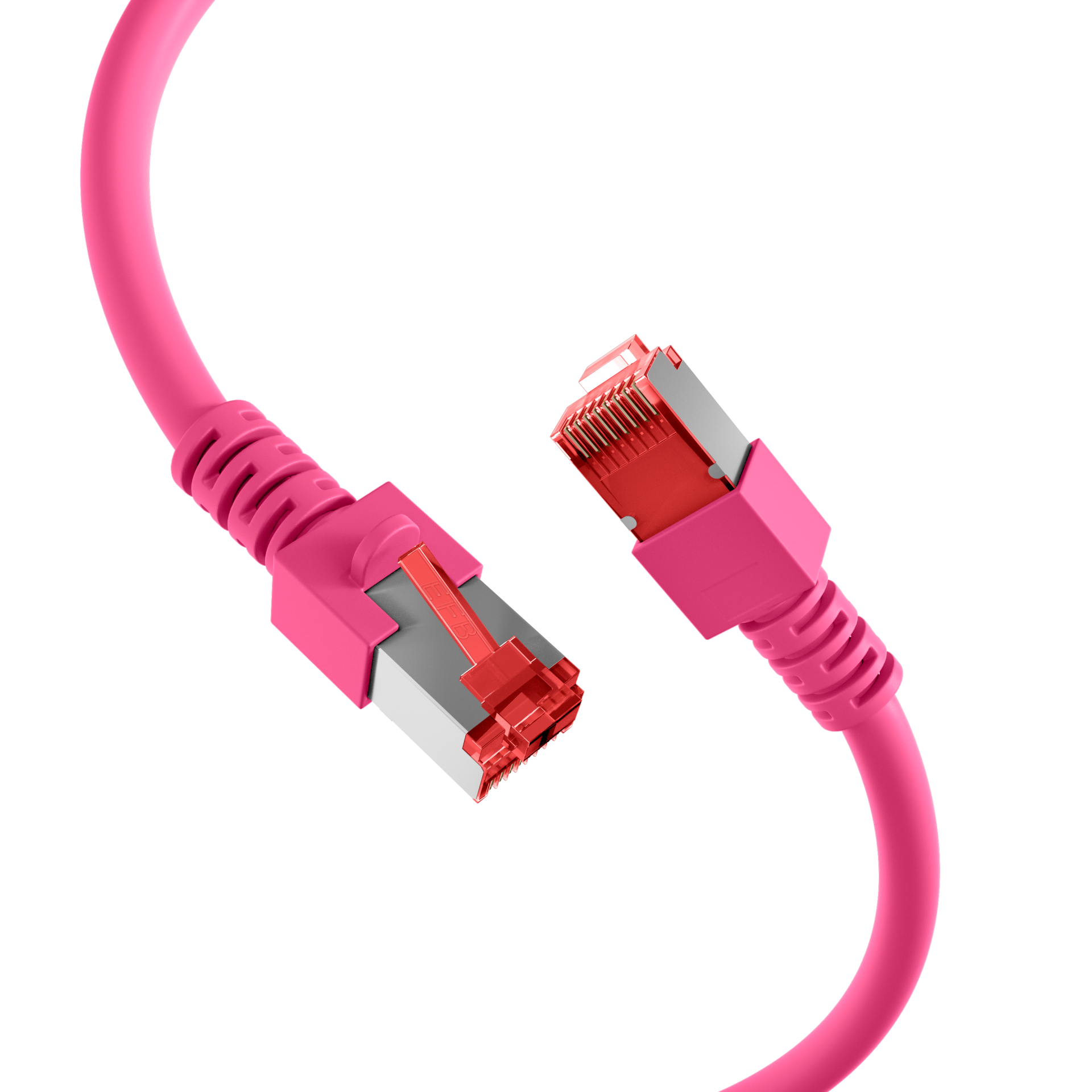

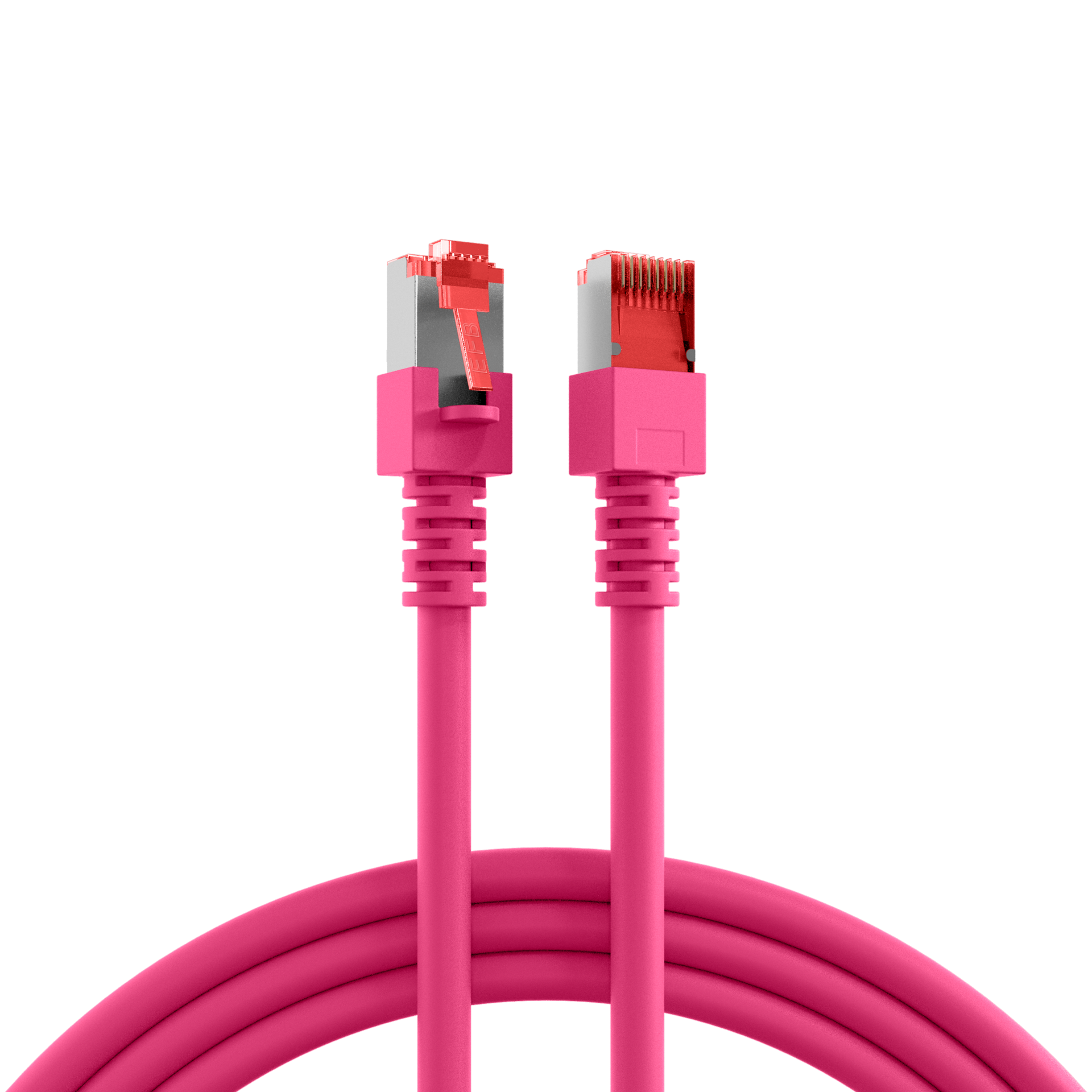

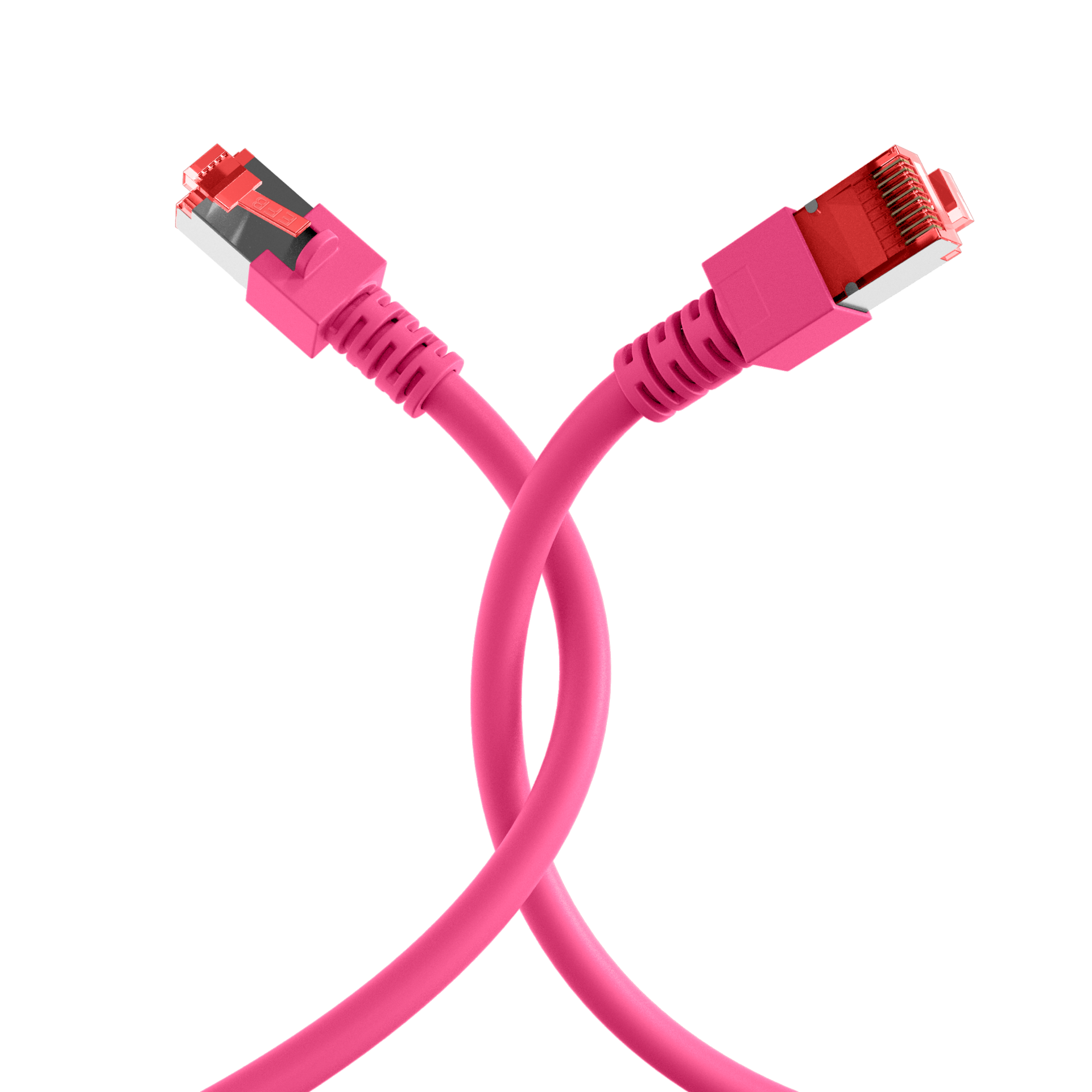

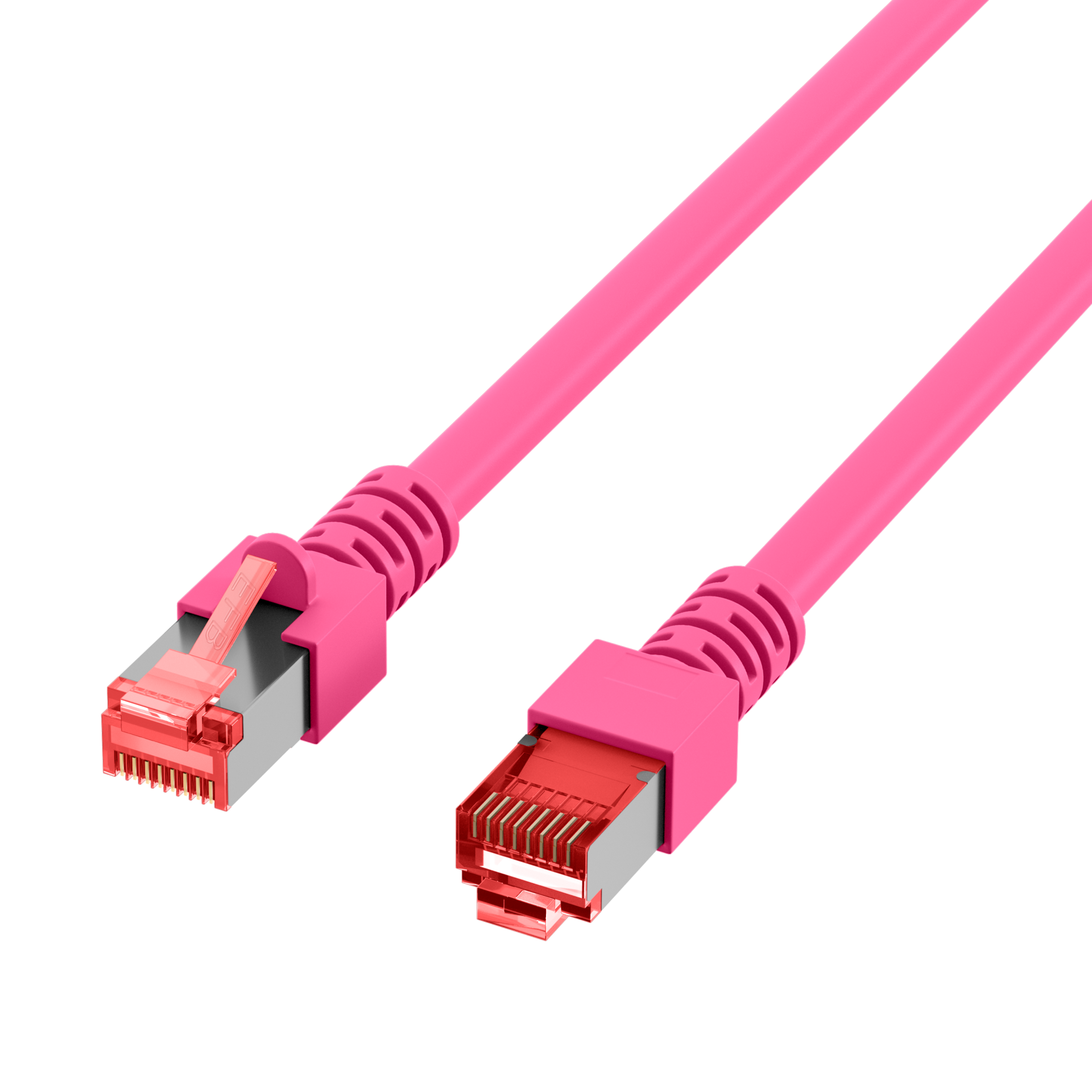

RJ45 patch cable Cat.6 S/FTP LSZH

The Cat.6 patch cable meets the requirements for 5Gbit Ethernet and has gold-plated contacts.

Technical product features

• Cat.6

• S/FTP cable with AWG27/7

• Sheath material made of halogen-free LSZH

• Fire protection: flame-retardant, halogen-free, low smoke

• Plug connection: RJ45 to RJ45

• With locking lever protection

• Has gold-plated contacts< br>

The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.

The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1:1 . Suitable for the temperature range 0 - 60 °C.

The LAN cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This achieves a bandwidth of 250 MHz.

(Halogenfree): acc. IEC60754-2
AWG-size: 27/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: angespritzt
Area of application: Industrial Ethernet
Area of application: Structured cabling
Area of application: Data center
Bending radius: >31 mm
Cable construction: 4x2
Cable shape: rund
Cable type: S/FTP
Cabling standard: EN50173
Cabling standard: ISO/IEC 11801
Cabling standard: ANSI/TIA-568
Category: 6
Colour anti-kink sleeve: lila/violett
Colour outer sheath: magenta
Conductive shield: Selected shield contact
Conductor Material: Copper
Conductor resistance DC: 185 Ω/km
Connector: IEC 60603-7-5
Connector type: RJ45 standard
Contact Resistance: 30 mΩ
Contacts: Gold plated
Current capacity: max. 1 A
Fire retardant version: acc. IEC60332-1
Harmonised Standard: EN 50575
Impedance: 100
Insulation Resistance: 10 MΩ
Jacket material: LSZH
Length imprint: True
Locking lever: Ja
Loop resistance: 370 Ω/km
Low smoke: acc. IEC61034
Mating cycles: >750
Model: shielded
Oil resistant: No
Operating-/ tempering voltage: max. 50 V DC
Operating Temperature: 0 – 60 °C
Outer diameter of the cable: 6.2 mm
Ozone resistance: No
Pin assignment: 1:1
Printing: SFTP 300 CAT.5E 26AWGX4P PATCH ISO/IEC 11801 & EN 50173 VERIFIED www.efb-elektronik.de
Resistance unbalance: 5 %
Resistant to chemicals: False
Silicone-free: True
Suitable for degree of protection (IP): IP20
Tape width: 250MHz
Temperature Range (Installation): -20 – 60
Temperature Range (Operation): -20 – 75
Temperature Range (Storage): -20 – 60
Test voltage: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Transmission: 5Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
UL approbated: False
UV resistant: Nein
