EFB SFTP 50m CAT6a Λευκο LSOH

Κωδικός plus26: 173-439424

Κωδικός Εργοστασίου (MPN): MK6001.50W

Εγγραφείτε για τιμή

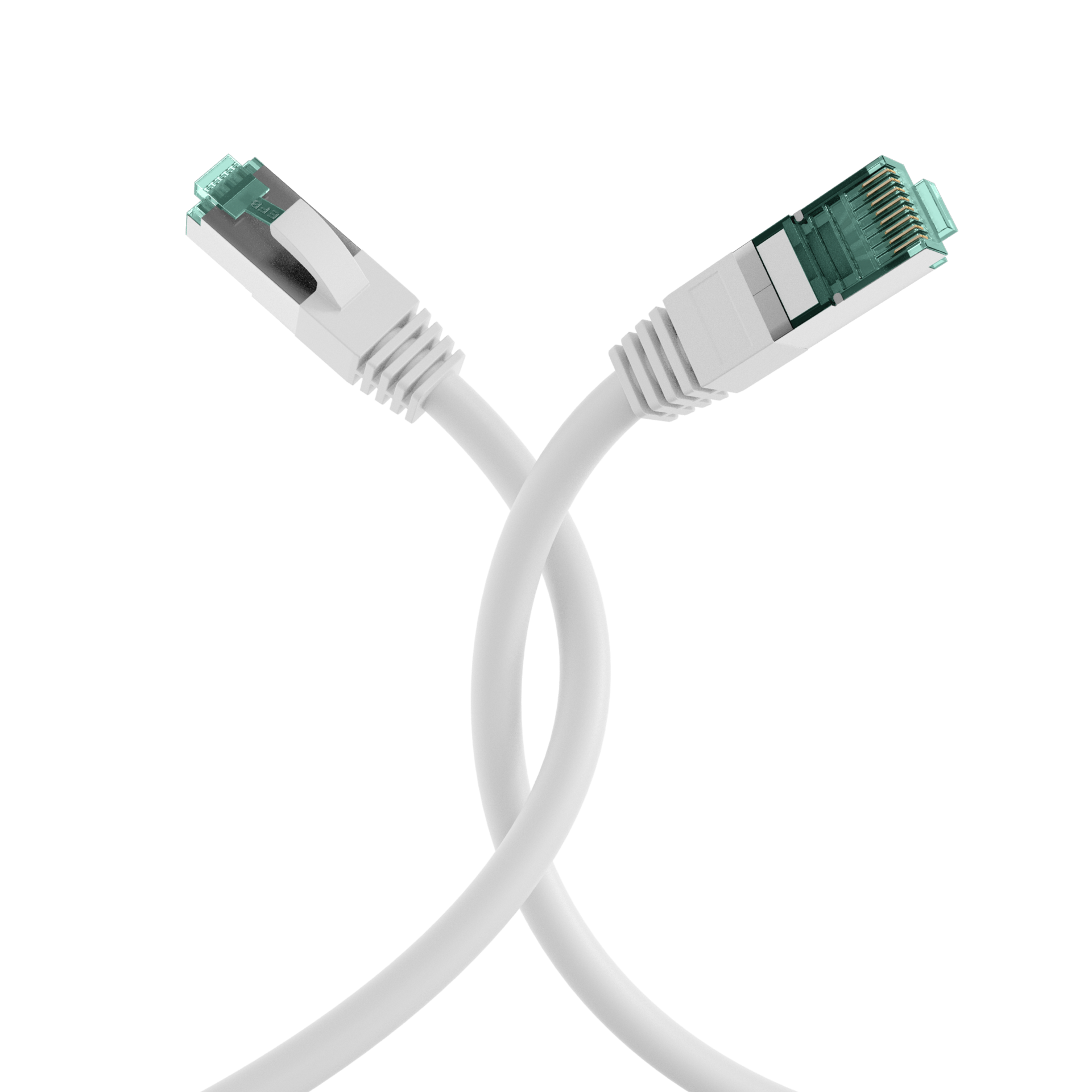

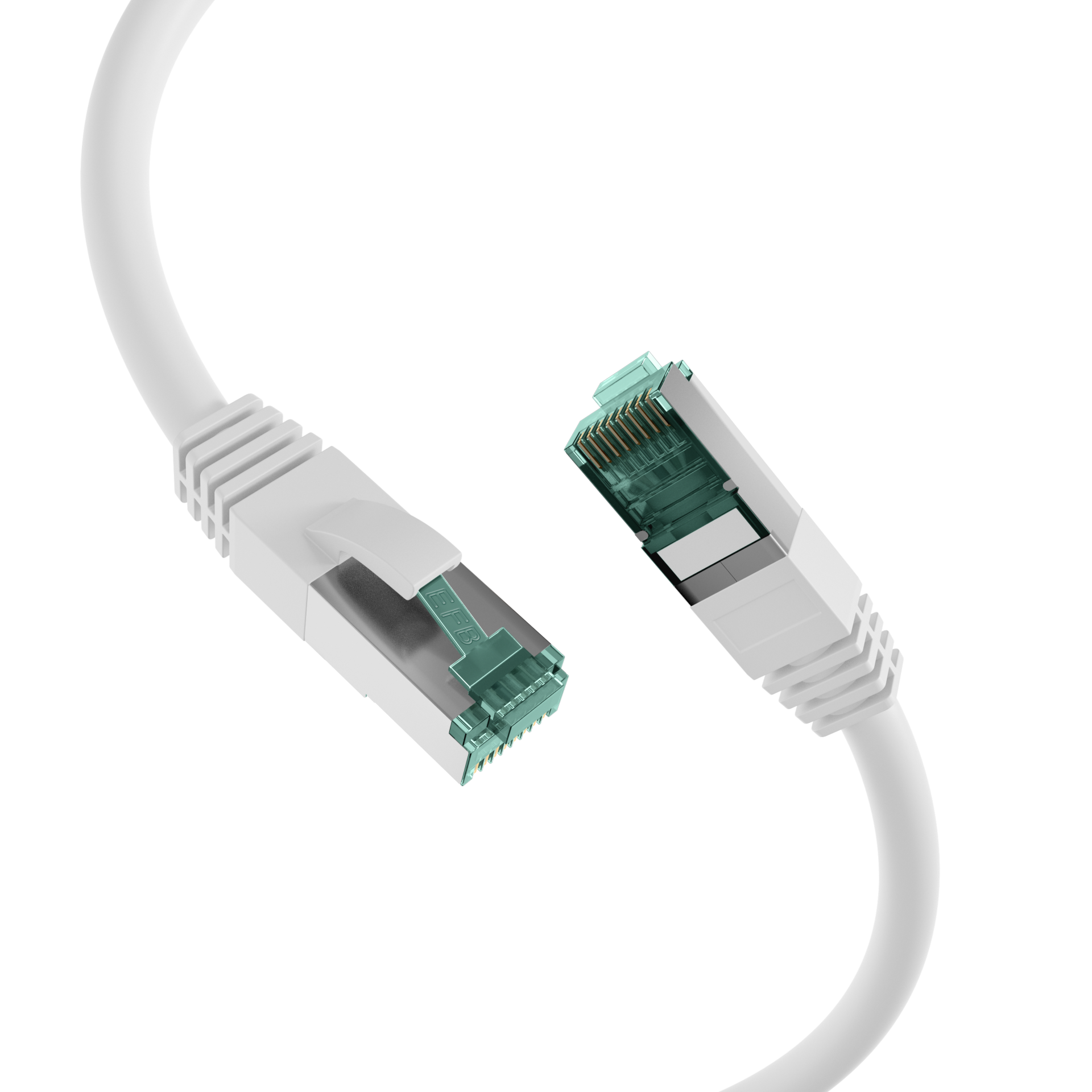

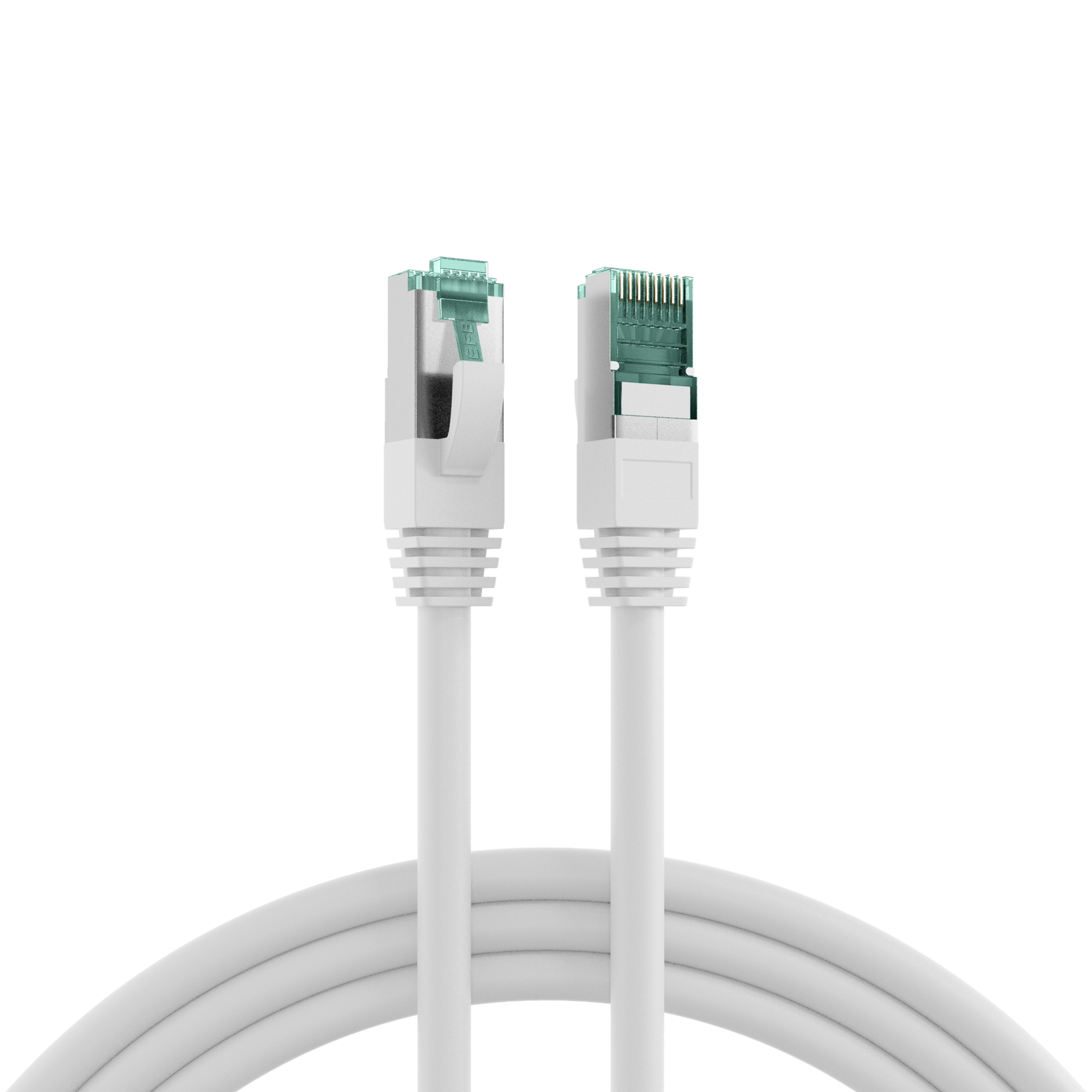

RJ45 patch cable Cat.6A S/FTP LSZH

The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.

Technical product features

• Cat.6A ( TIA)

• S/FTP cable with AWG27/7

• Jacket material made of halogen-free LSZH

• Fire protection: flame-retardant, halogen-free, low smoke

• Plug connection: RJ45 to RJ45

• With locking lever protection

• Has gold-plated contacts

The sheath of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.

The assignment of the green RJ45 plugs is according to TIA/EIA 568B and is 1 :1. Suitable for the temperature range -20 - 60 °C.

The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is 500 MHz.

(Halogenfree): acc. IEC60754-2
AWG-size: 27/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: angespritzt
Area of application: Industrial Ethernet
Area of application: Structured cabling
Area of application: Data center
Bending radius: >30 mm
Cable construction: 4x2
Cable shape: rund
Cable type: S/FTP
Cabling standard: EN50173
Cabling standard: ISO/IEC 11801
Cabling standard: ANSI/TIA-568
Category: 6A (TIA)
Colour anti-kink sleeve: white
Colour outer sheath: weiß
Conductive shield: Selected shield contact
Conductor Material: Copper
Conductor resistance DC: 185 Ω/km
Connector: IEC 60603-7-51
Connector type: RJ45 standard green
Contact Resistance: 30 mΩ
Contacts: Gold plated
Current capacity: max. 1 A
Fire retardant version: acc. IEC60332-1
Harmonised Standard: EN 50575
Impedance: 100 ±15 Ω
Insulation Resistance: 10 MΩ
Jacket material: LSZH
Length imprint: True
Locking lever: Ja
Loop resistance: 370 Ω/km
Low smoke: acc. IEC61034
Mating cycles: >750
Model: shielded
NVP value: 74 %
Oil resistant: No
Operating-/ tempering voltage: max. 50 V DC
Operating Temperature: -20 – 60 °C
Outer diameter of the cable: 6.0 mm
Ozone resistance: No
Pin assignment: 1:1
Printing: Cat.6A PATCH S/FTP 4x2xAWG27/7 LSZH ISO/IEC11801 ANSI/TIA-568-C.2 ***10Gigabit Ethernet*** www.efb-elektronik.de
Raw cable: Cat.6A
Resistance unbalance: 3 %
Resistant to chemicals: False
Silicone-free: True
Suitable for degree of protection (IP): IP20
Tape width: 500MHz
Test voltage: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
Total screening: 80 %
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
UL approbated: False
UV resistant: Nein
