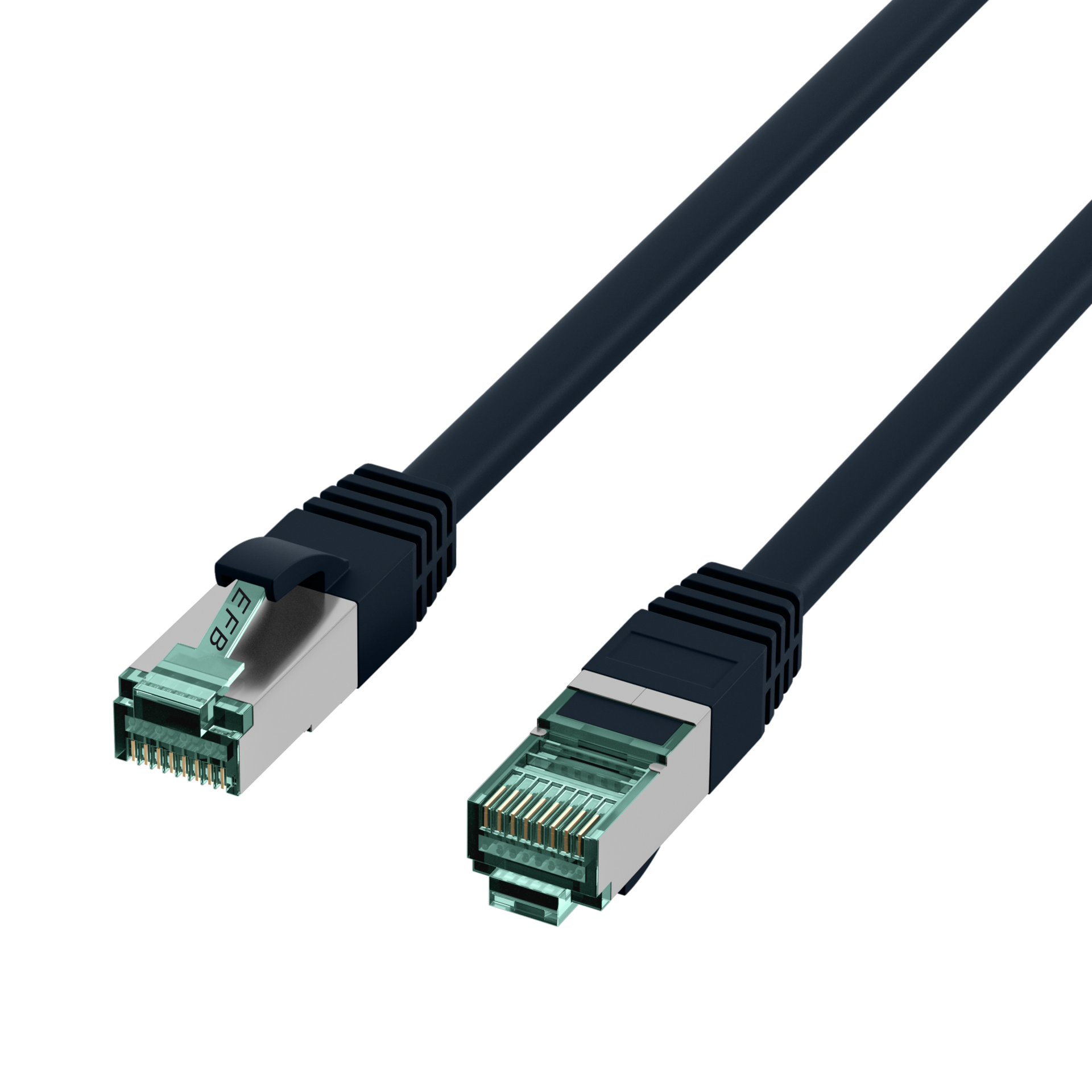

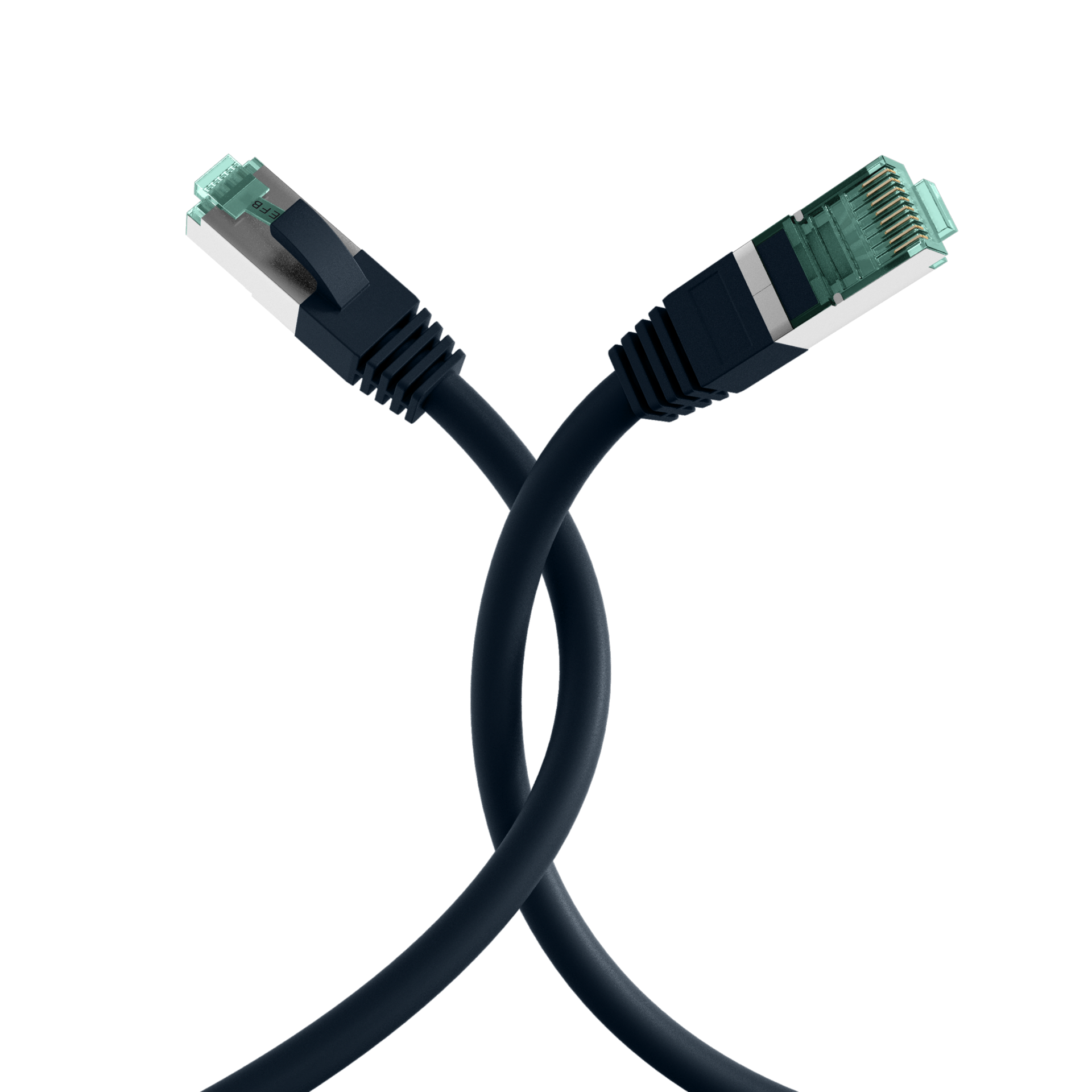

EFB SFTP 50m CAT6a Μαύρο LSOH
Κωδικός plus26: 173-439425
Κωδικός Εργοστασίου (MPN): MK6001.50B
- RJ45 patch cable Cat.6A S/FTP LSZH
- The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
- Technical product features
- • Cat.6A (TIA)
- • S/FTP cable with AWG26/7
- • Sheath material made of halogen-free LSZH
- • Fire protection: flame-retardant, halogen-free , low smoke
- • Plug connection: RJ45 to RJ45
- • With locking lever protection
- • Has gold-plated contacts
- The jacket of the shielded patch cable is made of halogen-free LSZH material and has a long imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
- The assignment of the yellow RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range -20 - 60 °C.
- The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. The frequency range is 500MHz.
- (Halogenfree): acc. IEC60754-2
- AWG-size: 27/7
- Allocation: acc. TIA/EIA 568B
- Anti-kink sleeve: angespritzt
- Area of application: Industrial Ethernet
- Area of application: Structured cabling
- Area of application: Data center
- Bending radius: >30 mm
- Cable construction: 4x2
- Cable shape: rund
- Cable type: S/FTP
- Cabling standard: EN50173
- Cabling standard: ISO/IEC 11801
- Cabling standard: ANSI/TIA-568
- Category: 6A (TIA)
- Colour anti-kink sleeve: schwarz
- Colour outer sheath: black
- Conductive shield: Selected shield contact
- Conductor Material: Copper
- Conductor resistance DC: 185 Ω/km
- Connector: IEC 60603-7-51
- Connector type: RJ45 standard green
- Contact Resistance: 30 mΩ
- Contacts: Gold plated
- Current capacity: max. 1 A
- Fire retardant version: acc. IEC60332-1
- Harmonised Standard: EN 50575
- Impedance: 100 ±15 Ω
- Insulation Resistance: 10 MΩ
- Jacket material: LSZH
- Length imprint: True
- Locking lever: Ja
- Loop resistance: 370 Ω/km
- Low smoke: acc. IEC61034
- Mating cycles: >750
- Model: shielded
- NVP value: 74 %
- Oil resistant: No
- Operating-/ tempering voltage: max. 50 V DC
- Operating Temperature: -20 – 60 °C
- Outer diameter of the cable: 6.0 mm
- Ozone resistance: No
- Pin assignment: 1:1
- Printing: Cat.6A PATCH S/FTP 4x2xAWG27/7 LSZH ISO/IEC11801 ANSI/TIA-568-C.2 ***10Gigabit Ethernet*** www.efb-elektronik.de
- Raw cable: Cat.6A
- Resistance unbalance: 3 %
- Resistant to chemicals: False
- Silicone-free: True
- Suitable for degree of protection (IP): IP20
- Tape width: 500MHz
- Test voltage: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
- Total screening: 80 %
- Transmission: 10Gbit
- Type of connector connection 1: RJ45 8(8)
- Type of connector connection 2: RJ45 8(8)
- UL approbated: False
- UV resistant: Nein
