EFB FTP 1m Cat6a Μαυρο FLAT
Κωδικός plus26: 173-436657
Κωδικός Εργοστασίου (MPN): K5545SW.1

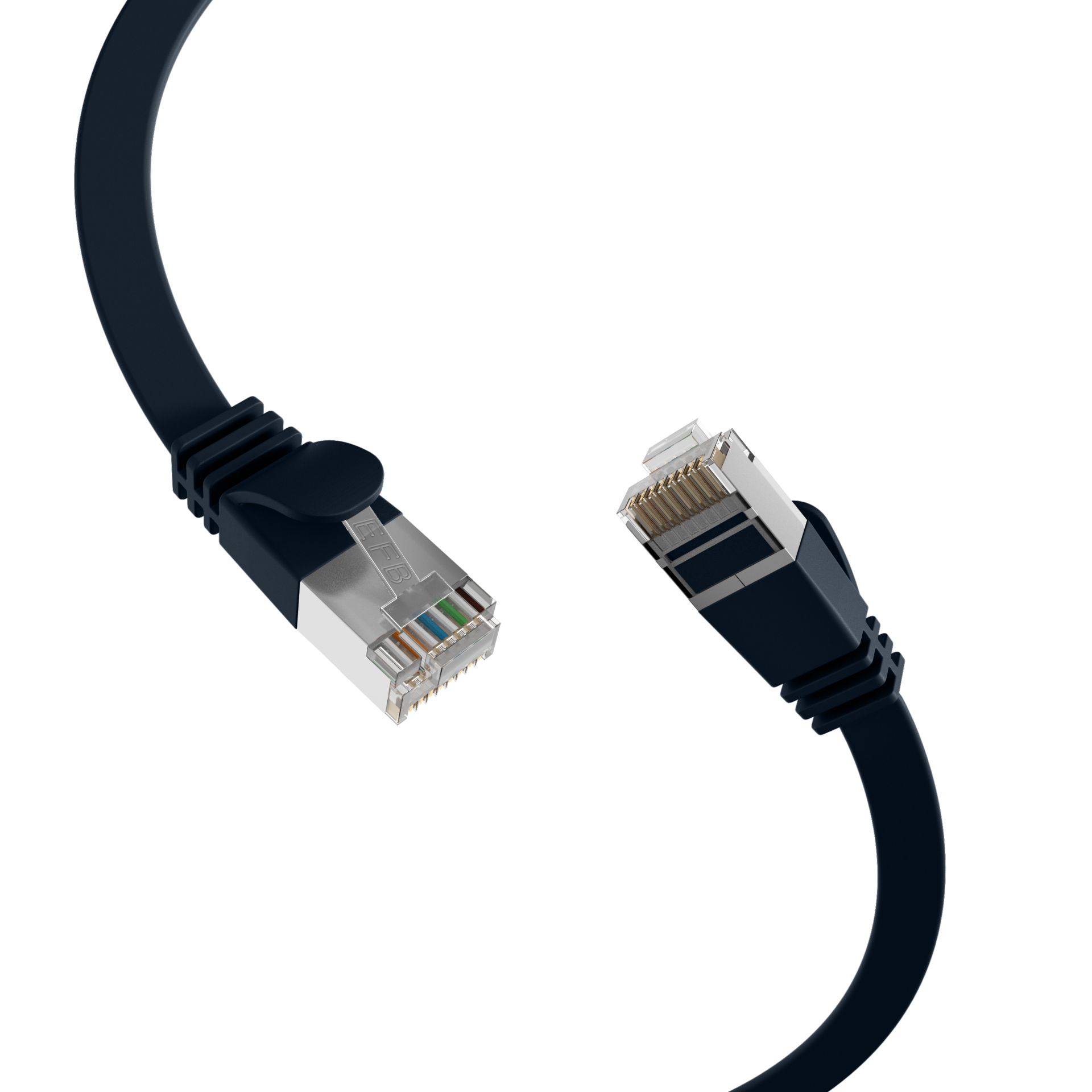

- RJ45 flat patch cable Cat.6A U/FTP PVC
- The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
- Technical product features
- • Cat.6A ( TIA)
- • U/FTP cable with AWG30/7
- • Sheath material made of polyvinyl chloride (PVC)
- • Plug connection: RJ45 to RJ45
- • With locking lever protection
- • Has gold-plated contacts
- < br>The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
- The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B. Suitable for the temperature range -20 - 55 °C.
- The Ethernet cable has a copper conductor material and is ideal for applications in structured building cabling, industrial Ethernet and data centers. This achieves a bandwidth of 500 MHz.
- (Halogenfree): False
- AWG-size: 30/7
- Allocation: acc. TIA/EIA 568B
- Anti-kink sleeve: angespritzt
- Area of application: Industrial Ethernet
- Area of application: Structured cabling
- Bending radius: >20 mm
- Cable construction: 4x2
- Cable shape: flat
- Cable type: U/FTP
- Cabling standard: EN50173
- Cabling standard: ISO/IEC 11801
- Cabling standard: ANSI/TIA-568
- Category: 6A (TIA)
- Colour anti-kink sleeve: schwarz
- Colour outer sheath: black
- Conductive shield: Selected shield contact
- Conductor Material: Copper
- Conductor resistance DC: 376 Ω/km
- Connector: IEC 60603-7-51
- Connector type: RJ45 kurze Ausführung
- Contacts: Gold plated
- Current capacity: max. 1 A
- Fire retardant version: acc. IEC60332-1
- Harmonised Standard: EN 50575
- Impedance: 100 ±15 Ω
- Insulation Resistance: 100 MΩ
- Jacket material: Polyvinylchlorid (PVC)
- Length imprint: Nein
- Locking lever: Ja
- Loop resistance: 752 Ω/km
- Mating cycles: >750
- Model: shielded
- NVP value: 76 %
- Oil resistant: No
- Operating-/ tempering voltage: max. 50 V DC
- Operating Temperature: -20 – 55 °C
- Outer diameter of the cable: 7,0*2,2 mm
- Ozone resistance: No
- Pin assignment: 1:1
- Resistance unbalance: < 4 %
- Resistant to chemicals: False
- Silicone-free: True
- Suitable for degree of protection (IP): IP20
- Tape width: 500MHz
- Test voltage: 1000 (V DC, 1min) Ader/Ader und Ader/Schirm
- Transmission: 10Gbit
- Type of connector connection 1: RJ45 8(8)
- Type of connector connection 2: RJ45 8(8)
- UL approbated: False
- UV resistant: Nein
