EFB COUPLER STP Cat6a Industrial waterproof IP68
Κωδικός plus26: 173-416583
MPN: IP68DFKRJ456AWP
IP68 cable connector for outdoor installation and direct burial. Integrated Cat.6A RJ45 jack to facilitate connection. Designed for transmissions up to 500MHz according to ISO/IEC 11801 ClassEA and Data transmission rate up to 10 Gbit/s.
- Easy installation
- Waterproof cable connector of protection class IP68
- Max. Voltage of 125V and max. current of 1.5A
- Cable gland in PG16
- For cables with a diameter of 4,5 mm- 10 mm
- L x D 121.5mm x 28 mm
Εγγραφείτε για τιμή

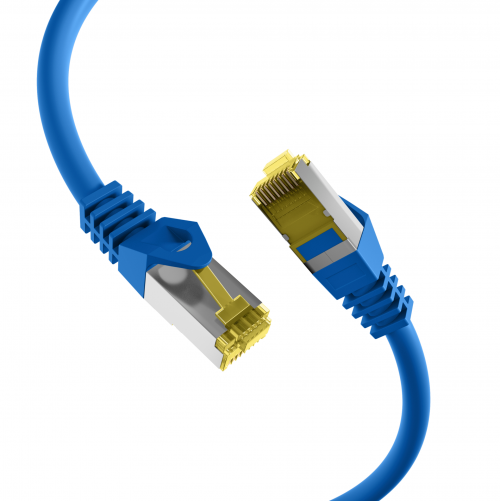

EFB SFTP 5m Cat7 cable ΜΠΛΕ LSZH MK7001.5BL
Κωδικός plus26: 173-371714
MPN: MK7001.5BL
Product information for RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 5m
The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Εγγραφείτε για τιμή
EFB SFTP 30m Cat7 cable ΚΟΚΚΙΝΟ LSZH MK7001.30R
Κωδικός plus26: 173-376020
MPN: MK7001.30R
RJ45 patch cable Cat.6A S/FTP LSZH Cat.7 raw cable
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the yellow RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range -20 - 60 °C.
The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. The frequency range is 500 MHz.
Εγγραφείτε για τιμή
EFB UTP 5m Cat6 GREY K8100GR.5
Κωδικός plus26: 173-372715
MPN: K8100GR.5
The unshielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Εγγραφείτε για τιμή
EFB SFTP 3m Cat7 cable LSZH MK7001.3BLACK
Κωδικός plus26: 173-356187
MPN: MK7001.3BLACK
The shielded Cat.6A RJ45 patch cable with ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Length imprint on the boot
Εγγραφείτε για τιμή
EFB SFTP 0.5m Cat6 Μπλε LSZH K5513.0,5
Κωδικός plus26: 173-385234
MPN: K5513.0,5
The shielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications.
Εγγραφείτε για τιμή
EFB FTP 1m Cat6a Μαυρο FLAT
Κωδικός plus26: 173-436657
MPN: K5545SW.1
RJ45 flat patch cable Cat.6A U/FTP PVC
The Cat.6A (TIA) patch cable has gold-plated contacts and meets the requirements for 10Gbit Ethernet.
Technical product features
• Cat.6A ( TIA)
• U/FTP cable with AWG30/7
• Sheath material made of polyvinyl chloride (PVC)
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
< br>The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material. In addition, the cable offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The assignment of the particularly short RJ45 plugs is 1:1 and follows TIA/EIA 568B. Suitable for the temperature range -20 - 55 °C.
The Ethernet cable has a copper conductor material and is ideal for applications in structured building cabling, industrial Ethernet and data centers. This achieves a bandwidth of 500 MHz.
Εγγραφείτε για τιμή

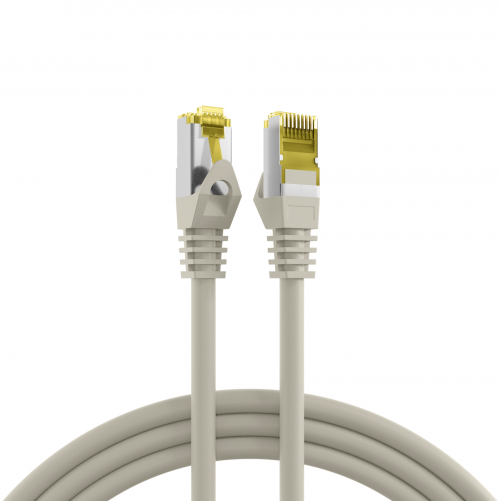

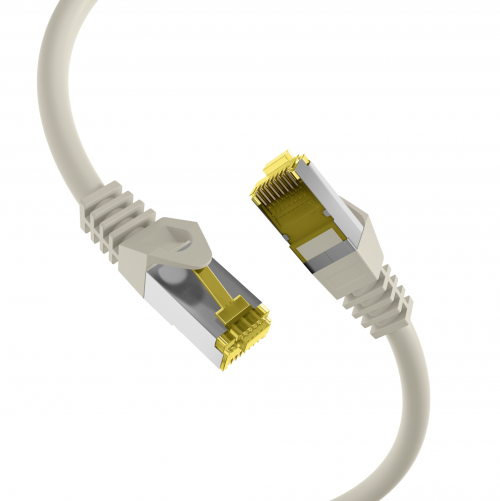

EFB SFTP 7.5m Cat7 cable ΓΚΡΙ LSZH MK7001.7,5G
Κωδικός plus26: 173-356188
MPN: MK7001.7,5G
The shielded Cat.6A RJ45 patch cable with ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Length imprint on the boot
Εγγραφείτε για τιμή
EFB RJ45 Patch cable S/FTP Cat.6A LSZH Cat.7 Raw cable 15m green MK7001.15GR
Κωδικός plus26: 5853-437
MPN: MK7001.15GR
Product information for RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable green 15m
The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Εγγραφείτε για τιμή
EFB RJ45 Patch cable S/FTP Cat.6A TM21 Dätwyler 7702 20m grey 10G 500MHz K8708GR.20
Κωδικός plus26: 5853-603
MPN: K8708GR.20
The Cat.6A RJ45 patch cable manufactured in Europe guarantees very good characteristics for 10 Gigabit Ethernet applications. The patch cable is composed of the Cat.7 raw cable CU 7702 flex from Daetwyler and TM21 connectors from Hirose.
Cross section 4 x 2 x AWG26/7
Mounted anti-kink grommet
Clear differentiation of the cores in the assembled connector thanks to different core colours
Εγγραφείτε για τιμή
EFB Keystone installation metal frame 1-Port ET-25188.1
Κωδικός plus26: 5861-377
MPN: ET-25188.1
For 1 keystone or adaper
Features:
Housing material: zinc-diecast
Universal use on every flat surface/housing, cable duct or wood/metal cover
Staight outlet: 0°
Breakout hole: 24 x 18mm
Εγγραφείτε για τιμή
EFB F/O SC/APC-LC 1m 9/125 SINGLEMODE LSZH
Κωδικός plus26: 173-416153
MPN: O0362.1
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Εγγραφείτε για τιμή
EFB UTP 20m Cat6 κοκκινο K8100RT.20
Κωδικός plus26: 173-356236
MPN: K8100RT.20
The unshielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Εγγραφείτε για τιμή
EFB F/O LC-ST 2m 50/125 LSZH M2T222D2OR
Κωδικός plus26: 1306-57
MPN: M2T222D2OR
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been
developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper(patchcord) are defined as shortest connection between passive interface and active deviceport,
regarding structured cabling standard. Rating of performance, known as category, as well as performance of total
transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable,
adapter cable, interconnecting cord, Jumper
Εγγραφείτε για τιμή
EFB SFTP 50m CAT6a Λευκο LSOH
Κωδικός plus26: 173-439424
MPN: MK6001.50W
RJ45 patch cable Cat.6A S/FTP LSZH
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6A ( TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the green RJ45 plugs is according to TIA/EIA 568B and is 1 :1. Suitable for the temperature range -20 - 60 °C.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is 500 MHz.
Εγγραφείτε για τιμή
|
|
