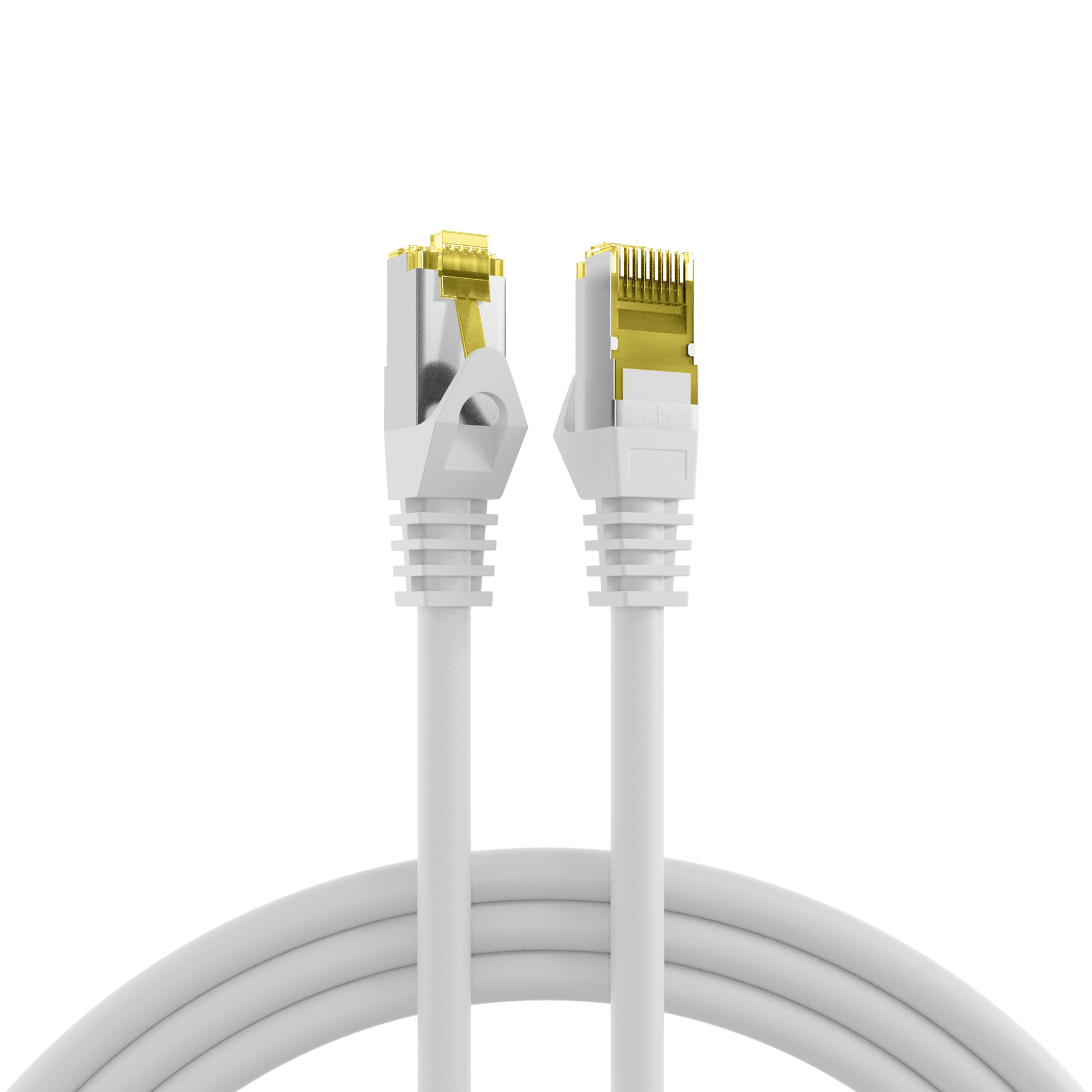

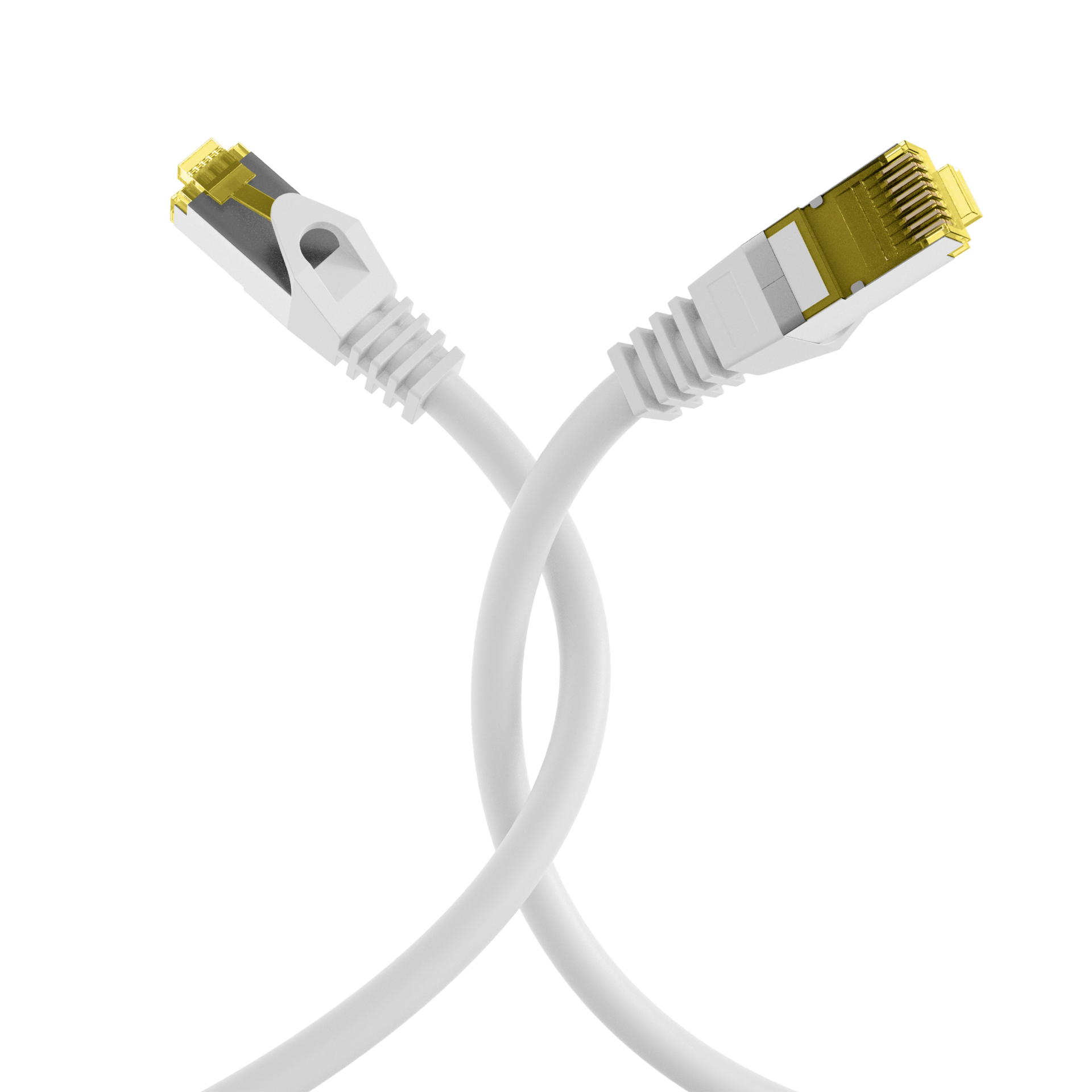

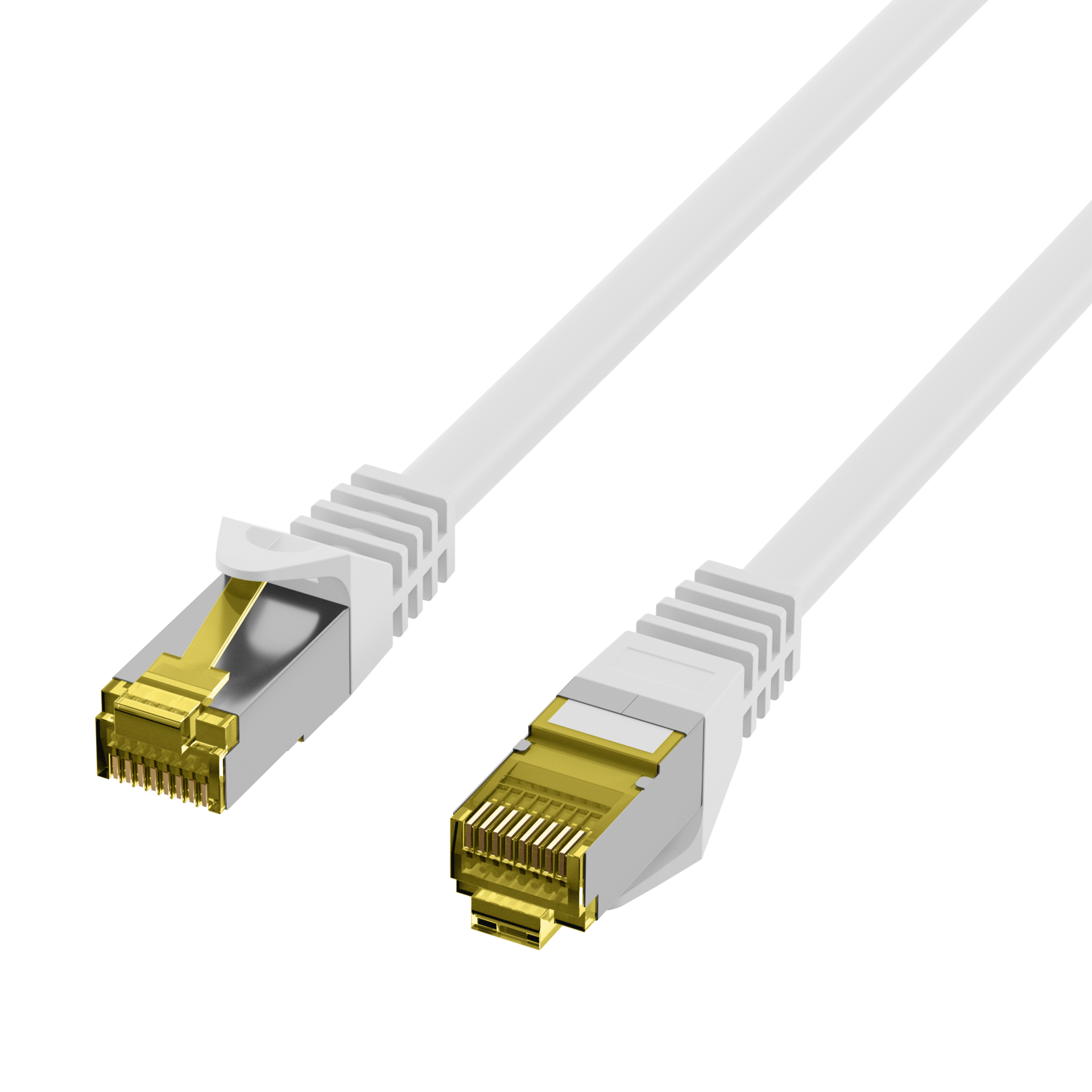

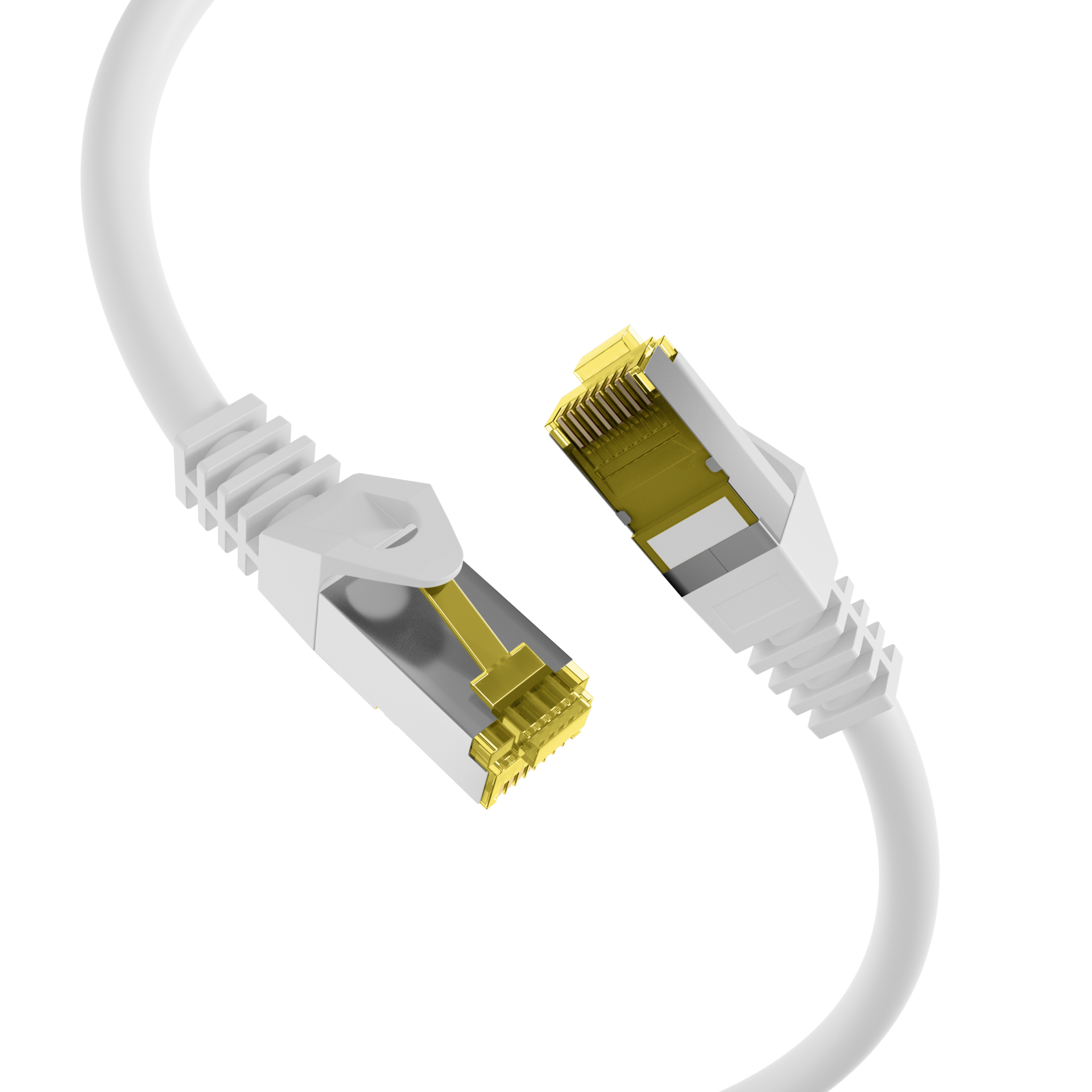

The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

• Cross section 4 x 2 x AWG26 / 7
• Moulded grommet, slim design
• Length imprint on the boot

• AWG-size: 26/7
• Allocation: acc. TIA/EIA 568B
• Anti-kink sleeve: plugged in
• Area of Application: Data center, Industrial Ethernet, Structured cabling
• Bandwidth: 500MHz
• Bending radius: >32.5 mm
• Cable construction: 4x2
• Cable type: S/FTP
• Category: 6A (TIA)
• Colour anti-kink sleeve: white
• Colour outer sheath: white
• Conductive shield: Selected shield contact
• Conductor Material: Copper
• Conductor resistance DC: 146 Ω/km
• Connector: IEC 60603-7-51
• Connector type: RJ45 Standard yellow
• Contact Resistance: 30 mΩ
• Contacts: Gold plated
• Current Rating: max. 1 A
• Fire retardant version: True
• Flame retardant: acc. IEC60332-1
• Halogen-free: yes
• Halogen free: True
• Impedance: 100 ±5 Ω
• Insulation Resistance: 10 MΩ
• Length imprint: True
• Locking lever: True
• Loop resistance: 292 Ω/km
• Low smoke: acc. IEC61034
• Material outer sheath: LSZH
• Mating cycles: 2000
• Model: Shielded
• Oil resistant (acc. EN 60811-2-1): False
• Oil resistant (according to EN 60811-404): False
• Operating-/ tempering voltage: max. 50 V DC
• Outer diameter of the cable: 6.5 mm
• POE class: 4PPoE acc. to IEEE802.3bt, PoE+ acc. to IEEE802.3at, PoE acc. to IEEE802.3af
• Pin assignment: 1:1
• Printing: Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT***
• Raw cable: Cat.7
• Resistance unbalance: 5 %
• Silicone-free: True
• Suitable for degree of protection (IP): IP20
• Temperature range: -20 – 60 °C
• Test voltage: 1000 V DC, 1min
• Transmission: 10Gbit
• Type of connector connection 1: RJ45 8(8)
• Type of connector connection 2: RJ45 8(8)
