EFB SFTP 5m Cat7 cable ΜΠΛΕ LSZH MK7001.5BL

Κωδικός plus26: 173-371714

Κωδικός Εργοστασίου (MPN): MK7001.5BL

Εγγραφείτε για τιμή

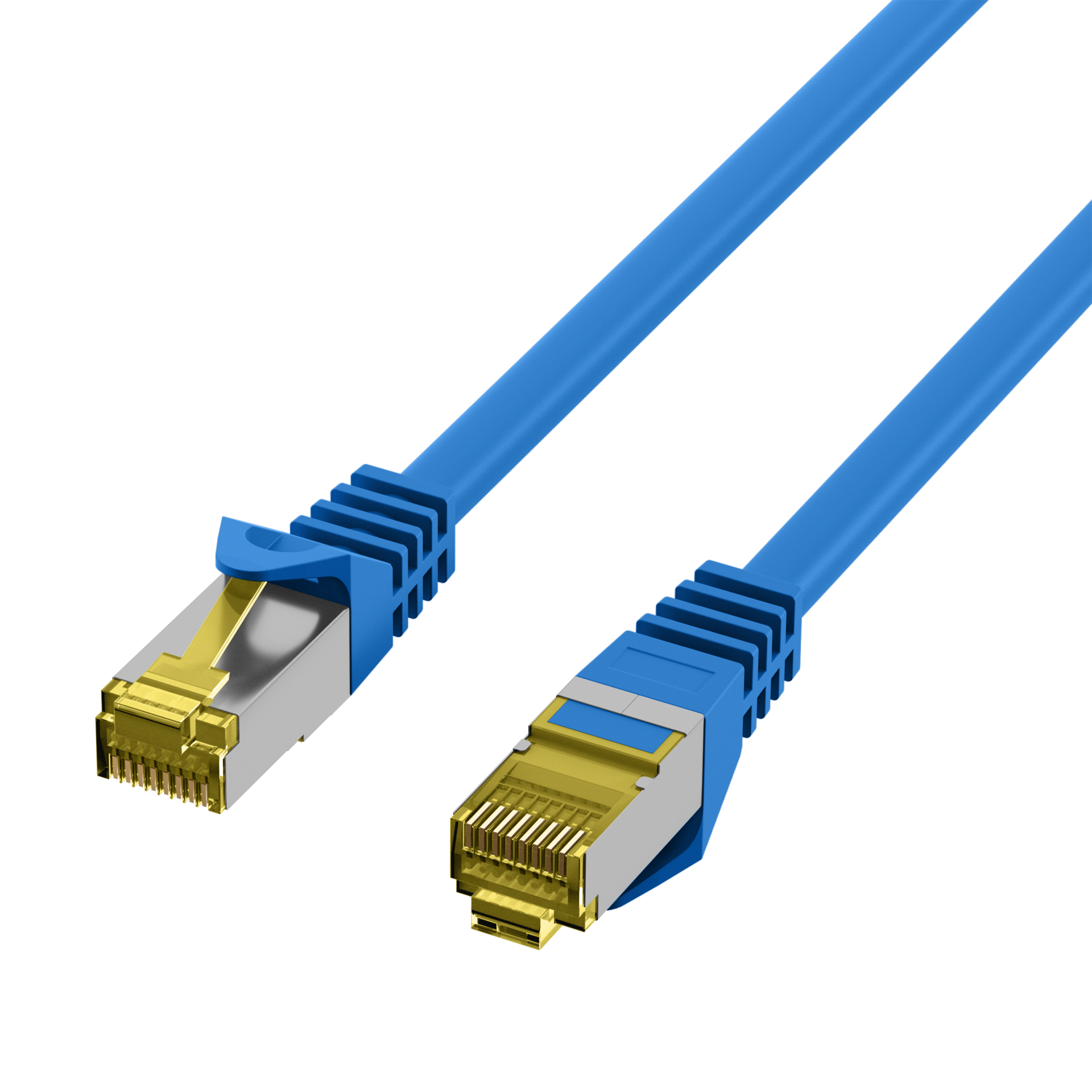

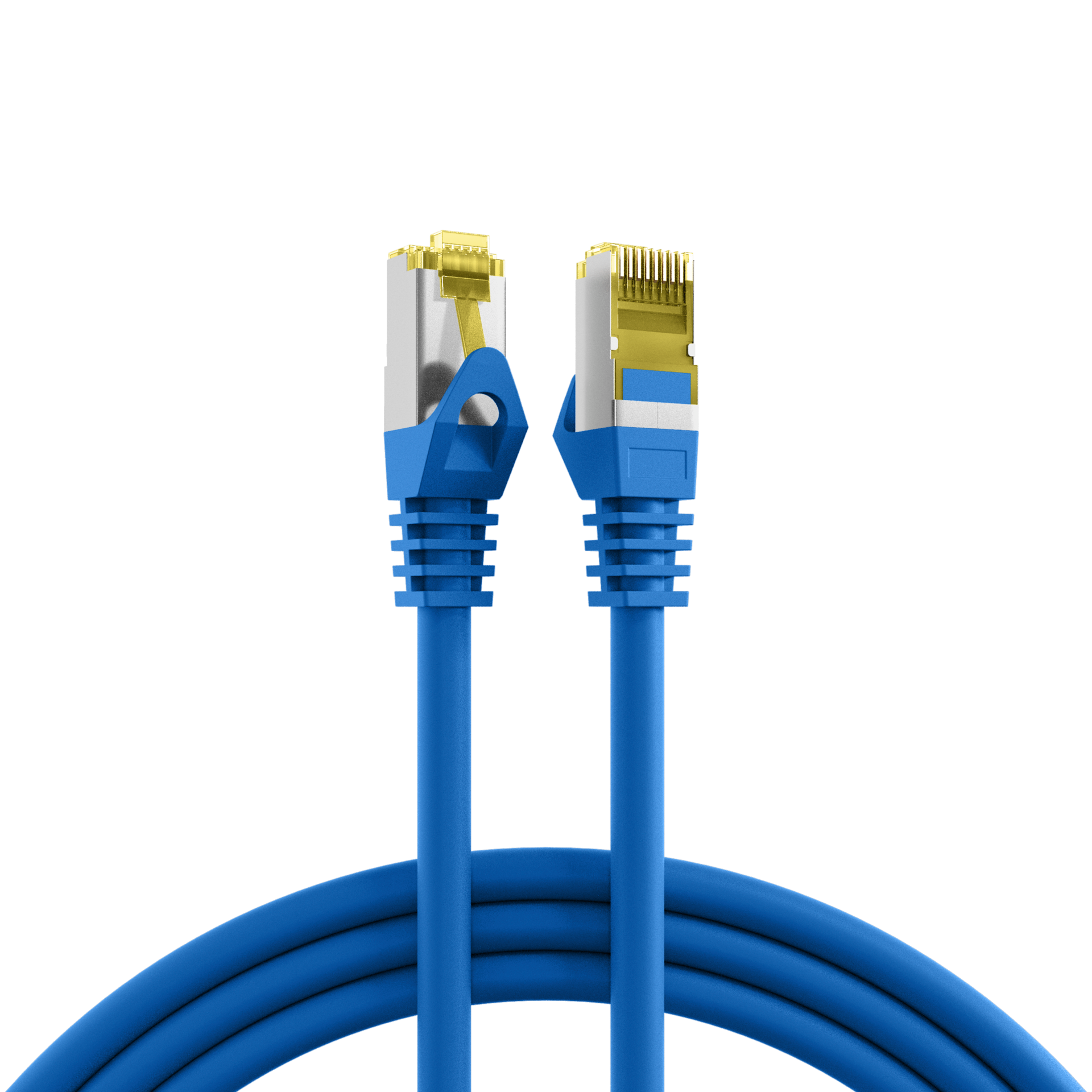

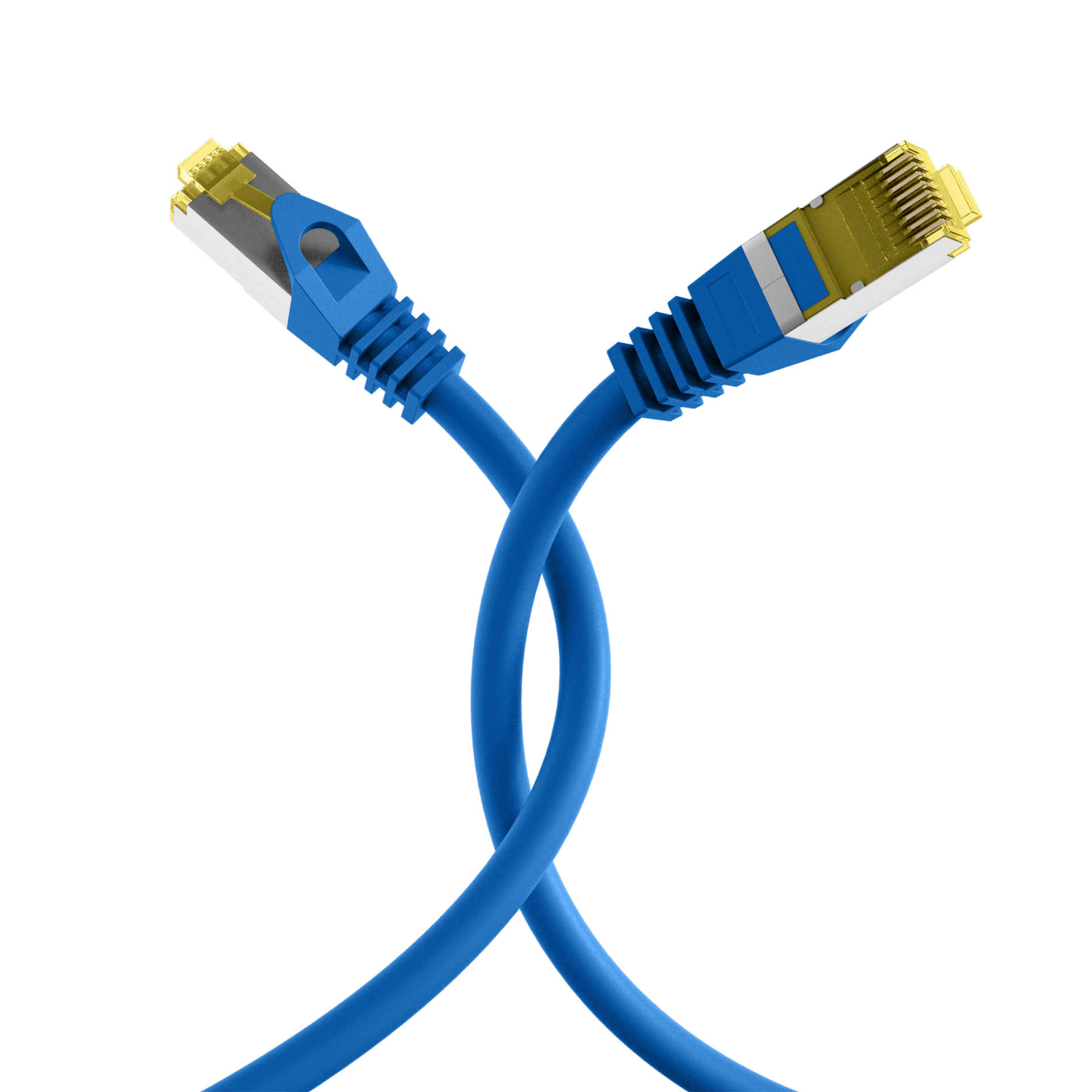

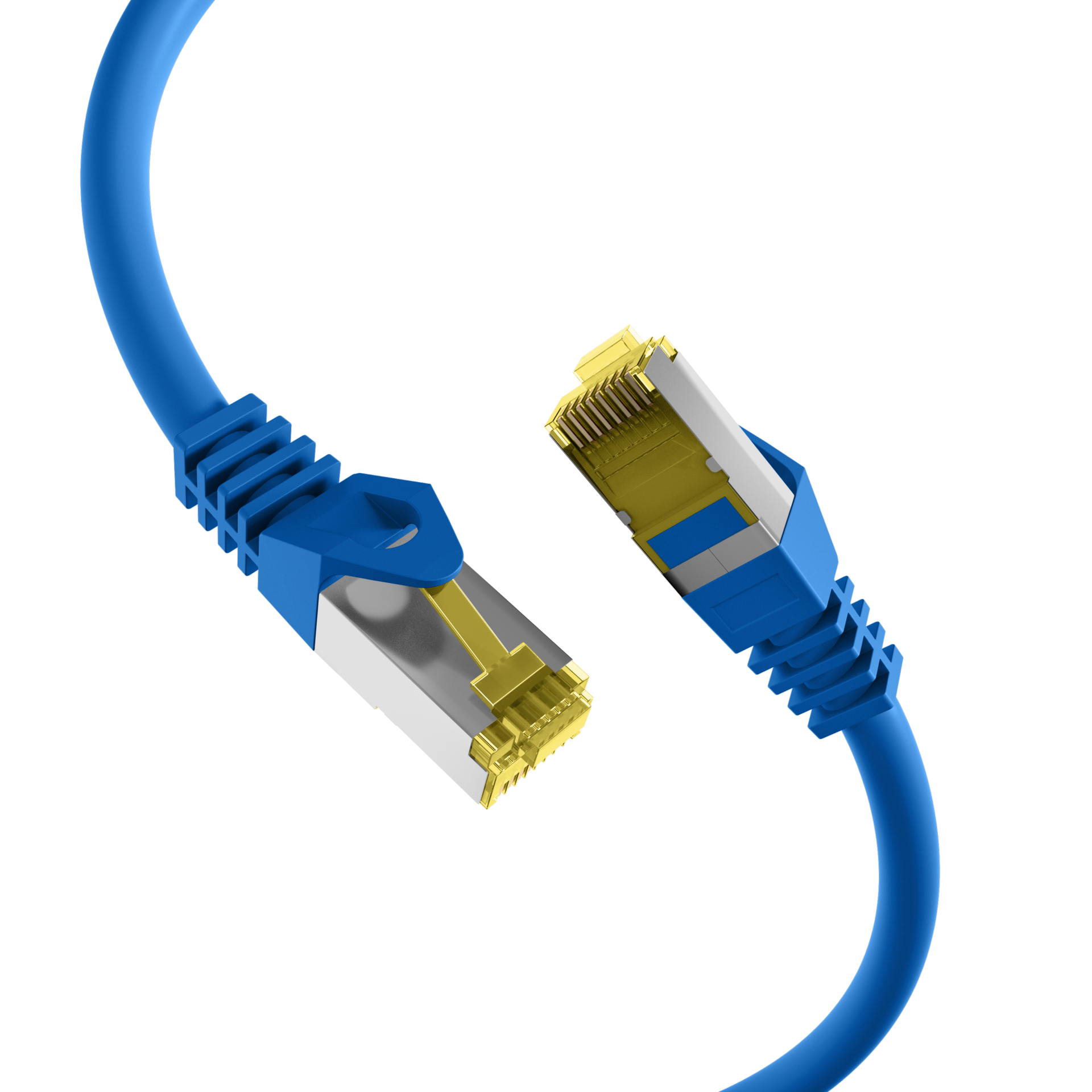

Product information for RJ45 Patch Cord Cat.6A S/FTP LSZH Cat.7 raw cable blue 5m

The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG26 / 7

Moulded grommet, slim design

AWG-size: 26/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: plugged in
Area of Application: Data center
Industrial Ethernet
Structured cabling
Bandwidth: 500MHz
Bending radius: >32.5 mm
Cable construction: 4x2
Cable type: S/FTP
Category: 6A (TIA)
Colour anti-kink sleeve: blue
Colour outer sheath: blue
Conductive shield: Selected shield contact
Conductor Material: Copper
Conductor resistance DC: 146 Ω/km
Connector: IEC 60603-7-51
Connector type: RJ45 Standard yellow
Contact Resistance: 30 mΩ
Contacts: Gold plated
Current Rating: max. 1 A
Fire retardant version: True
Flame retardant: acc. IEC60332-1
Halogen-free: yes
Halogen free: True
Impedance: 100 ±5 Ω
Insulation Resistance: 10 MΩ
Length imprint: True
Locking lever: True
Loop resistance: 292 Ω/km
Low smoke: acc. IEC61034
Material outer sheath: LSZH
Mating cycles: 2000
Model: Shielded
Oil resistant (acc. EN 60811-2-1): False
Oil resistant (according to EN 60811-404): False
Operating-/ tempering voltage: max. 50 V DC
Outer diameter of the cable: 6.5 mm
POE class: 4PPoE acc. to IEEE802.3bt
PoE+ acc. to IEEE802.3at
PoE acc. to IEEE802.3af
Pin assignment: 1:1
Printing: Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT*** www.efb-elektronik.de
Raw cable: Cat.7
Resistance unbalance: 5 %
Silicone-free: True
Suitable for degree of protection (IP): IP20
Temperature range: -20 – 60 °C
Test voltage: 1000 V DC, 1min
Transmission: 10Gbit
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
