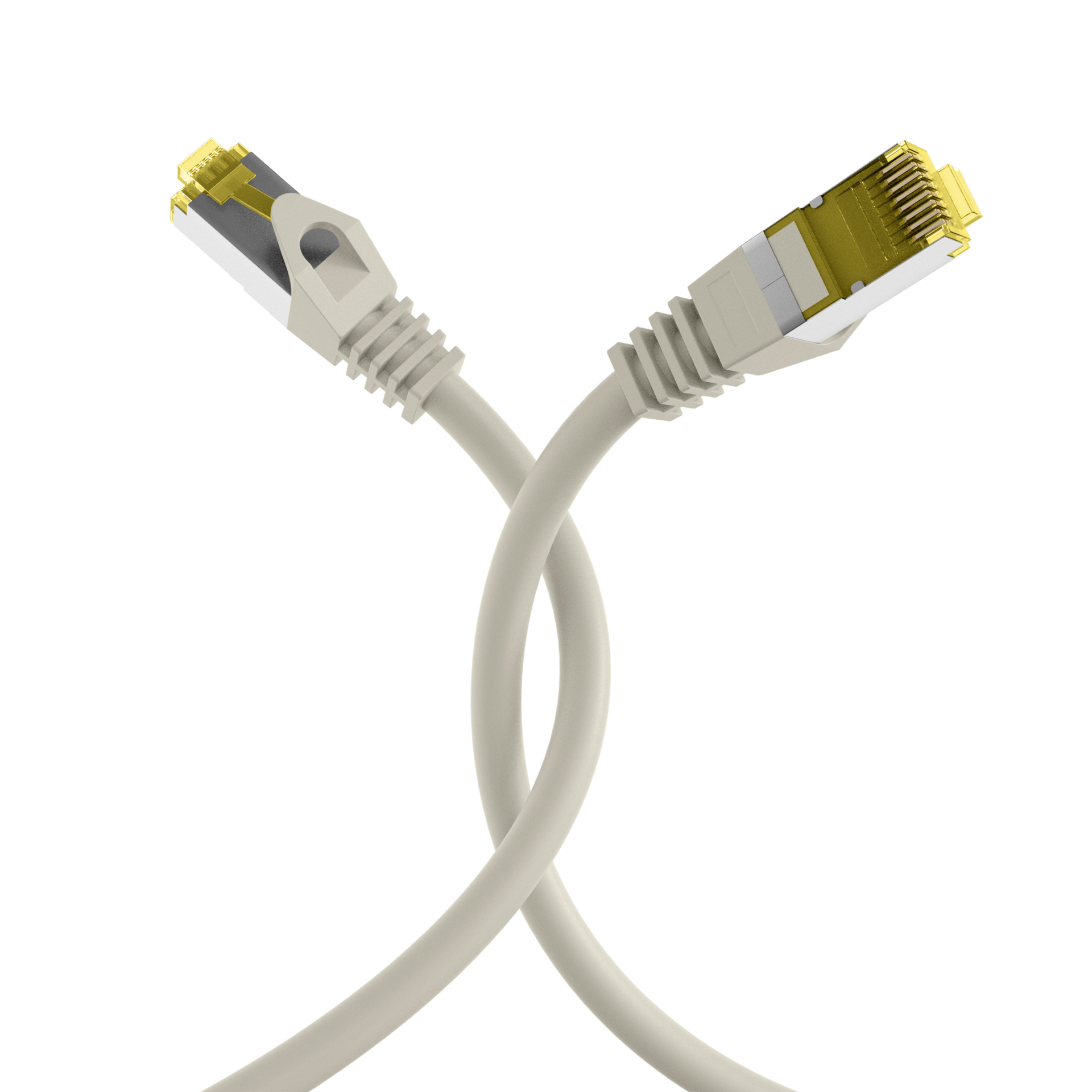

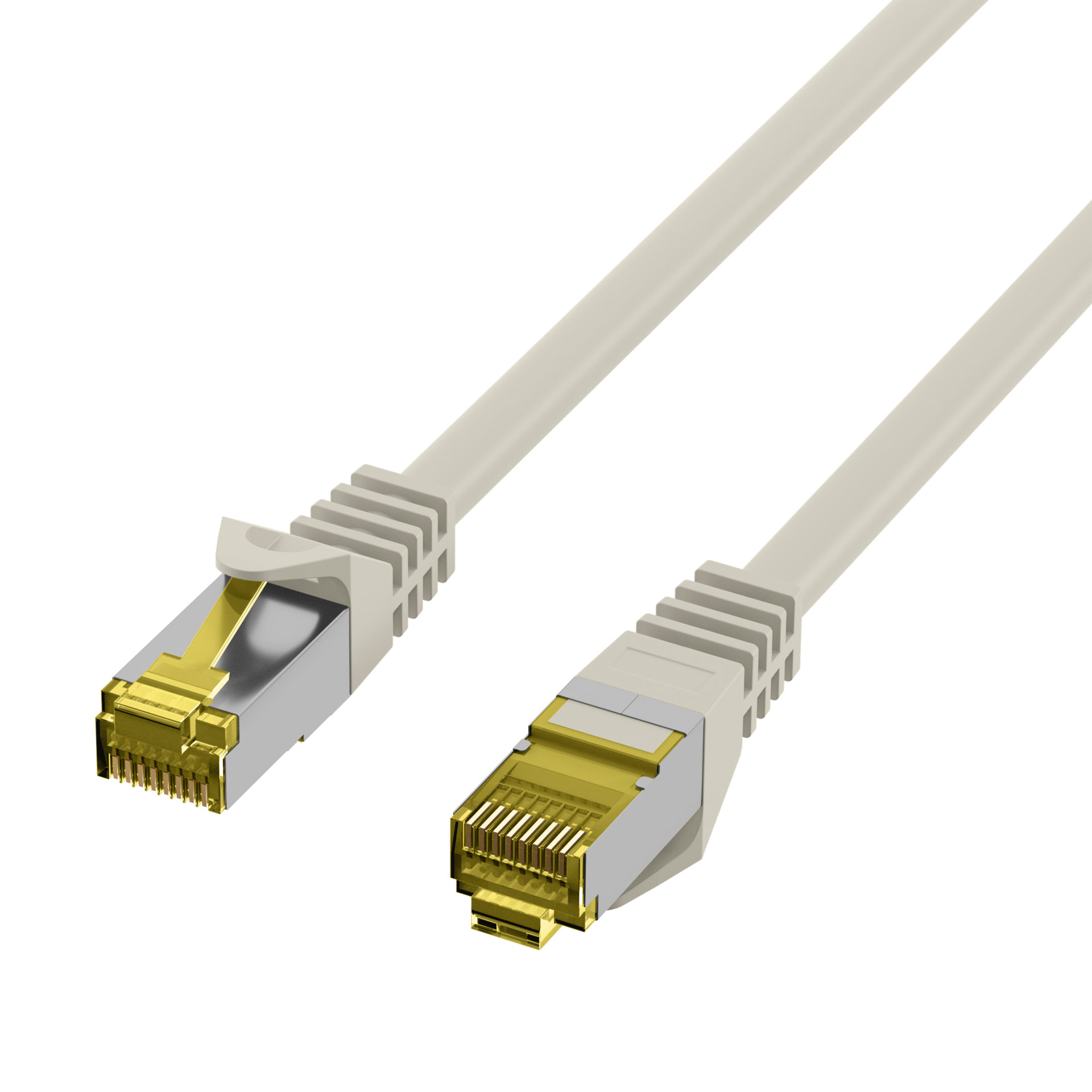

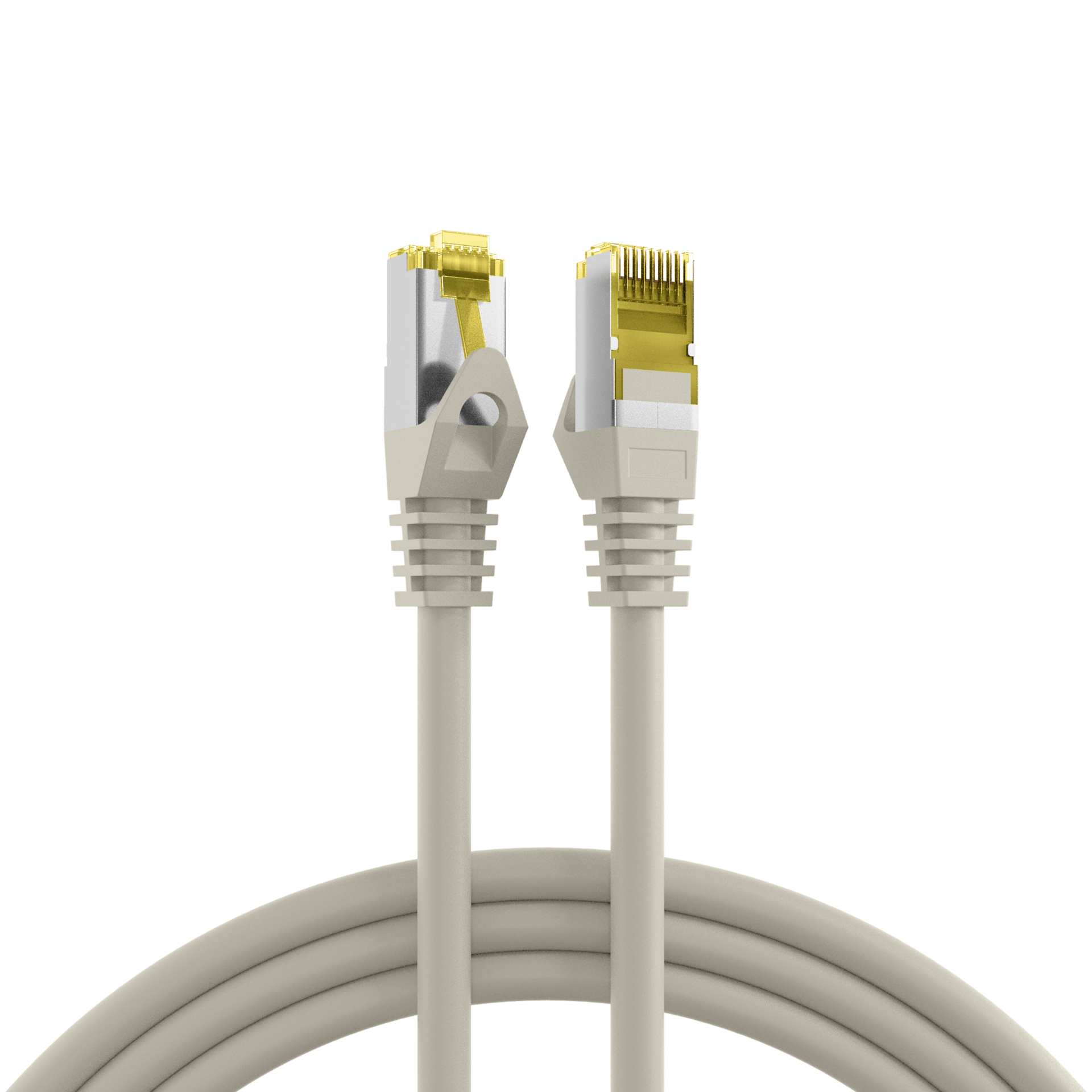

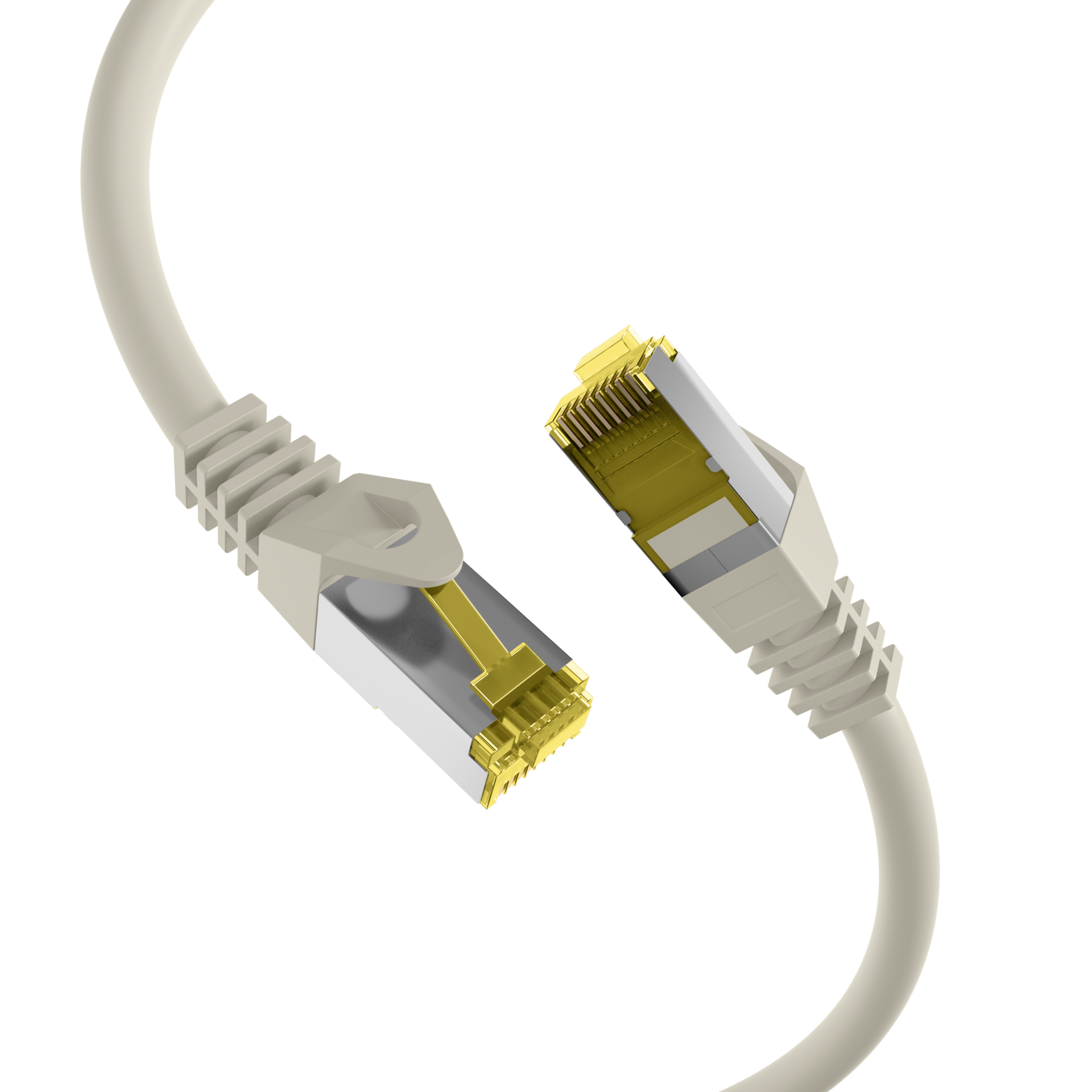

The shielded Cat.6A RJ45 patch cable with ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

• Cross section 4 x 2 x AWG26 / 7
• Moulded grommet, slim design
• Length imprint on the boot
• Category 6A (TIA)
• Type of connector connection 1 RJ45 8(8)
• Type of connector connection 2 RJ45 8(8)
• Connector type RJ45 Standard yellow
• Contacts Gold plated
• Pin assignment 1:1
• Allocation acc. TIA/EIA 568B
• Type Shielded
• Length imprint yes
• Anti-kink sleeve moulded
• Colour anti-kink sleeve grey
• Locking lever yes
• Mating cycles ≥750
• Bending radius >32,5 mm
• Conductive shield Selected shield contact
• Raw cable Cat.7
• Cable structure S/FTP
• Cable construction 4x2
• AWG-size/strands per core 26/7
• Conductor Material Copper
• Silicone-free yes
• Jacket material LSZH
• Colour outer sheath grey
• Printing Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT***
• Outer diameter of the cable 6.5 mm
• Flame-retardant acc. IEC60332-1
• Halogen-free acc. IEC60754-2
• Low smoke acc. IEC61034
• Temperature range -20 – 60 °C
• Impedance 100 ±5 Ω
• Conductor resistance DC 146 Ω/km
• Loop resistance 292 Ω/km
• Resistance unbalance 5 %
• Insulation resistance 10 MΩ
• Contact resistance 30 mΩ
• Test voltage 1000 (V DC, 1min) core/core und core/screen
• POE class PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
• Bandwidth 500MHz
• Transmission 10Gbit
• Connector IEC 60603-7-51
