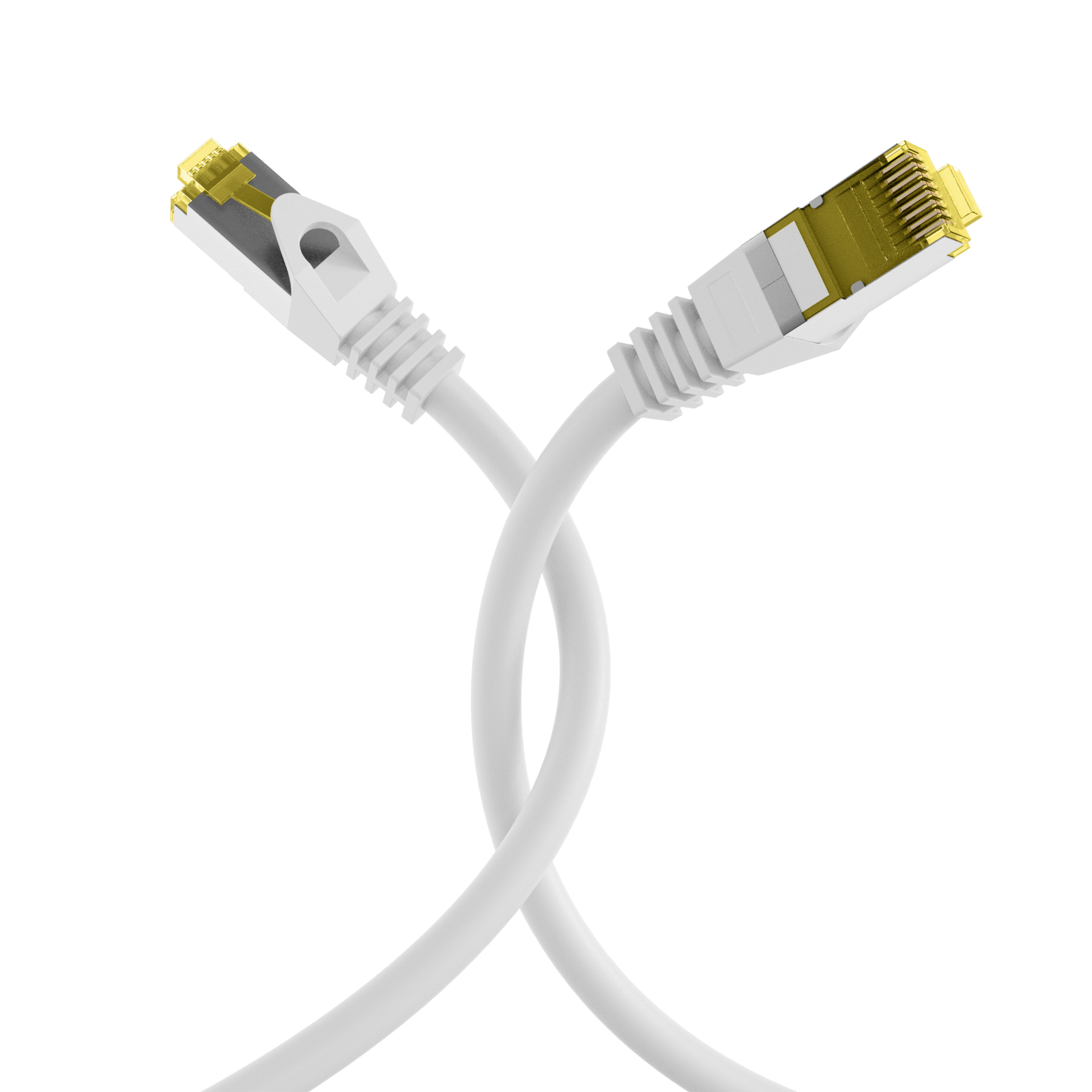

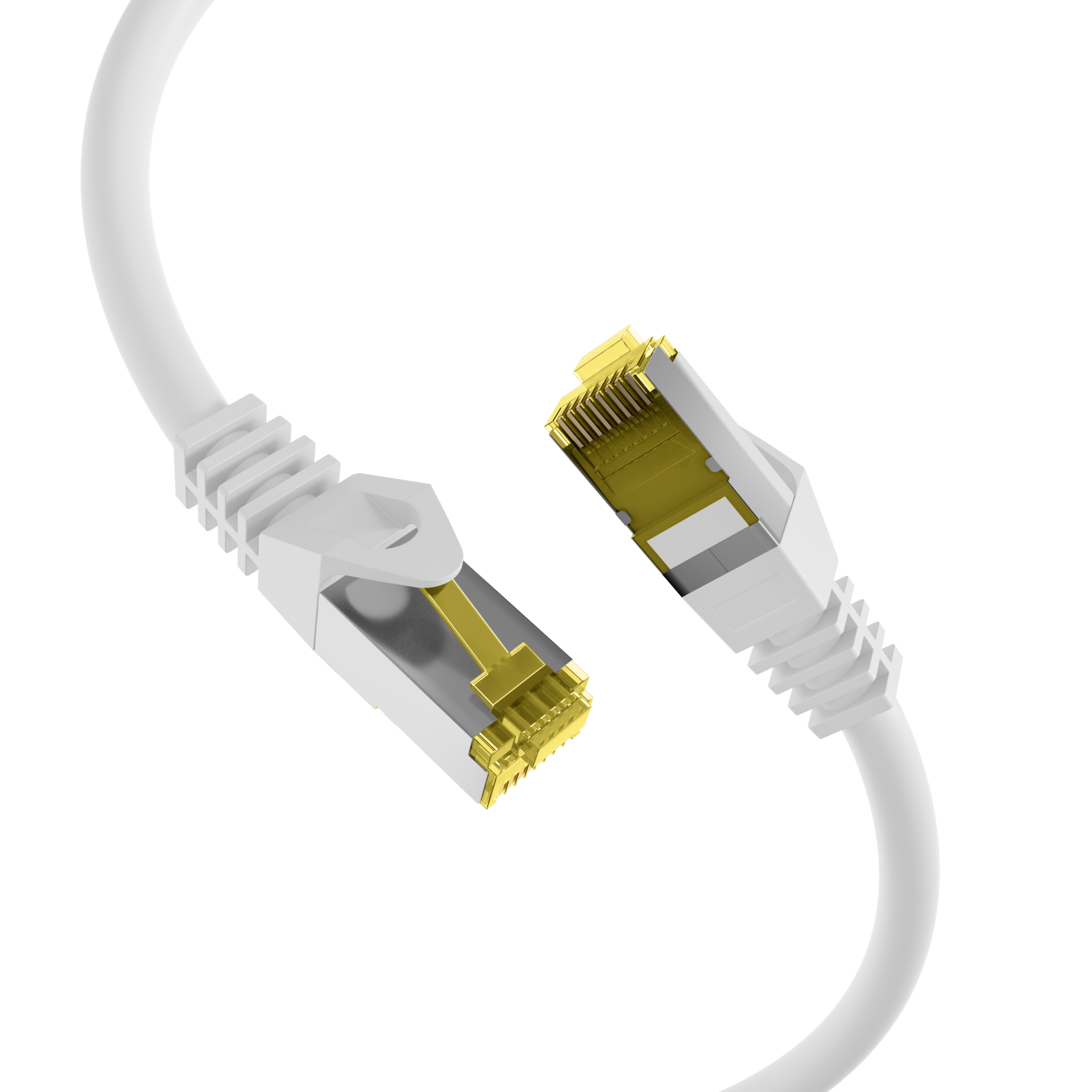

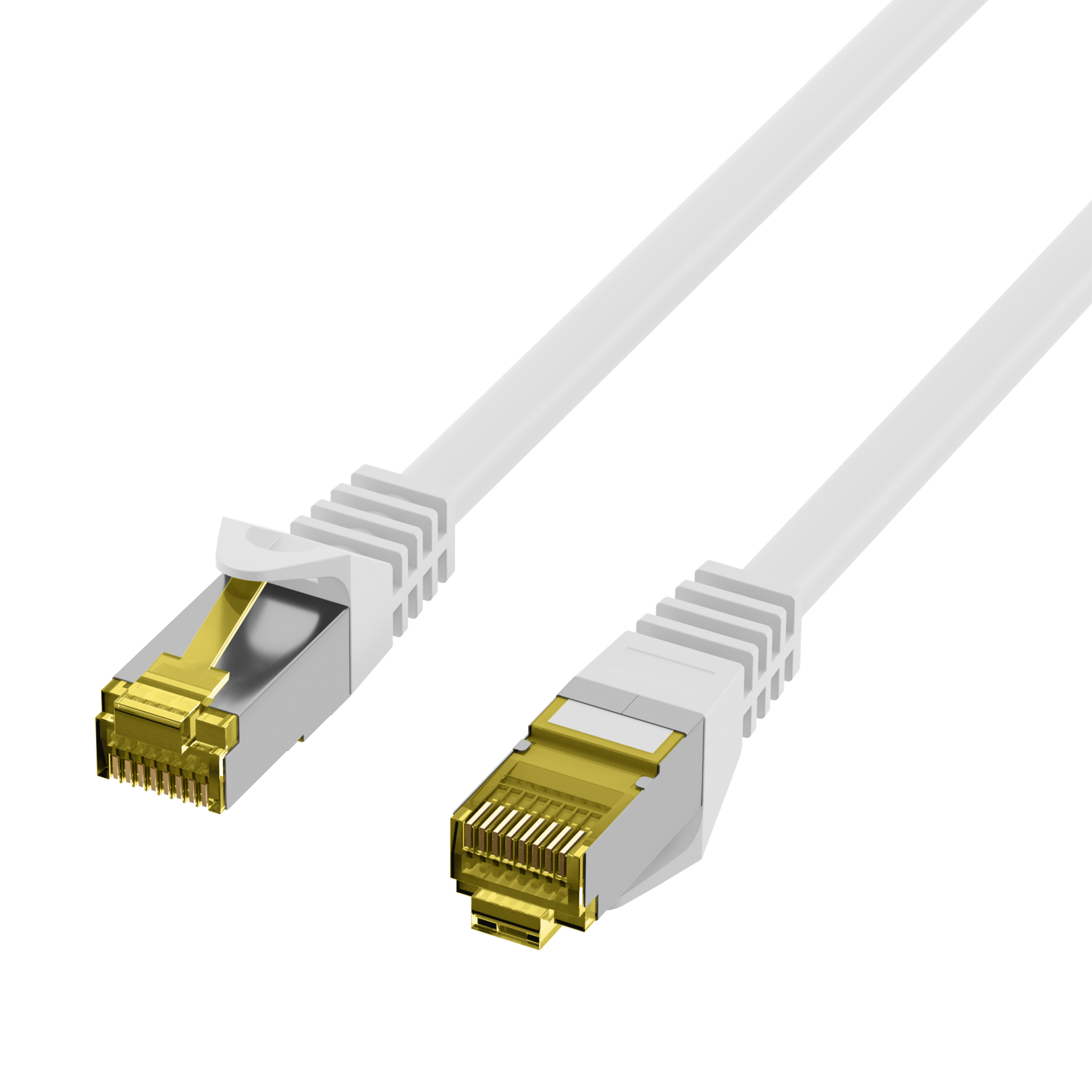

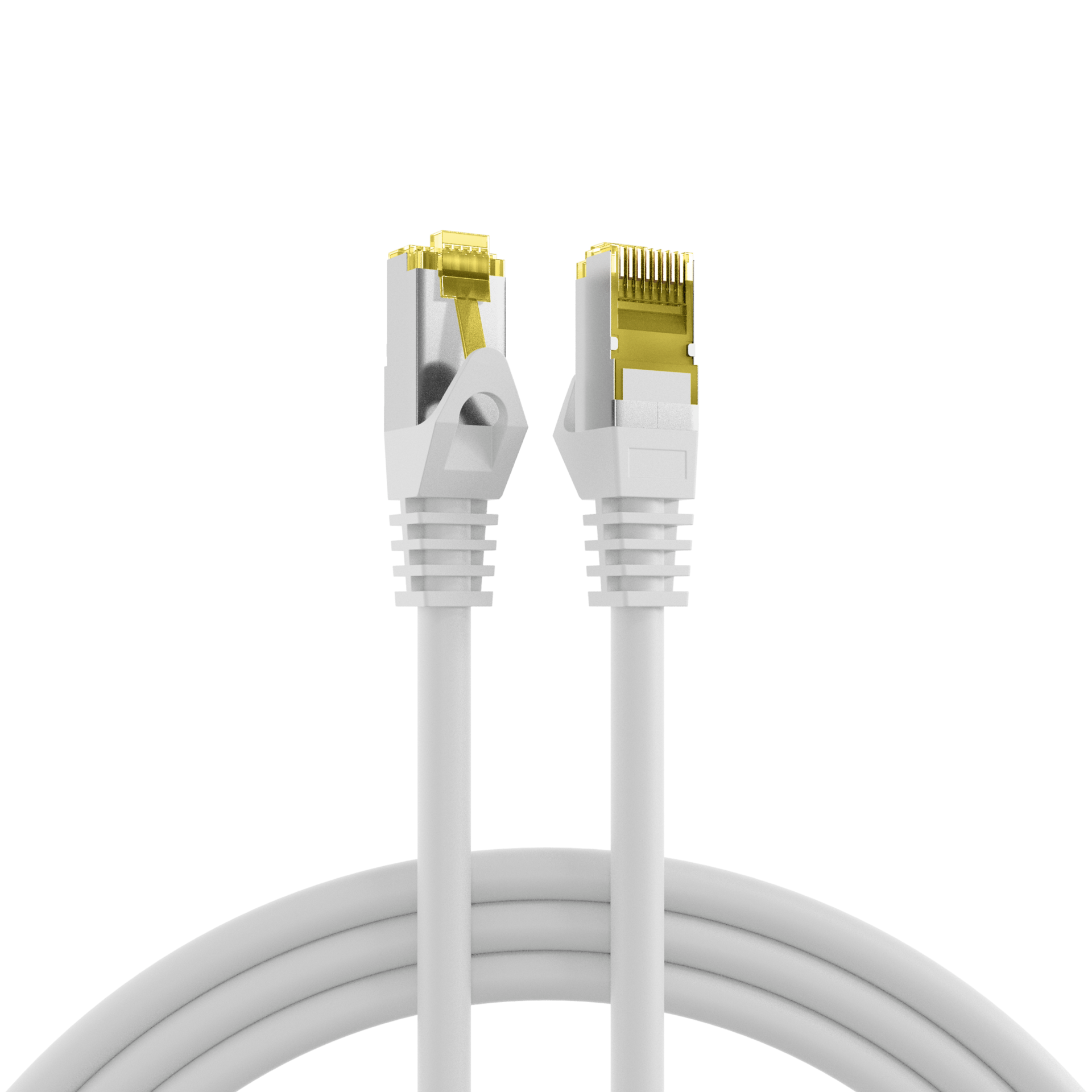

EFB RJ45 Patch cable S/FTP Cat.6A LSZH Cat.7 Raw cable 10m white MK7001.10W

Κωδικός plus26: 5853-260

Κωδικός Εργοστασίου (MPN): MK7001.10W

Εγγραφείτε για τιμή

The shielded Cat.6A RJ45 patch cable with ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Category 6A (TIA)
Type of connector connection 1 RJ45 8(8)
Type of connector connection 2 RJ45 8(8)
Connector type RJ45 Standard yellow
Contacts Gold plated
Pin assignment 1:1
Allocation acc. TIA/EIA 568B
Type Shielded
Length imprint yes
Anti-kink sleeve moulded
Colour anti-kink sleeve white
Locking lever yes
Mating cycles ≥750
Bending radius >32,5 mm
Conductive shield Selected shield contact
Raw cable Cat.7
Cable structure S/FTP
Cable construction 4x2
AWG-size/strands per core 26/7
Conductor Material Copper
Silicone-free yes
Jacket material LSZH
Colour outer sheath white
Printing Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT***
Outer diameter of the cable 6.5 mm
Flame-retardant acc. IEC60332-1
Halogen-free acc. IEC60754-2
Low smoke acc. IEC61034
Temperature range -20 – 60 °C
Impedance 100 ±5 Ω
Conductor resistance DC 146 Ω/km
Loop resistance 292 Ω/km
Resistance unbalance 5 %
Insulation resistance 10 MΩ
Contact resistance 30 mΩ
Test voltage 1000 (V DC, 1min) core/core und core/screen
Bandwidth 500MHz
Transmission 10Gbit
Connector IEC 60603-7-51
