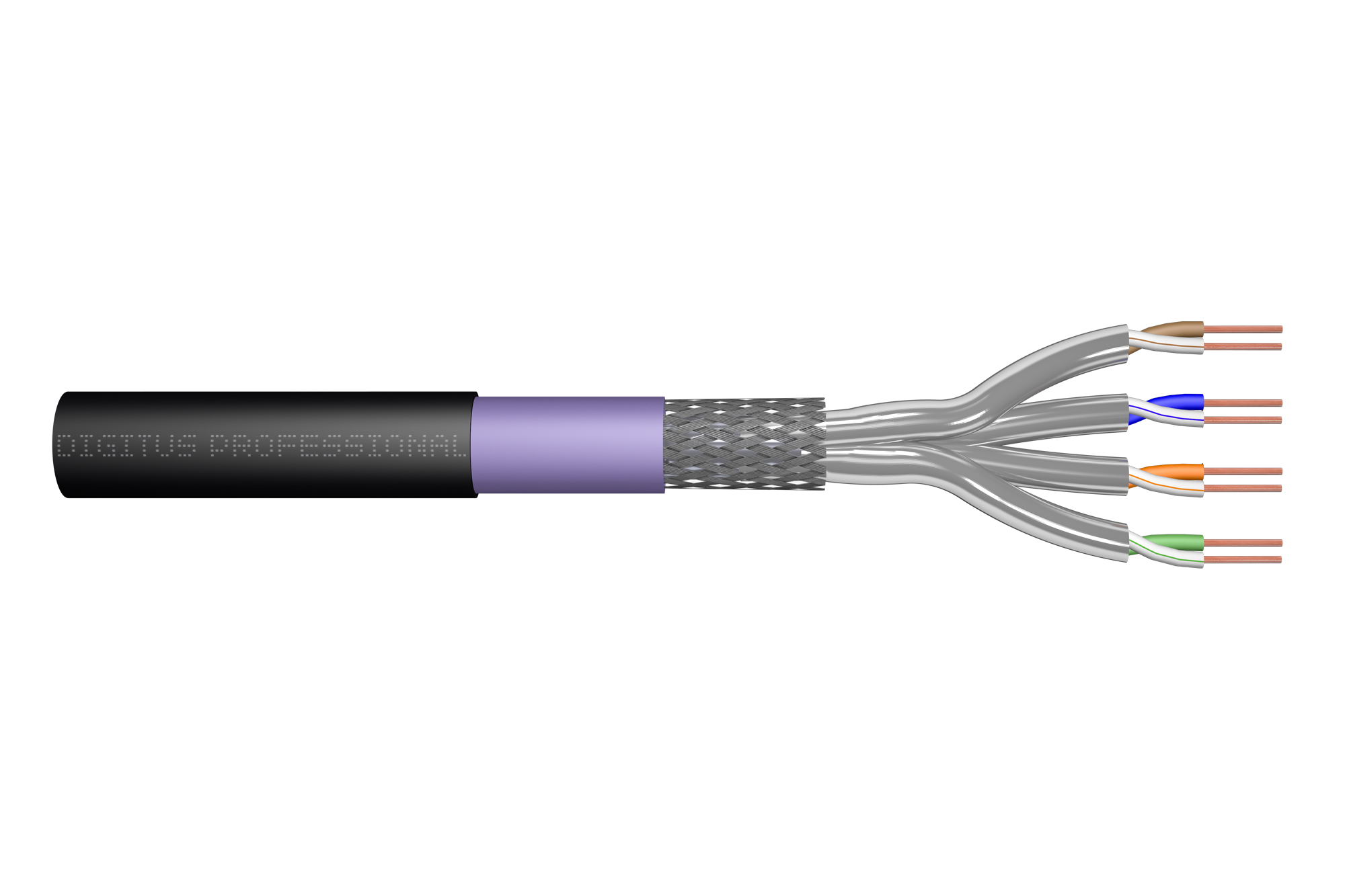

CAT 7 S-FTP outdoor installation cable, 1200 MHz PE, inner Eca (LSZH-1), AWG 23/1, 100 m ring, simplex, color black & purple

Future-oriented standards and high-end quality for your network.

• 10GBit Ethernet
• 1200 MHz transmission frequency

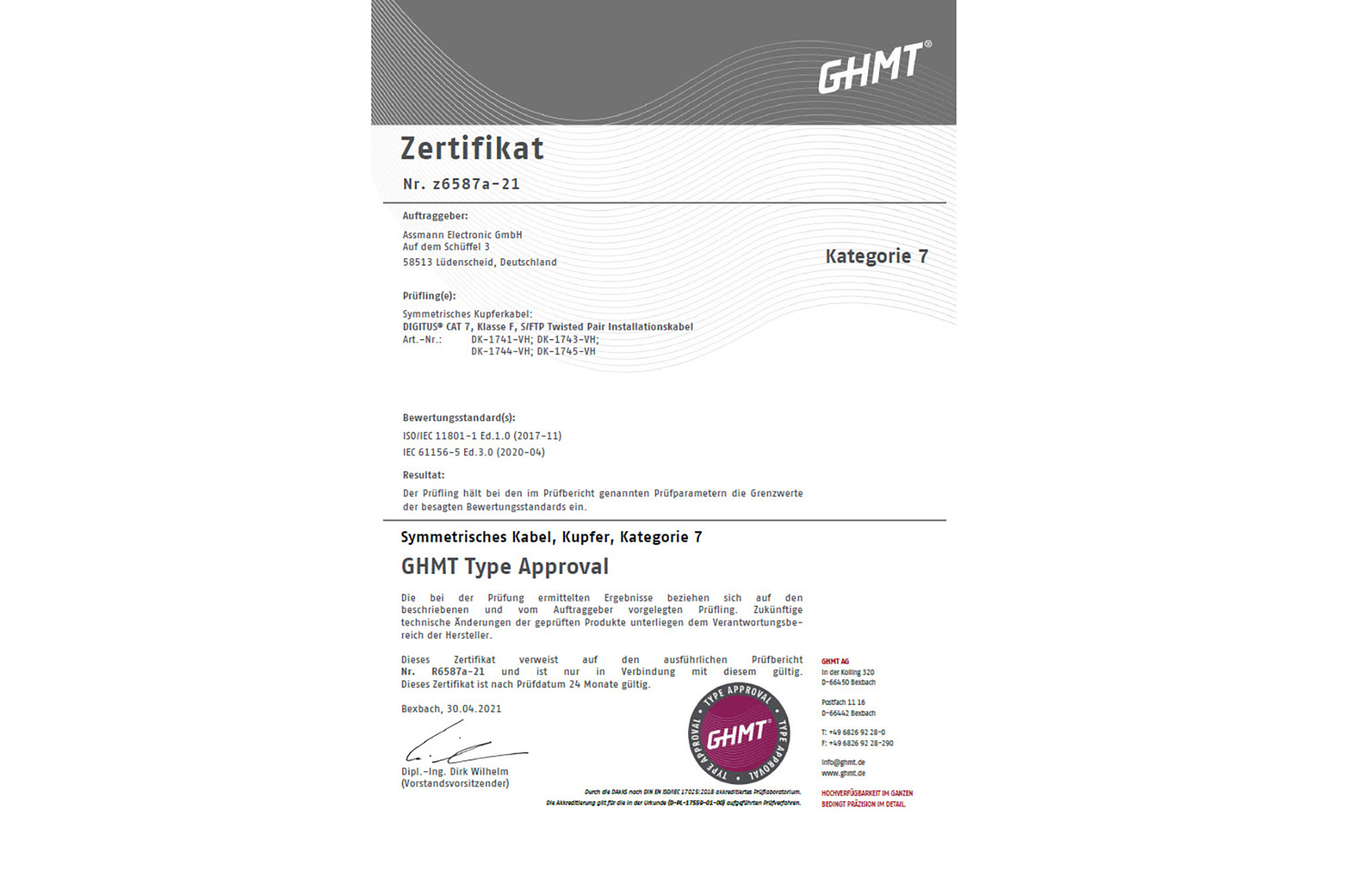

• Permanent link certified
• PoE Power over Ethernet support
• PE outer jacket, CPR class Eca inner jacket

Technical Details

• Physical properties:
• Basic conductor: Solid AWG 23/1, bare annealed copper 0.57 mm nominal
• Insulation: SFS-PO
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shielding: Aluminum foil, providing 100 % coverage
• Overall shielding: Copper wire braid
• Outer jacket: PE
• Outer jacket diameter: 0.50 mm nominal
• Color: Black (RAL 9005)
• Mechanical properties:
• Tensile loading: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Shipping- and storage temperature range: -20 °C up to +60 °C
• Operating temperature range: -50 °C up to +60 °C
• Installation temperature range: 0 °C up to +60 °C
• Overall diameter: 8.5 mm nom.
• Weight: 66.5 kg/km
• Electrical properties:
• Mean impedance: 100±5 Ohm @ 1-600 MHz
• Capacitance: 40 pF/m nominal @ 1 KHz
• Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• Caloric value: 650MJ/m
• DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: 80 dB
• Signal propagation delay: 450 nS/100 m max.
• Delay difference: 15 nS/100 m max.
• Separating class: “d” acc. to EN 50174-2
• NVP: 79%
• Assortment: Twisted Pair Installation Cables

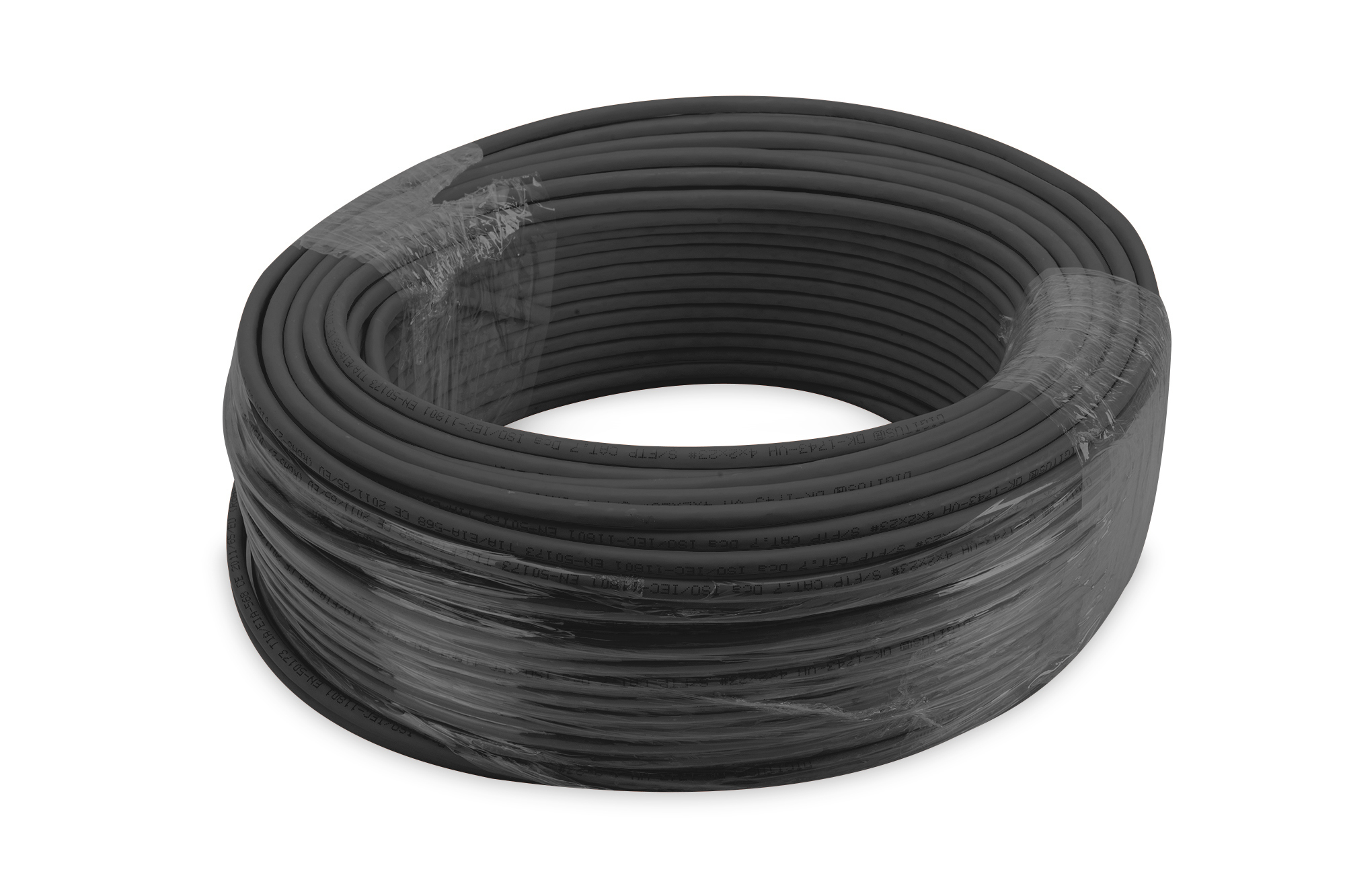

• Length: 100 m
• Category: CAT 7
• Color: black
• Jacket: PE

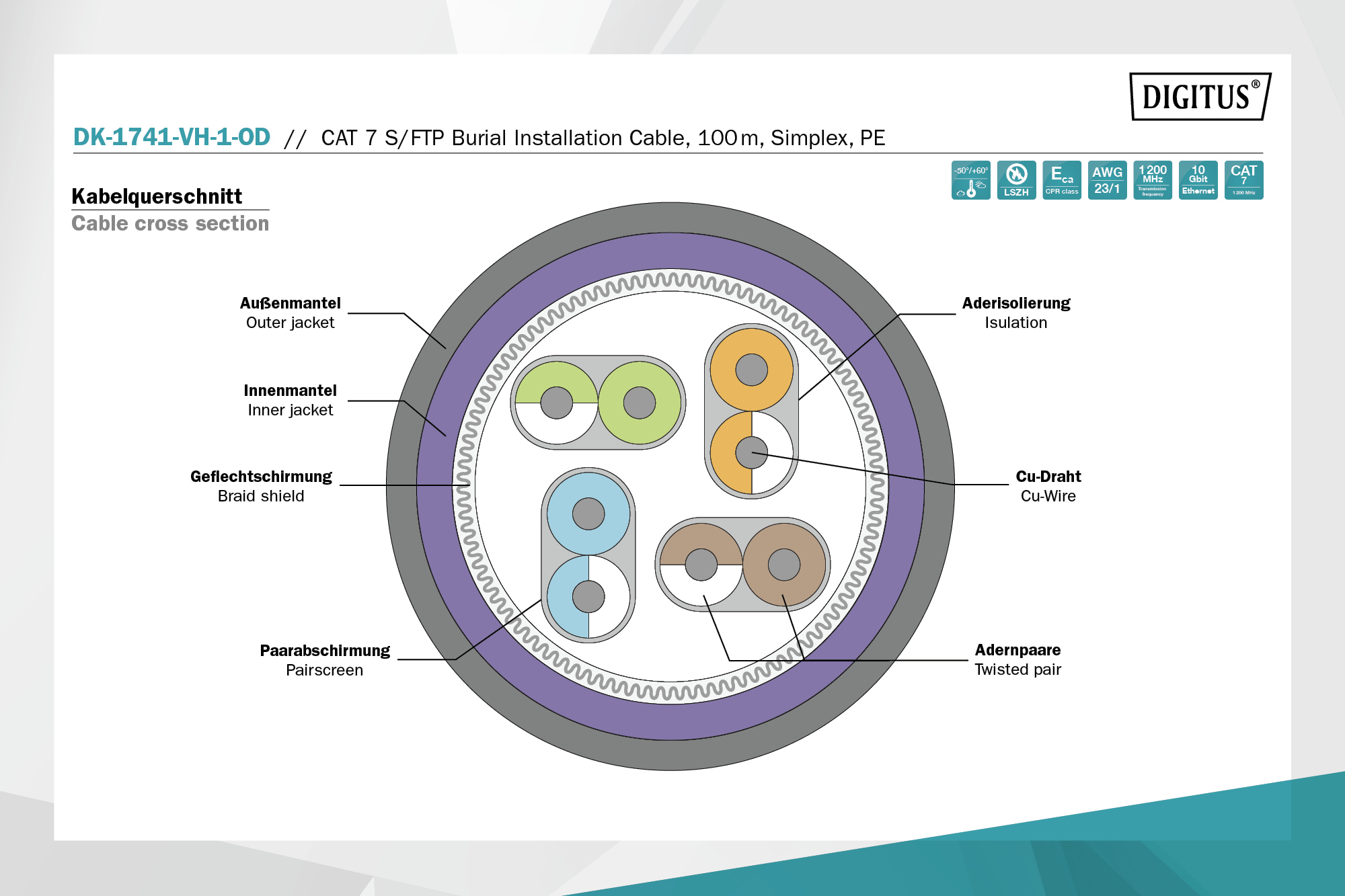

• Shielding: S-FTP, pairs in metal foil and braid shielding
• Structure: 4 x 2 AWG 23/1, solid twisted pair
