CAT 6A U-FTP installation cable, 500 MHz Eca (EN 50575), AWG 23/1, 100m paper box, sx, blue

Future-oriented standards and high-end quality for your network.

• 10GBit Ethernet
• 500 MHz transmission frequency
• PoE Power over Ethernet support
• CPR class Eca

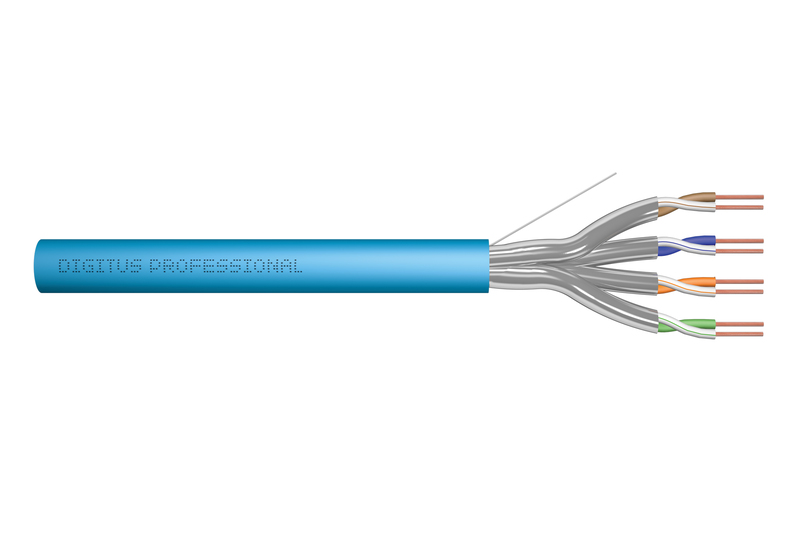

The Digitus® Professional Cat.6A U/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1.

Technical Details

• Physical properties:
• Conductor: Bare annealed copper, solid AWG 23/1
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Individual pair shielding: Aluminum foil, providing 100 % coverage
• Overall shielding: None, with drain wire
• Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
• Outer sheath color: Light blue (RAL 5012)
• Mechanical properties:
• Tensile loading: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Shipping- and storage temperature range: -20 °C up to +60 °C
• Operating temperature range: -20 °C up to +75 °C
• Installation temperature range: 0 °C up to +50 °C
• Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca)
• Weight (kg/km): 56 kg (Eca); 57 kg (Dca); 58 kg (Cca); 58 kg (B2ca)
• Electrical properties:
• Impedance: 100±15 Ohm @ 4 - 100MHz; 100±25 Ohm @100-500 MHz
• Capacitance: 45 pF/m nominal @ 1 KHz
• Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: CA-Type 2
• Signal propagation delay: 450 nS/100 m max.
• Propagation delay: 15 nS/100 m max.
• Separating class: “c” acc. to EN 50174-2
• NVP: 70%
• Assortment: Twisted Pair Installation Cables
• USB-C Products: no
• Length: 100 m
• Category: CAT 6A
• Color: light-blue
• CPR: Eca
• Jacket: LSOH
• Shielding: U-FTP, pairs in metal foil
• Structure: 4 x 2 AWG 23/1, solid twisted pair
