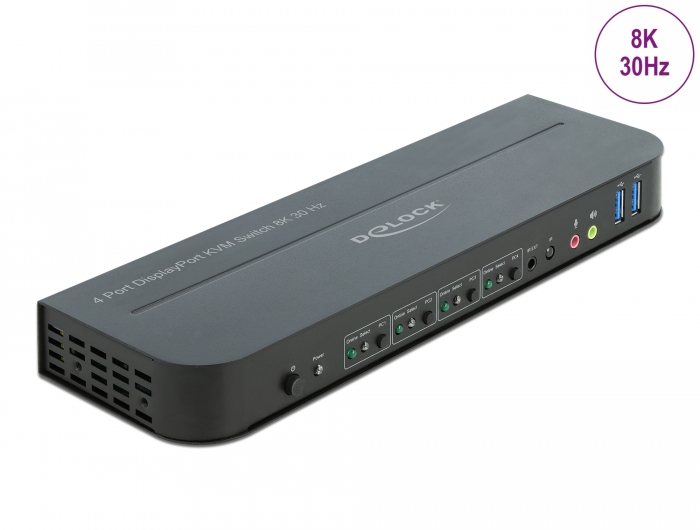

This KVM switch by Delock is a convenient solution for connecting four computers with DisplayPort output to one DisplayPort monitor.
Additionally there is an HDMI output for connection of two monitors, of which only one can be active at a time.

Peripheral devices
Furthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 3.0 ports for a hard drive or USB memory can be connected.

Flexible Control
The active computer can be selected by mouse gesture, keyboard hotkey, button on the device or infrared remote control.

Multi-Stream Transport (MST)
With the support of MST (Multi-Stream Transport), multiple monitors can be used at the DisplayPort output with an optional MST hub.

Note

KVMs emulate a standard wired 104 key keyboard and wired generic 2 or 3 button scroll wheel mouse on their respective console ports. Whether or not a wireless or gaming mouse and keyboard work with KVM switches depends on several factors; in general, most wireless mice and keyboards do not support working with KVM switches. We recommend to use a standard wired mouse and keyboard with our KVM switches.

Specification

Connectors:
Input:
4 x DisplayPort female
4 x USB 3.0 Type-B female
8 x 3.5 mm 3 pin stereo jack female (audio)
1 x 3.5 mm 3 pin stereo jack female for optional IR-receiver
1 x DC 5 V power connector screwable
Output:
1 x DisplayPort female
1 x HDMI-A female
2 x USB 3.0 Type-A female (USB 3.0 Hub)
2 x USB 2.0 Type-A female (keyboard + mouse)
4 x 3.5 mm 3 pin stereo jack female (audio)
Switching via button, mouse button, hotkey or infrared remote control
Automatic switching when turning a PC on or off
Supports HDCP 1.4 and 2.2
Supports HDR
Supports MST (Multi-Stream Transport)
Resolution up to:
DisplayPort output:
7680 x 4320 @ 30 Hz
3840 x 2160 @ 120 Hz (SDR)
3840 x 2160 @ 60 Hz (HDR)
HDMI output:
3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
Robust metal housing
Colour: black
Dimensions (LxWxH): ca. 243 x 75 x 26 mm

Power supply specification

Wall power supply
Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
Output: 5 V / 3 A
Ground outside, plus inside
Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm

System requirements

PC with DisplayPort female + USB Type-A female
Monitor or TV with DisplayPort or HDMI interface
Connection cables

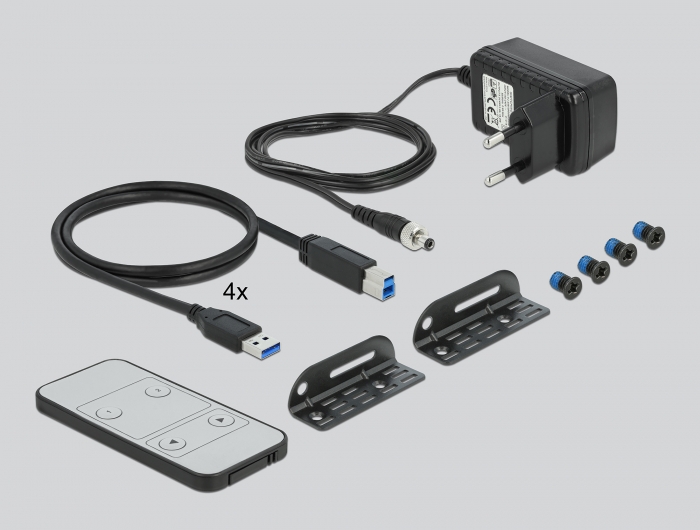

Package content

KVM switch with USB and audio
Remote control
4 x cable USB 3.0 A male to USB 3.0 B male, length ca. 1.0 m
External power supply
Mounting brackets and screws
User manual

Package

Retail Box
