System Accessibility and Availability

Secure in-band and out-of-band remote serial console access
Browser access with an intuitive GUI
Terminal-based access with a menu-driven UI
Modem dial-in/dial-back/dial-out access

Serial Console Management

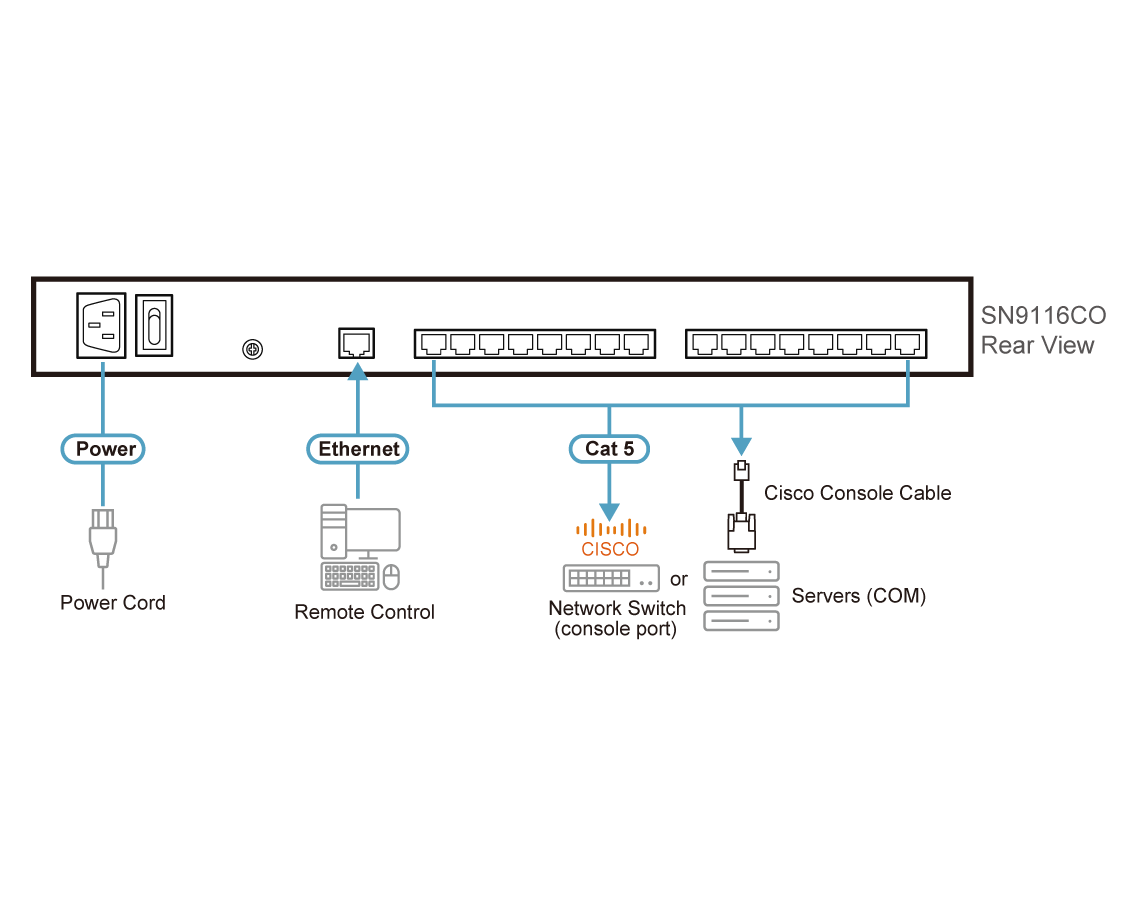

Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring
Response Check － checks the system status of the connected serial devices, and sends a notification if the check fails (e.g. system crash)
Convenient and simple serial device access via selectable Telnet/SSH and third-party clients such as PuTTY
Easy port access via selectable ActiveX or Java serial viewer
Comprehensive viewer functions – copy/paste, logging, data import, macros, broadcasting and message board
Sun Solaris ready – Sun “break-safe”
Alert Strings – whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and/or an email
Command filter – administrators can restrict users to execute only pre-defined commands
Multiple users can simultaneously access the same port – up to 16 connections per port
Modes for simultaneous access – Exclusive/Occupy/Share

Security

Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
Configurable user permissions for port access and control
Local and remote authentication and login
Third-party authentication via RADIUS, TACACS+, LDAP/AD and Kerberos
IP and MAC address filter for enhanced security protection
High security grade – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Supports security level configuration – High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control

System Management

System configuration via web browser, Telnet/SSH client and local console
System log and event login
Event Destination – Event logs will be saved to Log server, Syslog server, and USB drive*
SNMP agent v1 / v2 / v3
Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
Backup / Restore system configuration and upgradeable firmware
Multi-browser support – Internet Explorer, Chrome, Firefox
NTP for time server synchronization
IPv4 / IPv6 support
LLDP support
Integrates into CC2000 software for centralized data center management
Integrates into CCVSR software for user session recording

Serial Device Management

Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
Real COM driver for Windows 2000 or higher and Windows Server 2003/2008
Real TTY driver for Linux
Fixed TTY driver for UNIX*
Supports baud rates of 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 230400 bps

Language

Multi-language web-based GUI – available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese

Note:
Fixed TTY Driver supports:
– OpenServer (Sco Unix)
– UnixWare 7, SVR 5
– UnixWare 2.1, SVR 4.2
– QNX 4.25, QNX 6
– FreeBSD
– Solaris 10
– AIX 5.x
– HP-UX 11i
