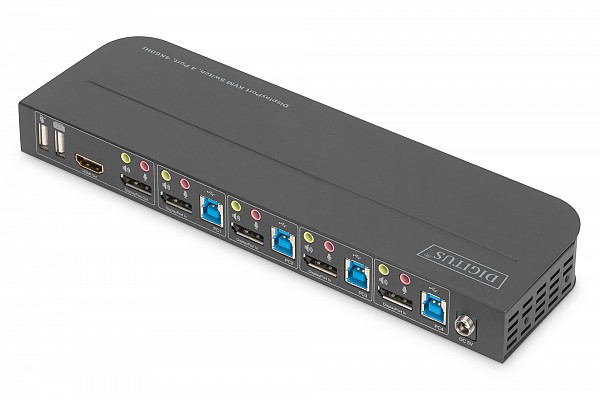

Digitus KVM Switch, 4-Port, 4K60Hz, 4 x DP in, 1 x DP/HDMI out DS-12890

Κωδικός plus26: 173-404704

Κωδικός Εργοστασίου (MPN): DS-12890

Εγγραφείτε για τιμή

With the DIGITUS® 4-Port KVM Switch, you can operate four 4k-compatible PCs using a single USB keyboard and mouse. By pressing a button or using the remote control included in delivery, you can switch comfortably between the PCs, sparing you the trouble of replugging all cables. Output to a monitor occurs either via the integrated HDMI® or the DisplayPort™ output. You can also switch between the audio signals for the microphone and speaker. In addition, two USB 3.0 ports are included on the front side for use with other peripheral devices like USB sticks or external hard drives on all PCs. If you place the KVM switch in an inaccessible location, you can use the IR receiver and connection cable included in delivery even if the KVM switch itself is not within the range of the remote control. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing and the option of wall mounting.

KVM Switch, 4x1,DP, DP/HDMI Out,USB 4Kx2K@60Hz

Operate 4 PCs with one USB keyboard and mouse – switch between four computers by pressing a button or with the remote control

Use a monitor, a mouse and a keyboard to operate four computers
USB ports for mouse and keyboard
Audio connections for microphone/speaker
Integrated USB hub with 2 x USB 3.0 connections for additional peripheral equipment
Switching between the PCs via switch on the KVM switch, remote control or hot key on the keyboard
External receiver for signals from remote control included
Compatible with HDMI 2.0 / HDCP 2.2 / DisplayPort 1.2 / HDR / FreeSync

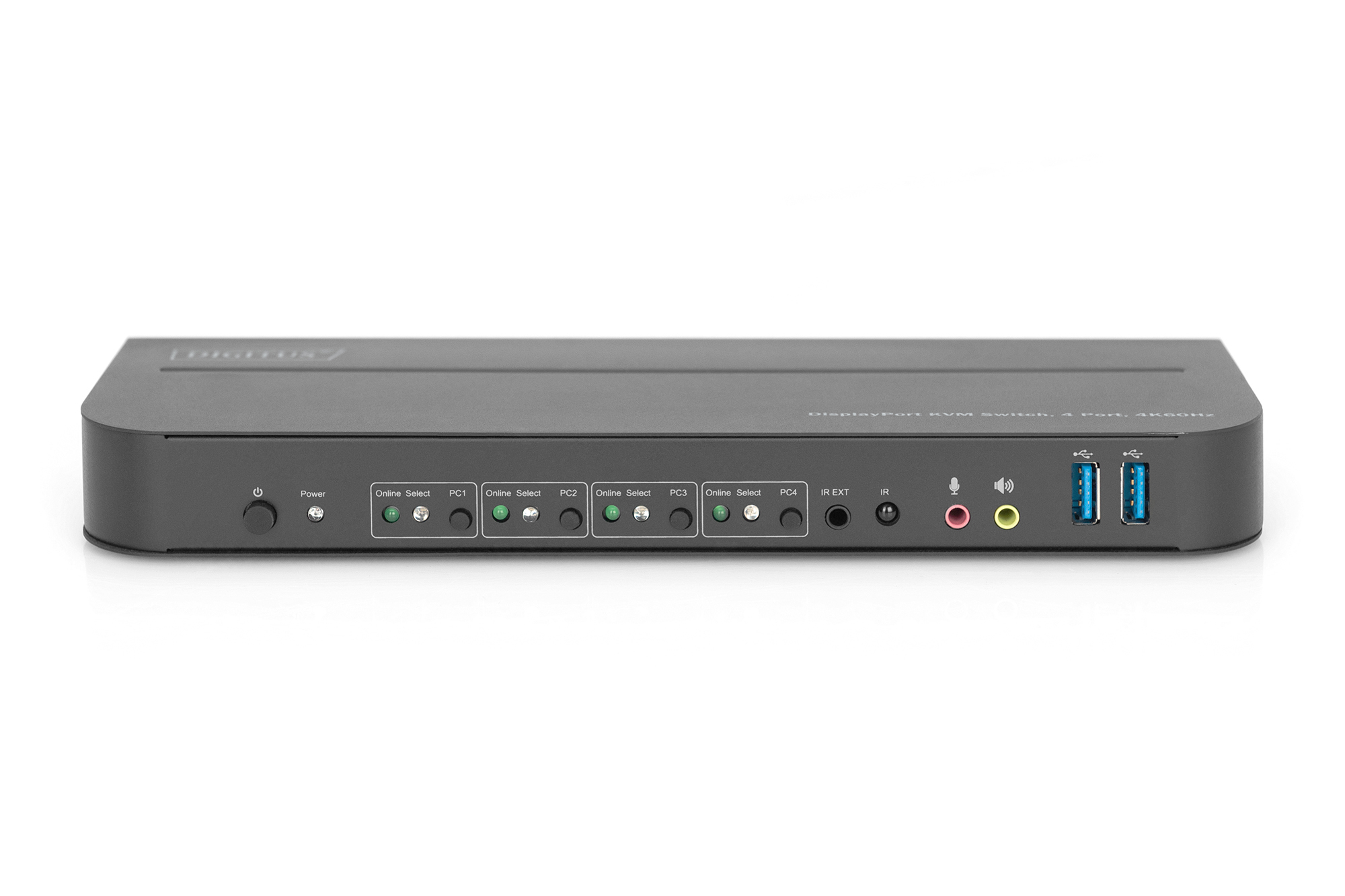

LED status and functional displays on the front side
Wall installation possible
Plug and Play - no driver installation required

Technical details

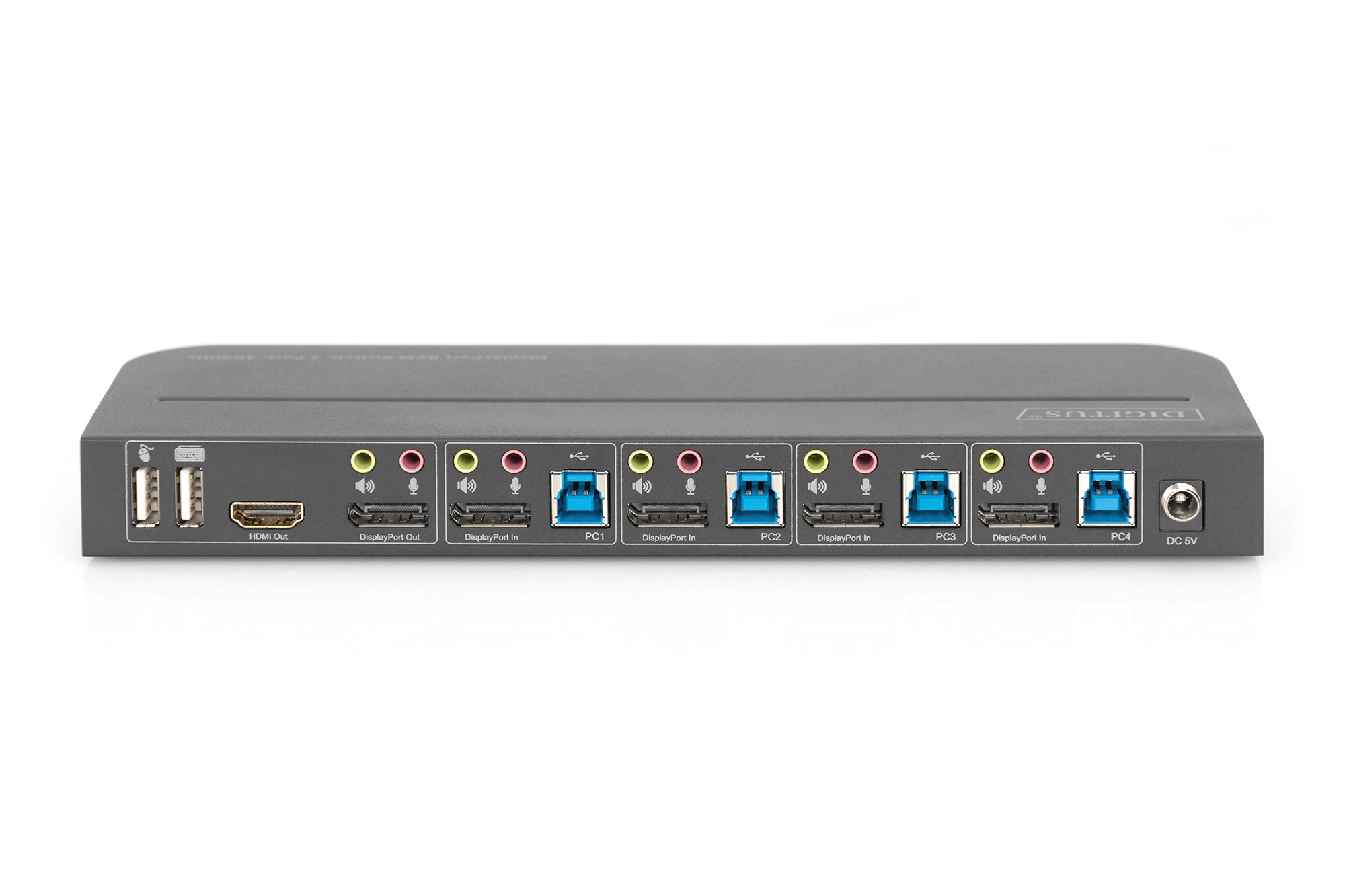

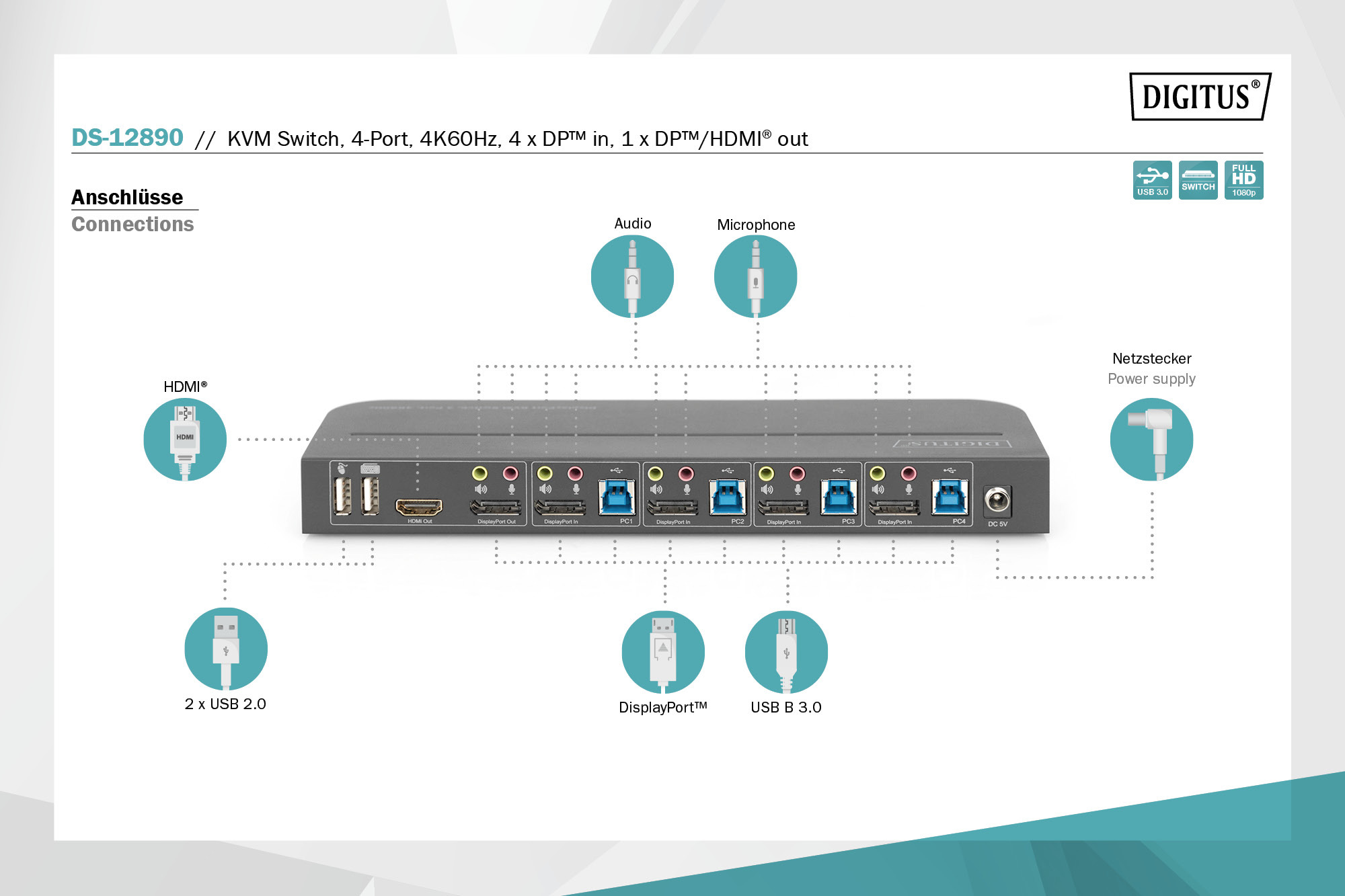

Inputs: 4 x DisplayPort™, 4 x USB B (3.0), 4 x audio input, 4 x audio output
Output: 1 x DisplayPort™, 1 x HDMI®, 1 x audio input, 1 x audio output, 2 x USB A 2.0

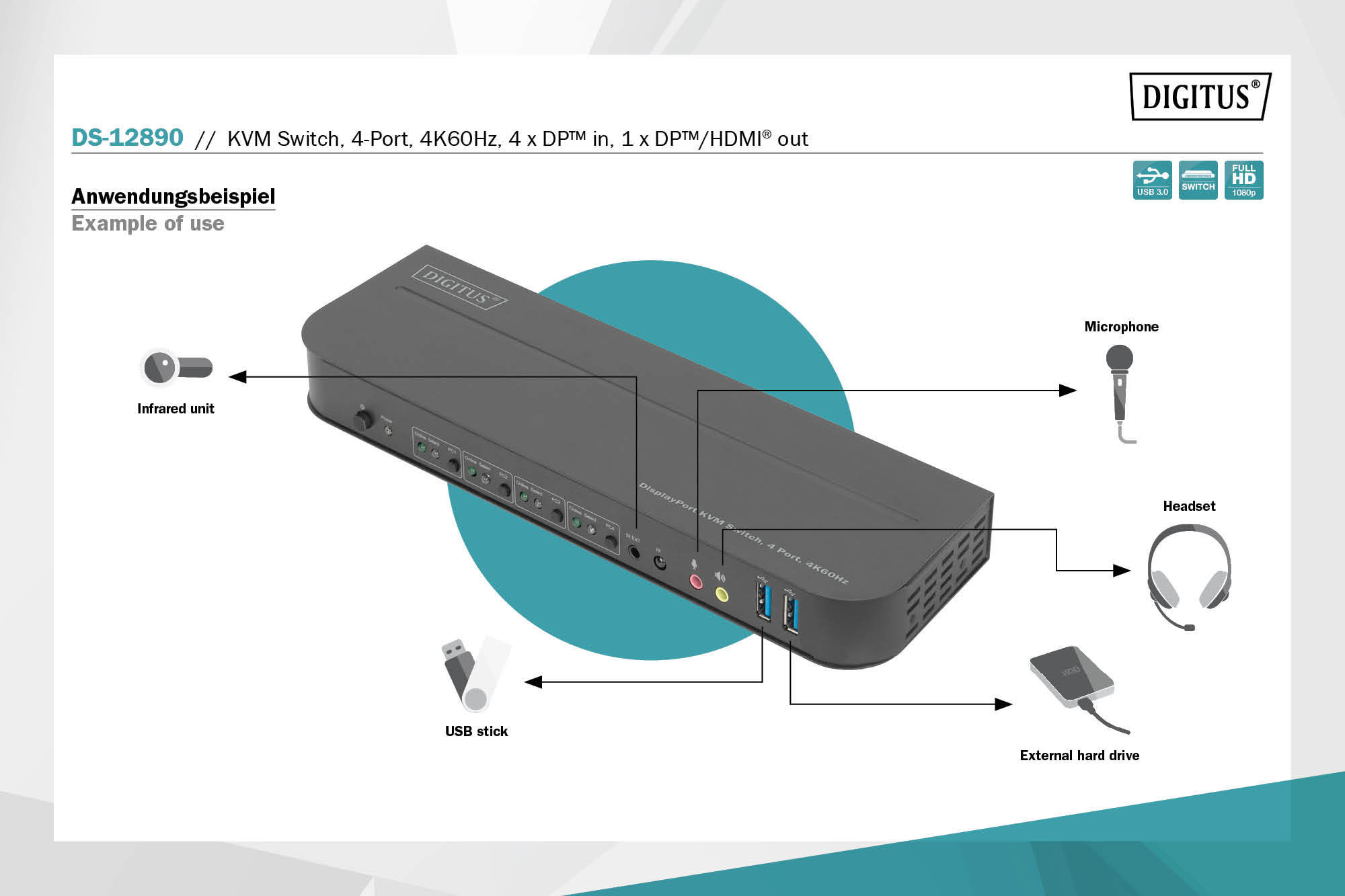

Additional connections front side: 2 x USB A 3.0, 1 x audio input, 1 x audio output, 1x infrared receiver, 1x IR output
Audio inputs/outputs: 3.5 mm stereo jack socket
LED front side: Power, 4 x Online, 4 x Selection PC
Switch: Power On/Off, Toggle PC1 / PC2 / PC3 / PC4
HDMI® version: 2.0
HDCP version: 2.2 / 1.4
DisplayPort™ version: 1.2
UHD resolution: 4096 x 2160p / 60 Hz
Subsampling: RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
Bandwidth DisplayPort™: 32.4 Gbps all channels (8.1 Gbps per channel), supports HDR
Bandwidth HDMI®: 18 Gbps all channels (6 Gbps per channel), supports HDR
Color depth DisplayPort™: 48 bit (all channels)
Color depth HDMI®: 36 bit (all channels)
Power supply power adapter: 100 - 240 V AC / 50/60 Hz, 0.6 A
Power supply KVM switch: 5 V / 3 A / 15 W
Operating temperature: 0°C ~ 45°C
Operating humidity: 10% - 85% RH (non-condensing)
Housing material: Metal
Installation bracket for wall mounting included
External receiver for signals from remote control included
Dimensions: 24,3 x 7.5 x 2.6 cm (WxDxH)
Weight: 505,4 g
Color: Black
Number of ports: 8

Package content

1 x KVM Switch, 4-Port, 4K60Hz, 4 x DP in, 1 x DP/HDMI out
1 x Power adapter for KVM switch
4 x USB 3.0 connection cable (USB B to USB A)
4 x DisplayPort™ cable 1.2 m
1 x Infrared remote control
1 x Infrared recipient with connection cable
2 x Mounting bracket for table/wall installation
1 x User manual
