ATEN KVM CONSOLE 8 PORT 17

ATEN KVM CONSOLE 8 PORT 17" LCD LED CL5708IM

Κωδικός plus26: 173-356408

Κωδικός Εργοστασίου (MPN): CL5708IM

Εγγραφείτε για τιμή

The CL5708I Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708I can control up to 8 computers. As many as 15 additional KVM switches can be daisychained to the CL5708I, so that up to 128 computers can all be controlled from a single KVM console.The CL5708I LCD KVM Switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CL5708I supports up to 32 concurrent user logins for a single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

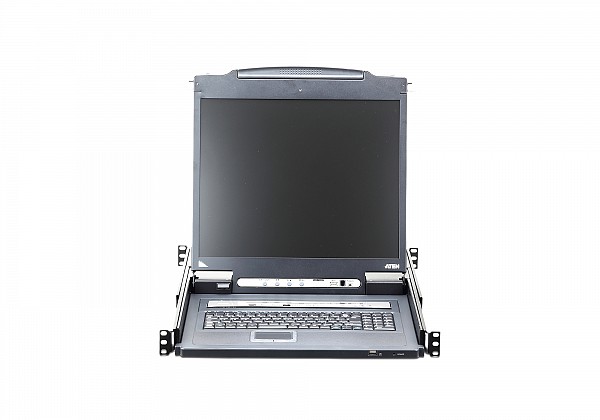

The CL5708I offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. In addition, since the CL5708I is built on a modular design, the KVM section can be detached from the switch section for convenient maintenance and repair.

Among CL5708I's other outstanding features, the Panel Array Mode provides the ability to monitor the video output of the servers on the installation; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.

The CL5708I supports the highest security protocols, such as TLS 1.2 encryption for the browser, and RC4 encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CL5708I also supports authentication and authorization via 3rd party authorized servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory.

Hardware

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
Space saving technology - up to two consoles (one bus) control up to 8 computers
Daisy chain up to 15 additional units – control up to 128 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
Extra console port – manage computers from an external console (VGA monitor, USB or PS/2 keyboard and mouse)
Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
LCD module USB port allows connected computers to access USB peripherals*
Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
Hot pluggable - add or remove computers without having to power down the switch
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Supports multimedia USB keyboards for Windows, Mac and Sun
Supports external USB mouse
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Rack mountable in a 1U system rack
Optional rack mount kits available including easy installation options
LCD module rotates up to 115 degrees for a more comfortable viewing angle
* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.

Management

Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
Up to 32 concurrent logins
Multilanguage web UI support featuring a tree-structured local and remote OSD
Adjustable video quality for flexible adaptation to diverse network environments
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast mode: operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
Firmware upgrades to all the daisy-chained KVM switches (CS1708A, CS1716A) at the same time via the daisy-chain cable
Integration with CC2000 Centralized Management Software
Backup and restore configuration and user account settings
Event logging
IPv6 capable

Ease-to-Use Interface

Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multi-language interface to minimize user training time and increase productivity
Multiplatform support - Windows, Linux, Mac, and Sun
Multi-browser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
Windows client and Java client software support; Java client works with all operating systems
Beeper on/off via hotkey and OSD
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

Advanced Security

Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
Two level password security - only authorized users can view and control computers; up to 64 user accounts with separate profiles for each
External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
Support for IP/MAC Filter
Local and remote access logged and authenticated

Virtual Remote Desktop

Resizable remote desktop window
Message board allows logged-in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
Mouse DynaSync™
On-screen keyboard with multi-language support
BIOS-level access

Console Connections
Local 1 (Share Remote Bus) 1 (Share Remote Bus)
Remote 1 1
Computer Connections
Direct 8 8
Maximum 128 (via Daisy-chain) 128 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbuttons OSD, Hotkey, Pushbuttons

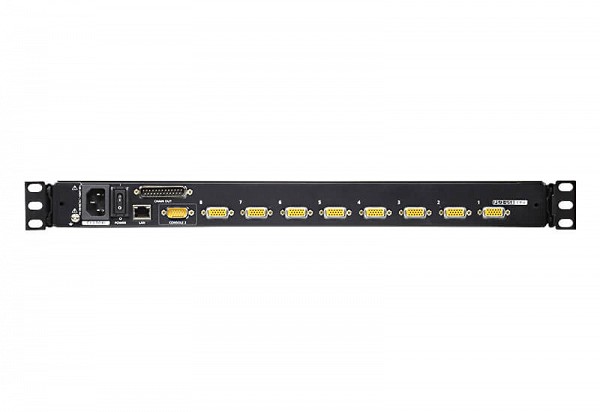

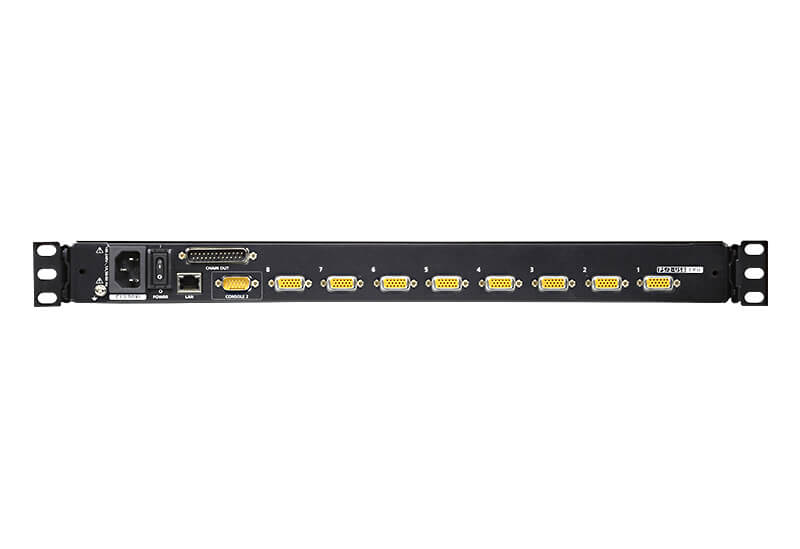

Connectors
External Console Ports 1 x SPHD Male (Yellow) 1 x SPHD Male (Yellow)
External Mouse Port 1 x USB Type-A Female 1 x USB Type-A Female
USB Port 1 x USB Type-A Female 1 x USB Type-A Female
KVM Ports 8 x SPHD Female 8 x SPHD Female
Daisy Chain Ports 1 x DB-25 Male 1 x DB-25 Male
Firmware Upgrade 1 x RJ-11 Female 1 x RJ-11 Female
LAN Ports 1 x RJ-45 Female 1 x RJ-45 Female
Power 1 x IEC 60320/C14 1 x IEC 60320/C14
Switches
Port Selection 2 x Pushbutton 2 x Pushbutton
Station Selection 2 x Pushbutton 2 x Pushbutton
Reset 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Switch 1 x Switch
Power 1 x Rocker Switch 1 x Rocker Switch
LCD On/Off 1 x LED Pushbutton (Orange) 1 x LED Pushbutton (Orange)
LCD Adjustment 4 x Pushbutton 4 x Pushbutton
LEDs
Online 8 x (Orange) 8 x (Orange)
Port ID 1 x 2-digit, 7-segment (Yellow) 1 x 2-digit, 7-segment (Yellow)
Station ID 1 x 2-digit, 7-segment (Yellow) 1 x 2-digit, 7-segment (Yellow)
10/100 Mbps 1 x (Orange/Green) 1 x (Orange/Green)
Power 1 x (Dark Green) 1 x (Dark Green)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green) 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
Video
Remote 1920 x 1200 @60 Hz 1920 x 1200 @60 Hz
Panel Spec
LCD Module 17" TFT-LCD 19" TFT-LCD
Resolution 1280 x 1024 @75 Hz 1280 x 1024 @75 Hz
Pixel Pitch 0.264 mm x 0.264 mm 0.294 mm x 0.294 mm
Response time 5 ms 5 ms
Viewing Angle 170° (H), 160° (V) 170° (H), 160° (V)
Support Color 16.7M colors 16.7M colors
Contrast Ratio 1000:1 1000:1
Luminance 250 cd/m² 250 cd/m²
Emulation
Keyboard / Mouse PS/2, USB PS/2, USB
Scan Interval 1-255 sec. 1-255 sec.
Maximum Input Power Rating 100-240V AC, 50-60Hz, 1A 100-240 VAC, 50-60Hz, 1A
Power Consumption AC110V:26.8W:138BTU
AC220V:27.7W:143BTU AC110V:29W:149BTU
AC220V:29.8W:153BTU
Environmental
Operating Temperature 0-50°C 0-50°C
Storage Temperature -20-60°C -20-60°C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic Metal + Plastic
Dimensions (L x W x H) 48.00 x 64.27 x 4.40 cm
(18.9 x 25.3 x 1.73 in.) 48.00 x 68.92 x 4.40 cm
(18.9 x 27.13 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
