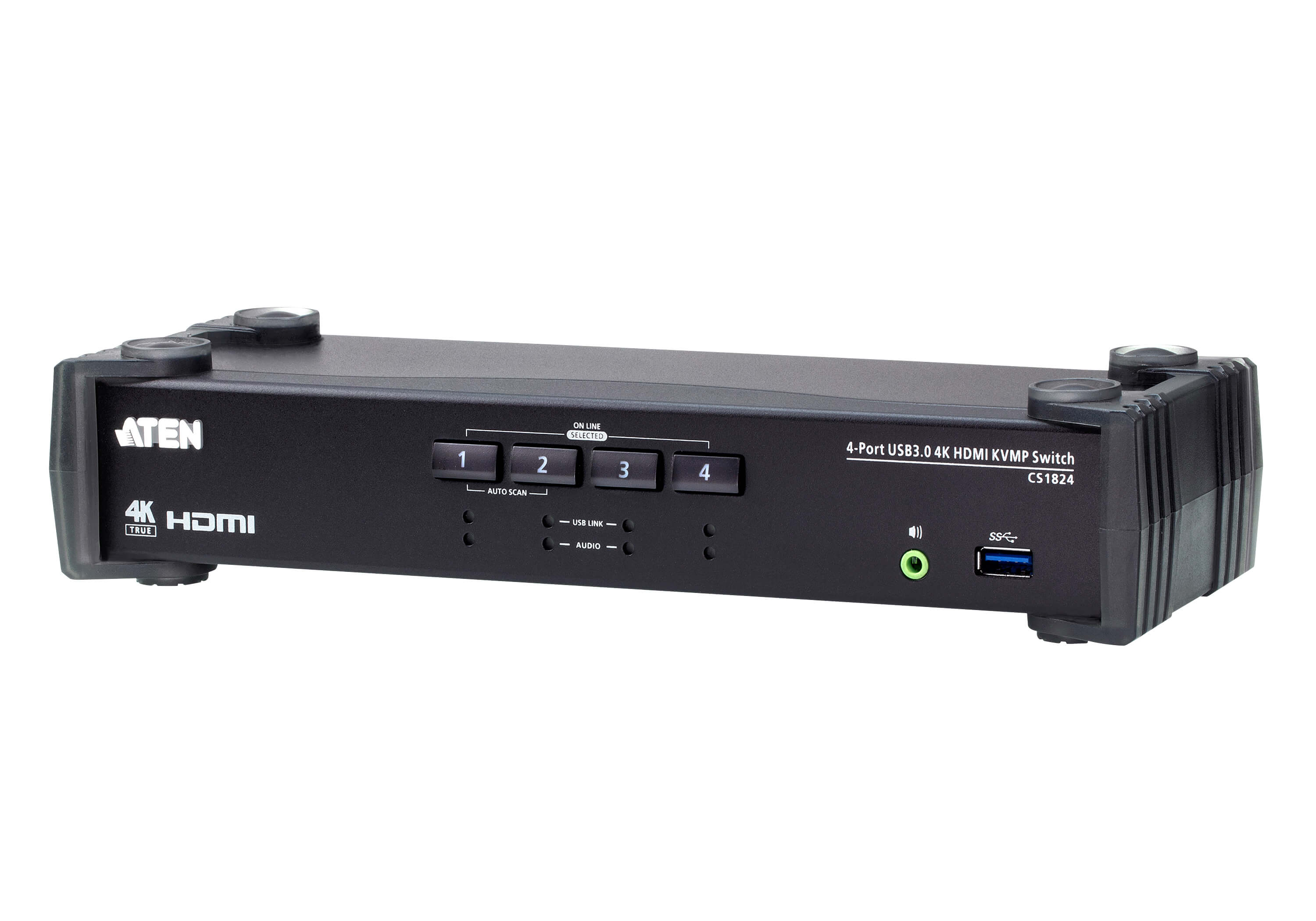

ATEN KVM 4PORT HDMI/USB 3.0 4K/60Hz ΜΕ ΗΧΟ CS1824

Κωδικός plus26: 173-356407

Κωδικός Εργοστασίου (MPN): CS1824

Εγγραφείτε για τιμή

The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.

With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.

In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.

Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.

One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Audio Mixer Modes – mixes up to two audio sources as audio output
Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
Independent switching of KVM, USB peripheral, and stereo audio focus2
HDMI 2.0 compliant; HDCP 2.2 compliant
Supports HD Audio2
Power on detection
Auto Scan Mode for monitoring all computers
Firmware upgradable

Note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. HD audio through HDMI channel cannot be switched independently

Computer Connections 4
Port Selection Hotkey, Pushbutton, Mouse, RS-232 Commands
Connectors
Console Ports 2 x USB Type A Female
1 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports 4 x USB3.1 Gen1 Type B Female (Blue)
4 x HDMI Female (Black)
4 x 3.5mm Audio Jack Female (Green)
Serial 1 x RJ-11 Female
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected 4 x Pushbutton
LEDs
On Line /Selected 4 (Orange)
USB Link 4 (Green)
Audio 4 (Green)
Emulation
Keyboard / Mouse USB
Video 4096 x 2160 @ 60Hz
Scan Interval 1-99 Seconds (Default: 5 sec.)
Power Consumption DC5V:2.535W:54.5BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal, Plastic
Dimensions (L x W x H) 27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
