ATEN KVM CONSOLE 8 PORT 19

ATEN KVM CONSOLE 8 PORT 19" LCD LED CL1308N/6857

Κωδικός plus26: 173-356129

Κωδικός Εργοστασίου (MPN): CL1308N/6857

Εγγραφείτε για τιμή

With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.

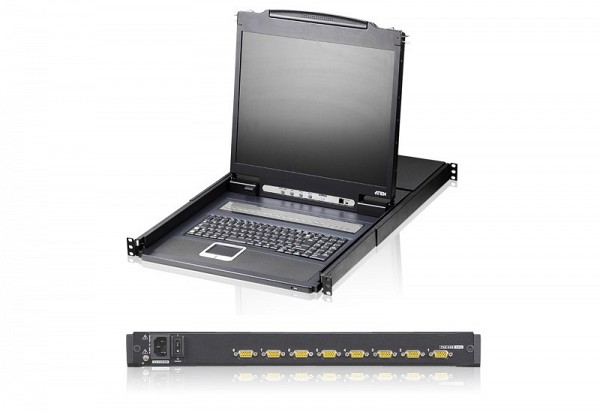

The CL1308 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.

Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.
Integrated KVM console with 19" LED-backlit LCD panel
Dual Interface – supports computers with PS/2 or USB keyboards and mice
Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
Supports USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Auto Scan feature for monitoring user-selected computers
Broadcast mode – operations simultaneously performed on all selected computers
Hot pluggable – add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Rack mountable
Optional rack mount kits available including easy installation options
Keyboard language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

Function CL1308N
Computer Connections
Direct 8
Maximum 128 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors
KVM Ports 8 x SPHD Female (Yellow)
Firmware Upgrade 1 x RJ-11 Female
Power 1 x IEC 60320/C14
Switches
Port Selection 8 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch
Power 1 x Rocker Switch
LCD Control 4 x Pushbutton
LCD Power 1 x LED Pushbutton
LEDs
Online 8 (Orange)
Selected 8 (Green)
Power 1 (Dark Green)
1 (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 19" TFT-LCD
Resolution 1280 ×1024 @ 75 Hz
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Pixel Pitch 0.294 mm x 0.294 mm
Support Color 16.77M colors
Contrast Ratio 1000:1
Luminance 250 cd/m²
Video
Input Video Resolution up to 1920 × 1200 @ 60 Hz;
1280 × 1024 @ 75 Hz, DDC2B
Scan Interval 1-255 seconds
Emulation
Keyboard / Mouse PS/2, USB
Maximum Input Power Rating 100-240 V AC; 50-60 Hz; 1A
Power Consumption AC110V:24.4W:114BTU
AC220V:24.7W:116BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 12.59 kg ( 27.73 lb )
Dimensions (L x W x H) 48.30 x 68.92 x 4.40 cm
(19.02 x 27.13 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
