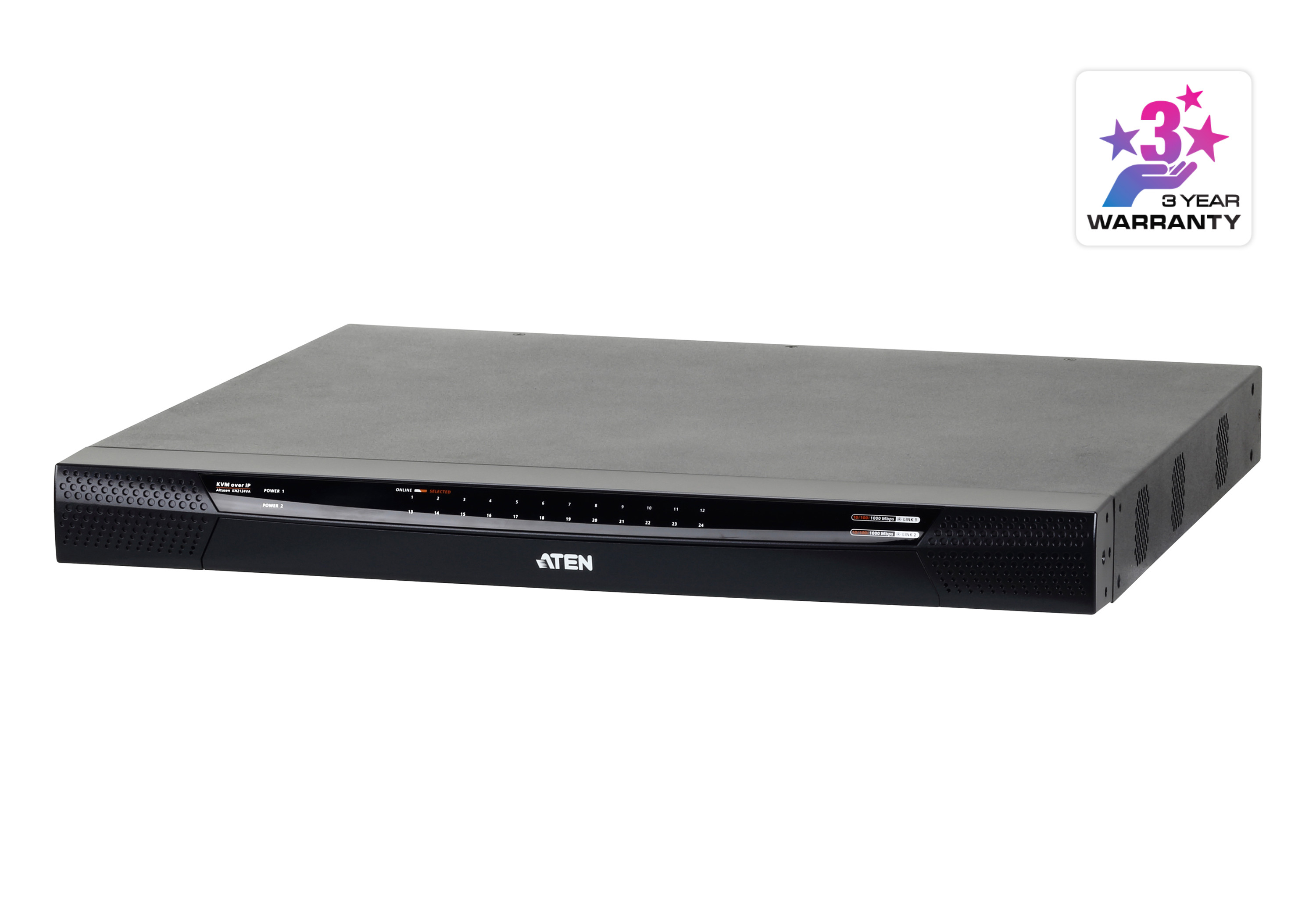

ATEN 1-Local/2-Remote Access 24-Port Multi-Interface Cat 5 KVM over IP Switch

Κωδικός plus26: 173-416285

Κωδικός Εργοστασίου (MPN): KN2124VA

Εγγραφείτε για τιμή

Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200

ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users

High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)

ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN2124VA feature superior video quality with Full HD resolutions up to 1920 x 1200, FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the normal speed.

The KN Series provides a local console and remote over IP access for users to monitor and access their entire data center over a network.

Exclusive KN Series Features:
‧ High-grade security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
‧ 2x faster virtual media transmission speeds
‧ Advanced FPGA graphics processor with Full HD resolutions up to 1920 x 1200

With dual on-board NICs and dual power supplies, the KN Series is built for reliability, to ensure 24/7 availability of remote access to all servers.

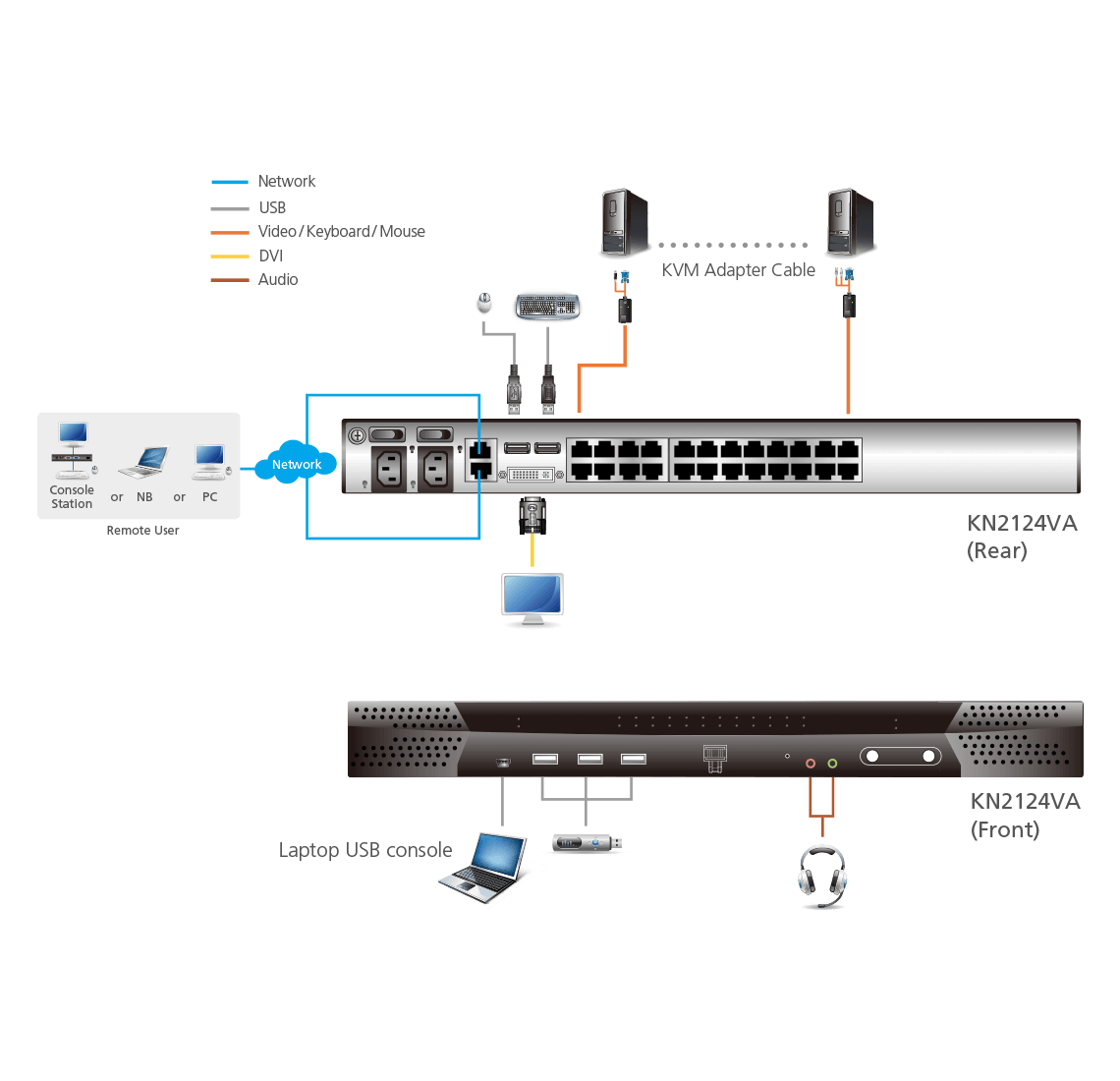

The KN series offers out-of-band (OOB) management that enables IT administrators to manage network devices (e.g. server, storage, router/switch) in server rooms via management networks that are separate from the main/production networks. So if there’s difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods, such as a direct console connection from a local computer, a USB console connection from a laptop, or a dedicated management network connection via the Ethernet (LAN) port.

The KN Series can be integrated into ATEN's CC2000 Management Software. CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world – allowing them to remotely monitor and control all devices on a network, including blade server chassis, individual blades and virtual machines.

Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode™, Mouse DynaSync™ and the Adapter ID function.

A Windows Client and a Java Client are available for remote access. They allow IP connection and login from anywhere over the internet. In addition, ATEN also provides an iOS APP - PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from your iPad. Please visit the PadClient webpage for more information.

ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and Mean Time To Repair (MTTR) costs and ensuring the highest availability for data center services.

Package Contents

1x KN2124VA KVM over IP Switch
2x LIN2-418K-E12G Power Cords
1x Mounting Kit
2x 0X12-0017-301G Lok-U-Plugs
1x 0X12-0017-401G Lok-U-Plug Installation Tool
1x Foot Pad Set (4 pcs.)
1x User Instructions

Exclusive KN Series Features
High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Advanced FPGA graphics processor with Full HD resolutions up to 1920 x 1200
2x faster virtual media transmission speeds
Simultaneously share one local console and two independent connections to servers

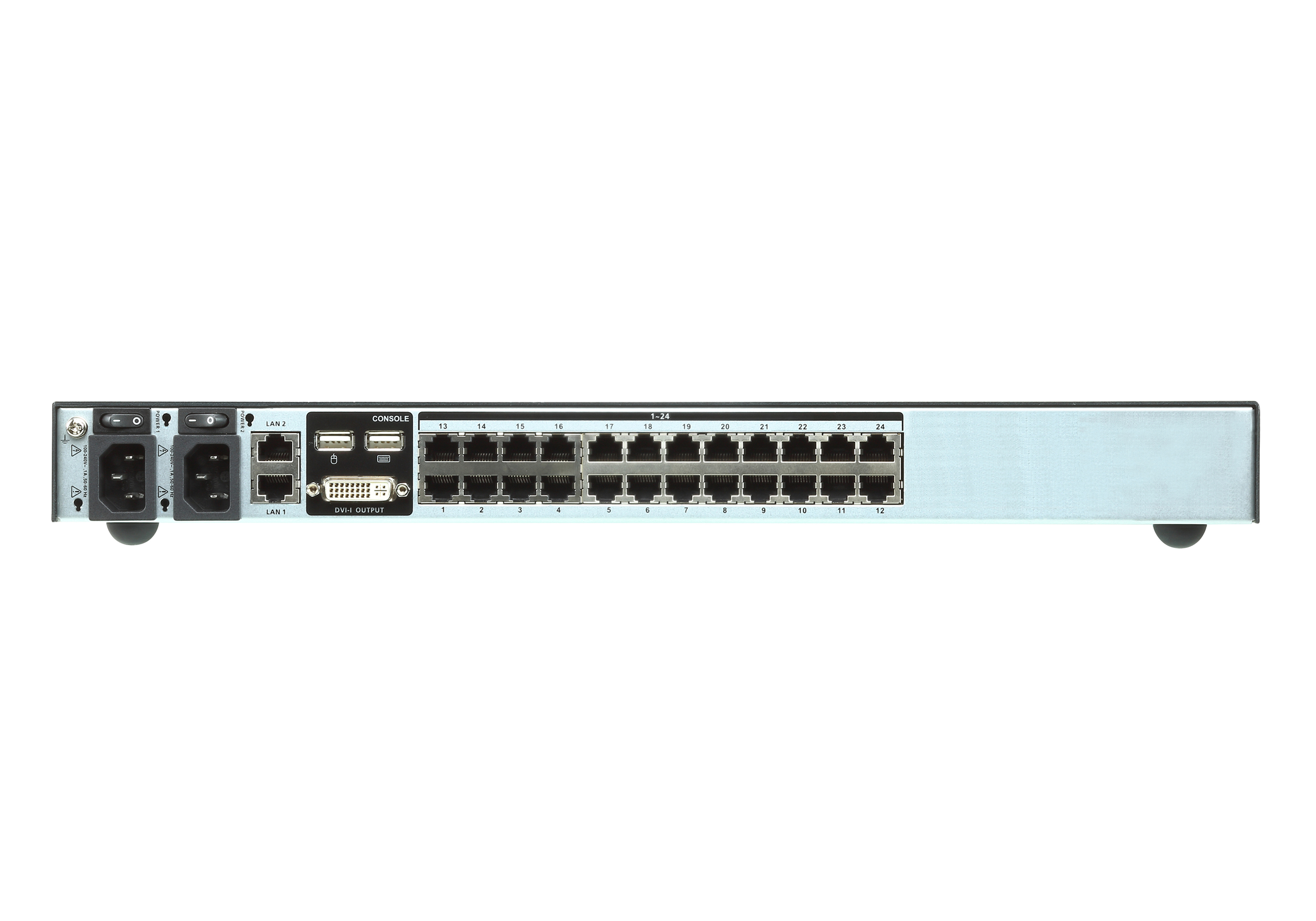

Hardware
High Port Density – RJ-45 connectors for up to 40 ports in 1U housing
Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
Two separate buses for remote KVM over IP access
Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
Blade server support
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Audio enabled
Dual Power Supply
High video resolution – up to 1920 x 1200 @ 60Hz (50m) with 24-bit color depth at the switch’s local console and on remote session displays
Monitor and control up to 24 computers on a single level or control up to 384 computers in a cascade*
*Cascade-compatible KVM switches include the following: CS9138, KH1508A, KH1516A, and KH1532A.
Management
Up to 64 user accounts
Up to 32 concurrent logins
Green IT Fan – speed varies according to temperature
Event logging and Windows-based Log Server support
Critical system event notification via SMTP email; SNMP trap and Syslog support
Customizable events notification
Firmware upgradeable
Adapter ID Function – stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches
Port Share Mode – allows multiple users to gain access to a server simultaneously
Integration with ATEN CC2000 Management Software
Integration with ATEN CCVSR Video Session Recording Software*
IPv6 capable
*supports recording computer operations accessed through the local console and via remote sessions.
Easy-to-Use Interface
ATEN Exclusive Panel ArrayTM Mode – monitor all ports in a grid display of all desktops at both the local and remote screen
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera and Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software
Launch multiple virtual remote desktop sessions to control multiple servers at the same time
Fullscreen or scalable virtual remote desktop window
Keyboard/Mouse Broadcast – keyboard and mouse signals can be duplicated across all servers at once
Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure browser logins
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Supports IP/MAC address filtering
Configurable user and group permissions for server access and control
Automated CSR creation utility and third-party CA certificate authentication
Virtual Media
Virtual media enables applications, OS patching, software installations and diagnostic testing
Works with USB-enabled servers at the operating system and BIOS level
Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
Virtual Remote Desktop
Video quality can be adjusted to optimize data transfer speeds; monochrome color depth, threshold and noise settings reduce data transmission to lower bandwidth
Fullscreen or scalable window for desktop sessions
Message Board for communication among remote users
Mouse DynaSync – automatically synchronizes the local and remote mouse movements
Exit Macro support
On-screen keyboard with multi-language support
BIOS-level access for troubleshooting
