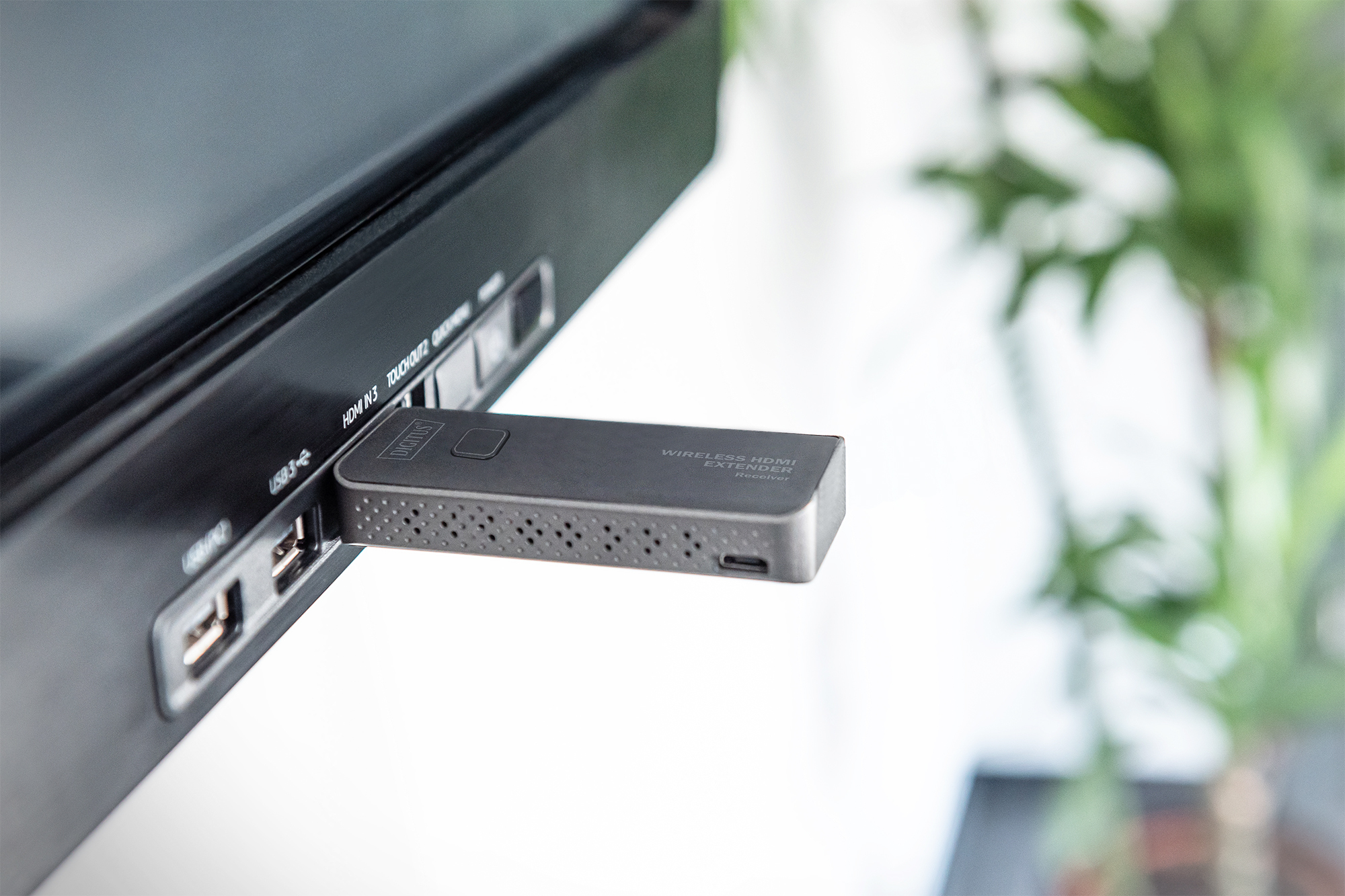

With the Wireless HDMI Extender Set, you can wirelessly transmit HDMI video and audio signals in Full HD over a distance of up to 50 m with an unobstructed view. Operation and installation are super simple. Real Plug & Play - Just plug in and get started. The transmitter and receiver can be supplied with power via your device’s HDMI connection (0.5A required), or alternatively (additionally) with the enclosed Micro USB cable via the USB connection of your notebook, PC, etc. Thanks to the compact design of the transmitter and receiver, installation is easy, quick and can be customized - the perfect solution for meeting and conference rooms. But it can also be used in private applications for spontaneous or temporary installations.

Technical details

• Wireless HDMI signal transmission up to 50 m (unobstructed view)
• Supports resolutions up to 1920x1080p
• Wireless channel: IEEE 802.11ac, 5 GHz, 2T2R
• HDMI version: 1.4
• HDCP version: 1.3
• Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
• Connections per unit: 1x HDMI plug, 1x Micro-USB jack
• Power supply: HDMI jack (0.5A required) or via Micro-USB (DC 5V/0.5A)
• Connection button with LED status display
• Audio: Stereo, 16 bits / 48 KHz
• Latency: approx. 120 ms
• ABS housing
• Power consumption: 2.5W
• Operating temperature: 0-40 °C
• Dimensions (1 unit): L 8.3 x W 3.2 x H 1.3 cm
• Weight (1 unit): 27 g
• Color: Black
• The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed.
• Walls, glass etc. shorten the signal range or cause signal losses.
• KVM: no
• PoE (Power over Ethernet): no

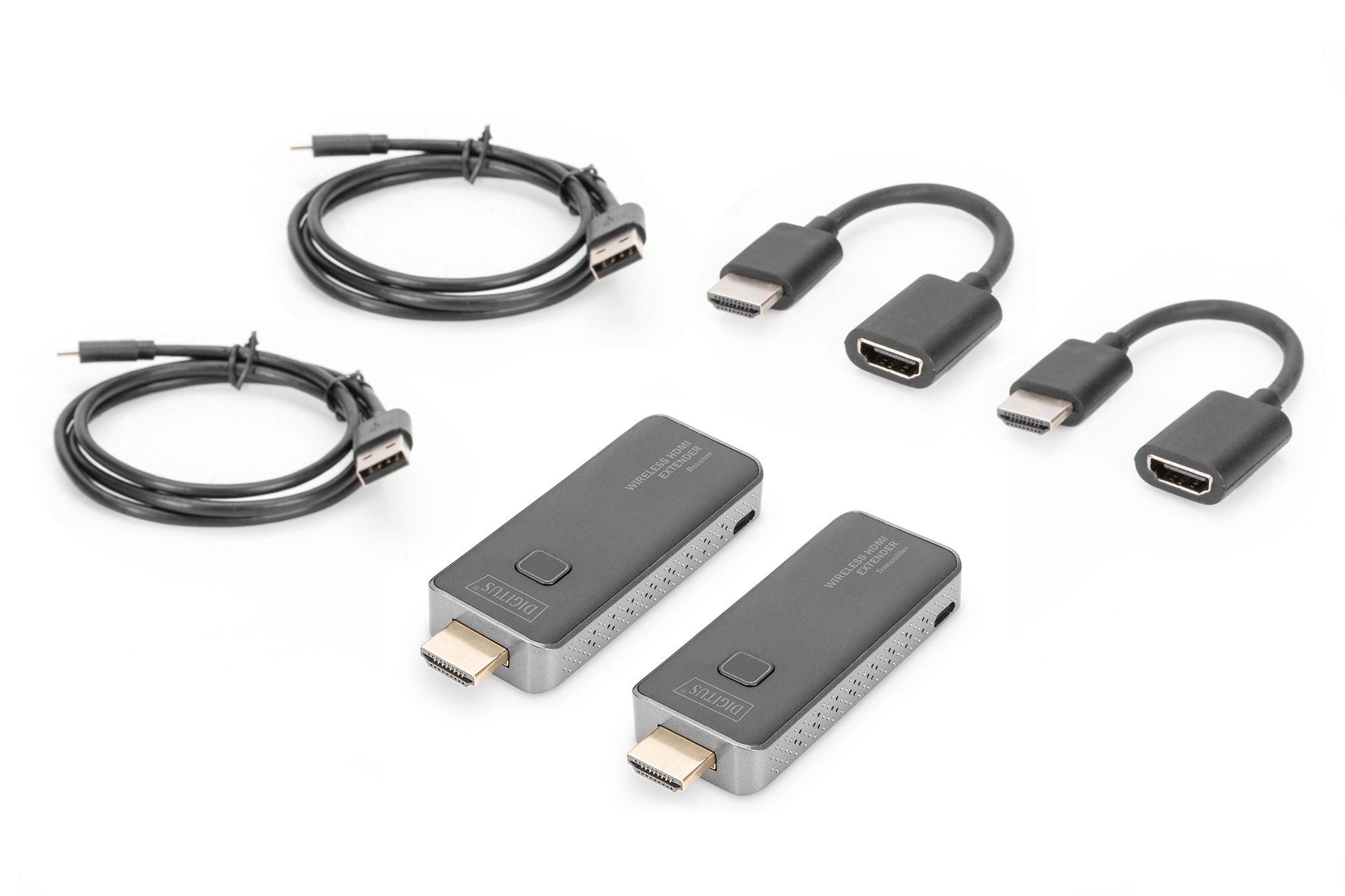

Package content

1x Transmitter unit
1x Receiver unit
2x Micro USB cable (0.8 m)
2x HDMI extension cable (0,15 m)
1x QIG
