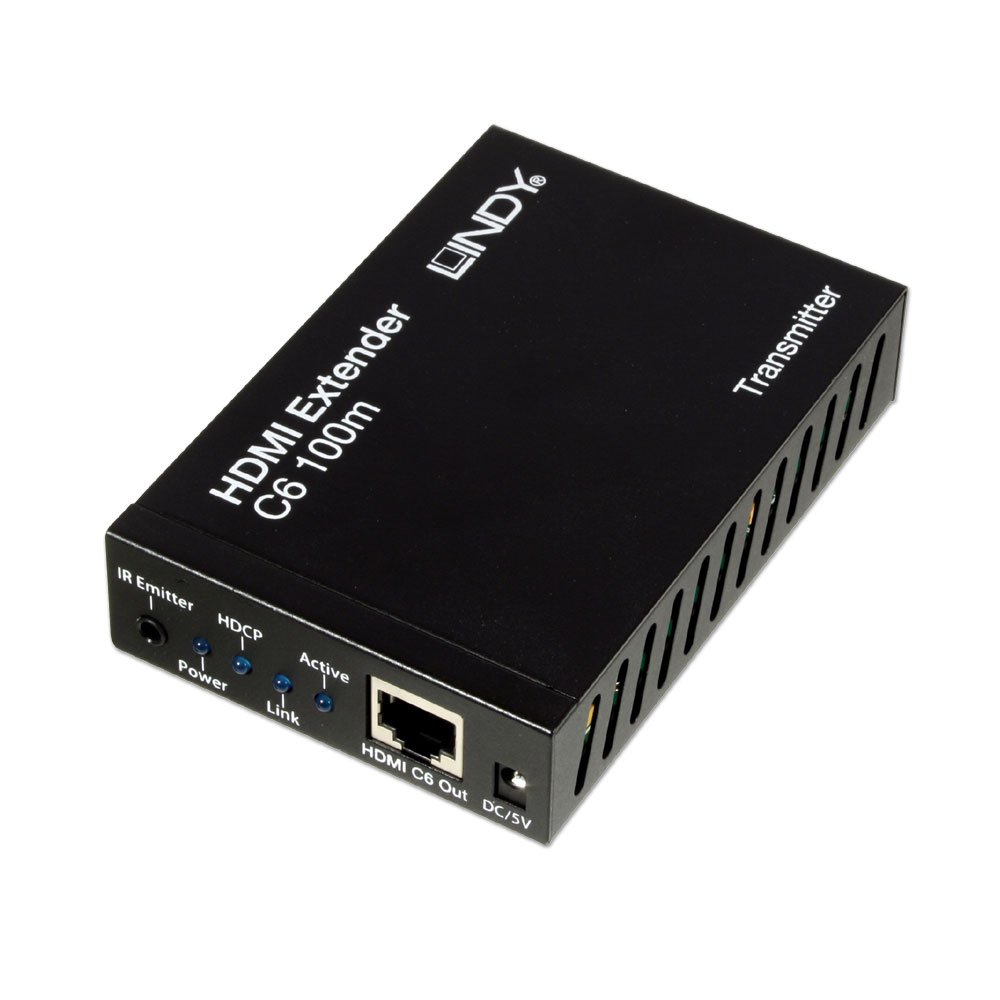

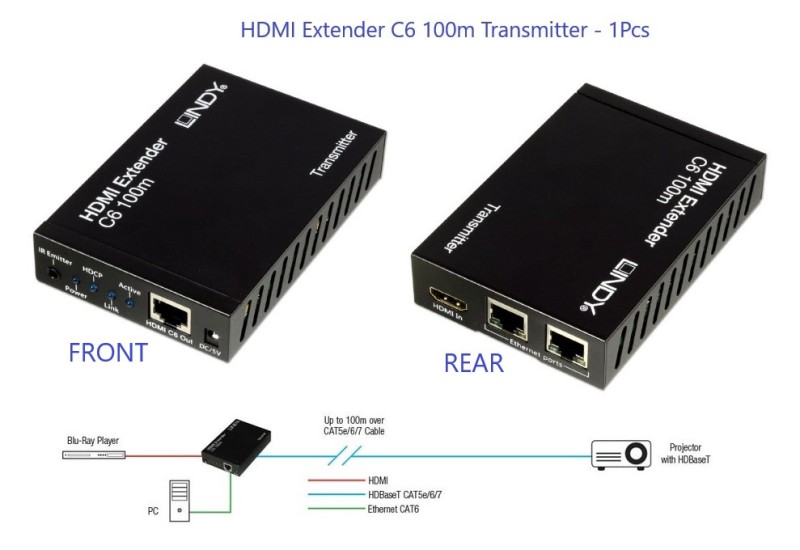

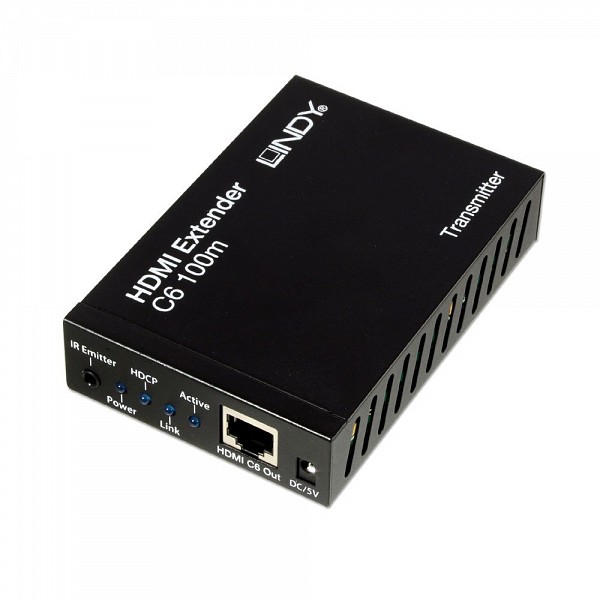

LINDY EXTENDER Transmitter HDMI 100m Cat6 With HDBaseT 38019

Κωδικός plus26: 173-356398

Κωδικός Εργοστασίου (MPN): 38019

Εγγραφείτε για τιμή

Send uncompressed HDMI/DVI signals up to 100m using low cost network cable

Ideal for use with HDBaseT™ equipped projectors and displays

Can be used in conjunction with the Lindy 100m Receiver or 70m Faceplate Receiver

Supports 4K (3840x2160) @ 30Hz

Supports HDTV resolutions up to 1080p with 24/36/48 bit colour depth

Supports 3D, including 1080p 3D

Supports LPCM, DTS Digital, DTS HD, Dolby Digital & Dolby True HD audio

Allows the remote control of equipment via IR

HDBaseT technology allows uncompressed full HD digital video, audio, 100BaseT Ethernet and more through a single LAN cable

2 year warranty

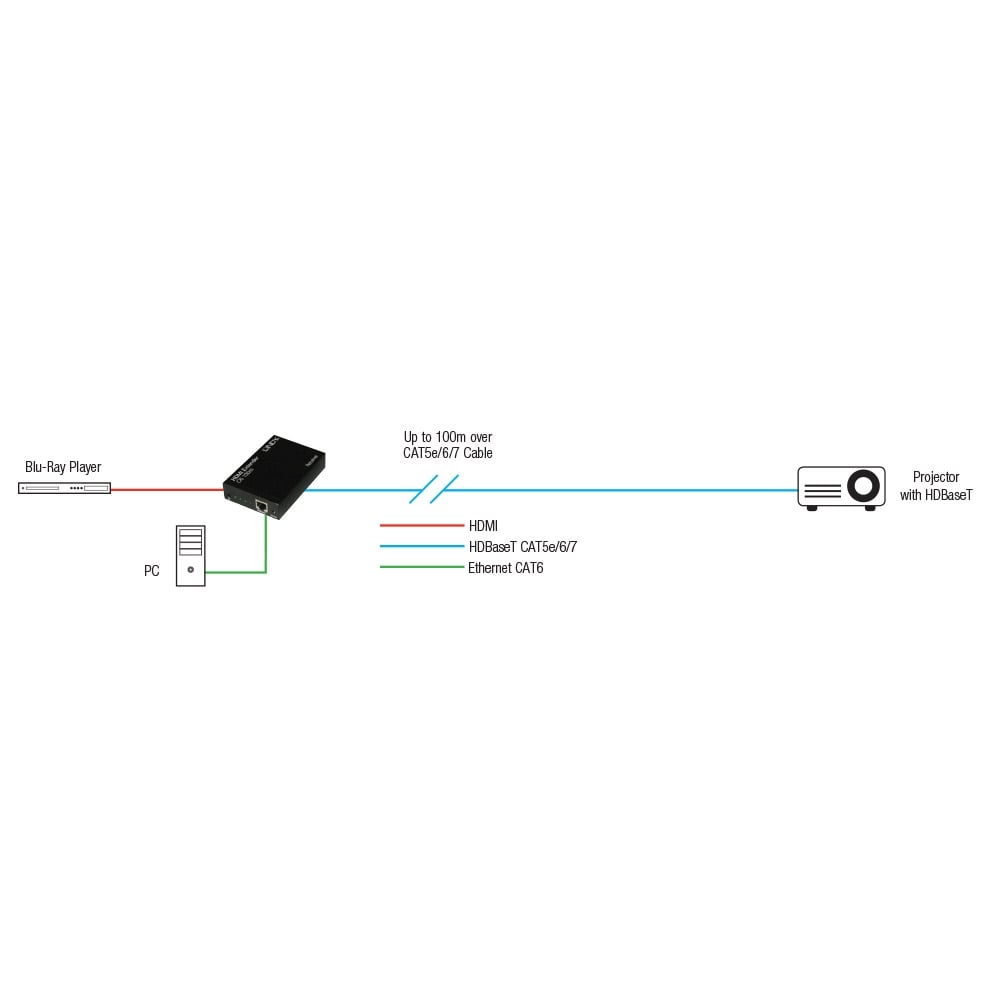

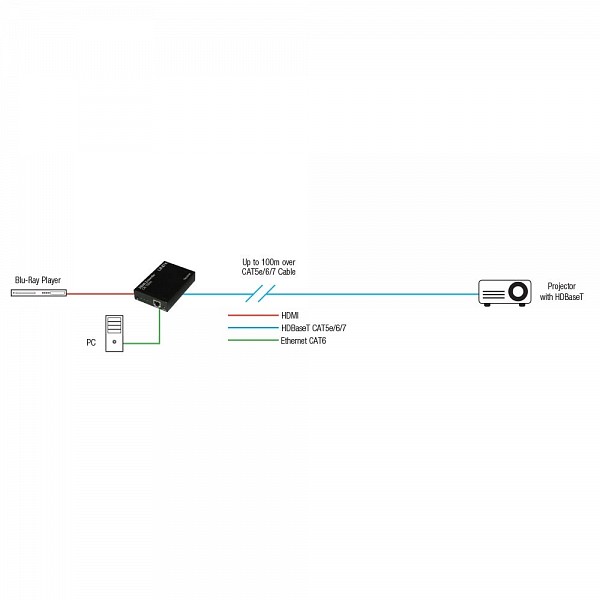

This extender is perfect for home cinema or professional AV installations, capable of extending Ultra HD 4K 2160p, Full HD 1080p, including 3D at distances of up to 100m using a single CAT 5e/6/7 cable when used in conjunction with the Lindy 100m HDBaseT Receiver or 70m Faceplate Receiver. It is also able to extend infrared signals, allowing AV equipment to be controlled up to 100m away. An integrated Ethernet hub also allows you to conveniently connect a PC/MAC, NAS, Wireless Access Point and other network equipment over the same single CAT 5e/6/7 cable.

Please Note: For larger distances up to 300m, we recommend one of our HDMI Fibre Optic Extenders.

Package Contents:

HDMI Extender C6 100m Transmitter
5V DC 2A Multi-Country Power Supply
IR Emitter with 3.5mm connector
Lindy Manual

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

HDMI Support

Extends uncompressed HDMI or DVI-D signals up to 100m via its HDBaseT connection
Supports 4K (3840x2160) @ 30Hz
Supports HDTV resolutions up to 1080p with 24/36/48 bit colour depth
Supports 3D, including 1080p 3D
Supports LPCM, DTS Digital, DTS HD, Dolby Digital & Dolby True HD audio

Ethernet Support

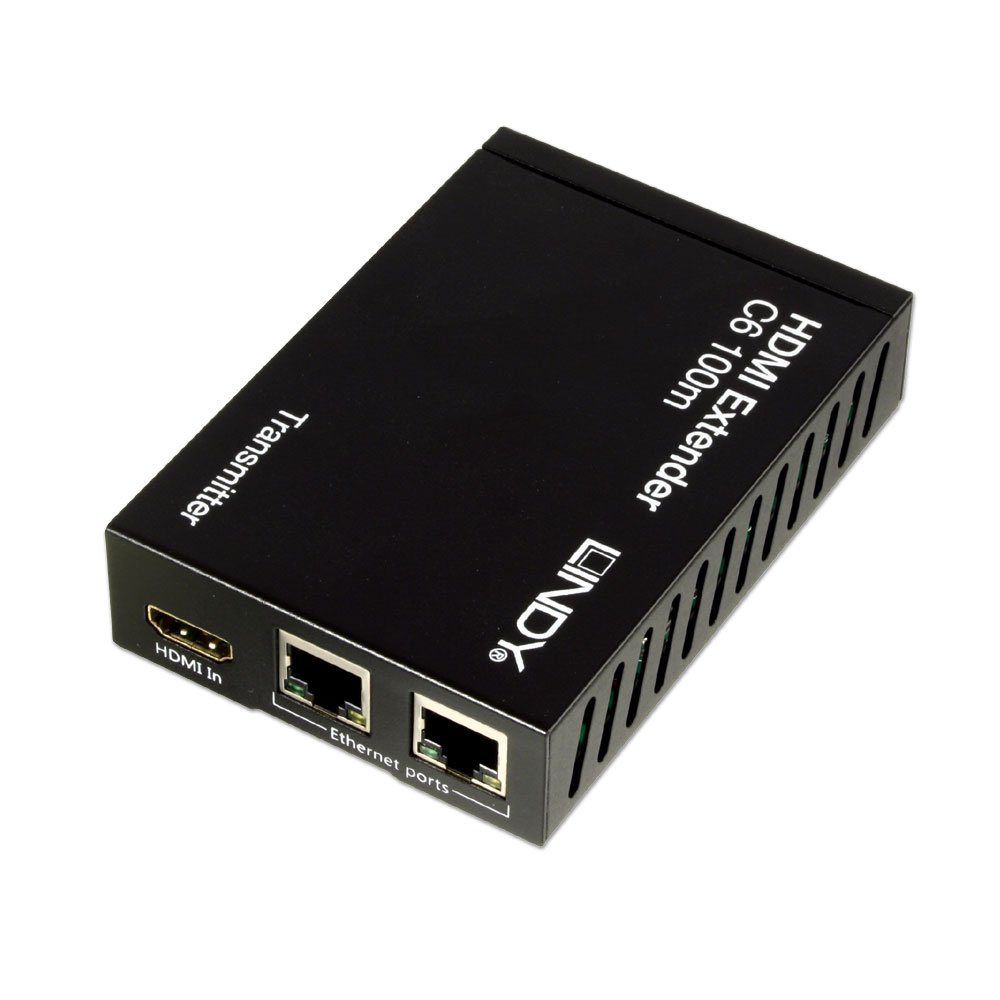

Features 2 RJ45 ports
All connections are connected to the common HDBaseT port
10/100Base-T support, IEEE 802.1Q, 802.3, 802.3u and 802.3x support
The HDBaseT RJ45 ports on this Transmitter must never be connected to a LAN as this will cause the extender to fail

IR remote support

Typical range up to 15m
IR Emmiter cable included
3.5 mm jack for IR Emitter
Frequency range 33-50kHz, transparent, protocol-independent

Device Specifications

Dimensions approx. 75 x 110 x 25mm (WxDxH)
Weight approx. 0.220kg
External power supply: 100 - 240VAC / 5VDC 2A, wwith Euro, US, UK & Australian/China AC connectors
Operating temperature range 0-70°C, for indoor use only

Operating temperature: approx. 0 to 40°C
Storage temperature: approx. -10 to 70°C

Please Note: For larger distances up to 300m, we recommend one of our HDMI Fibre Optic Extenders.
