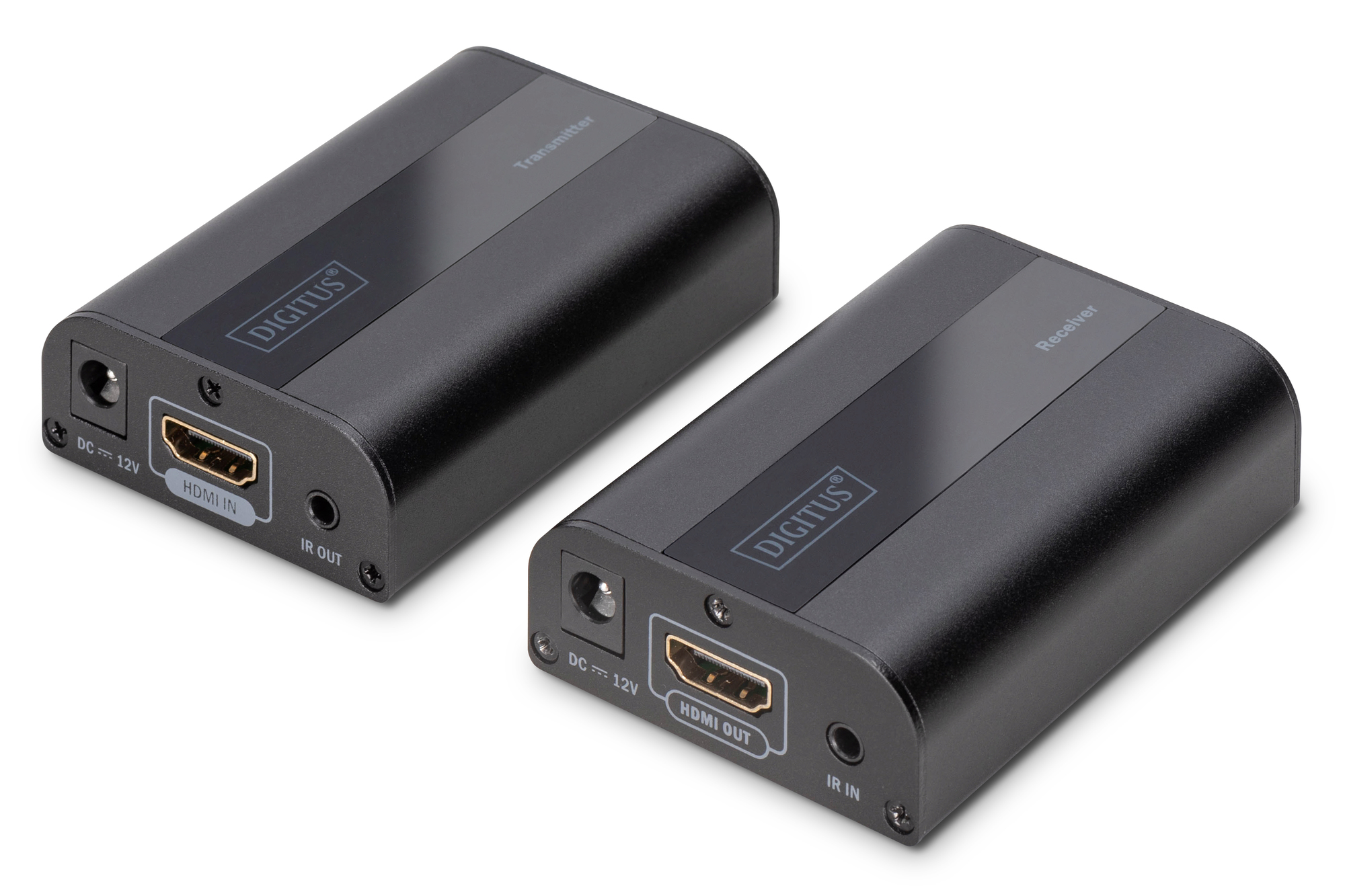

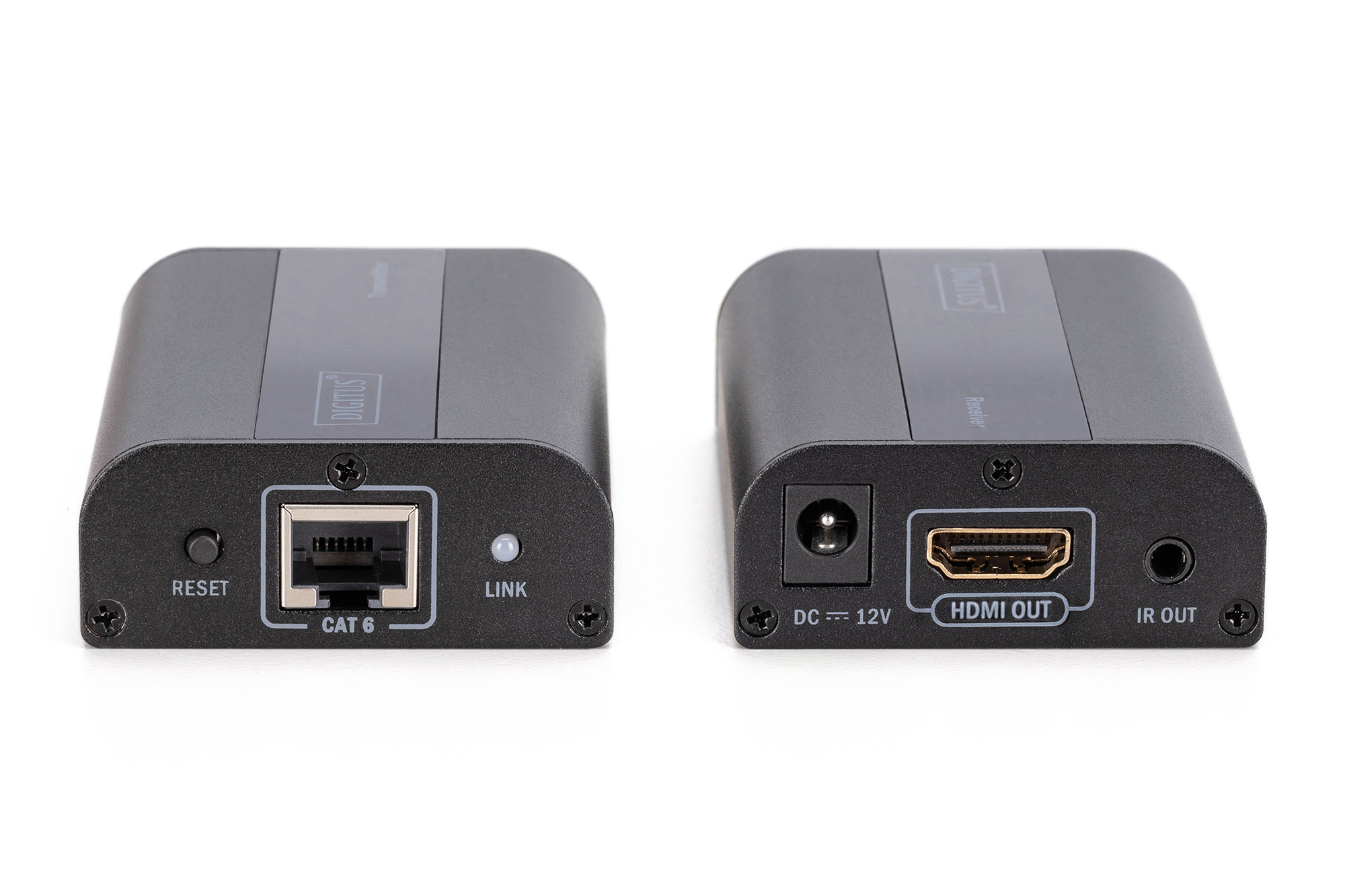

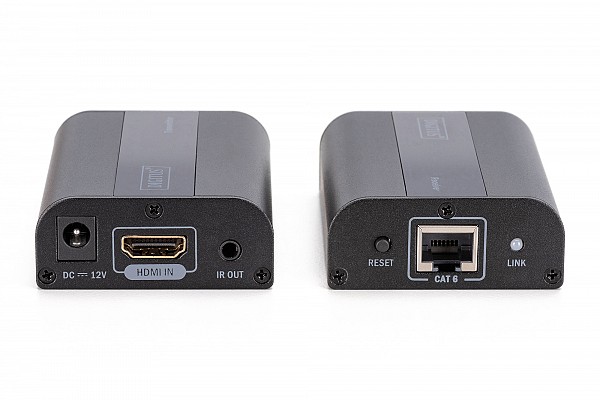

The Digitus 4K Extender Set offers an extender solution for the highest demands - both for high-resolution graphics display and for absolutely smooth video playback. It transmits digital 4K/60Hz video and audio signals over a maximum length of up to 70 m. CAT 6 or higher network cables are supported. It consists of a transmitter and receiver unit. Also included are two infrared units (transmitter, receiver) via which the remote control of the connected input source can be used.

Technical details

• Extends 4K/60Hz video content up to 70m
• Supports Ultra HD (60Hz), 4096 x 2160p resolution
• PoC (Power over Cable) - only one unit requires an external power supply unit
• Integrated IR interface - simple control of the input source with a remote control
• Supports CAT 6, CAT 6A, CAT 7 network cables
• Supports HDCP 2.2
• Provides simple and fast distribution for HDMI video signals - place your screens wherever you want
• Resolutions: 4K (60Hz), 4K (30Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
• LED status display
• Max. Transfer rate: 18 Gbps
• Color depth: 12 bit
• Supports compressed audio signals such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
• Supports uncompressed audio signals such as LPCM
• High-quality aluminum housing
• Compact size, easy handling and installation
• Power supply unit: DC 12V/1A
• Compression: Uncompressed
• Dimensions (1x unit): L 7.7 x W 5.6 x H 2.7 cm
• Color: Black

Attributes

• HDTV Standard: Ultra HD 4K
• Resolution max.: 4096 x 2160 Pixel, 60Hz
• Category: CAT 6
• Distance: 70 m
• KVM: no
• PoE (Power over Ethernet): no
• Video connection ports: HDMI

Package content

• 1x 4K HDMI extender transmitter unit
• 1x 4K HDMI extender receiver unit
• 1x power supply unit: DC 12V/1A
• 1x IR transmitter unit
• 1x IR receiver unit
• 1x operating instructions
