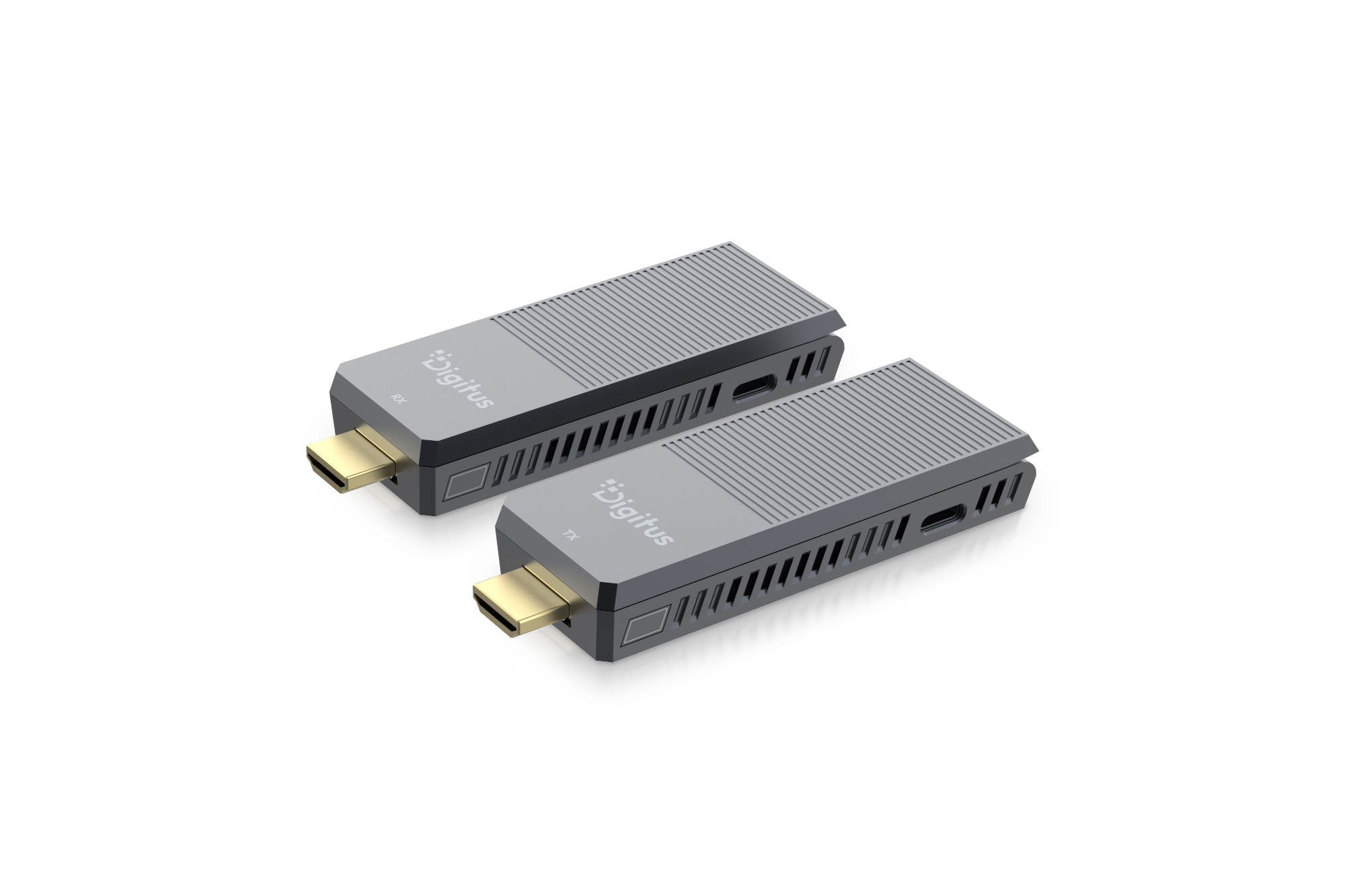

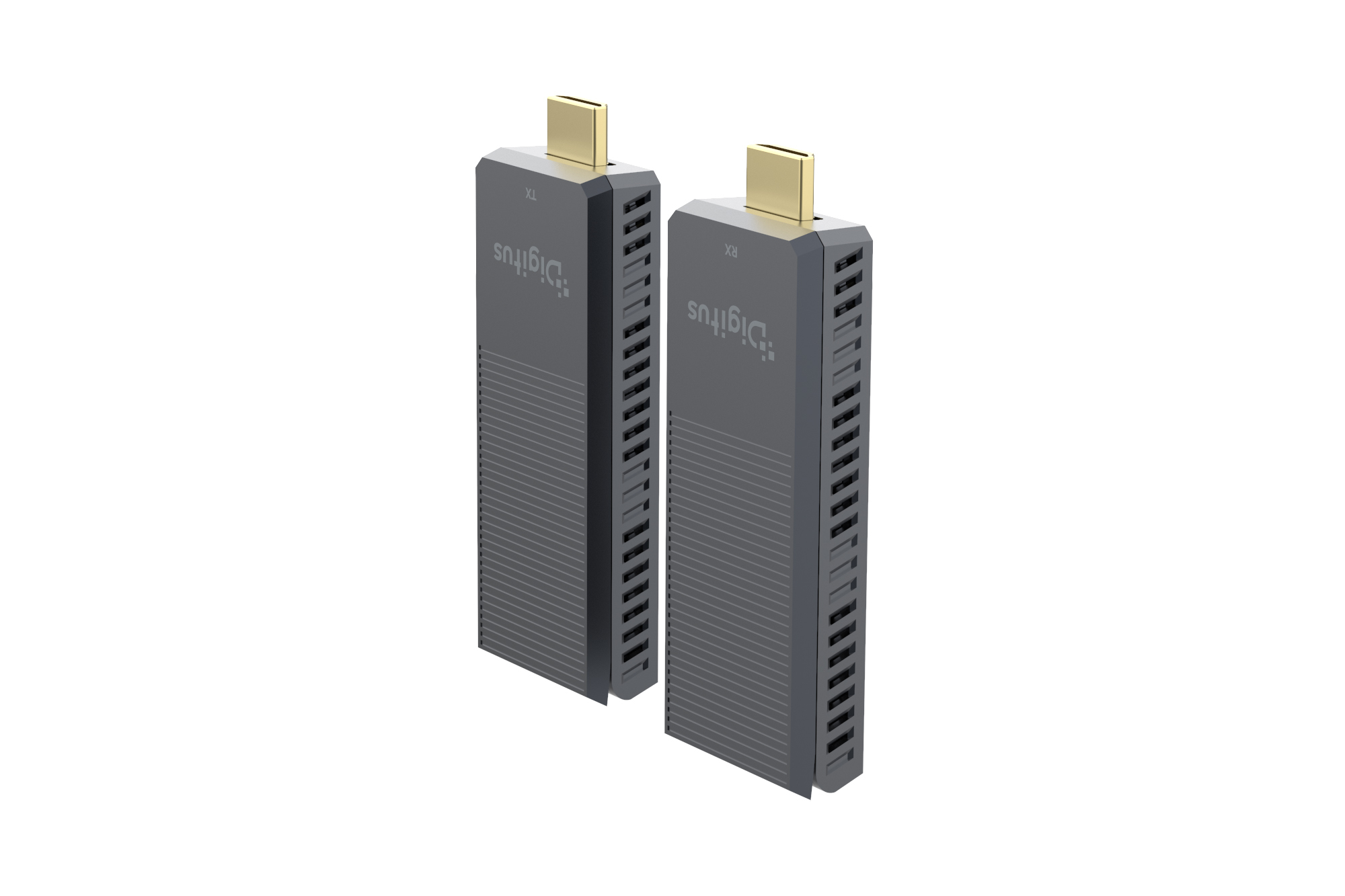

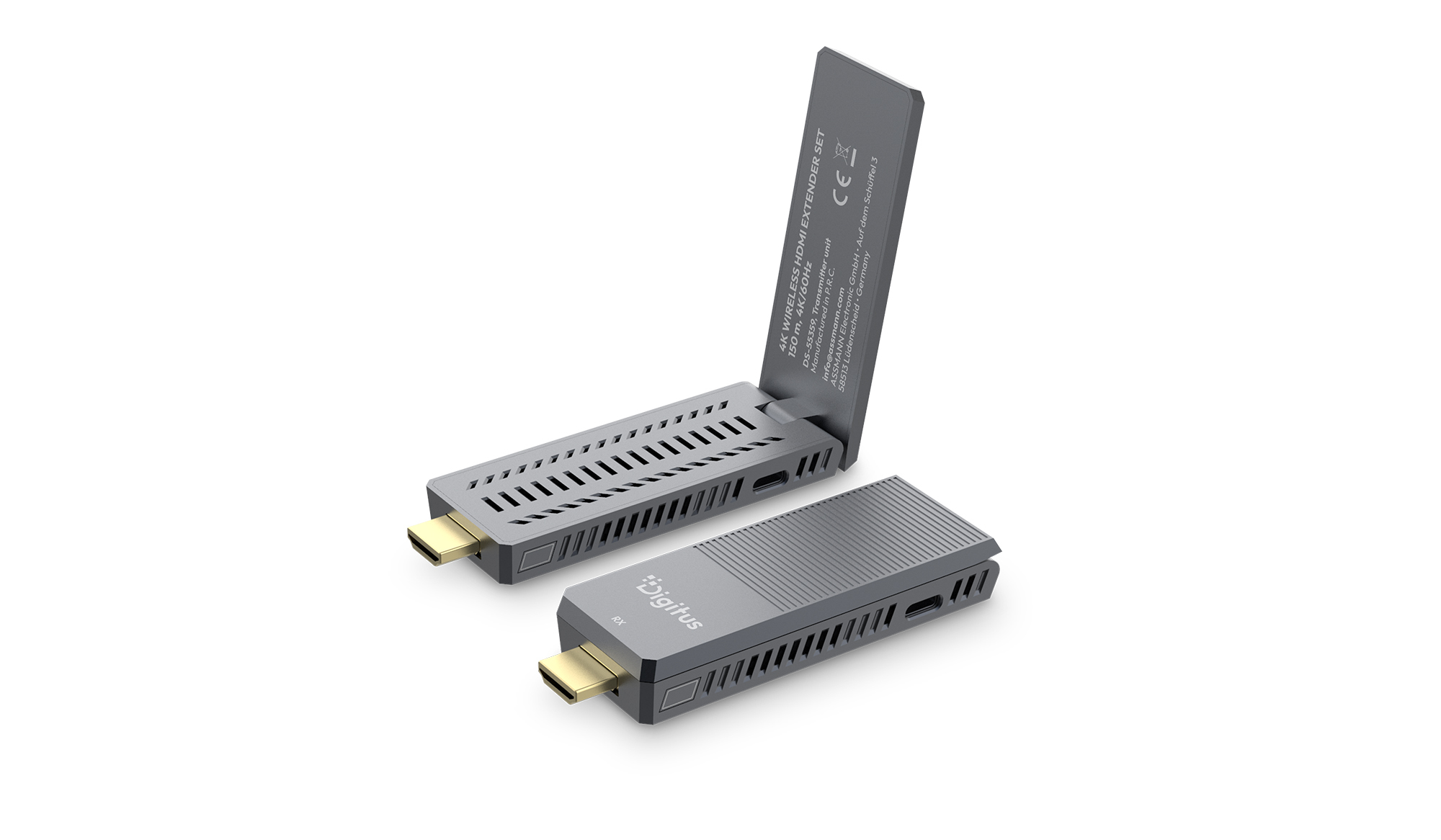

Experience wireless picture transmission of the highest quality with the 4K Wireless HDMI Extender (150 m, 4K/60 Hz). This powerful transmitter and receiver set enables the wireless transmission of HDMI video and audio signals in razor-sharp UHD resolution up to 4K/60 Hz - without any annoying cable connections. Thanks to the latest wireless technology (IEEE 802.11 b/g/n/ac, 5 GHz), the extender reliably transmits signals over distances of up to 150 meters in clear view (100 meters with the antenna folded in). The point-to-point connection ensures stable and low-latency transmission with a delay of only around 100 ms, ideal for presentations, video streaming or use in home cinemas. Set-up is very simple via Plug & Play - connect, switch on and get started straight away. An automatic pairing function automatically selects the best Wi-Fi channel to ensure an optimal connection. The power supply via USB-C makes the system particularly flexible and compatible. Maximum security is ensured by AES 128-bit encryption in combination with the WPA2 authentication protocol (WPA2-PSK / WPA2-Enterprise). Current standards such as HDMI 2.0 and HDCP 2.2 are supported, meaning that even protected content can be played back in the best quality. The H.265 compression ensures efficient transmission with the highest picture quality. With its compact design, LED status display and simple operating concept, the 4K Wireless HDMI Extender is the perfect solution for anyone who wants flexible, high-quality and secure HDMI signal transmission without cables.

Technical details

• Wireless HDMI signal transmission up to 150 m (unfolded antenna, unrestricted view)
• Wireless HDMI signal transmission up to 100 m (folded antenna, unrestricted view)
• Supports resolutions up to 4K UHD (4096x2160p, 60Hz)
• Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
• Simple operation and handling thanks to Plug & Play - plug in and go, no drivers or software required
• Automatic pairing & connection: Automatically establishes a connection via the most advantageous WiFi channel to ensure the best possible WiFi performance
• Supports signal sources (e.g. games consoles, Blu-Ray players, etc.) with HDMI output as well as PCs/notebooks with Windows, macOS
• Power supply via USB-C connection
• AES 128 bit encryption
• Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
• HDMI version: HDMI 2.0
• HDCP version: HDCP 2.2
• Radio standard: IEEE 802.11.b/g/n/ac
• Frequency band: 5G
• Connections per unit: 1x HDMI plug, 1x USB-C socket
• Action button & LED status display
• Power supply per unit: 5V/2A
• Compression: H.265
• Latency: approx. 100 ms (transmitter to receiver transmission)
• Audio format: PCM
• Audio channel: 2 channels
• ABS housing
• Power consumption per unit: approx. 10W
• Operating temperature: 0-40°C
• Dimensions (1 unit): L 9.1 x W 3.4 x H 1.5 cm
• Weight: transmitter 65 g, receiver 50 g
• Color: Black/Grey
• Manufacturer's instructions:
• The transmission distance with limited visibility cannot be determined across the board and depends on the conditions on site
• Walls, glass, etc. shorten the signal coverage or cause signal loss

Attributes

• HDTV Standard: Ultra HD 4K
• Resolution max.: 4096 x 2160 Pixel, 60Hz
• Distance: 150 m
• KVM: no
• PoE (Power over Ethernet): no
• Video connection ports: HDMI

Package content

• 1x transmitter unit
• 1x receiver unit
• 2x USB-A to USB-C cable (100 cm)
• 2x HDMI extension cable (12.5 cm)
• 1x QIG
