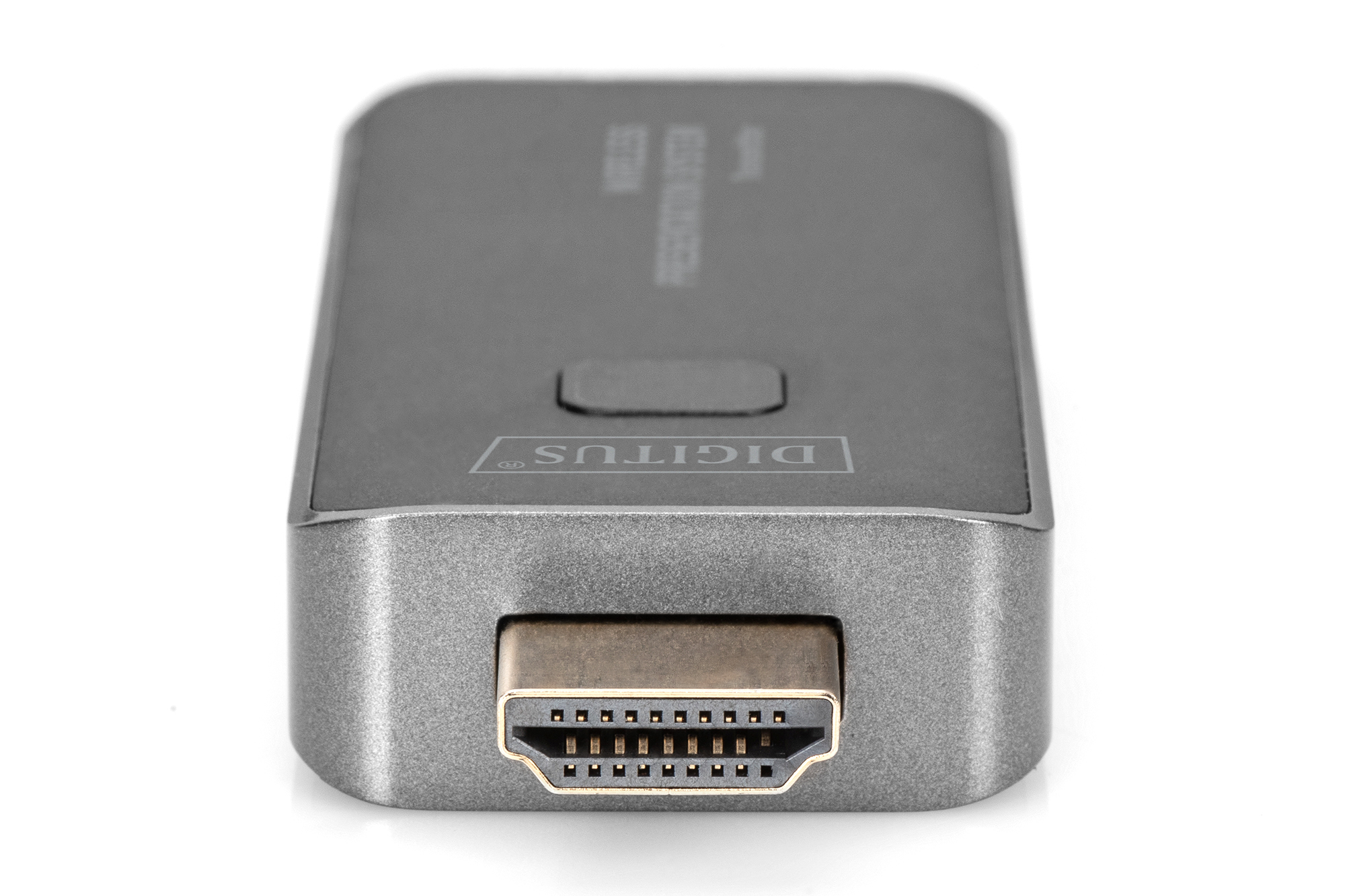

• Wireless HDMI Transmitter (TX) additional unit for DS-55319
• Additional transmitter unit for the Wireless Presentation System (DS-55319)
• Wireless HDMI signal transmission up to 50 m (with unobstructed view)
• With this transmitter unit, extend the Wireless Presentation System (DS-55319) to up to 16 transmitters
• Switch to the desired transmitter quickly and easily at the press of a button in order to reproduce your content
• Supports resolutions up to Full HD (1080p / 60 Hz)
• Easy operation and handling thanks to Plug & Play - Just plug in and get started
• Transmitter can be supplied with power via your device’s HDMI connection (> 500 mAh required). To have a safe and stable operation, we recommend to use always the Micro USB cables for power supply of TX and RX.

Technical details

• Wireless HDMI signal transmission up to 50 m (unobstructed view)
• Supports resolutions up to 1920x1080p
• Wireless channel: IEEE 802.11ac, 5 GHz, 2T2R
• HDMI version: 1.4
• HDCP version: 1.3
• AES 128 bit encryption
• WPA2 protocol
• Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
• Supports Windows, macOS
• Connections per unit: 1x HDMI plug, 1x Micro-USB jack
• Power supply: HDMI jack (0.5A required) or via Micro-USB (DC 5V/0.5A)
• Connection button with LED status display
• Audio: Stereo, 16 bit / 48 KHz
• ABS housing
• Power consumption: approx. 2.5W
• Operating temperature: 0-40 °C
• Dimensions (1 unit): L 8.3 x W 3.2 x H 1.3 cm
• Weight (1 unit): 27 g
• Color: Black
• The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed.
• Walls, glass etc. shorten the signal range or cause signal losses.
• KVM: no
• PoE (Power over Ethernet): no

Package content

1x Transmitter unit
1x Micro USB cable (0.5 m)
1x HDMI extension cable (0,15 m)
1x QIG
