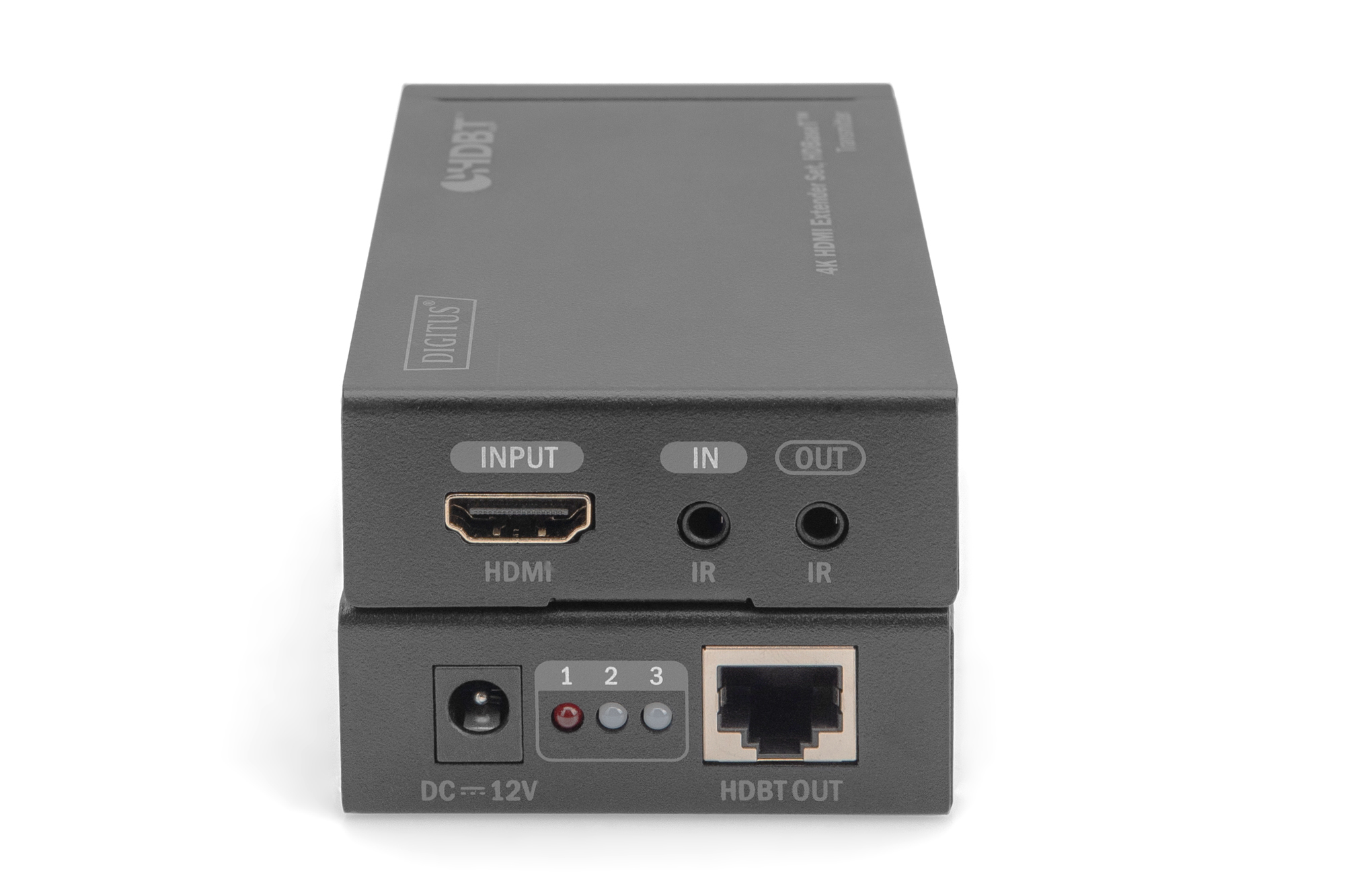

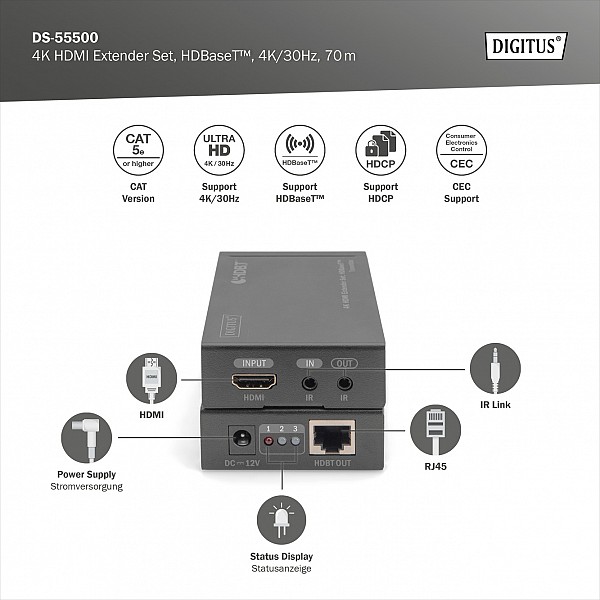

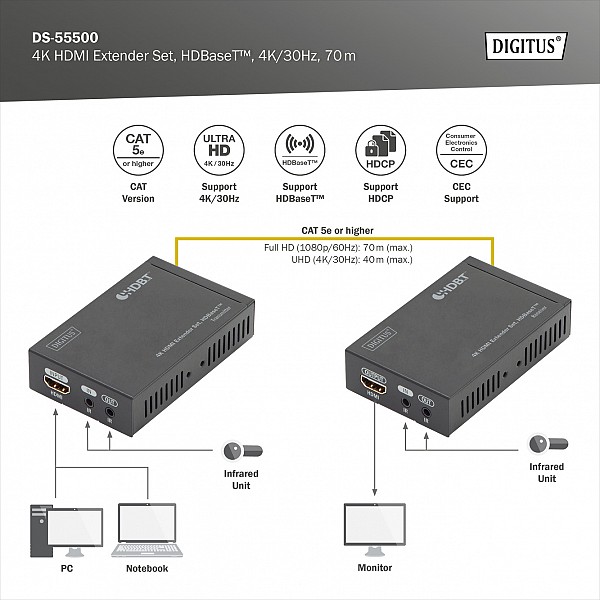

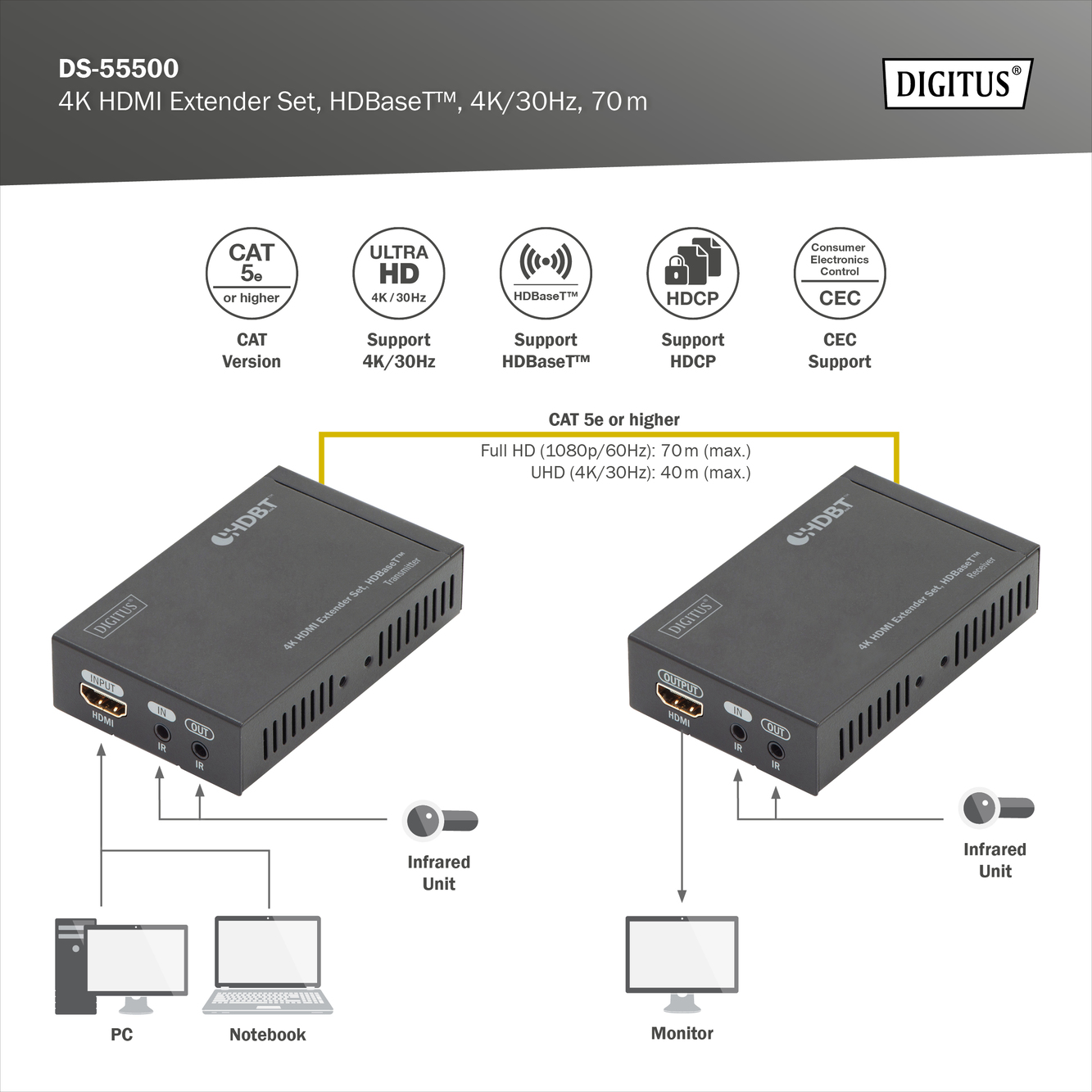

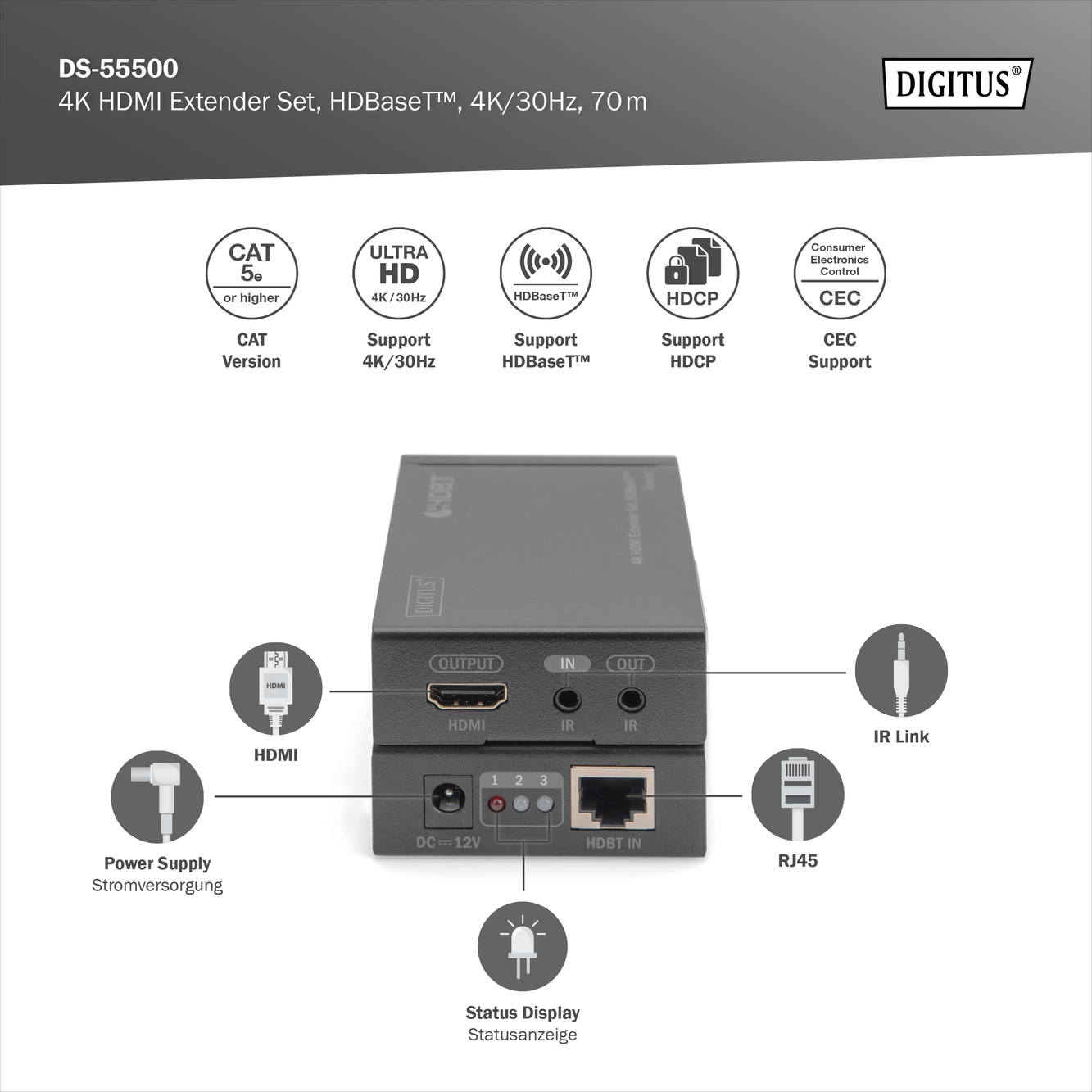

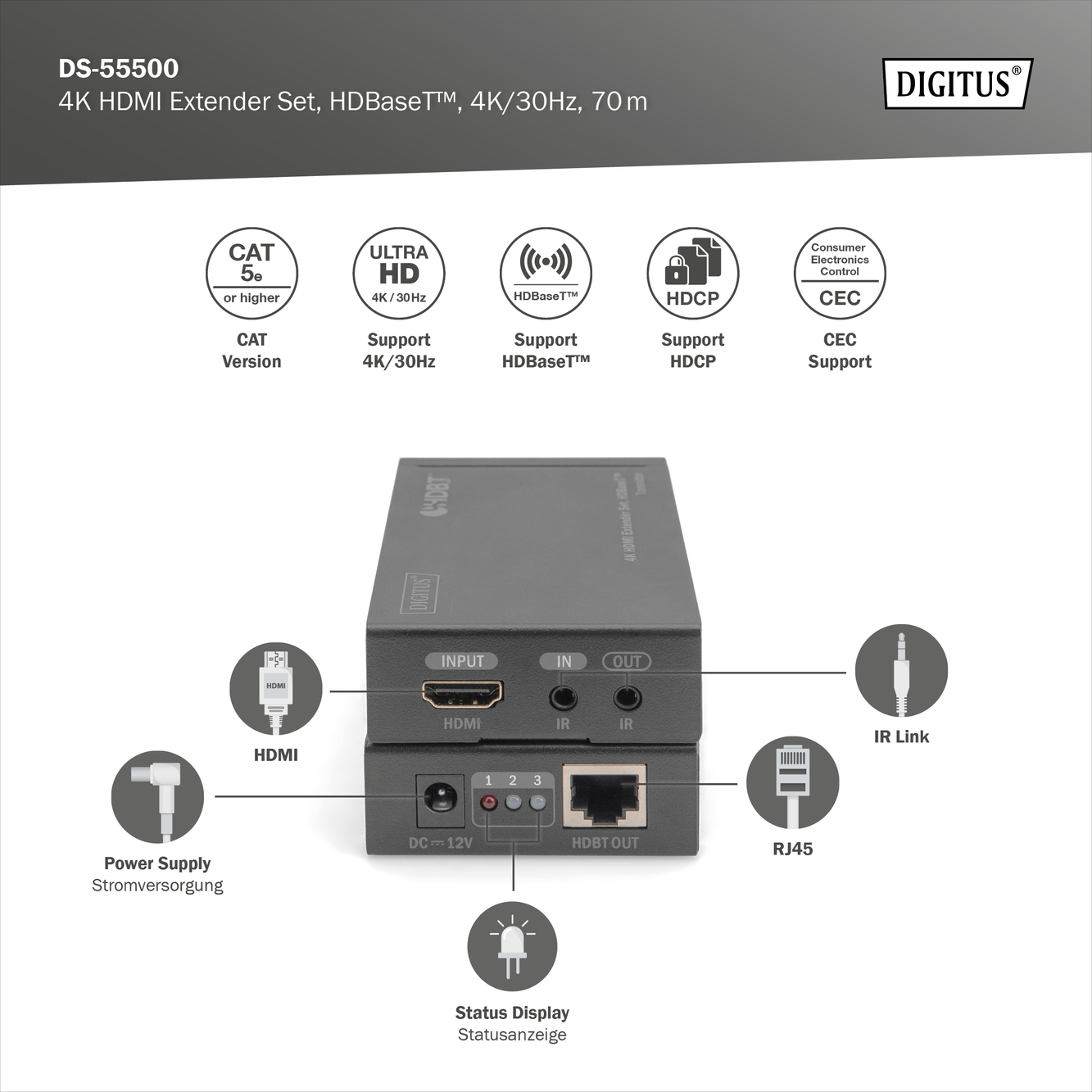

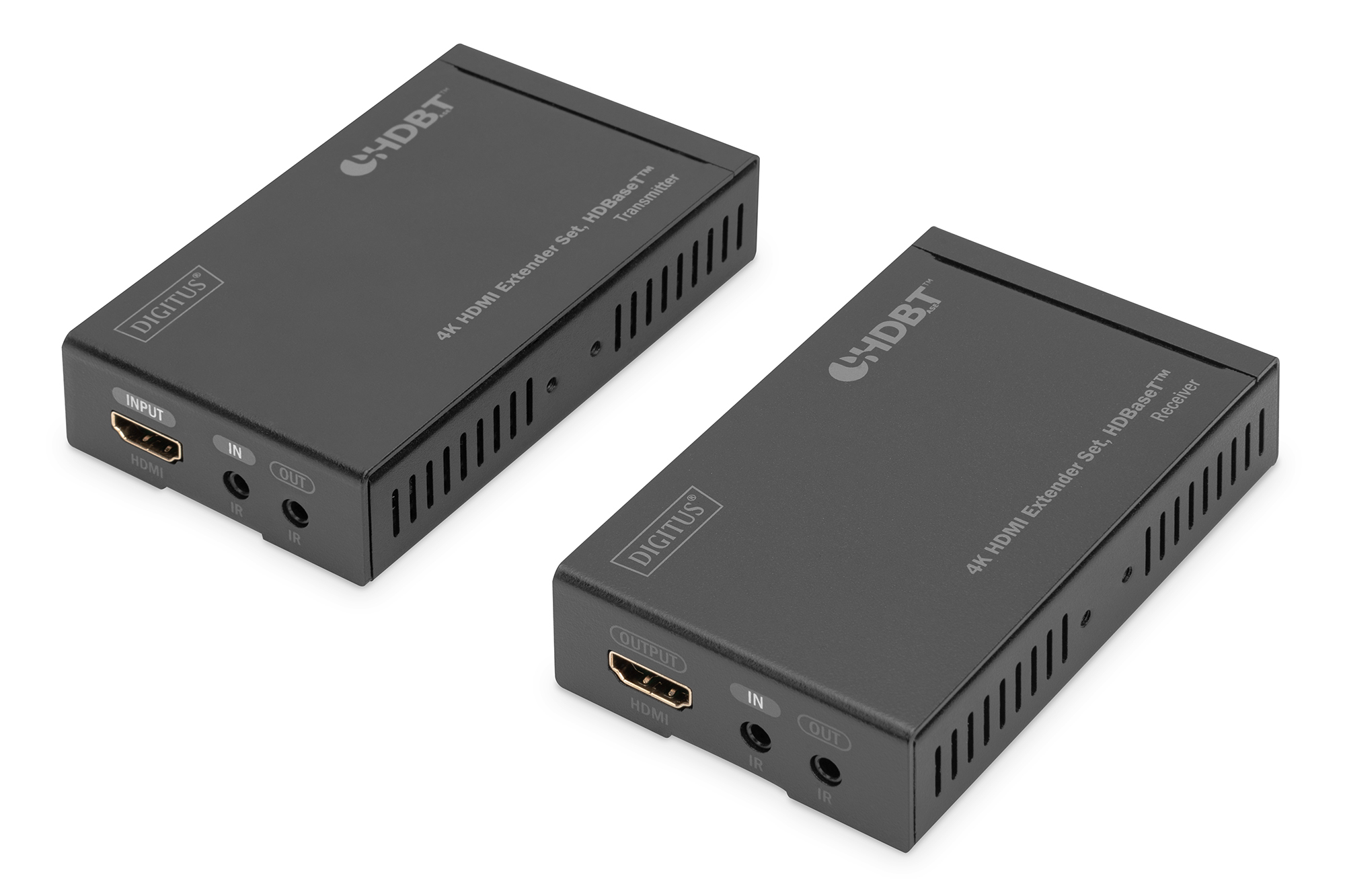

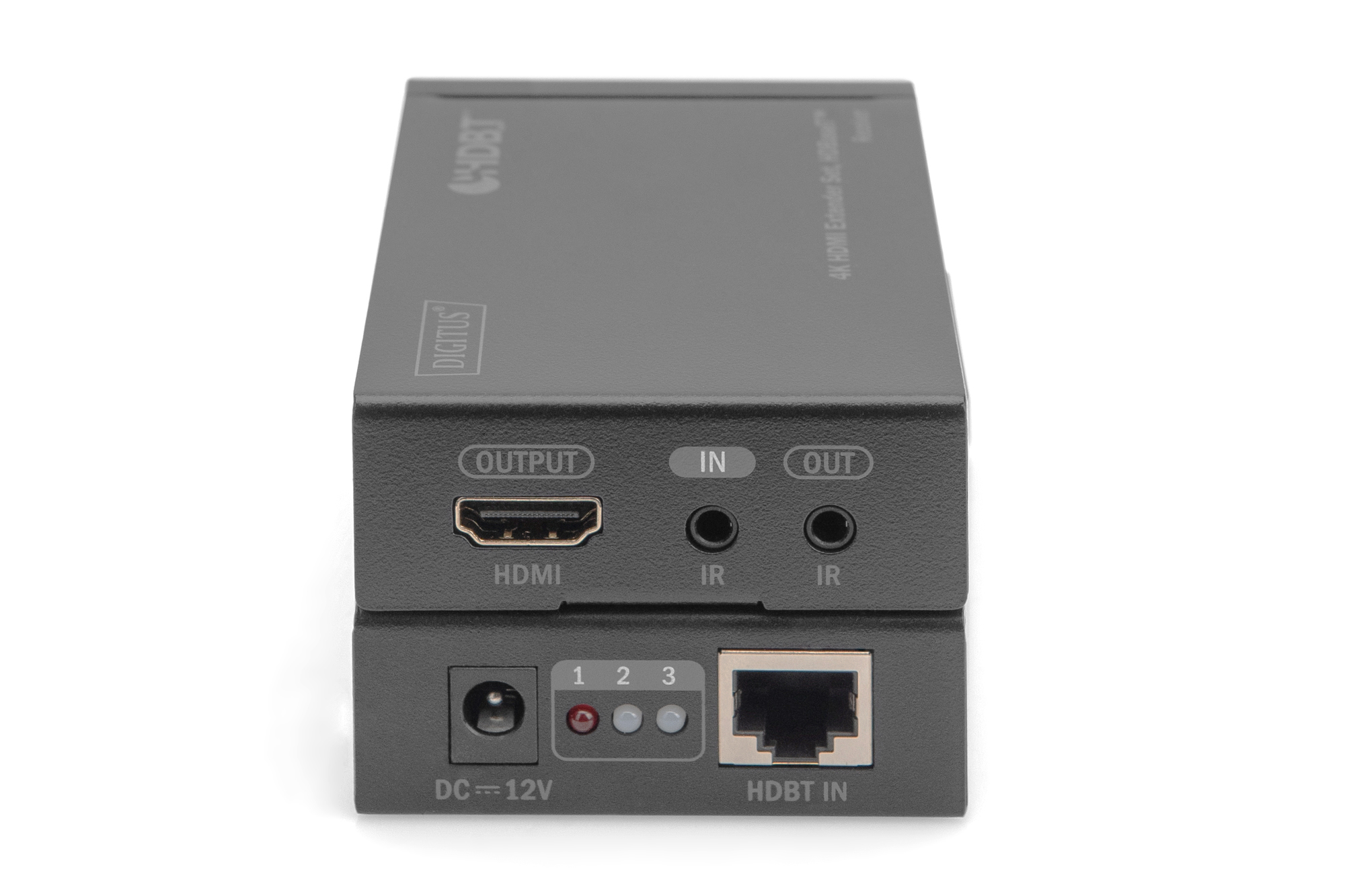

The DIGITUS 4K extender set, HDBaseT™ offers an extender solution up to 70m for the highest demands - for both high definition graphic display and also for absolutely fluent video playback. It transmits digital and audio signals up to a maximum distance of up to 70m. 4K content can be transmitted over up to 40m using a CAT 6 network cable. It consists of a transmitter as well as a receiver unit. Two bi-directional infrared units (sender, receiver) are also supplied, by means of which the remote control of the connected input source can be used.

Technical details

• Extends the maximum length for HDMI cables to up to 70m whereby only a simple network cable is used between a sender and a receiver unit
• Extends 4K video contents to up to 40m with a CAT 6 cable
• Offers simple and quick distribution for HDMI video signals - position your monitors wherever you wish
• Supports 4K Ultra HD (30Hz), 4096 x 2160p resolution
• Uses HDBaseT™ technology
• Supports CAT 5e, CAT 6, CAT 6A and CAT 7 network cables
• Supports HDCP 2.2
• Integrated bidirectional IR-Interface - Easy control of the input source with a remote control
• Resolutions: 4K (30 Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
• LED status indicator
• Supports: 3D, HDTV
• Supports CEC
• Supports Deep Color (24bit)
• Supports compressed audio signals, such as DTS digital, Dolby digital (including DTS-HD and Dolby True HD)
• Supports uncompressed audio signals such as LPCM
• Metal casing
• Compact size, simple use and installation
• Power supply unit: DC 12V/2A
• Dimensions (1x unit): L 9.85 x W 6.65 x H 2.3 cm
• Color: black

Attributes

• HDTV Resolution max.: 4096 x 2160 Pixel, 30Hz
• HDTV Standard: Ultra HD 4K
• Category: CAT 5e
• Distance: 40 m
• KVM: no
• PoE (Power over Ethernet): no
• Video connection ports: HDMI

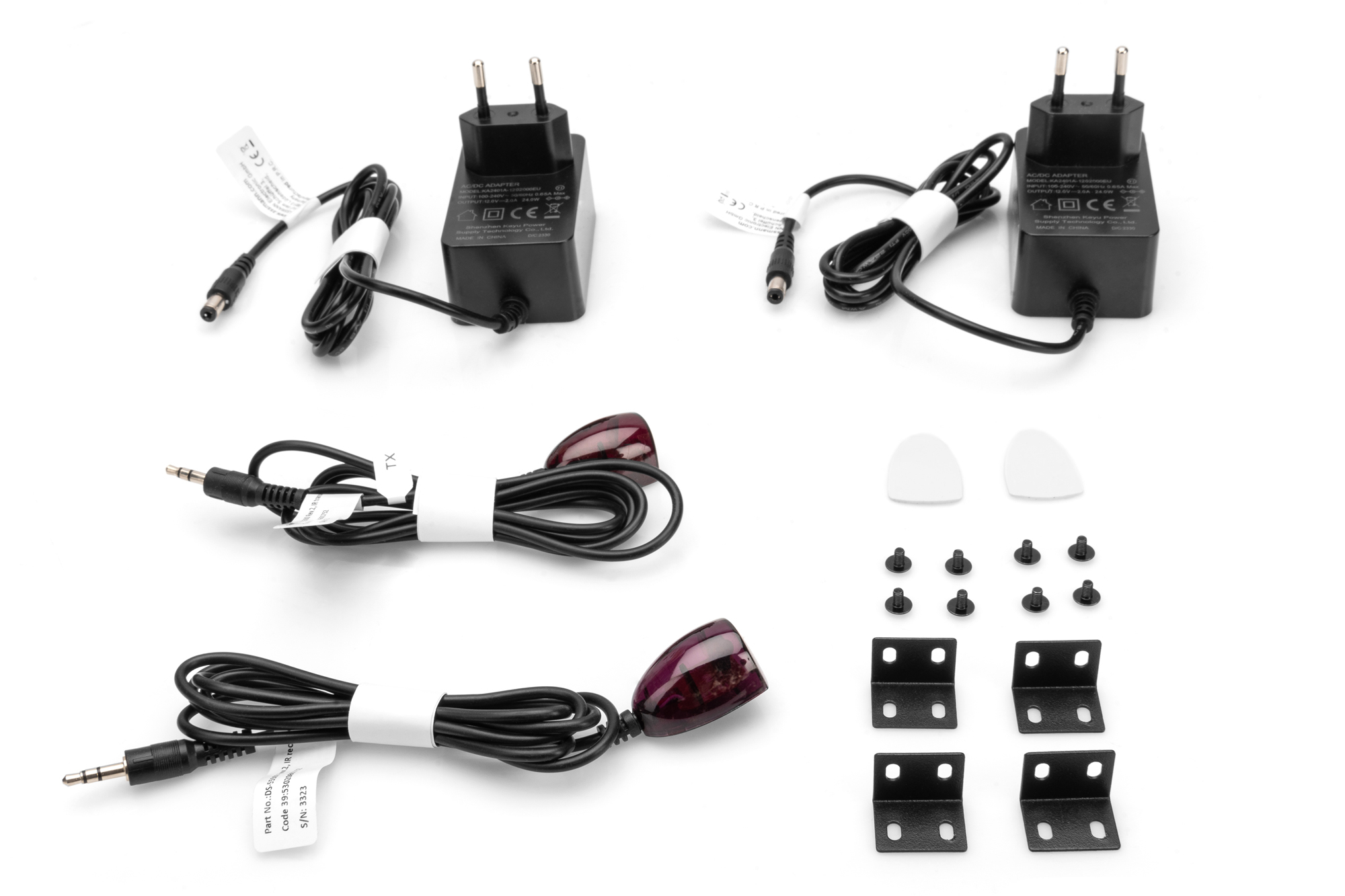

Package content

1x HDMI Extender transmitter unit
1x HDMI Extender receiver unit
2x Power supply unit: DC 12V/2A
1x IR transmitter unit
1x IR receiver unit
2x Mounting Sets & Screws
1x Instruction manual
