HDMI 2.0 HDMI KVM Extender Set, 70 m USB 1.1, touch panel support

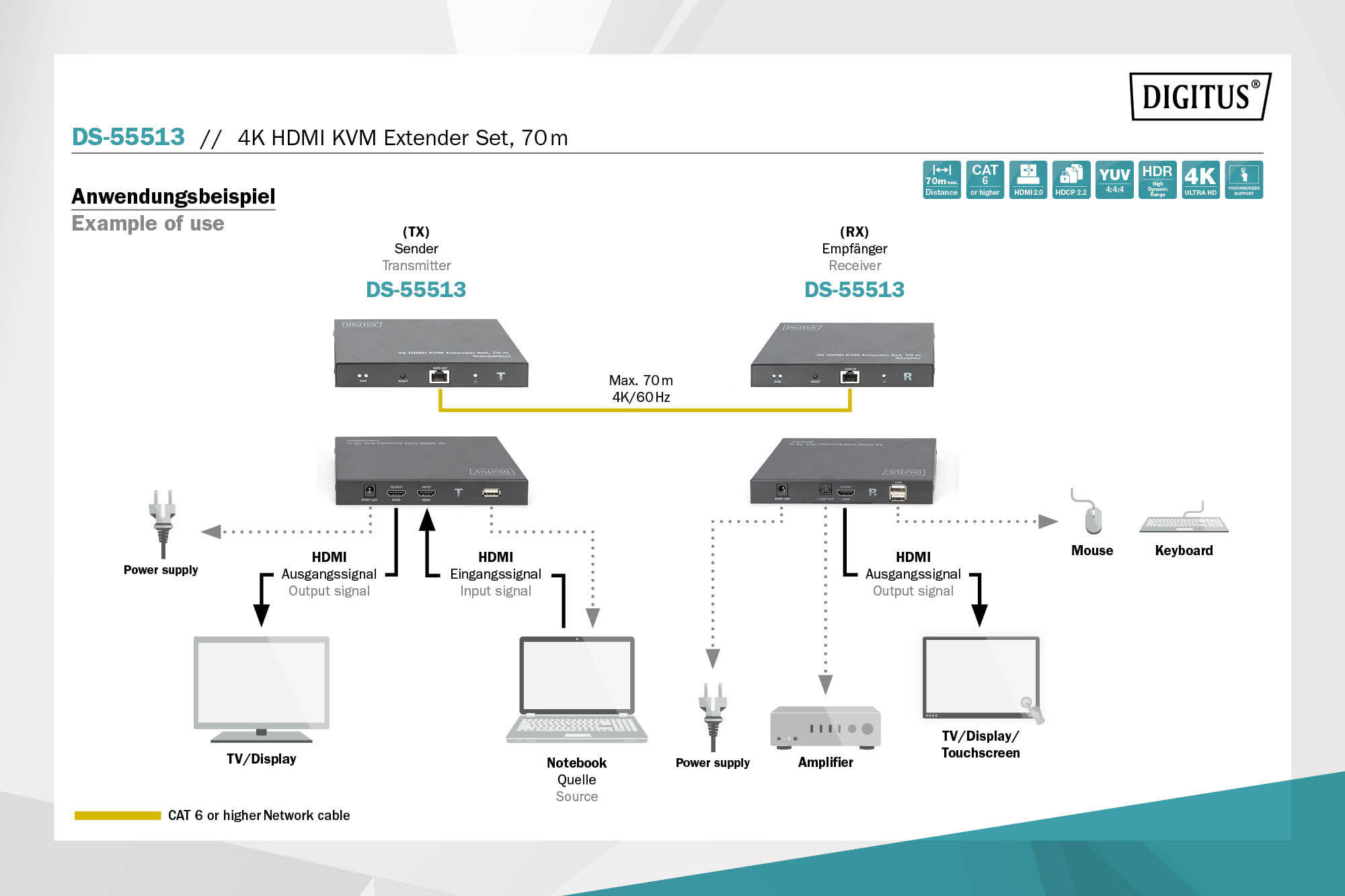

Extends an HDMI signal over a distance of up to 70 m in UHD resolution (4K/60Hz) and offers KVM/USB functionality for the connection of mouse, keyboard and touchscreen

• Supports 4K2K/60Hz (HDR, 4:4:4)
• Video bandwidth: 18 Gbps
• Maximum transmission distance (UHD 4K2K): 70 m
• KVM/USB functionality – Connection of mouse, keyboard, touchscreen
• HDMI loop-out to the transmitter unit
• Supports CAT 6/7/8 cables
• Audio extractor on the receiver unit (S/PDIF)
• EDID passback
• HDCP 2.2 / 1.4
• HDMI 2.0

Technical details

• Supports 4K2K/60Hz (HDR, 4:4:4)
• Video bandwidth: 18 Gbps
• Maximum transmission distance (UHD 4K2K): 70 m
• Supports CAT 6/7/8 cables
• HDCP 2.2 / 1.4
• HDMI 2.0
• Transmitter unit connections:
• 1x HDMI input (4K/60Hz) - Connection signal source
• 1x RJ45 output - Connection CAT transmission cable
• 1x HDMI loop-out / output – Connection of local monitor (source device)
• 1x USB-A port - Connection to source device
• 1x Power adapter input (DC 5V/2A)
• 1x Reset button
• 3x LED status display

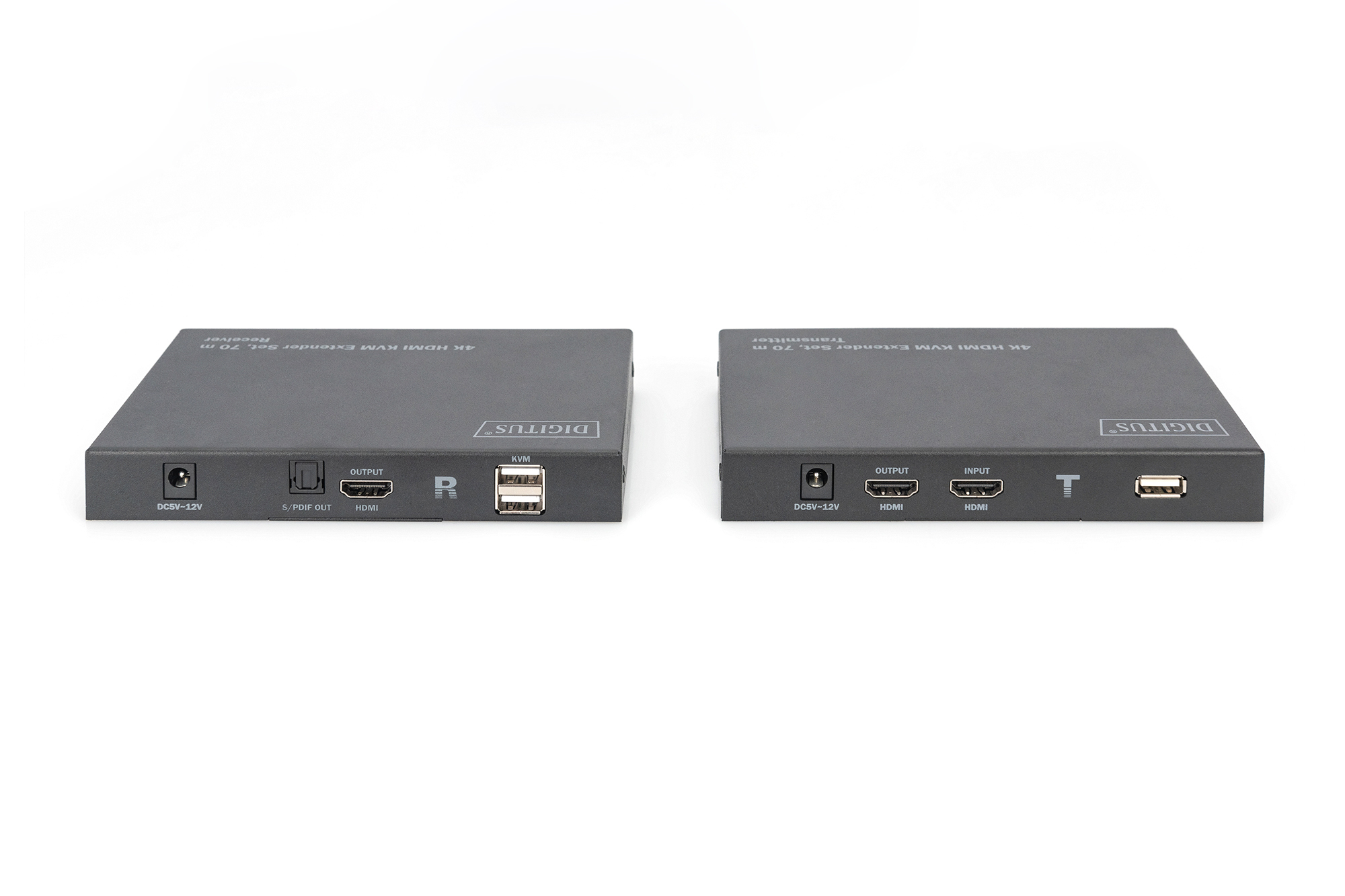

• Receiver unit connections:
• 1x HDMI output (4K/60Hz) - Connection output device
• 1x RJ45 input - Connection CAT transmission cable
• 2x USB-A port - Connection of mouse, keyboard, touchscreen
• 1x Audio output (digital - S/PDIF - Connection of external speakers
• 1x Power adapter input (DC 5V/2A)
• 1x Reset button
• 3x LED status display
• Surge protection & ESD protection
• Suitable for wall mounting
• Operating temperature: -20-60°
• Power consumption: Transmitter / receiver ca. 4W
• Housing: Metal
• Dimensions (1 unit): L 10.7 x W 15 x H 2.8 cm
• Weight (1 unit): 260 g
• Color: black
• HDTV Resolution max.: 3840 x 2160 Pixel, 60Hz
• HDTV Standard: Ultra HD 4K
• Category: CAT 6
• Distance: 70 m
• KVM: yes
• PoE (Power over Ethernet): no
• Transmission technology: CAT
• Video connection ports: HDMI

Package content

1x Transmitter unit
1x Receiver unit
2x Power adapter (DC 5V/2A, 1.45 m)
1x USB cable
1x Wall mounting fastening material
1x User manual
