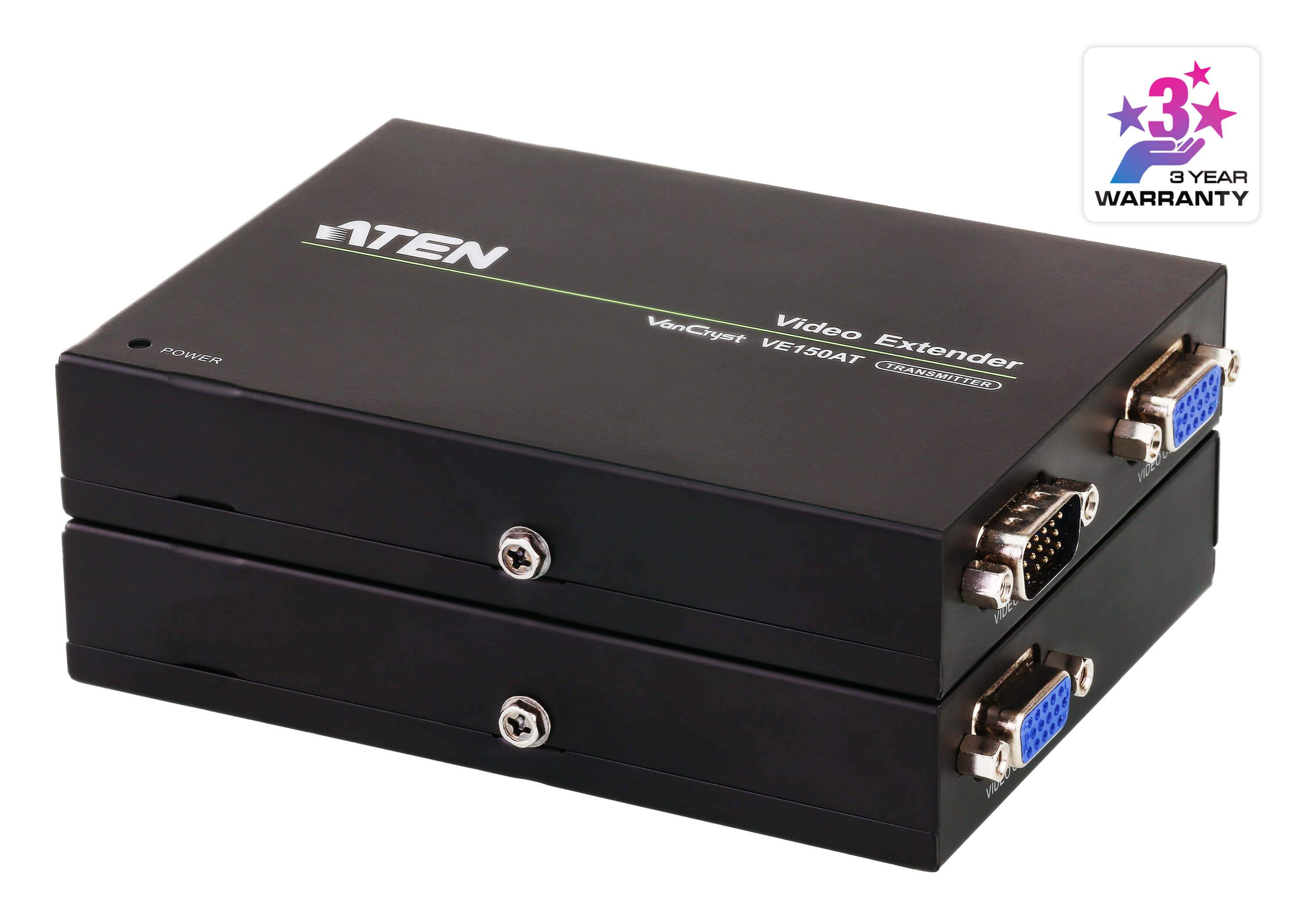

Aten EXTENDER VGA ME UTP 150m. 1280x1024 VE150A

Κωδικός plus26: 173-303607

Κωδικός Εργοστασίου (MPN): VE150A

Εγγραφείτε για τιμή

Uses Cat 5e cables to connect the local and remote units

Supports one local and one remote display

Long distance transmission – up to 150 m

Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)

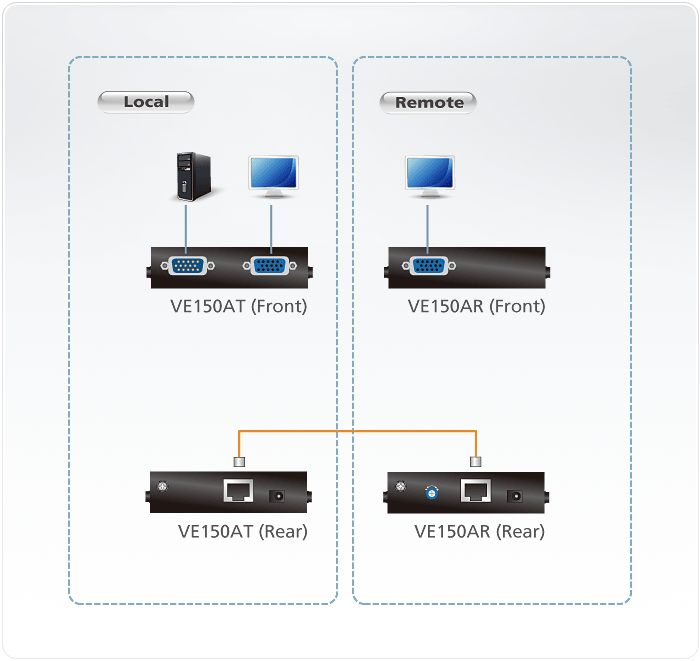

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

Package Contents

1x VE150AT Video Extender (Local unit)
1x VE150AR Video Extender (Remote unit)
2x Power Adapters
1x VGA Cable (1.8m/6ft)
1x Mounting Kit
1x User Instructions

Uses Cat 5e cables to connect the local and remote units
Supports one local and one remote display
Long distance transmission – up to 150 m
Adjustable gain control – manually adjust signal strength to compensate for distance
Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
Supports wide screen formats
Supports hot-plugging
Built-in 8KV/15KV ESD protection
Supports DDC for the local monitor
Easy installation
Rack Mountable
Plug-and-play – no software installation required

Function VE150AR VE150AT
Video Input

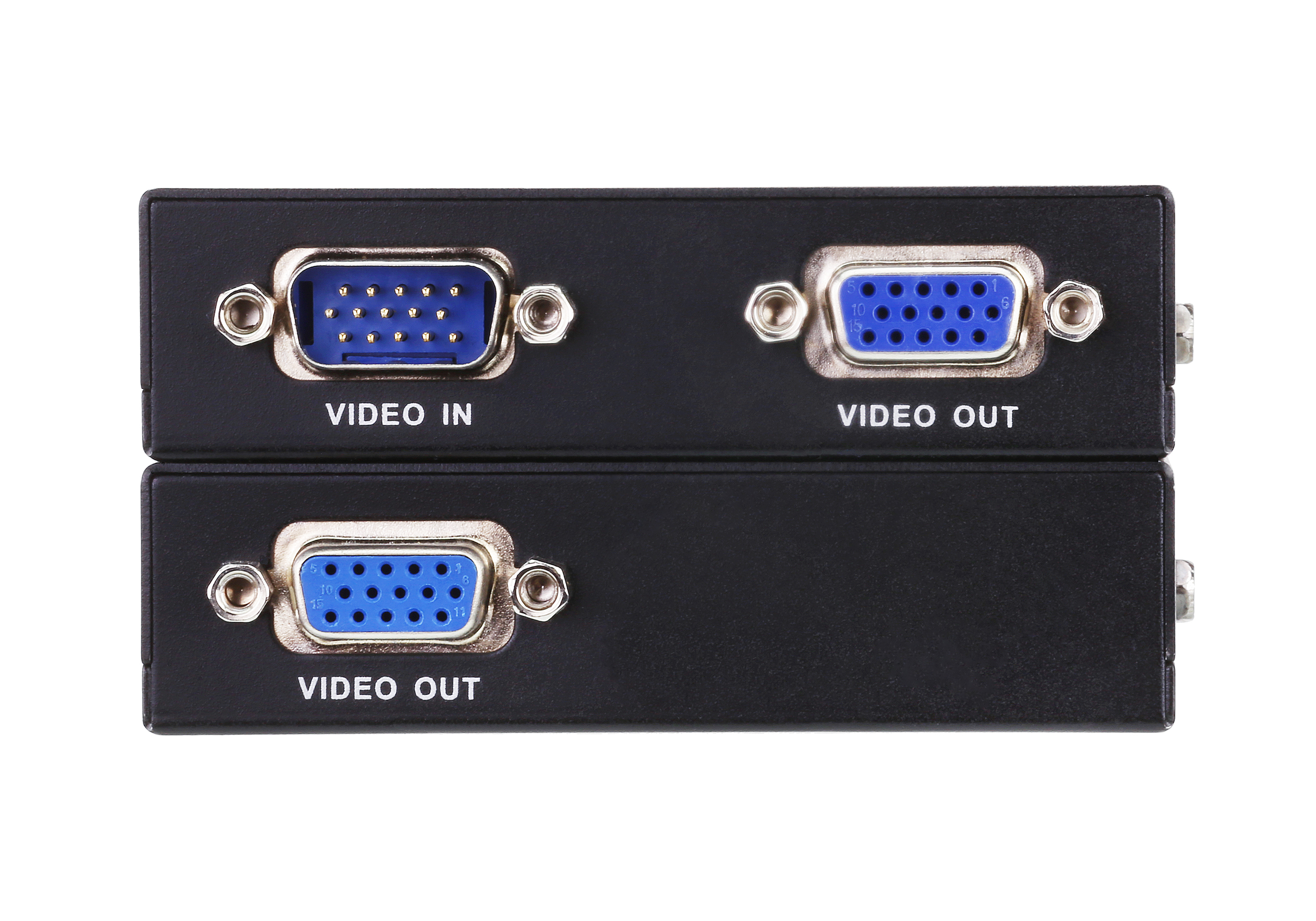

Interfaces N/A 1 x HDB-15 Male (Blue)
Impedance N/A 75 Ω
Max. Distance N/A 1.8 m
Video Output
Interfaces 1 x HDB-15 Female (Blue) 1 x HDB-15 Female (Blue)
Impedance 75 Ω 75 Ω
Video
Max. Bandwidth 300 MHz 300 MHz
Max. Resolutions / Distance Up to 1920 x 1200@30m; 1280 x 1024@150m Up to 1920 x 1200@30m; 1280 x 1024@150m
Connectors

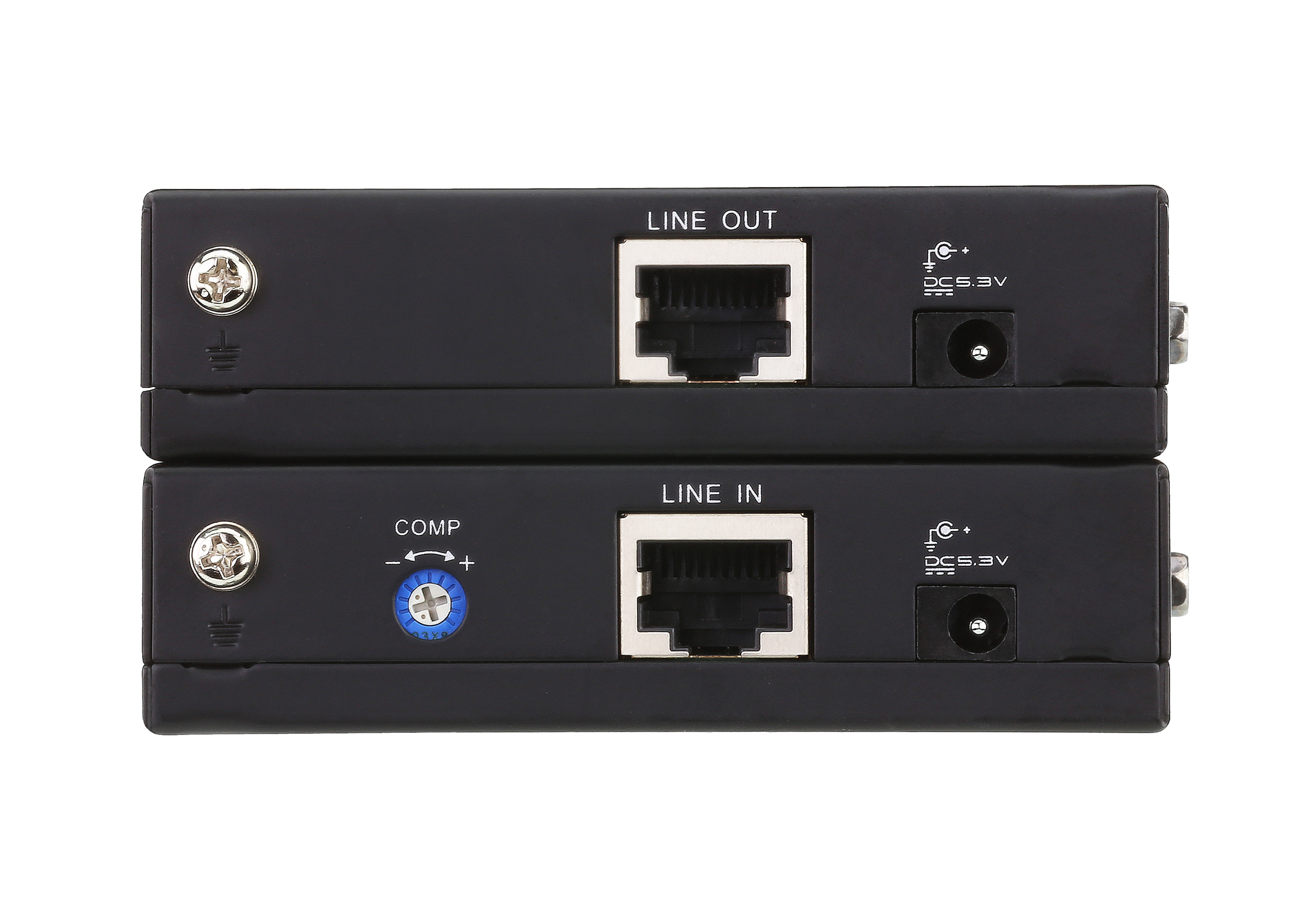

Power 1 x DC Jack 1 x DC Jack
Power Consumption DC5.3V:0.87W:8BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. DC5.3V:1.35W:11BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 50°C 0 - 50°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing
Physical Properties
Dimensions (L x W x H) 12.77 x 9.04 x 2.26 cm
(5.03 x 3.56 x 0.89 in.) 12.77 x 9.04 x 2.26 cm
(5.03 x 3.56 x 0.89 in.)
Housing Metal Metal
Weight 0.24 kg ( 0.53 lb ) 0.24 kg ( 0.53 lb )
Carton Lot 5 pcs 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
