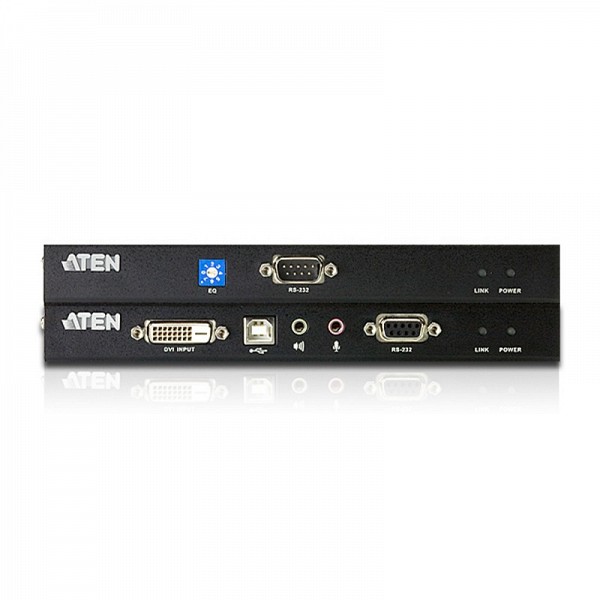

Aten CONSOLE EXT DVI ΜΕ ΚΑΛΩΔΙΟ UTP w/AUDIO 60m CE600

Κωδικός plus26: 2325

Κωδικός Εργοστασίου (MPN): CE600

Εγγραφείτε για τιμή

Local and Remote Units connect at distances up to 60 m using Cat 5e cable

Features ATEN technology that allows A/V transmission over one cat 5e cable

Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions

Manual compensation control to adjust signal strength in order to compensate for distance

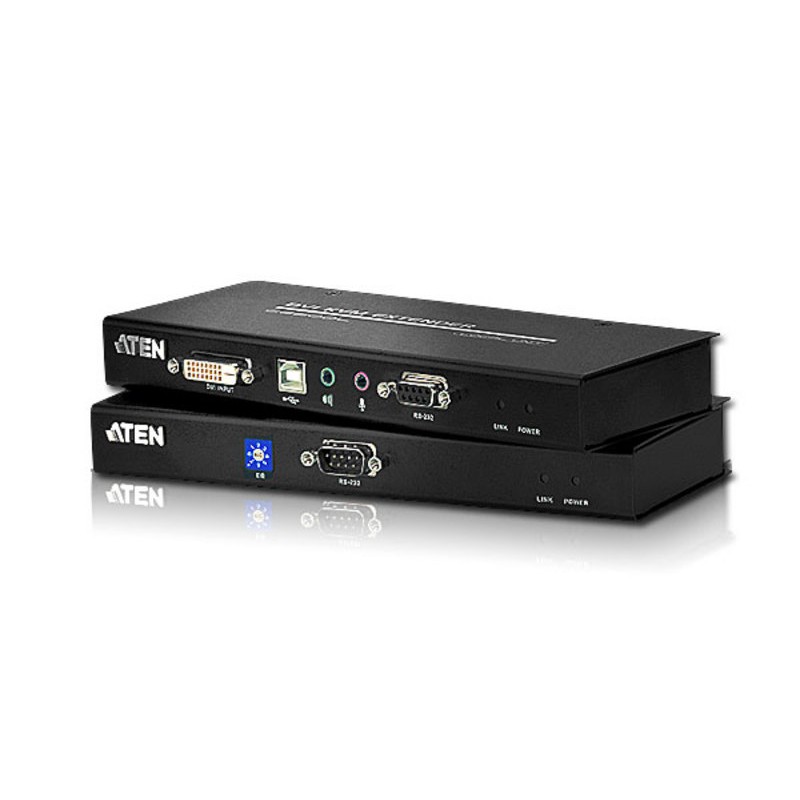

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.

The CE600 users one Cat 5e cable (DVI Single Link) to support up to 1920 x 1200 video resolution *

* 1. The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals.
2. ATEN recommends using shielded cables, such as the ATEN 2L-2910 for environments that require high electromagnetic interference (EMI) protection.

Package Contents

1x CE600L DVI KVM Extender (Local Unit)
1x CE600R DVI KVM Extender (Remote Unit)
1x Custom KVM Cable (DVI-D Single Link, USB, Audio; 1.8m/6ft)
2x Power Adapters
1x Mounting Kit
1x User Instructions

Local and Remote Units connect at distances up to 60 m using Cat 5e cable

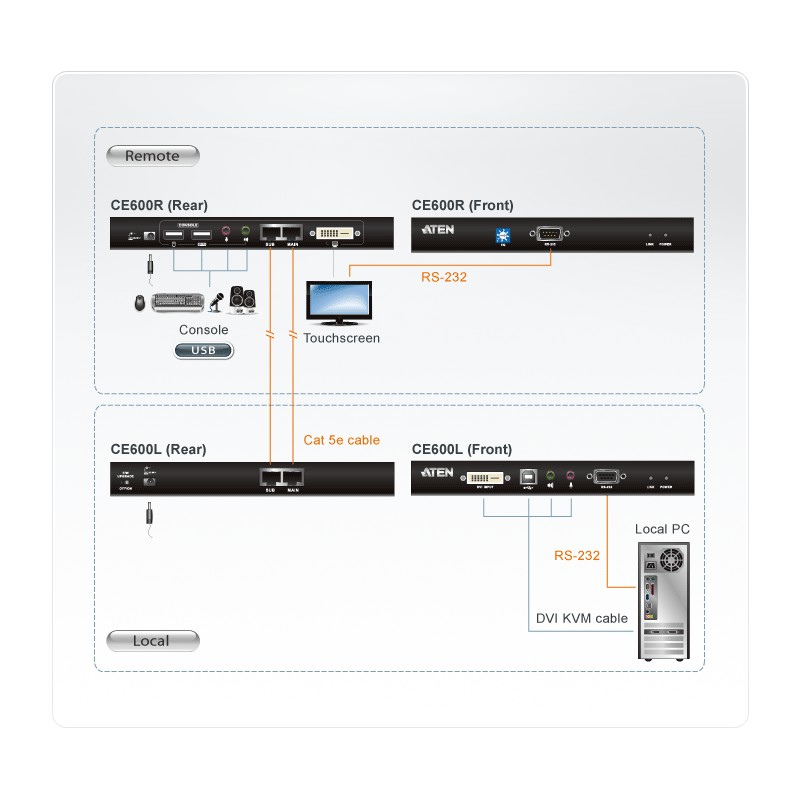

Allows access to a computer or KVM installation from a remote console (up to 60 m)
Features ATEN technology that allows A/V transmission over one cat 5e cable
The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals
Manual compensation control to adjust signal strength in order to compensate for distance
RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
Audio Enabled – supports stereo speakers and microphone
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Supports Wide Screen formats
Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions
Hot pluggable
Rack mountable
Easy to install – no software required – connecting cables to the devices is all it takes
Firmware upgrade

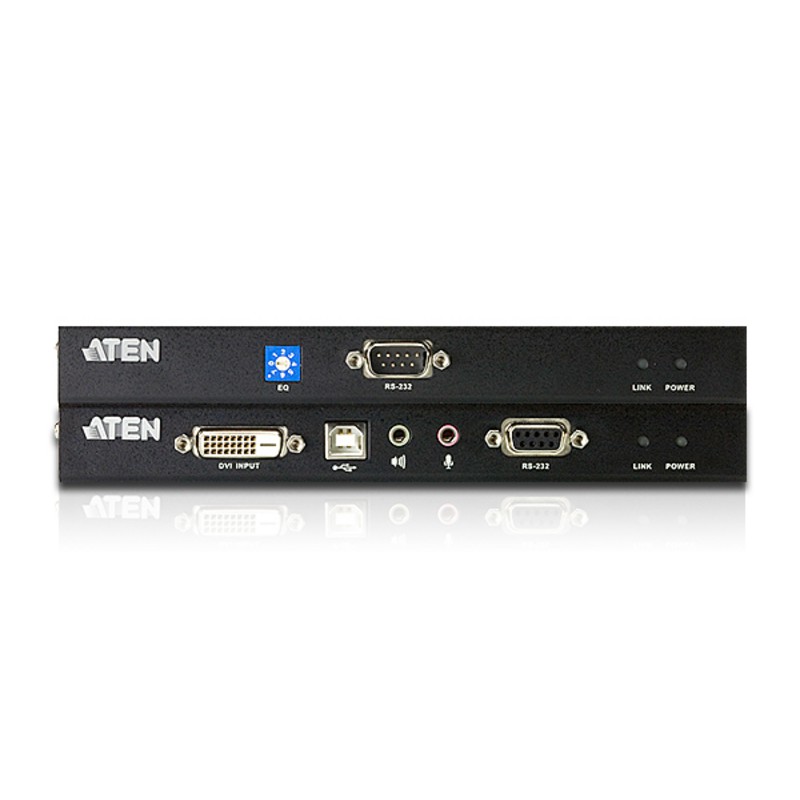

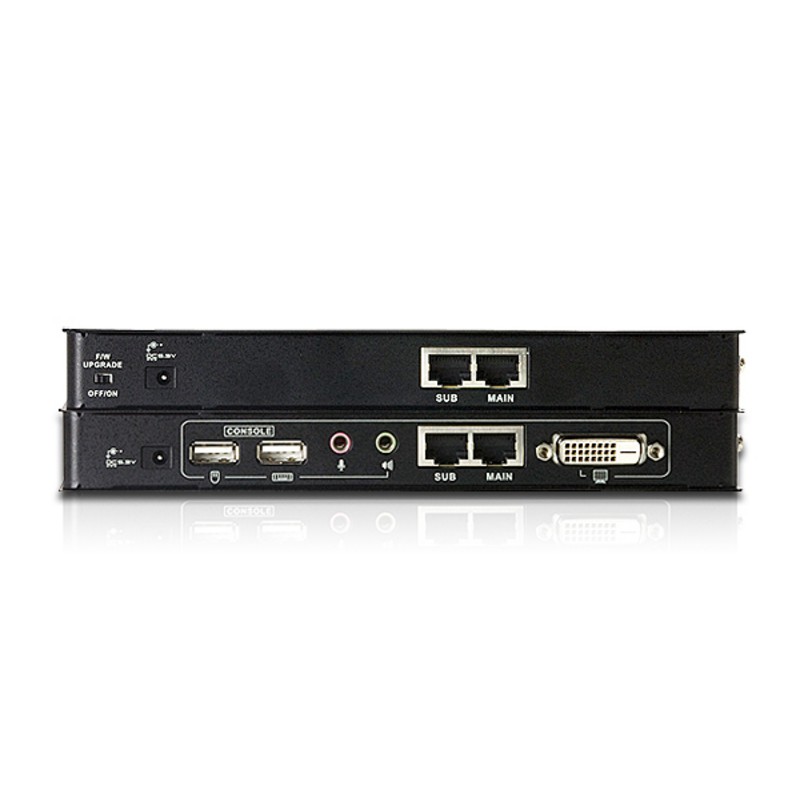

Connectors
Console Ports N/A 2 x USB Type A Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports 1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
1 x USB Type B Female (White) N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack 1 x DC Jack
Sub / Main 2 x RJ-45 Female (Black) 2 x RJ-45 Female (Black)
LEDs
Link 1 (Green) 1 (Green)
Power 1 (Green) 1 (Green)
Switches
EQ Switch N/A 1 x 8-position switch
Firmware Upgrade 1 x Slide Switch N/A
Emulation
Keyboard / Mouse USB USB
Video 1920 x 1200 @ 60Hz (30 m);
1024 x 768 @ 60Hz (60 m); 1920 x 1200 @ 60Hz (30 m);
1024 x 768 @ 60Hz (60 m);
Power Consumption DC5.3V:1.92W:13BTU DC5.3V:1.69W:12BTU
Environmental
Operating Temperature 0–50°C 0–50°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.48 kg ( 1.06 lb ) 0.48 kg ( 1.06 lb )
Dimensions (L x W x H) 20.20 x 8.54 x 2.50 cm
(7.95 x 3.36 x 0.98 in.) 20.20 x 8.50 x 2.50 cm
(7.95 x 3.35 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data Sheet (PDF - 339,15 KB) User Manual (PDF - 1,25 MB)
