Aten USB VGA Cat 5 Mini KVM Extender (1280 x 1024@100m) CE100
Κωδικός plus26: 170-25
Κωδικός Εργοστασίου (MPN): CE100
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
- Superior video quality – up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance

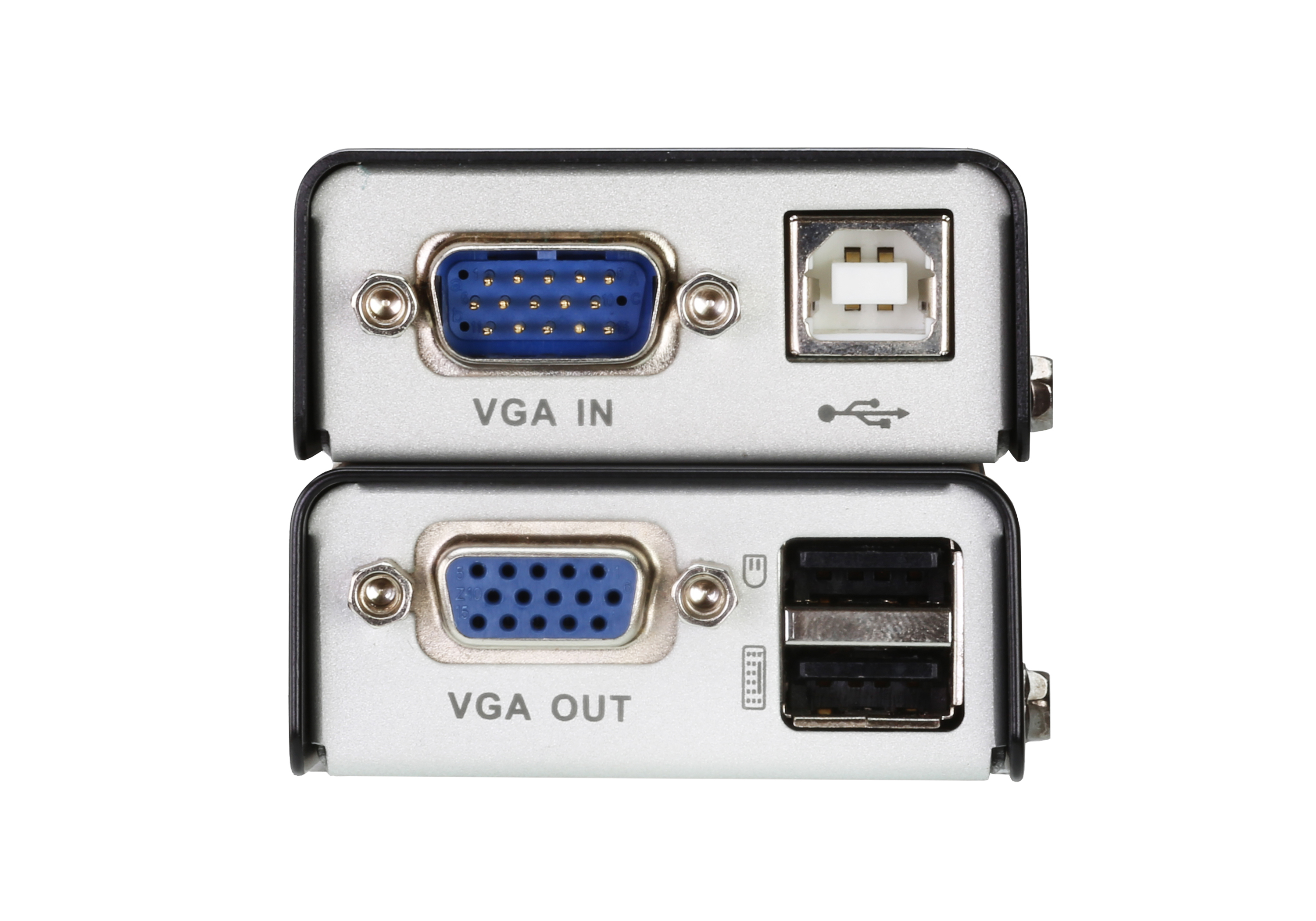

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).
The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.
Package Contents
1x CE100L Mini USB KVM Extender (Local Unit)
1x CE100R Mini USB KVM Extender (Remote Unit)
1x KVM Cable (VGA, USB; 1.5m/5ft)
1x Power Adapter (for Remote Unit)
1x Mounting Kit
1x User Instructions
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
- Easily add or remove computers connected to the installation
- Supports real time DDC communication
- Superior video quality – up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- No external power supply needed for local unit
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Wall mountable
Function CE100L CE100R
Connectors
Console Ports N/A 2 x USB Type A Female (White)
1 x HDB-15
Female (Blue)
KVM Ports 1 x USB Type B Female (White)
1 x HDB-15 Male (Blue) N/A
Power 1 x DC Jack 1 x DC Jack
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
Switches N/A 1 x Knob
LEDs
Link 1 (Blue) 1 (Blue)
Power 1 (Green) 1 (Green)
Video 1920 x 1200 @ 60 Hz (30 m);
1280 x 1024 @ 60 Hz (100 m) 1920 x 1200 @ 60 Hz (30 m);
1280 x 1024 @ 60 Hz (100 m)
Power Consumption DC5V:0.68W:7BTU DC5V:0.99W:9BTU
Environmental
Operating Temperature 0–50°C 0–50°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.17 kg ( 0.37 lb ) 0.17 kg ( 0.37 lb )
Dimensions (L x W x H) 9.10 x 5.74 x 2.40 cm
(3.58 x 2.26 x 0.94 in.) 9.10 x 5.74 x 2.40 cm
(3.58 x 2.26 x 0.94 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
