Experience wireless audio and video transmission in sharp UHD 4K/30Hz with the 4K Wireless HDMI Extender. The set is designed for easy setup without a driver or software thanks to Plug & Play. With a range of up to 30 meters with an unobstructed view, it guarantees reliable transmission. AES 128 encryption and the WPA2 protocol ensure secure data transmission. Compatible with HDMI 2.0/1.4 and HDCP 2.2/1.4. This is ideal for home theaters, conference rooms and training facilities. Discover the freedom of wireless entertainment!

Technical details

• Wireless HDMI signal transmission up to 30 m (unobstructed view)
• Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
• Supports resolutions of up to 4K UHD (2160p/30Hz)
• Easy operation and handling thanks to Plug & Play - Just plug in and get started, no driver or software required
• Power supply via USB-C connection
• AES 128 bit encryption
• Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
• HDMI version: 2.0 (RX) / 1.4 (TX)
• HDCP version: 2.2 (RX) / 1.4 (TX)
• Wireless channel: IEEE 802.11.b/g/n/ac
• Frequency band: Dual Band, 2,4/5G
• Connections per unit: 1x HDMI plug, 1x USB-C jack
• Connection button with LED status display
• Power supply: Transmitter - 5V/1A, Receiver - 5V/0.6A
• Compression: H.265
• Latency: approx. 100 ms
• Audio format: PCM
• Audio channel: 2 channels
• Supports signal sources (e.g. gaming consoles, Blu-Ray players, etc.) with HDMI output as well as PCs/notebooks with Windows, macOS
• ABS housing
• Power consumption: Transmitter ca. 3W, receiver ca. 4W
• Operating temperature: 0-40 °C
• Dimensions (1 unit): L 8.1 x W 3.4 x H 1.3 cm
• Weight: Transmitter 31 g, receiver 28 g
• Color: black/silver
• The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed
• Walls, glass etc. shorten the signal range or cause signal losses

Attributes

• KVM: no
• PoE (Power over Ethernet): no

Package content

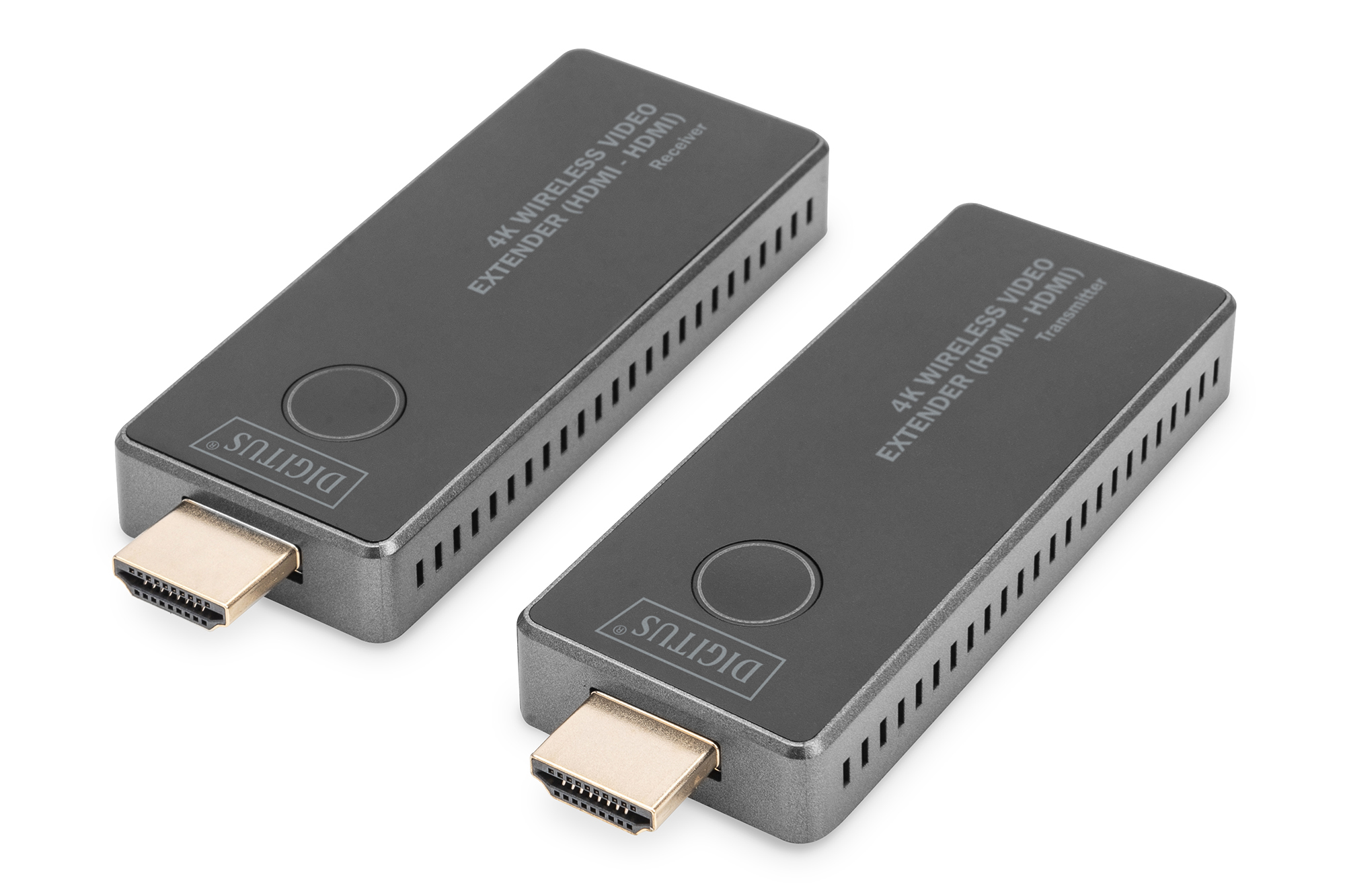

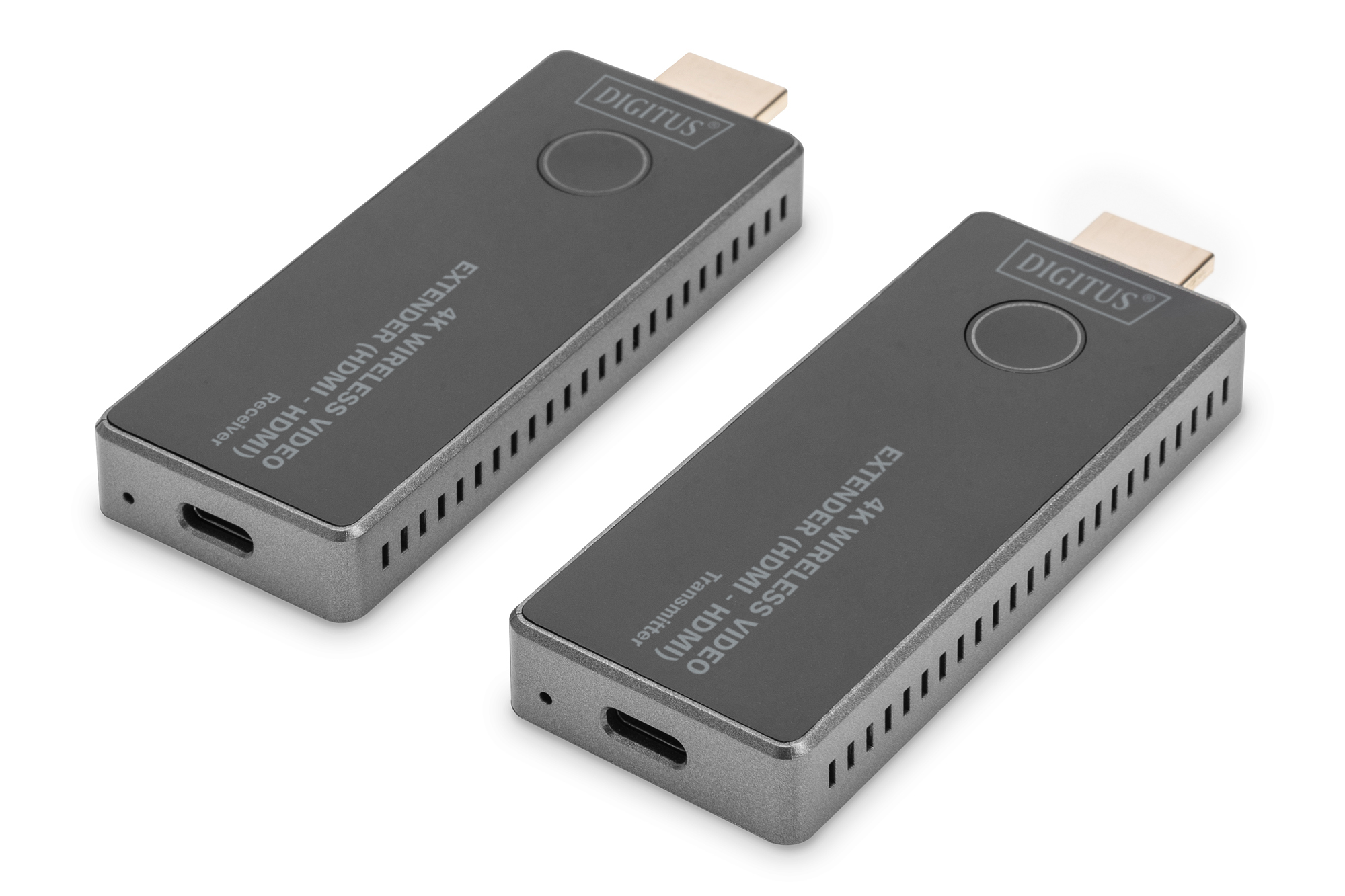

• 1x Transmitter unit
• 1x Receiver unit

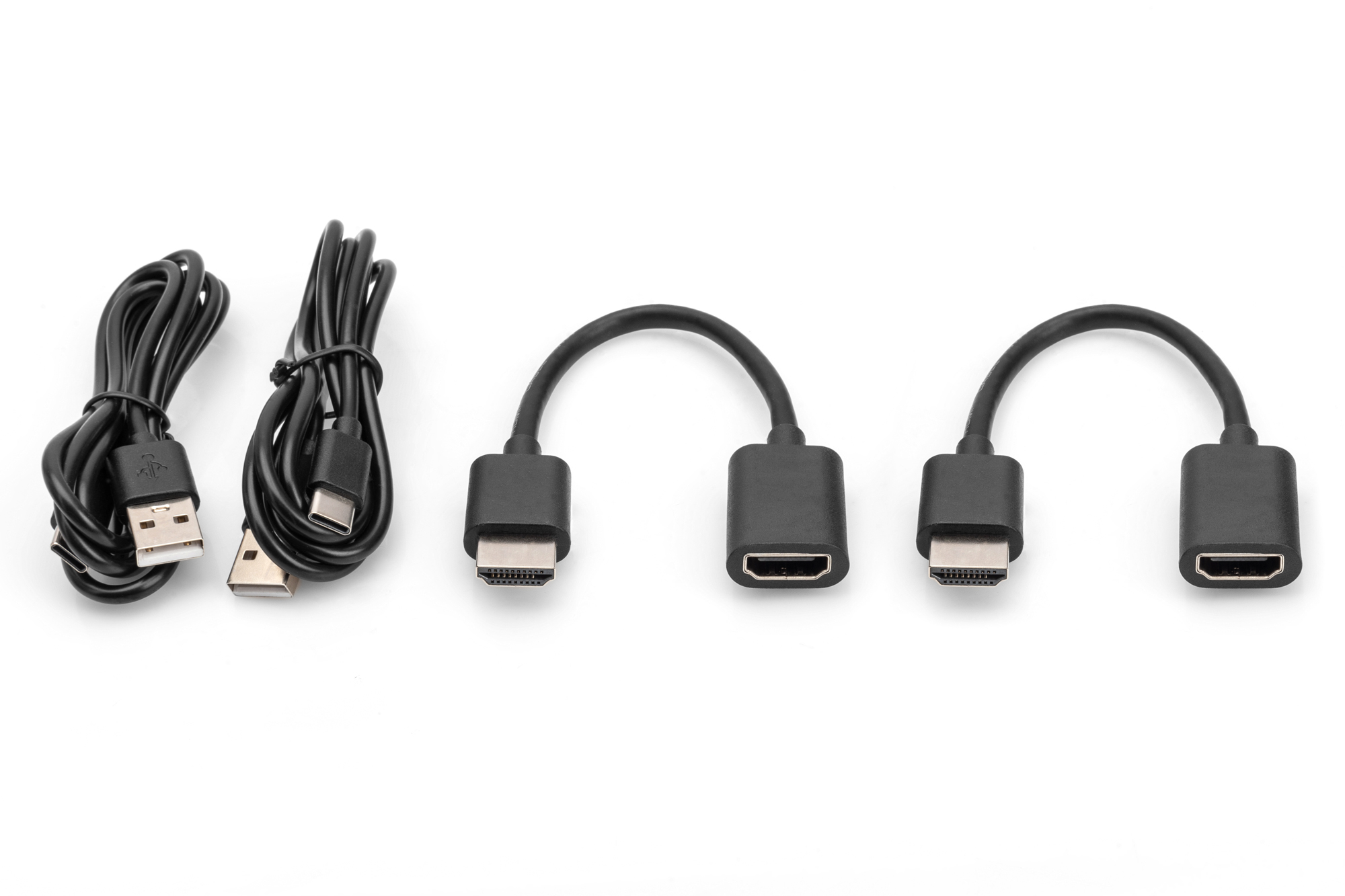

• 2x USB-A to USB-C cable (100 cm)
• 2x HDMI extension cable (12.5 cm)
• 1x QIG
