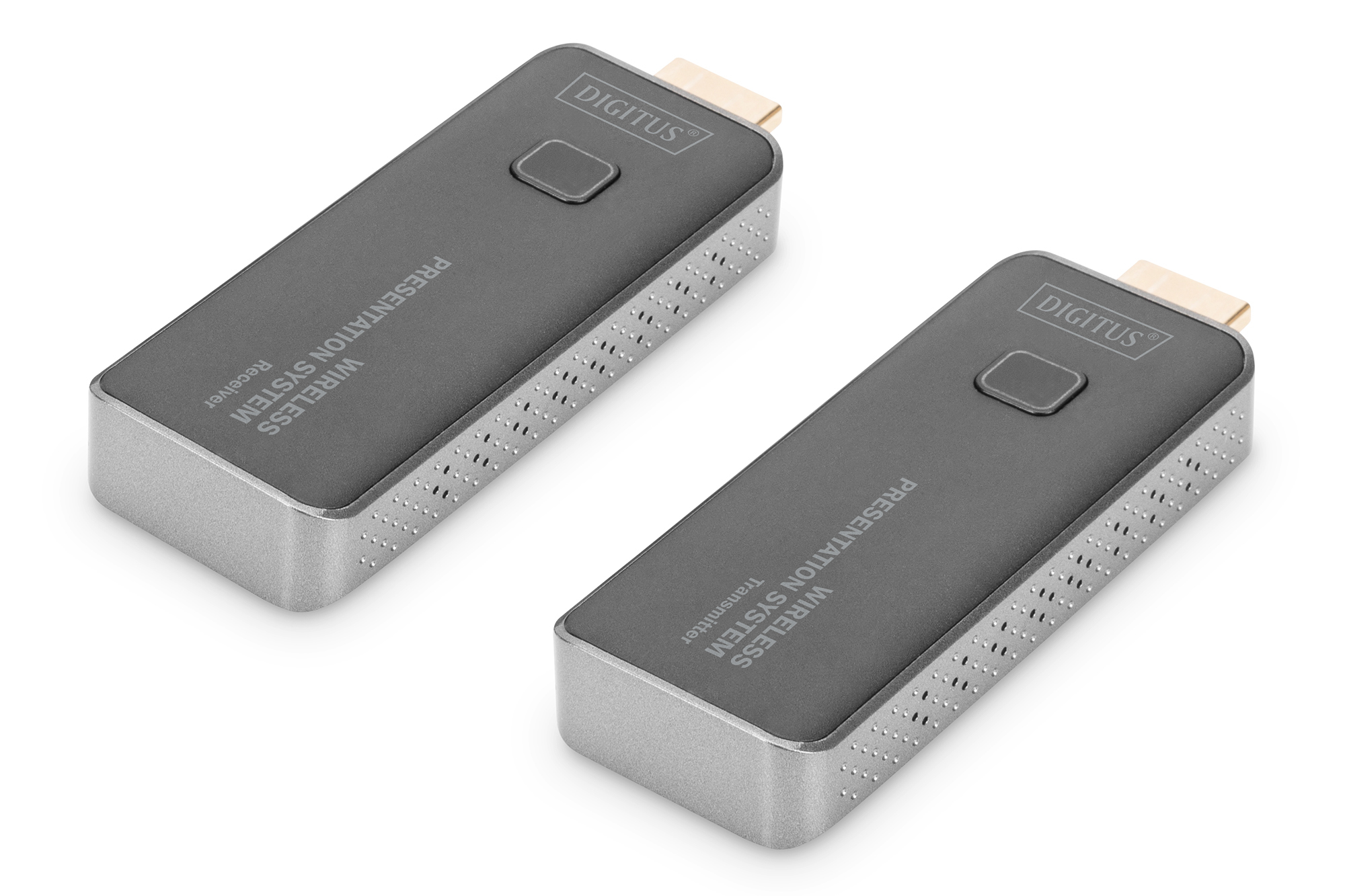

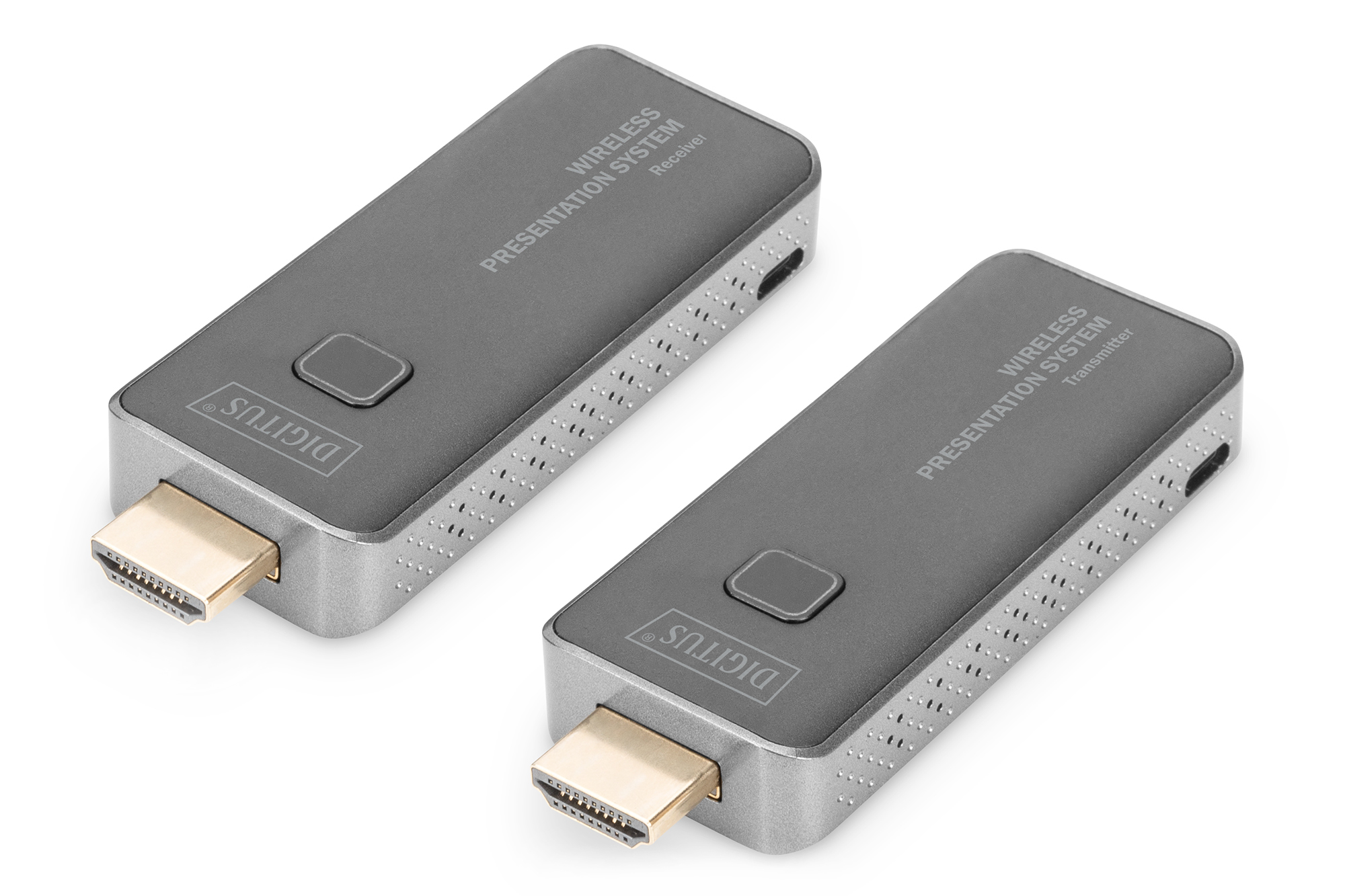

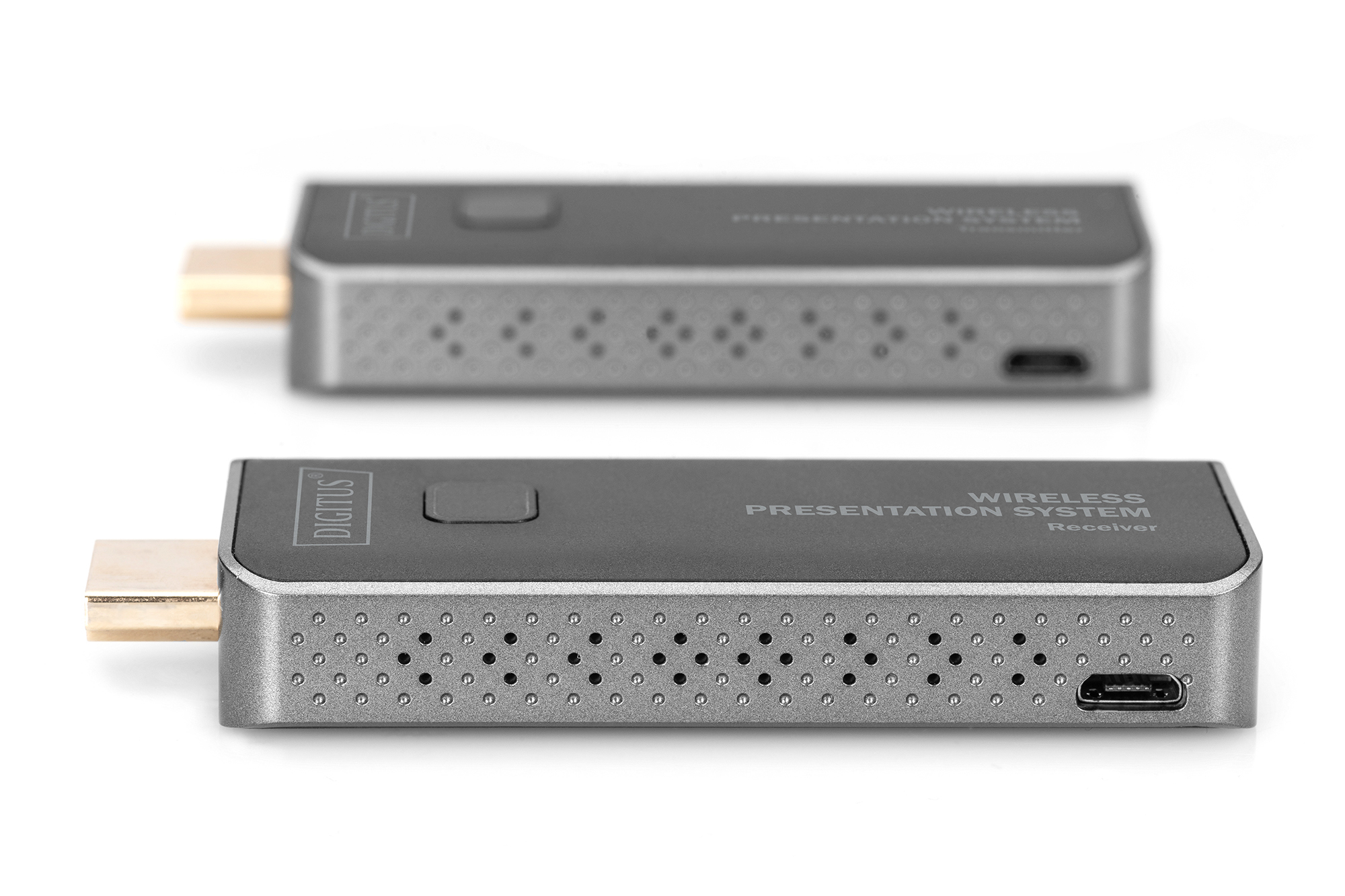

Digitus Wireless Presentation System HDMI 50m (SET transmitter & receiver)

Κωδικός plus26: 173-424449

Κωδικός Εργοστασίου (MPN): DS-55319

Εγγραφείτε για τιμή

With the Wireless Presentation System, you can wirelessly transmit HDMI video and audio signals in Full HD over a distance of up to 50 m with an unobstructed view. Operation and installation are super simple. Real Plug & Play - Just plug in and get started. With additional transmitters (DS-55320), the set can be extended to up to 16 transmitter units (total). Switch to the desired transmitter quickly and easily at the press of a button in order to reproduce your content. You can also share content directly from your mobile device (smartphone/table) using your device’s OS directly, no additional app required. Transmitter can be supplied with power via your device’s HDMI connection (> 500 mAh required). To have a safe and stable operation, we recommend to use always the Micro USB cables for power supply of TX and RX. Thanks to the compact design of the transmitter and receiver, installation is easy, quick and can be customized - the perfect solution for meeting and conference rooms.

Wireless BYOD Presentation System, 50 m 16 to 1, Full HD
Wirelessly transmits HDMI video and audio signals in Full HD over a distance of up to 50 m with an unobstructed view
Wireless HDMI signal transmission up to 50 m (with unobstructed view)
Supports up to 16x transmitters (sources) + 1x receiver (output device)
Extend this set with up to 16 transmitter units (DS-55320)
Switch to the desired transmitter quickly and easily at the press of a button in order to reproduce your content
Share from a tablet/smartphone using the screen sync (iOS, iPadOS/Android) of your mobile device
Supports Windows, macOS, iOS, iPadOS, Android
Supports resolutions up to Full HD (1080p / 60 Hz)
Easy operation and handling thanks to Plug & Play - Just plug in and get started
Transmitter can be supplied with power via your device’s HDMI connection (> 500 mA required). To have a safe and stable operation, we recommend to use always the Micro USB cables for power supply of TX and RX.
Wireless HDMI signal transmission up to 50 m (unobstructed view)
Supports resolutions up to 1920x1080p
Wireless channel: IEEE 802.11ac, 5 GHz, 2T2R
HDMI version: 1.4
HDCP version: 1.3
AES 128 bit encryption
WPA2 protocol
Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
Supports Windows, macOS, iOS, iPadOS, Android
Connections per unit: 1x HDMI plug, 1x Micro-USB jack
Power supply: HDMI jack (0.5A required) or via Micro-USB (DC 5V/0.5A)
Connection button with LED status display
Audio: Stereo, 16 bits / 48 KHz
ABS housing
Power consumption: approx. 2.5W
Operating temperature: 0-40 °C
Dimensions (1 unit): L 8.3 x W 3.2 x H 1.3 cm
Weight (1 unit): 27 g
Color: Black
The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed.
Walls, glass etc. shorten the signal range or cause signal losses.
HDTV Resolution max.: 1920 x 1080 Pixel, 60Hz
Distance: 50 m
KVM: no
PoE (Power over Ethernet): no
Video connection ports: HDMI

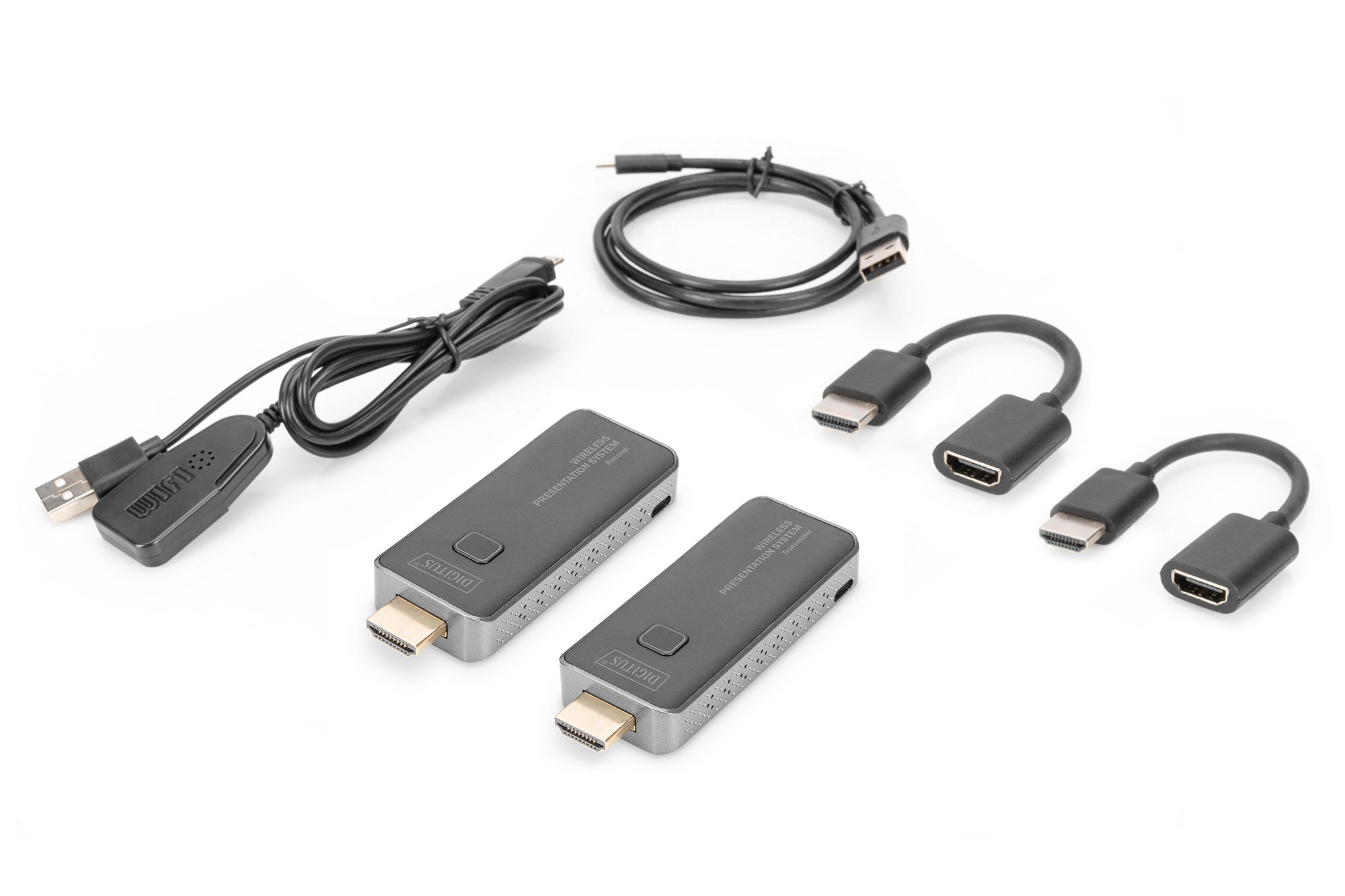

Package content

1x Transmitter unit
1x Receiver unit
1x WLAN / Power cable (0,75 m) for RX
1x Micro USB cable (0.8 m) for TX
2x HDMI extension cable (0,15 m)
1x QIG
