DIGITUS EXTENDER HDMI 4K/30Hz, via CAT/IP (Set), PoE (120 m) DS-55124

Κωδικός plus26: 173-356397

Κωδικός Εργοστασίου (MPN): DS-55124

Εγγραφείτε για τιμή

4K HDMI Extender Set over IP/CAT 5, 6 (120 m) complete PoE powered, UHD 4K@30Hz

Fully powered by a PoE switch - no external power supply required

Up to 120 meter extension of 4K video contents with a CAT 6 cable (point-to-point connection)
HDMI signal can be extended (unlimited distance) with the existing local network infrastructure or additional PoE switches (IP connection)
Use additional receiver units (DS-55125) and your existing network infrastructure or additional PoE switches to display video contents on up to 253 screens (point-to-multipoint connection)
Fully powered by a PoE switch - no external power supply required
Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
Supports 4K (30 Hz), 3840 x 2160p resolution

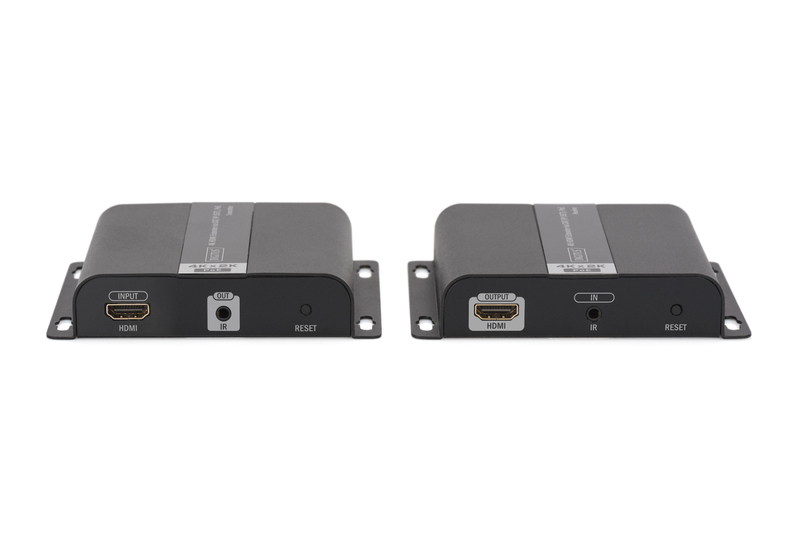

The 4K HDMI extender set (DS-55124) contains a transmitter unit and a receiver unit. The units do not require external power supply, they are powered by an additional PoE switch. Additional PoE switches or the existing infrastructure allows the HDMI signal to be extended over an unlimited distance (IP connection). Additional receiver units (DS-55125) allow video contents to be displayed on up to 253 screens. Use your existing network infrastructure or additional PoE switches (point-to-multipoint connection) for this purpose. 4K video contents can be displayed at a distance of up to 120 meters with a single point-to-point connection. Put displays and TVs wherever you like, no matter where the output source is.

Technical Details

HDMI signal can be extended (unlimited distance) with the existing local network infrastructure or additional PoE switches (IP connection)
Use additional receiver units (DS-55125) and your existing network infrastructure or additional PoE switches to display video contents on up to 253 screens (point-to-multipoint connection)
Fully powered by a PoE switch - no external power supply required
Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
Supports 4K (30 Hz), 3840 x 2160p resolution
HDMI bandwidth: 10.2 Gbit/s (max.)
HDMI version: 1.4
HDCP version: 1.4
Integrated IR interface - simple remote control of the input source
Resolutions: 4K (30 Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Supports HDTV
Supports Deep Color (24 bit)
Supports uncompressed audio signals like LPCM
Operation temperature: 0°C - 60°C
Metal casing
Suitable for wall mounting
Compact size, easy to operate and install
Dimensions (1x unit): L 11.9 x W 9.4 x H 2.4 cm
Color: Black
Video connection ports: HDMI
KVM: no
PoE (Power over Ethernet): yes
Distance: 120 m
HDTV Resolution max.: 3840 x 2160 Pixel, 30Hz
HDTV Standard: Ultra HD 4K
Category: CAT 5e
Transmission technology: CAT, IP
