ATEN SPLITTER HDMI 4 PORT Ultra HD 4kx2k VS184A/6731

Κωδικός plus26: 376-17

Κωδικός Εργοστασίου (MPN): VS184A/6731

Εγγραφείτε για τιμή

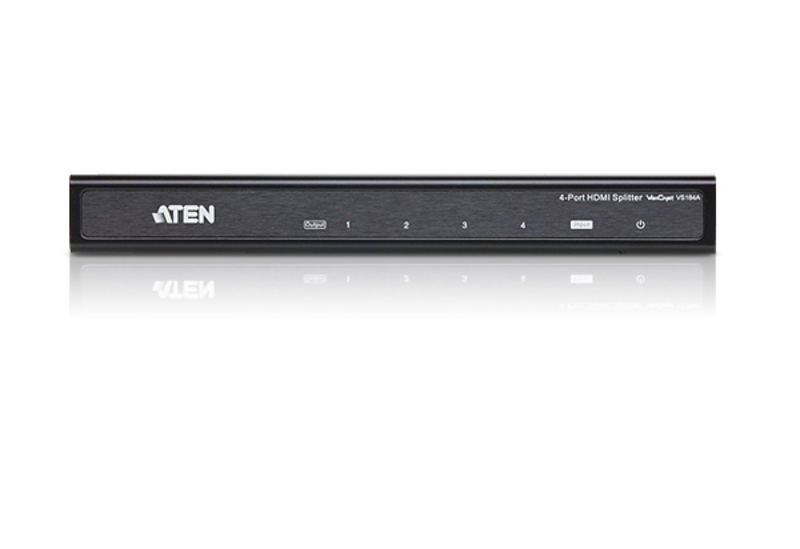

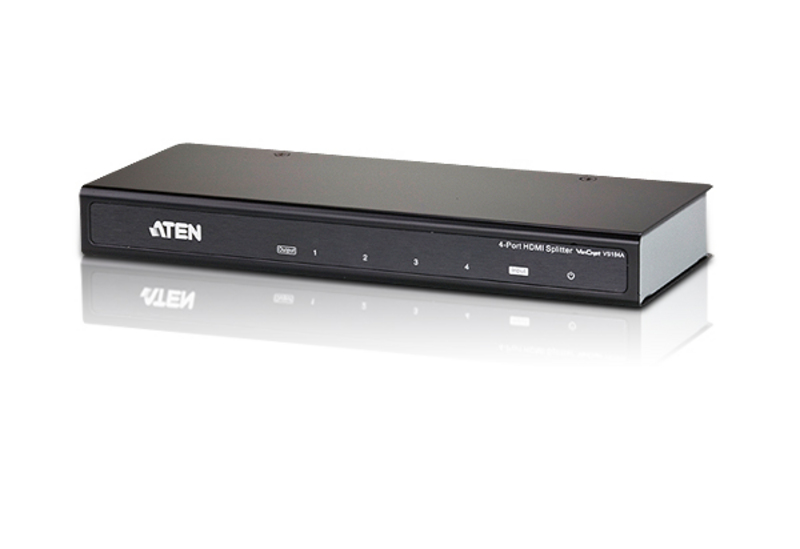

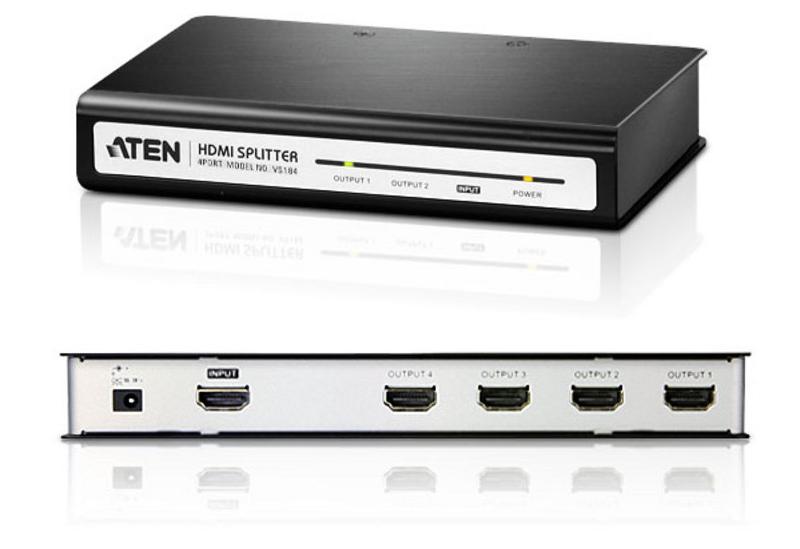

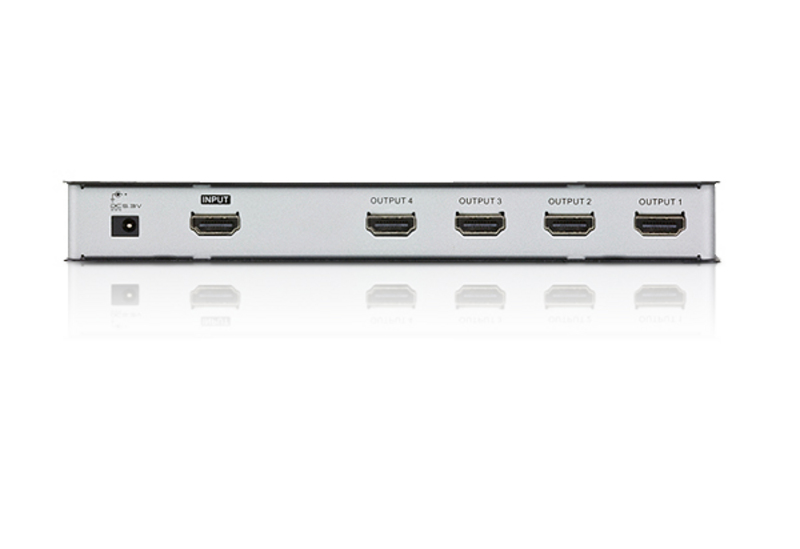

The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Connects one HDMI source to four HDMI displays at the same time
HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Supports Dolby True HD and DTS HD Master Audio
Long distance transmission – up to 15 m (24 AWG)
Supports up to 340MHz bandwidth for high performance video
Plug-and-play – no software installation required

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3m @3840x2160@30 (4:4:4)
Video Output
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 15m @3840x2160@30 (4:4:4)
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K);
HDCP Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input 1 x HDMI Type A Female (Black)
Output 4 x HDMI Type A Female (Black)
Connectors
Power 1 x DC Jack
Power Consumption DC5.3V:6.02W:28BTU
Environmental
Operating Temperature 0-50 °C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Dimensions (L x W x H) 20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
