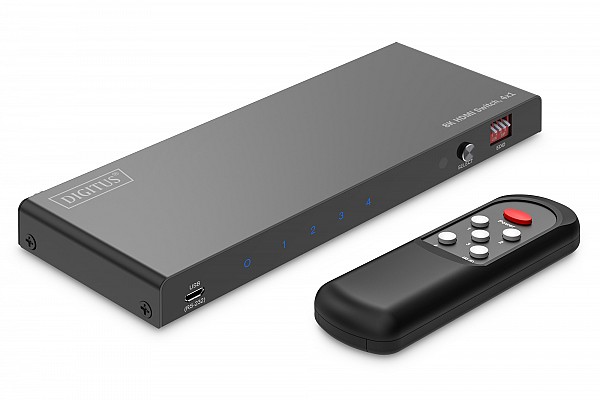

The DIGITUS® 8K HDMI Switch, 4x1 offers additional HDMI connections for your output display - 4 signal sources can be connected to the screen via just 1 HDMI connection. Audio signals can also be decoupled via Toslink or 3.5 mm stereo connection and played back separately. Conveniently switch between signal sources via remote control, on the device itself or via automatic detection.

Technical details

Convenient switching between 4 signal sources via remote control, on the device itself or via automatic detection
Audio extractor: Toslink / Stereo (3.5 mm)
EDID switch / management
Max. Resolution: 8K/60Hz (4:4:4)
Video bandwidth: 48 Gbps
Supports High Dynamic Range (HDR)
Supports HDCP 2.3
Supports CEC (Consumer Electronics Control)
Supports Deep Color (36 bit)
HDMI 2.1
Connections:
4x HDMI input (8K/60Hz)
1x HDMI output (8K/60Hz)
1x Toslink
1x 3.5 mm audio
1x Micro USB input - Service
1x DC socket (power supply) - power supply connection
8x status LEDs
1x changeover switch
1x IR receiver
1x EDID switch
Operating temperature: 0-70°
Power consumption: approx. 5W
Housing: Metal
Dimensions (housing): L 18.8 x W 7.1 x H 1.8 cm
Weight: 287 g
Color: black

Attributes

HDTV Standard: Ultra HD 8K
Resolution max.: 7680 × 4320 Pixel, 60Hz
Number of input ports: 4
Number of output ports: 1
Signal input: HDMI
Signal output: HDMI
Video connection ports: HDMI

Package content

1x HDMI Switch
1x remote control (2x AAA batteries, not included)
1x power supply unit (5V/1A, 1.2 m) with screw connector
1x QIG
