• Switches between 5 HDMI source devices when connected to a single display
• Supports 18G resolutions up to 4K@60Hz, with additional support for HDR
• Flexible control via push button, IR remote and auto-switching
• Compact, minimalist design to ensure no distraction from the display or installation
• 2 year warranty

HDMI switches are reliable solutions for controlling and switching multiple HDMI source devices and outputting to a single display.

The Lindy 5 Port HDMI 18G switch is a compact, high quality solution for effortlessly switching between 5 HDMI source devices when connected to a single display.

Supporting HDMI 18G signals, this switch allows for the transmission of detailed 4K Ultra HD resolutions, while additional support for HDR ensures video content features greater contrasts and a much wider colour gamut. The switch is perfect for a premium residential setup, eye-catching digital signage in retail settings or engaging presentations. HDCP 2.2 support ensures there are no compatability issues with a variety of 4K content from source devices including set top boxes, Blu-Ray players and 4K HDR media players.

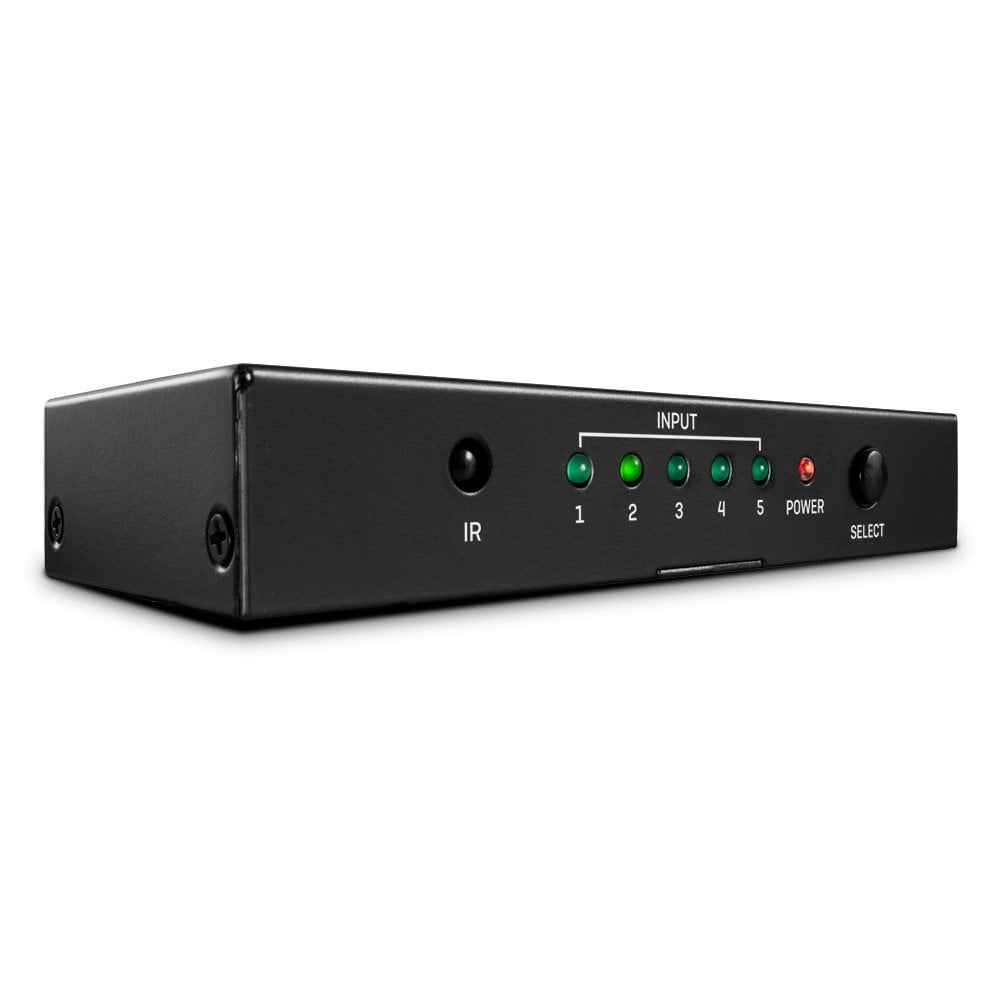

This switch also provides efficient, simple switching options for the user, via an included IR remote or push buttons on the main unit. The switch can also identify the active HDMI source device and automatically switch to this option, providing a useful solution for when the unit is required to be out of sight.

TECHNICAL INFORMATION

Specifications

•     AV Interface: HDMI
•     Interface Standard: HDMI 2.0
•     Supports Bandwidth: 18Gbps
•     Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
•     HDCP Support: HDCP 2.2
•     Supported Audio: Audio Pass-through
•     Separate Audio Ports: -
•     IR Support: 38kHz
•     CEC Support: -
•     Serial Interface: -
•     Special Features: HDR10 & Dolby Vision Support

Connectors

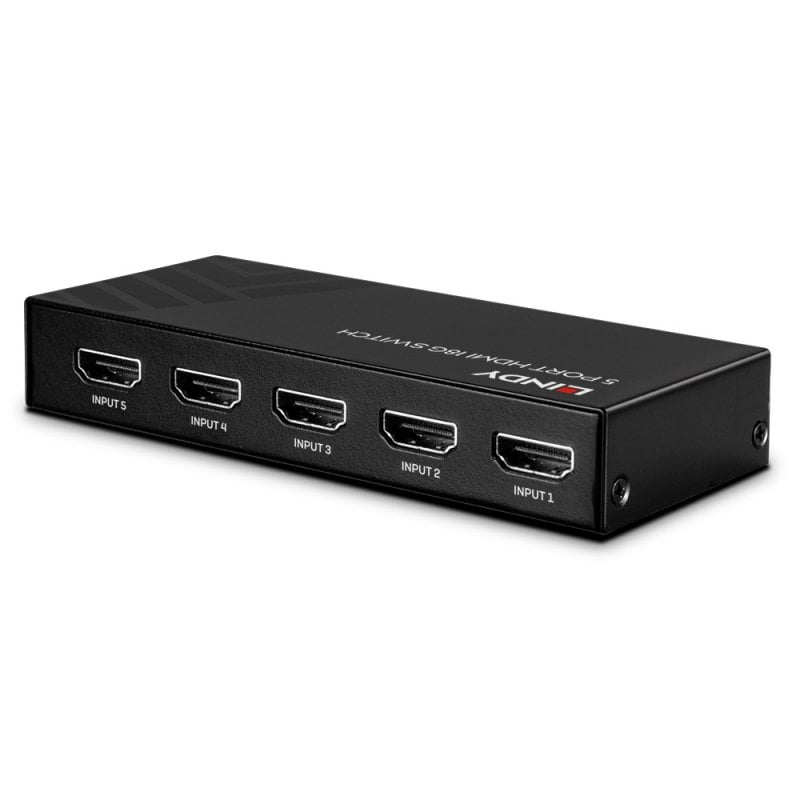

•     Input: 5 x HDMI Type A (Female)
•     Output: HDMI Type A (Female)
•     Control: -
•     Power: 5.5/2.1mm

Physical Properties

•     Dimensions (approx.) WxDxH: 123x20x51mm (4.84x0.79x2.01in)
•     Housing Material: Metal
•     Net Weight: 0.158kg (0.35lb)
•     Operating Temperature: 0°C - 45°C (32°F - 113°F)
•     Storage Temperature: -10°C - 80°C (14°F - 176°F)
•     Humidity: 10 - 85% RH (non-condensing)
•     Power Requirements: 5VDC 1A
•     Colour: Black

Miscellaneous

•     Packaging Type: Carton Box
•     Packaging Dimensions: 180x80x135mm (7.09x3.15x5.31in)
•     Gross Weight: 0.483kg (1.06lb)
•     Warranty (Years): 2
•     Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package contents

•     5 Port HDMI Switch
•     Multi-country Power Supply (UK, EU, US & AUS)
•     Remote Control and CR2025L Battery
•     Lindy Manual

Purchasing Information

•     No.: 38233
•     EAN: 4002888382335
