DIGITUS VIDEO MATRIX HDMI 4IN 2OUT 4K@60Hz DS-55509

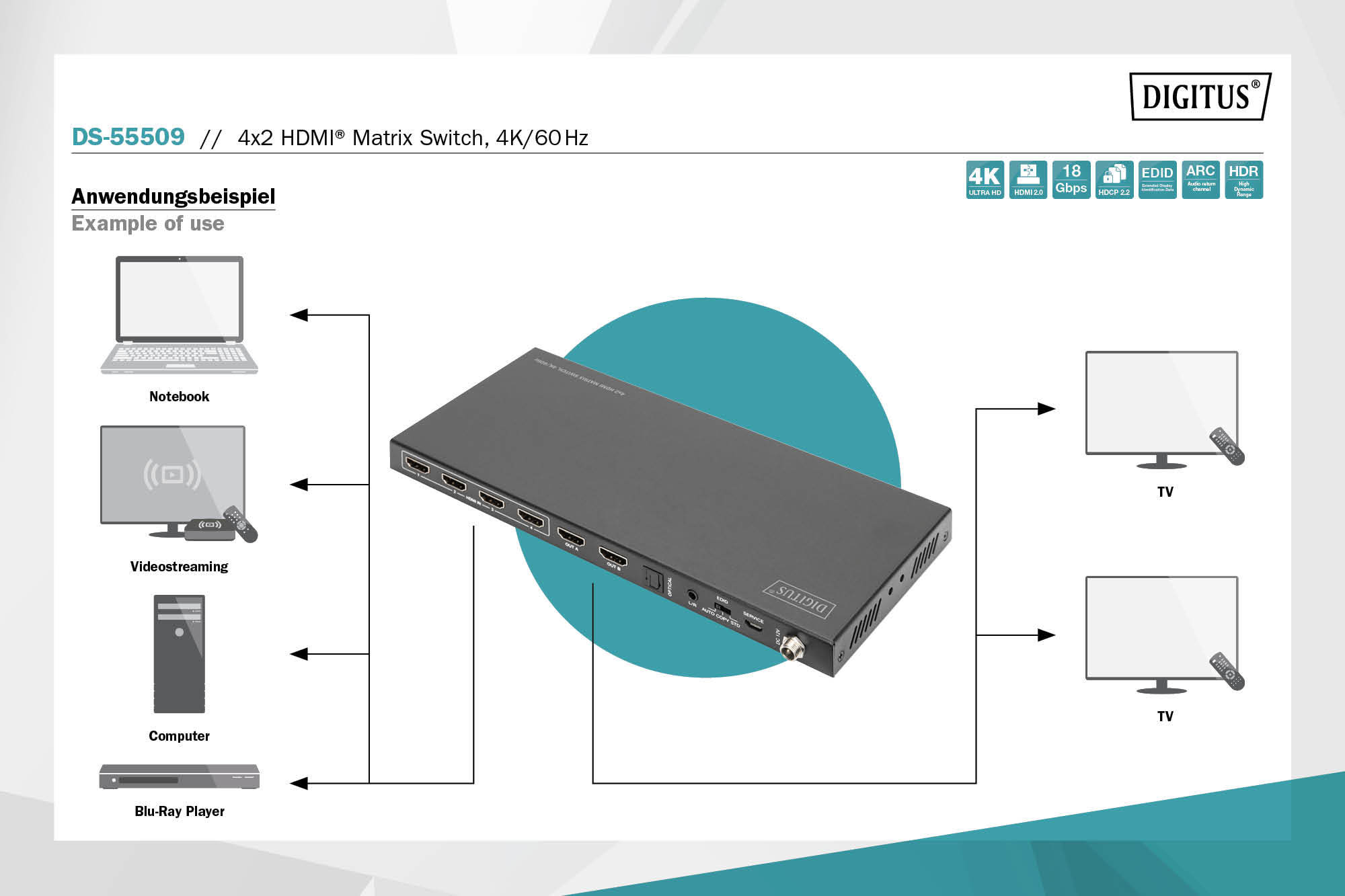

The Digitus® HDMI 4x Matrix Switch, 4K/60Hz distributes media content from up to 4 HDMI sources on up to 2 recording devices (e.g. hard drive recorder) or playback devices (TV, monitor, projector, etc.), simultaneously and independently. Convenient switching via remote control between the HDMI sources and output devices, independently and without the trouble of replugging cables. Thanks to 4K UHD support, you can experience your media content in ultra-high resolution. The perfect and complete HDMI distributor solution whether for professional or commercial use.

Switch conveniently between up to 4 HDMI sources and 2 playback devices without the trouble of replugging cables and distribute your media content independently on up to 2 playback devices in 4K UHD resolution

Audio extractor (connection of audio output device via optical/analog connection)

Supports 4K2K/60Hz (4:4:4)
Video bandwidth: 18 Gbps per channel
HDCP 2.2 / 1.4
HDMI 2.0
EDID management
ARC (Audio Return Channel)
Supports downscaling of 4K contents on Full HD (1080p) displays
Supports Dolby Vision, HDR10+, HLG
Audio extractor (connection of audio output device via optical/analog connection)

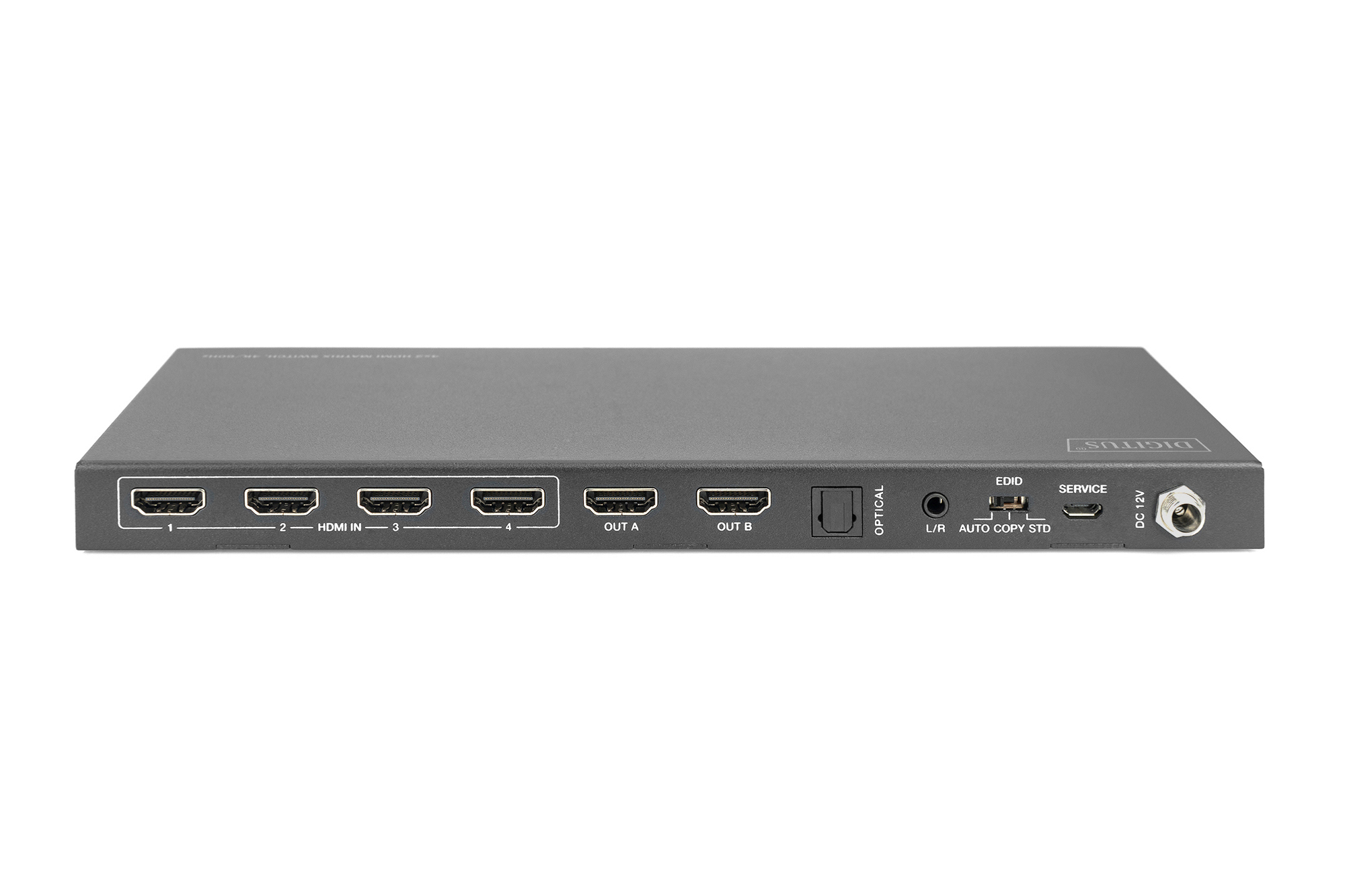

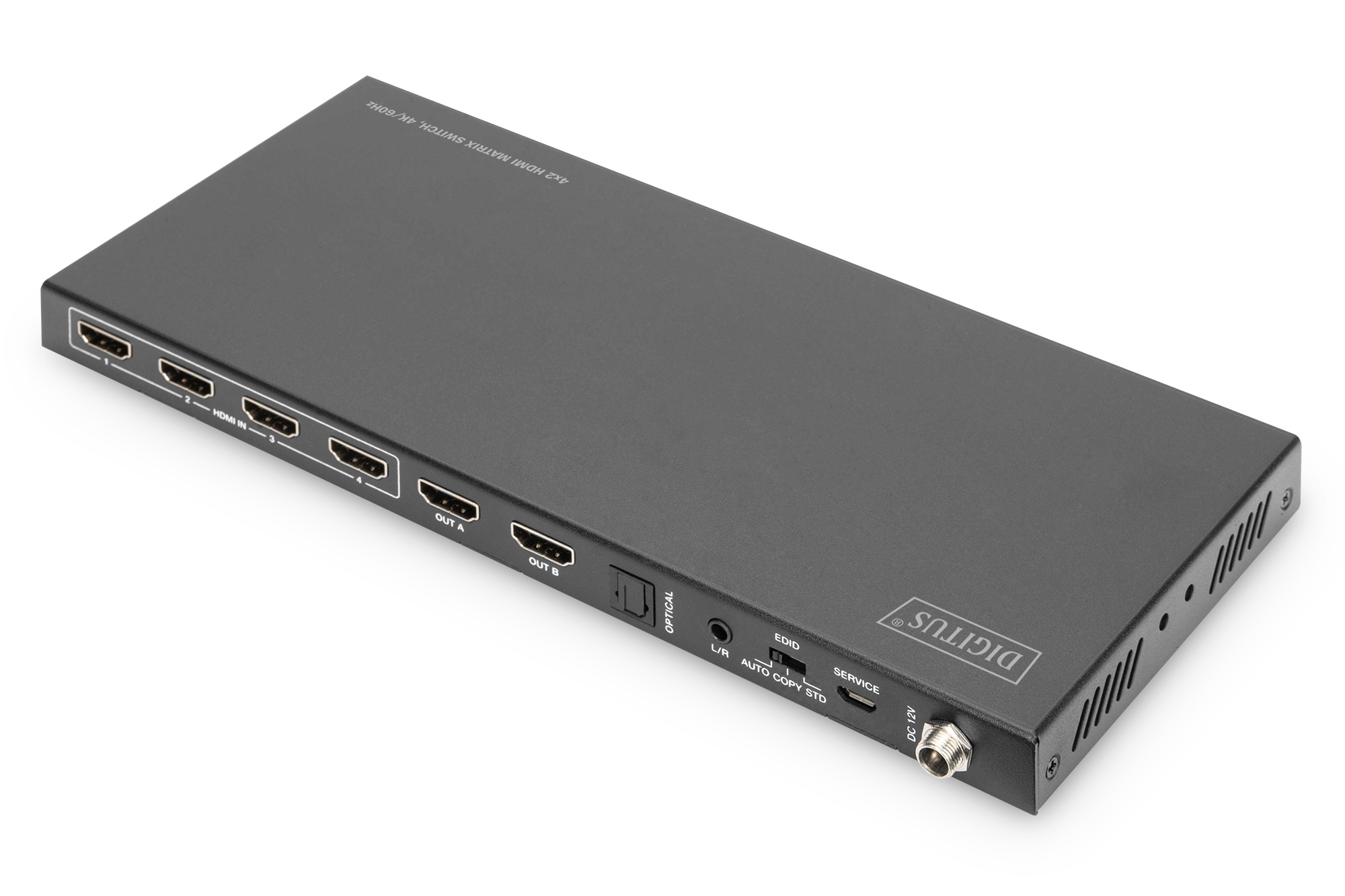

Inputs:
4x HDMI (4K/60Hz, 4:4:4, 18 Gbps)
1x Power adapter input (DC 12V/1A), screw connector - Connection for external power adapter
1x Micro USB input - Service/remote maintenance update
Outputs:
2x HDMI (4K/60Hz, 4:4:4, 18 Gbps)
1x Optical S/PDIF / Toslink™
1x Analog jack 3.5 mm (Stereo)
ESD protection
Suitable for wall mounting
Operating temperature: 0-40°
Power consumption: approx. 3.8 W
Housing: Metal
Dimensions: L 10.5 x W 25.1 x H 2.0 cm
Weight: 620g
Color: Black

Package content

1x 4x2 HDMI Matrix Switch
1x Power adapter (DC 12V/1A, 1.45 m)
1x IR remote control
2x Mounting plate
1x User manual
