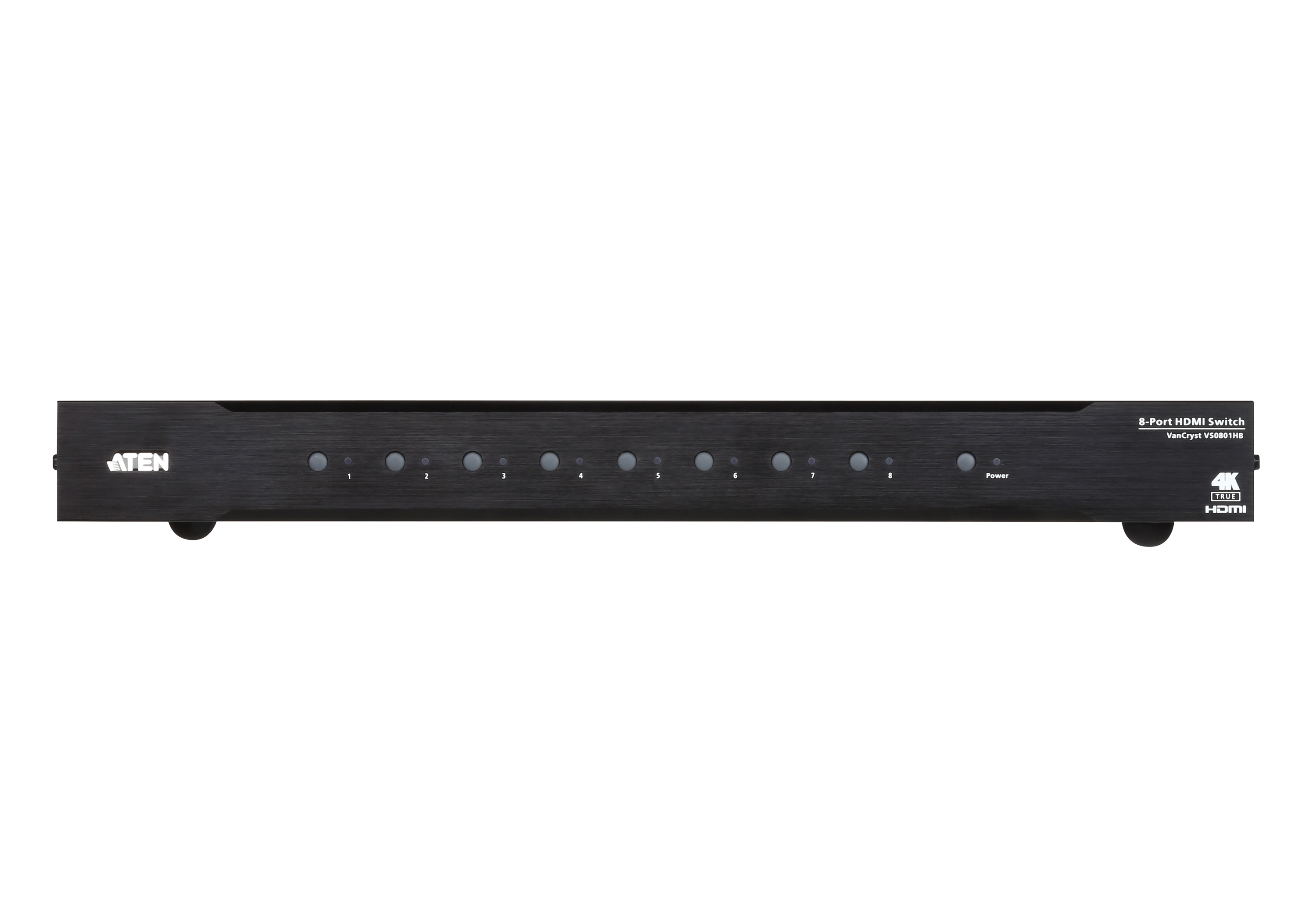

Aten SELECTOR HDMI 8PORT (4096 x 2160 @ 60Hz) VS0801HB

Κωδικός plus26: 173-304622

Κωδικός Εργοστασίου (MPN): VS0801HB

Εγγραφείτε για τιμή

Allows up to 8 HDMI sources to be connected to one HDMI display

Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)

HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant

Built-in bi-directional RS-232 serial port for high-end system control

The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.

Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.

Package Contents

1x VS0801HB 8-port True 4K HDMI Switch
1x IR Remote Control Unit
1x IR Receiver Cable
1x Power Adapter
1x Rack Mounting Kit
1x User Instructions

FEATURES :

Allows up to 8 HDMI sources to be connected to one HDMI display
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)
Supports HDR10+
Built-in bi-directional RS-232 serial port for high-end system control
Auto switching modes for auto port selection
Supports IR extension
Clear LED indication of device status
Plug-and-play
Rack Mountable

Switches
DIP 1 x Auto Switch ON / OFF
Video Input

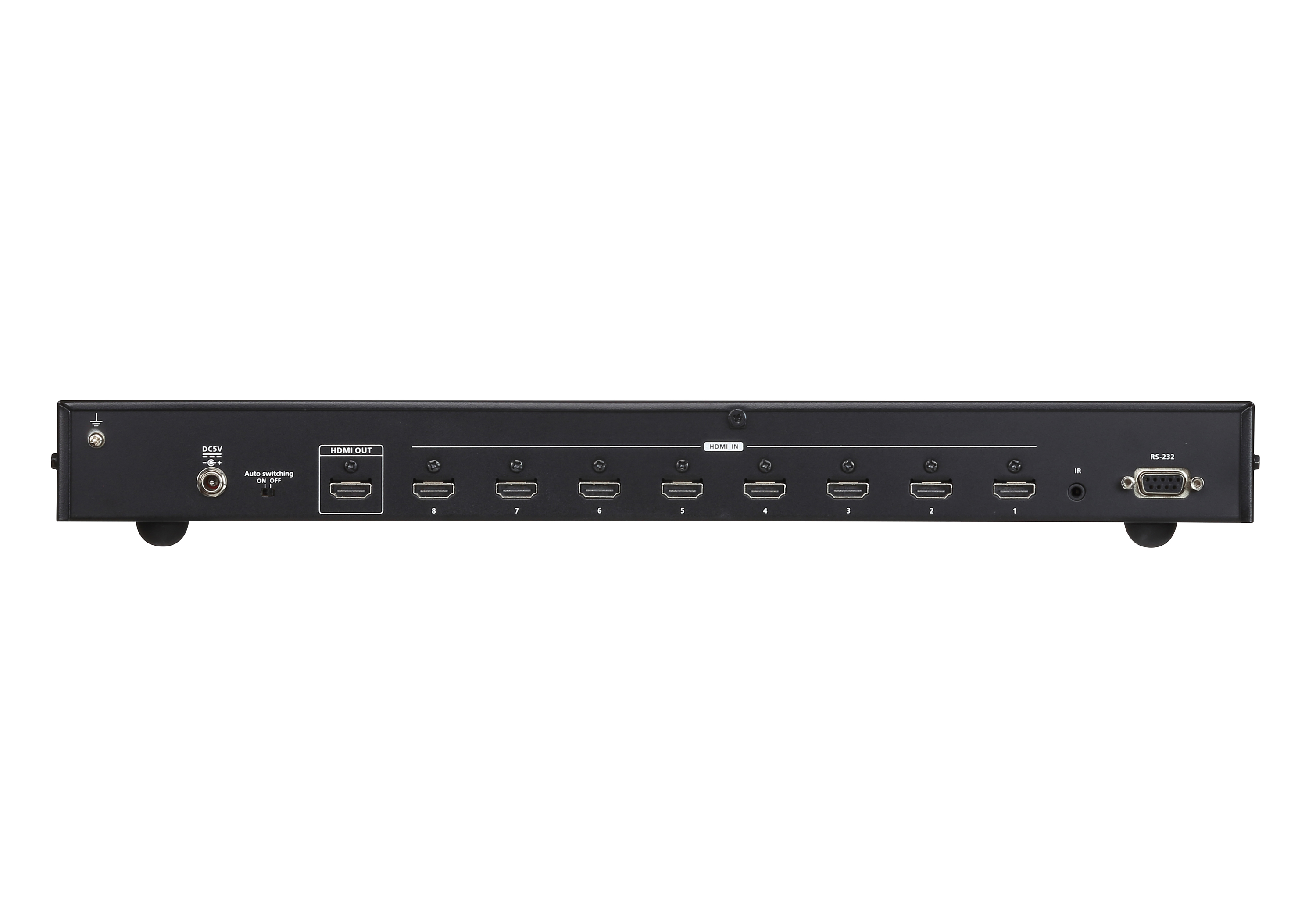

Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video
Max. Data Rate 18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI 2.0 (3D, Deep Color)
HDCP 2.2
Consumer Electronics Control (CEC)
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
Connectors
Power 1 x DC Jack (with locking)
Power Consumption DC5.3V:3.73W:17BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 2.14 kg ( 4.71 lb )
Dimensions (L x W x H) 43.72 x 15.83 x 4.40 cm
(17.21 x 6.23 x 1.73 in.)
Carton Lot 3 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
