Aten SPLITTER DVI 4 PORT VS164

Κωδικός plus26: 173-303649

Κωδικός Εργοστασίου (MPN): VS164

Εγγραφείτε για τιμή

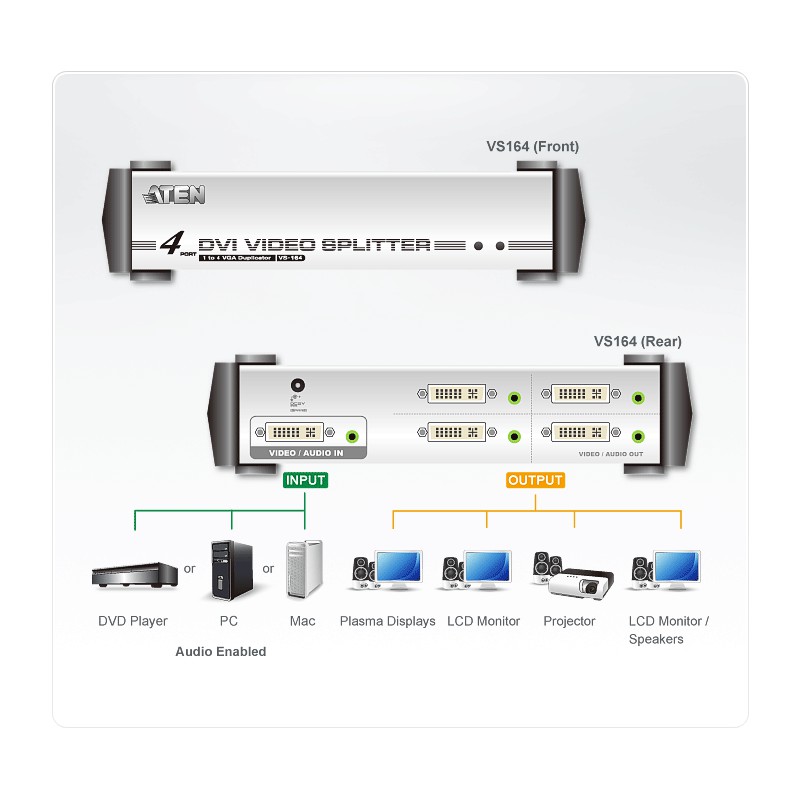

Connects computers with DVI graphics to four DVI compatible monitors or projectors.

Fully compliant with DVI-Digital and DVI-Analog.

Maintains highest single link video resolution (up to 1920 x 1200).

Speaker enabled for audio enjoyment.

VS164 Video Splitter provides DVI video and audio input signals to 4 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.

Package Contents

1x 4-Port DVI Video Splitter
1x Power Adapter
1x User Instructions

Features

Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
Fully compliant with DVI-Digital and DVI-Analog.
Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
Speaker enabled for audio enjoyment.
Cascadable to 3 levels - provides up to 64 video signals.
Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
Installs in minutes.
Maintains highest single link video resolution (up to 1920 x 1200).
DDC, DDC2, DDC2B Compatible (Port 1 only).
HDCP Compliant.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

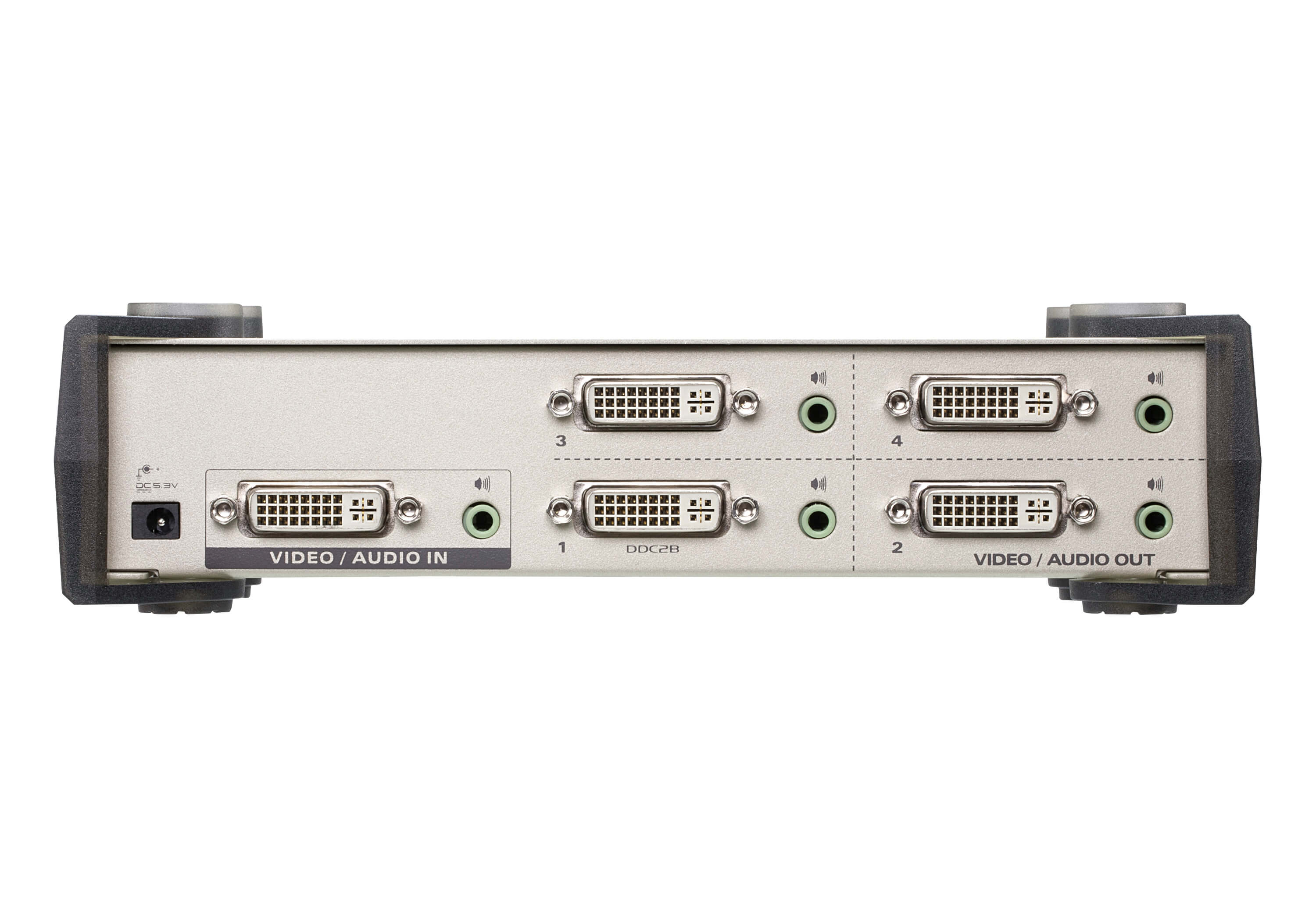

Video Input
Interfaces 1 x DVI-I Female (White)
Impedance 100 Ω
Max. Distance 1.8 m
Video Output
Interfaces 4 x DVI-I Female (White)
Impedance 100 Ω
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDCP Compatible
Max. Resolution Up to 1920 x 1200
Max. Distance Up to 5 m
Audio
Input 1 x Mini Stereo Jack Female (Green)
Output 4 x Mini Stereo Jack Female (Green)
Connectors
Power 1 x DC Jack
Power Consumption DC5.3V:3.95W:19BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.72 kg ( 1.59 lb )
Dimensions (L x W x H) 21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
Carton Lot 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Product Sheet (PDF - 1,08 MB)
