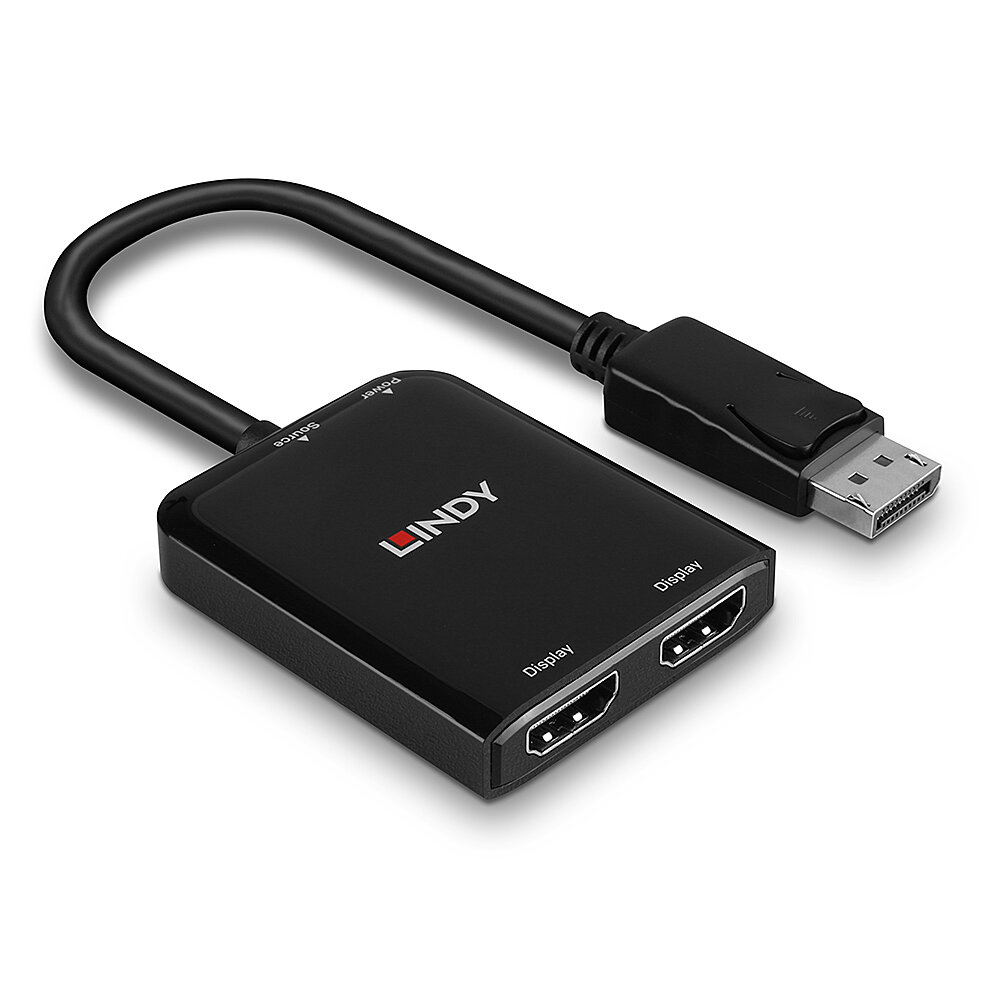

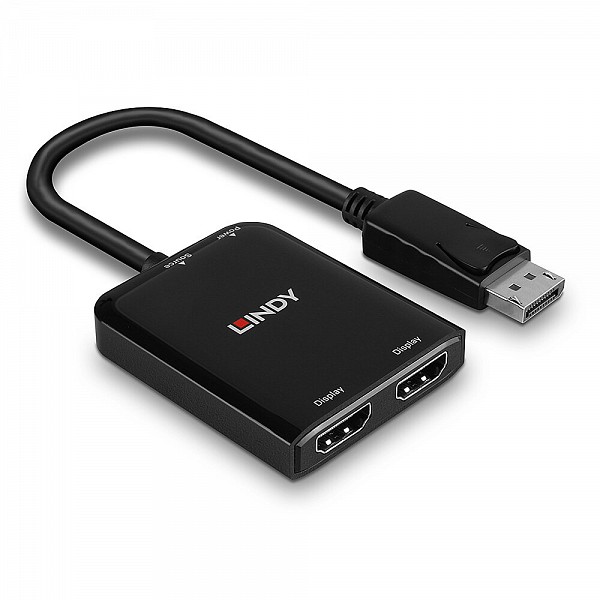

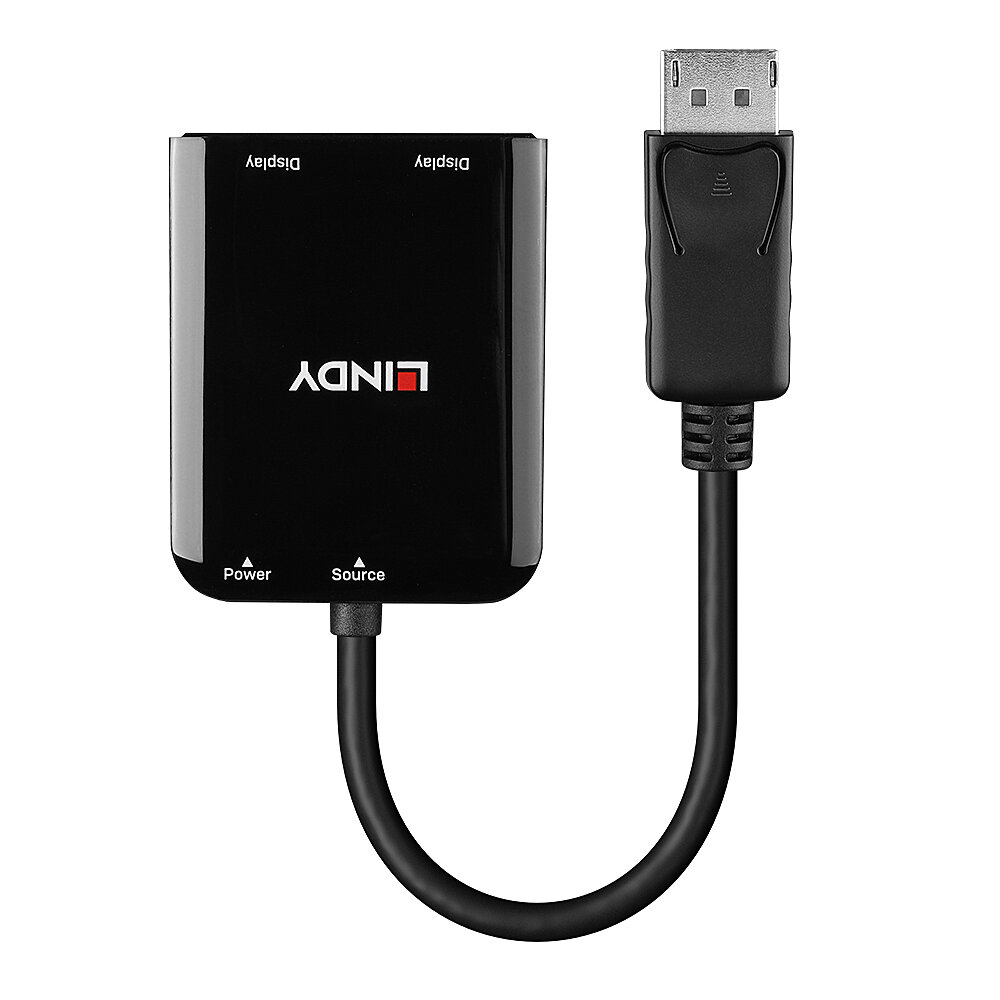

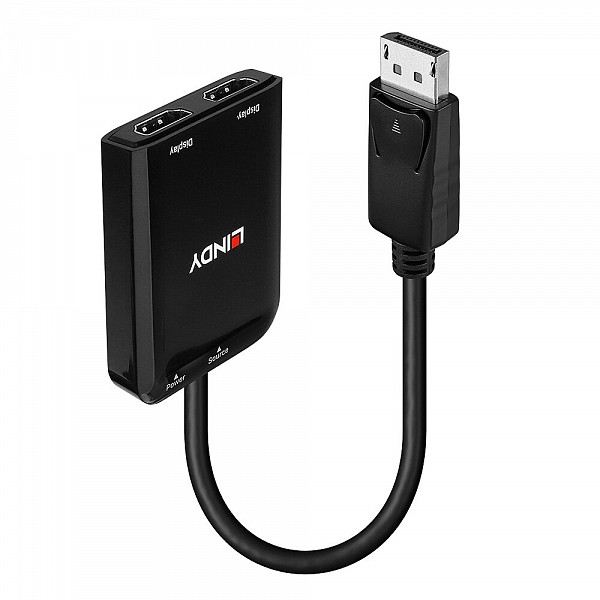

Lindy SPLITTER DisplayPort 1.2 TO 2x HDMI 2.0 (MST-Expands or duplicates)

Κωδικός plus26: 173-455459

Κωδικός Εργοστασίου (MPN): 38433

Εγγραφείτε για τιμή

Connect 2 HDMI displays to a DisplayPort computer or laptop

Expand, duplicate or display independent DP signals over dual HDMI monitors

Supports resolutions up to 2 x 4K 30Hz, and audio up to 7.1CH

Compatible with various graphics cards including AMD Eyefinity, NVIDIA Surround and Intel Collage

2 year warranty

The Lindy DP to 2 Port HDMI MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 2 HDMI monitors or TVs. MST hubs allow for the connection of a single mDP source device including computers, laptops or notebooks to 2 separate HDMI displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios.

With support up to 2 x 3840x2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.

This active MST Hub supports DP++ and does not require the source or graphics card to support DP++ to provide dual-mode signals

Please note: This hub is not compatible with Apple products

Specifications

AV Interface: DisplayPort, HDMI
Interface Standard: DP 1.2, HDMI 2.0
Supports Bandwidth: 21.6 Gbit/s
Maximum Resolution: 2 x 3840x2160@30Hz 4:4:4 8 bit
HDCP Support: HDCP 1.4
Supported Audio: Up to 7.1CH
Separate Audio Ports: -
CEC Support: -
Serial Interface: -
Special Features: -

Connectors

Input: DisplayPort (Male)
Output: 2 x HDMI Type A (Female)
Control: -
Power : Micro-USB (Female)

Physical Properties

Dimensions (approx.) WxDxH: 254x49x10mm (10x1.93x0.39in)
Housing Material: ABS
Net Weight: 0.070kg (0.15lb)
Operating Temperature: -20°C - 40°C (-4°F - 104°F)
Storage Temperature: -40°C - 80°C (-40°F - 176°F)
Humidity: 5-90% RH (Non condensing)
Power Requirements: 5VDC 1A
Colour: Black

Miscellaneous

Packaging Type: Polybag
Packaging Dimensions: 174x194x10mm (6.85x7.64x0.39in)
Gross Weight: 0.08kg (0.18lb)
Warranty (Years): 2
Product Compliance: CE, UKCA, FCC, RoHS and REACH

Package Content

DisplayPort MST Hub
USB Micro-B to USB Type A Cable

Purchasing Information

No.: 38433
EAN: 4002888384339
