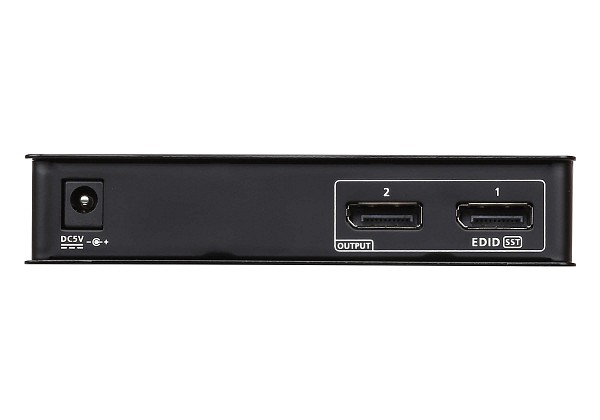

ATEN SPLITTER DisplayPort 2 PORT 4K VS192/6869

Κωδικός plus26: 173-356285

Κωδικός Εργοστασίου (MPN): VS192/6869

Εγγραφείτε για τιμή

The VS192 2-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to two or four DisplayPort displays. The VS192 can not only split but also expand DisplayPort audio/video signal on two or four DisplayPort monitors which is ideal for any multi-display application.

The VS192 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in corporate, educational, and commercial settings.

Connects one DisplayPort source to two DisplayPort monitors
Supports DisplayPort 1.2a; HDCP 1.3
Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
Supports MST/ Extend Mode and SST/ Split Mode*
MST/ Extend Mode:
Extend a video source across 2 displays with a maximum resolution of 4K.
SST/ Split Mode:
Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor
Supports Linkrate: HBR2 (High Bit Rate 2)

Video Output
Interfaces 2 x DisplayPort Female (Black)
Max. Distance 4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz)
*tested with 2L-7D04DP
Video Input
Interfaces 1 x DisplayPort Female (Black)
Max. Distance 4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz)
*tested with 2L-7D04DP
Video
Compliance DP 1.2a; HDCP 1.3
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz
Max. Data Rate 21.6 Gbps (5.4 Gbps per lane)
Connectors
Power 1 x DC Jack
Power Consumption DC5V:1.185W:6BTU
Environmental
Operating Temperature 0-40 °C
Storage Temperature -20 - 60 °C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm
(4.92 x 3.15 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
