HARDWARE FEATURES

• Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
• Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity Fanless
• Physical Security Lock No
• Power Supply 100-240VAC, 50/60Hz
• Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
• Mounting Rack Mountable
• Max Power Consumption 13.62W
• Max Heat Dissipation 46.44BTU/h

PERFORMANCE

• Switching Capacity 48Gbps
• Packet Forwarding Rate 35.7Mpps
• MAC Address Table 8K
• Jumbo Frame 10KB
• QoS 802.1p/DSCP QoS*
• *Only for V11 and later version
• Green Technology Yes
• Transfer Method Store-and-Forward

OTHERS

• Certification FCC, CE, RoHS

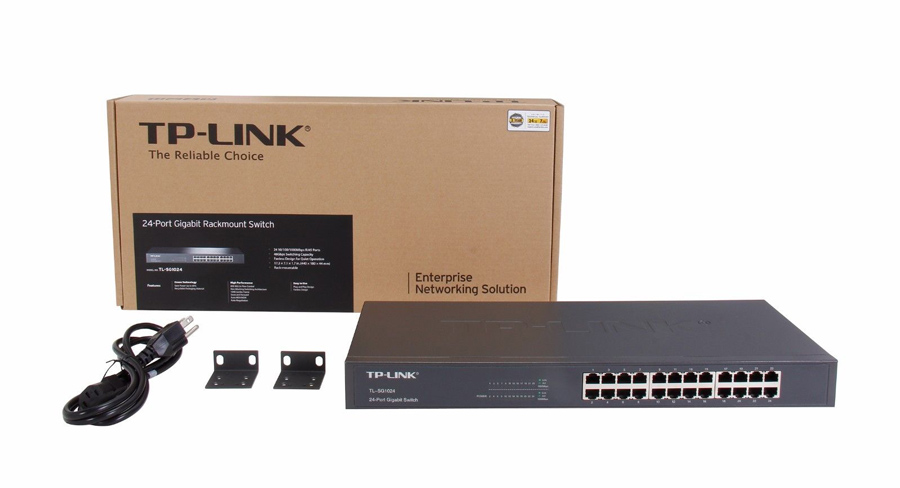

• Package Contents 24-Port Gigabit Rackmount Switch
• Power Cord
• Installation Guide
• Rackmount Kits
• Rubber Feet
• Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
• Storage Temperature: -40℃~70℃ (-40℉~158℉);
• Operating Humidity: 10%~90% non-condensing;
• Storage Humidity: 5%~90% non-condensing
