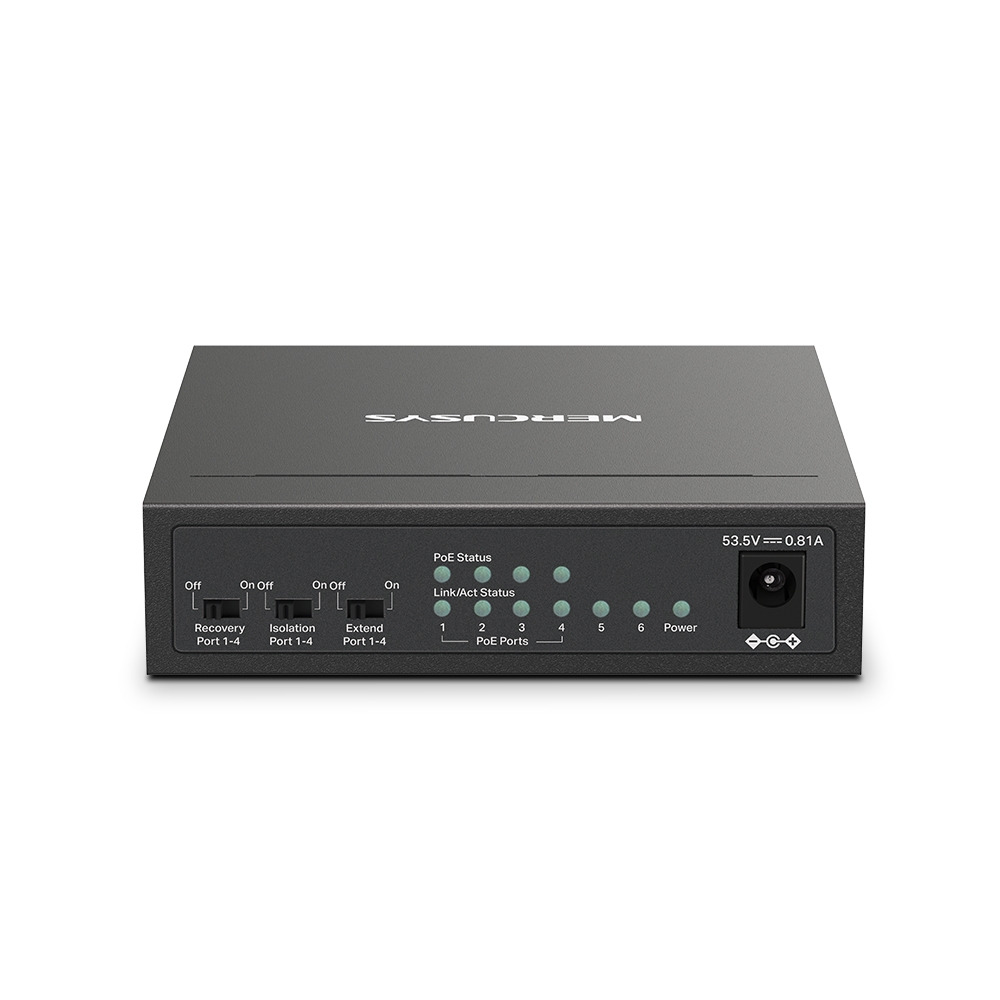

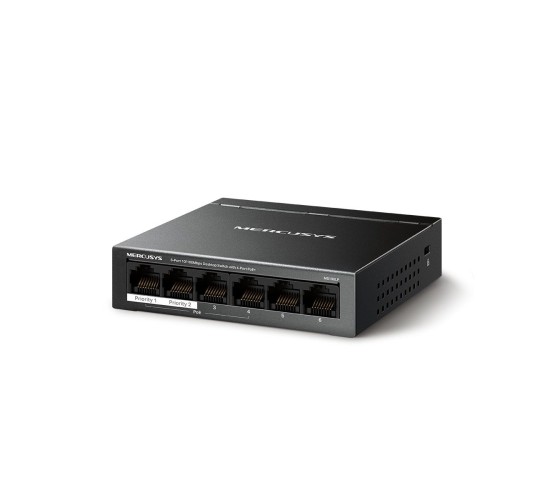

Mercusys 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ MS106LP

Κωδικός plus26: 010-403741

Κωδικός Εργοστασίου (MPN): MS106LP

Εγγραφείτε για τιμή

6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports

Two Cables in One: With four PoE+ ports, transfers data and power on one single cable

High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports*

2× Uplink Ports: MS106LP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.

Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

Isolation Mode: One click to divide traffic for specific ports for stability and security

Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing: Allows for efficient heat dissipation and long network life

Plug and Play: Simple to use and saves time and effort

PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

Dimensions

99.8*98*25mm

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 40 W

Interfaces

6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/0.81A)

Installation

Desktop

Wall Mount

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Jumbo Frame

2 KB

Mac Address Table

Max Power Consumption

1.87W（220 V / 50 Hz, no PD connected）

44.8W（220 V / 50 Hz, with 40W PD connected）

Max Heat Dissipation

6.34 BTH/h （no PD connected)

152.32 BTH/h（with 40W PD connected）

Hardware

Package Contents

• 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP)
• Power Adapter
• Quick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing

Others
