PERFORMANCE
Switching Capacity 80 Gbps
Packet Forwarding Rate 59.52 Mpps
MAC Address Table 16 K
Packet Buffer Memory 12 Mbit
Jumbo Frame 9 KB

SOFTWARE FEATURES
Quality of Service • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features • 32 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
L2 Multicast • 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
VLAN • VLAN Group
- Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
Access Control List • Support up to 230 entries
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
Security • IP-MAC-Port Binding
• AAA
• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- ND Snooping
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• DHCP Filter
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control
IPv6 • IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
MIBs • MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

MANAGEMENT
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

OTHERS
Certification CE, FCC, RoHS
Package Contents • SG2210XHP-M2 Switch
• Power Adapter
• Quick Installation Guide
• Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

HARDWARE FEATURES

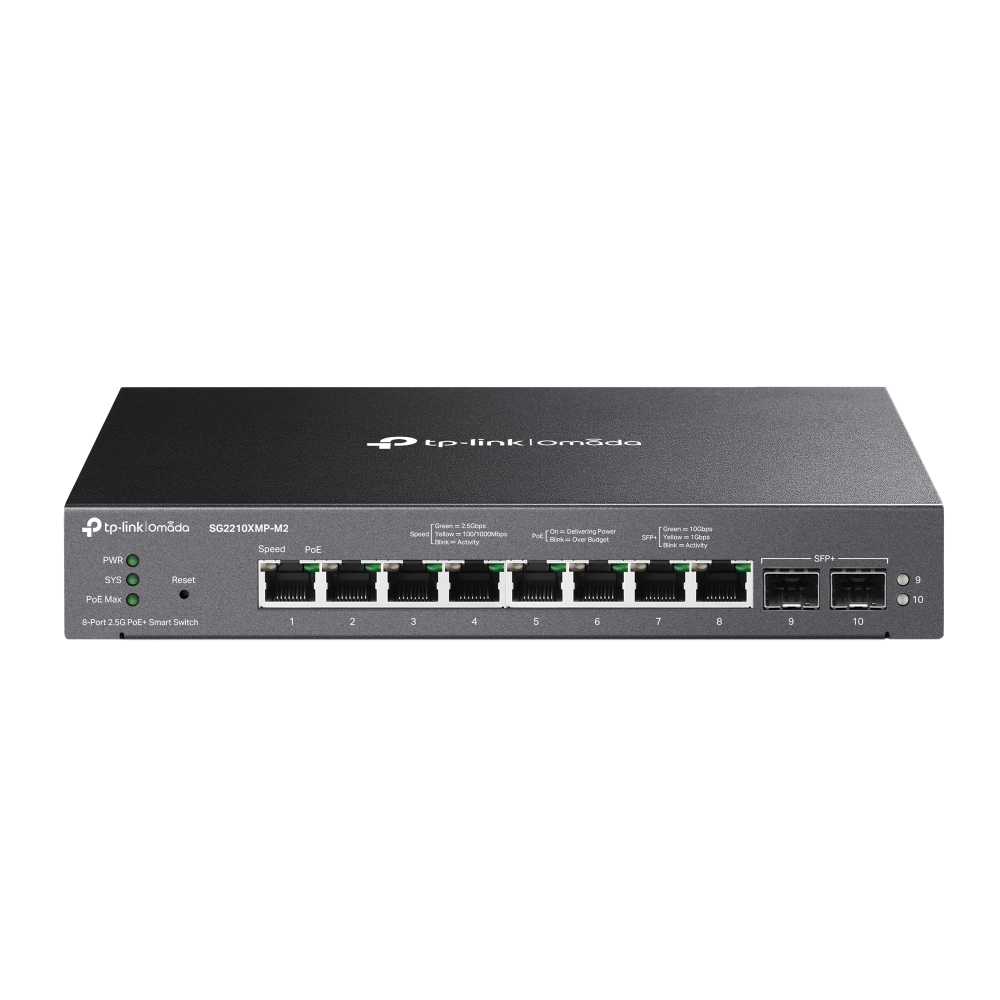

Interface • 8× 100/1000/2500 Mbps RJ45 PoE+ Ports
• 2× 10G SFP+ Slots
Fan Quantity Fanless
Physical Security Lock √

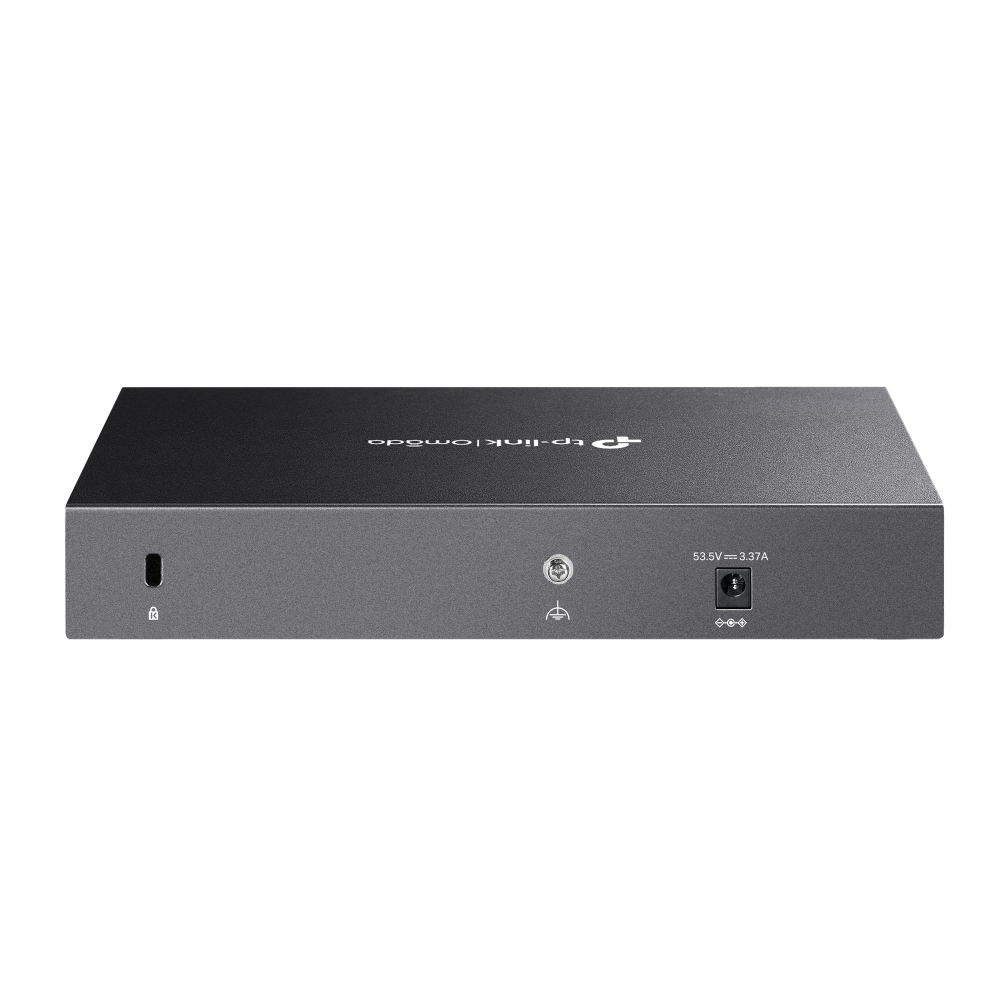

Power Supply 53.5VDC/3.37A Power Adapter
PoE Ports (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 8 Ports
• PoE Power Budget: 160 W*
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

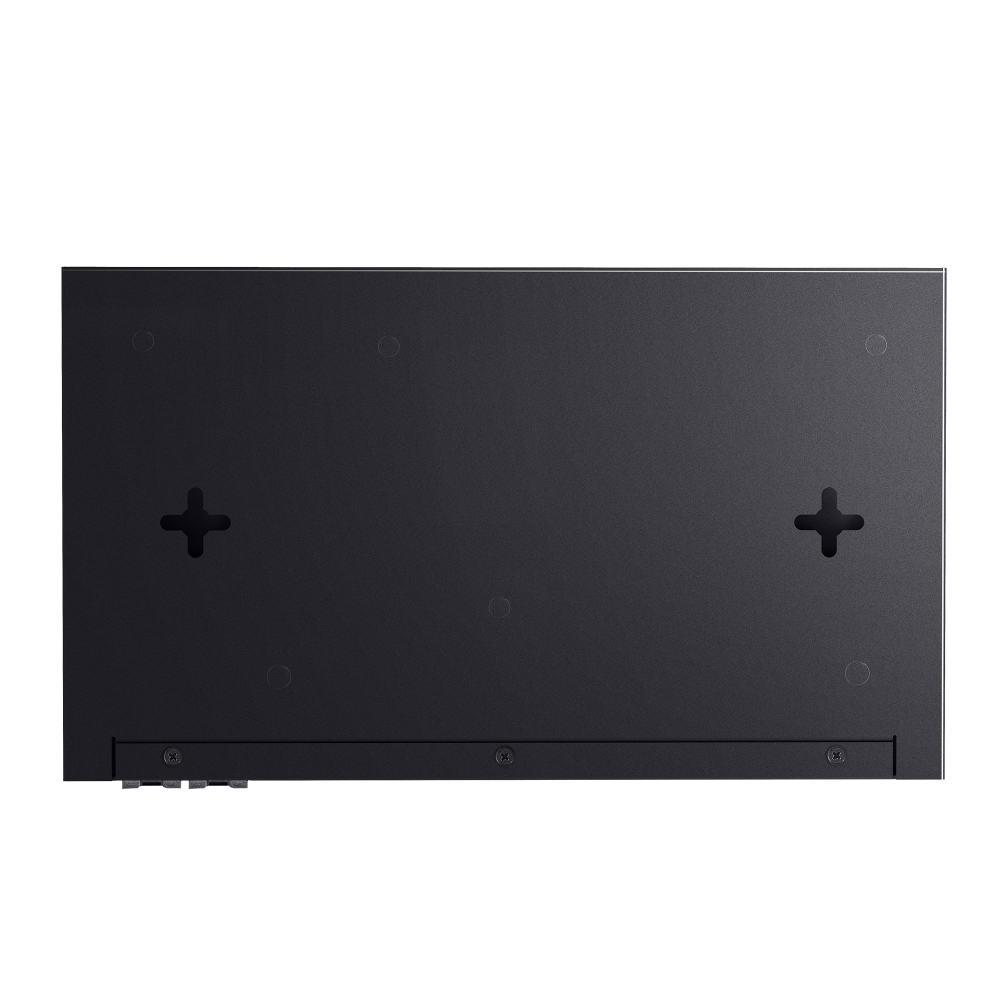

Mounting Desktop/Wall-Mounting
Max Power Consumption 180.1 W (110V/60Hz) (with 160 W PD connected)
Max Heat Dissipation 614.58 BTU/hr (110V/60Hz) (with 160 W PD connected)
