HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

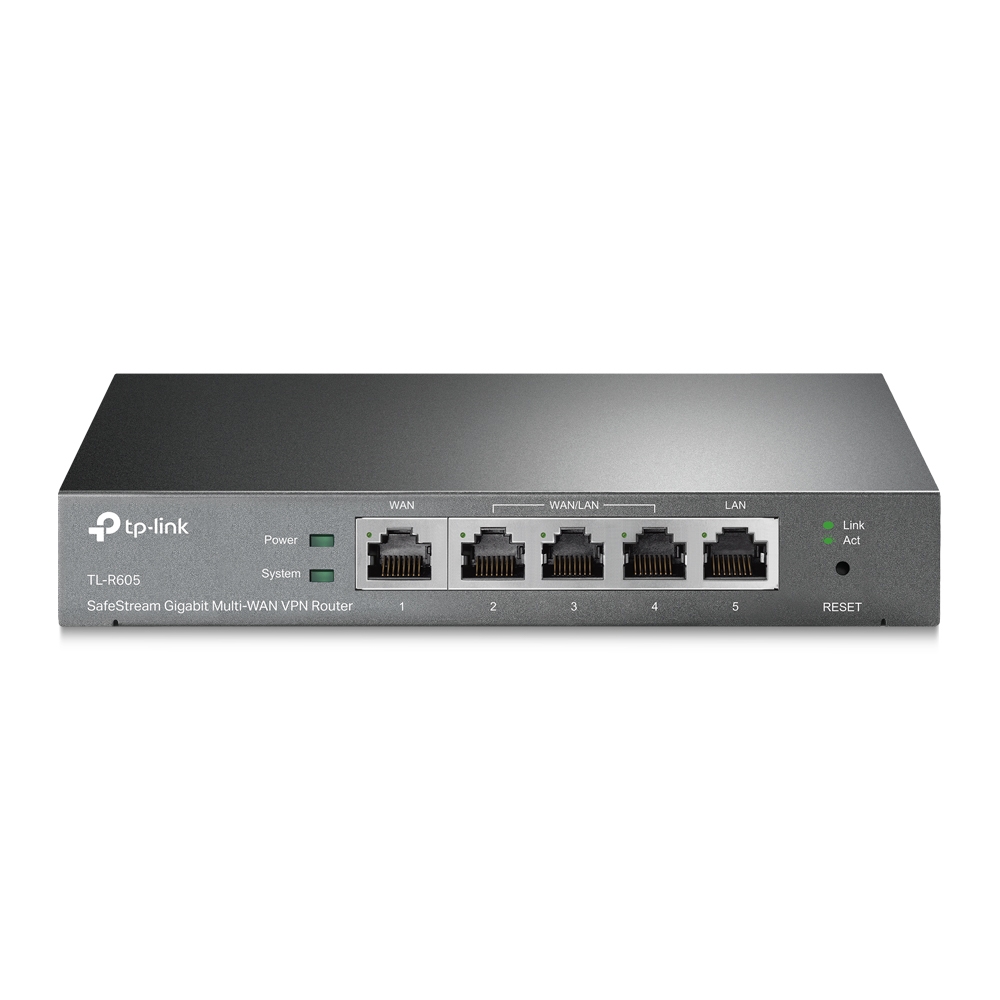

Interface • 1 Fixed Gigabit WAN Port
• 1 Fixed Gigabit LAN Port
• 3 Changeable Gigabit WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button

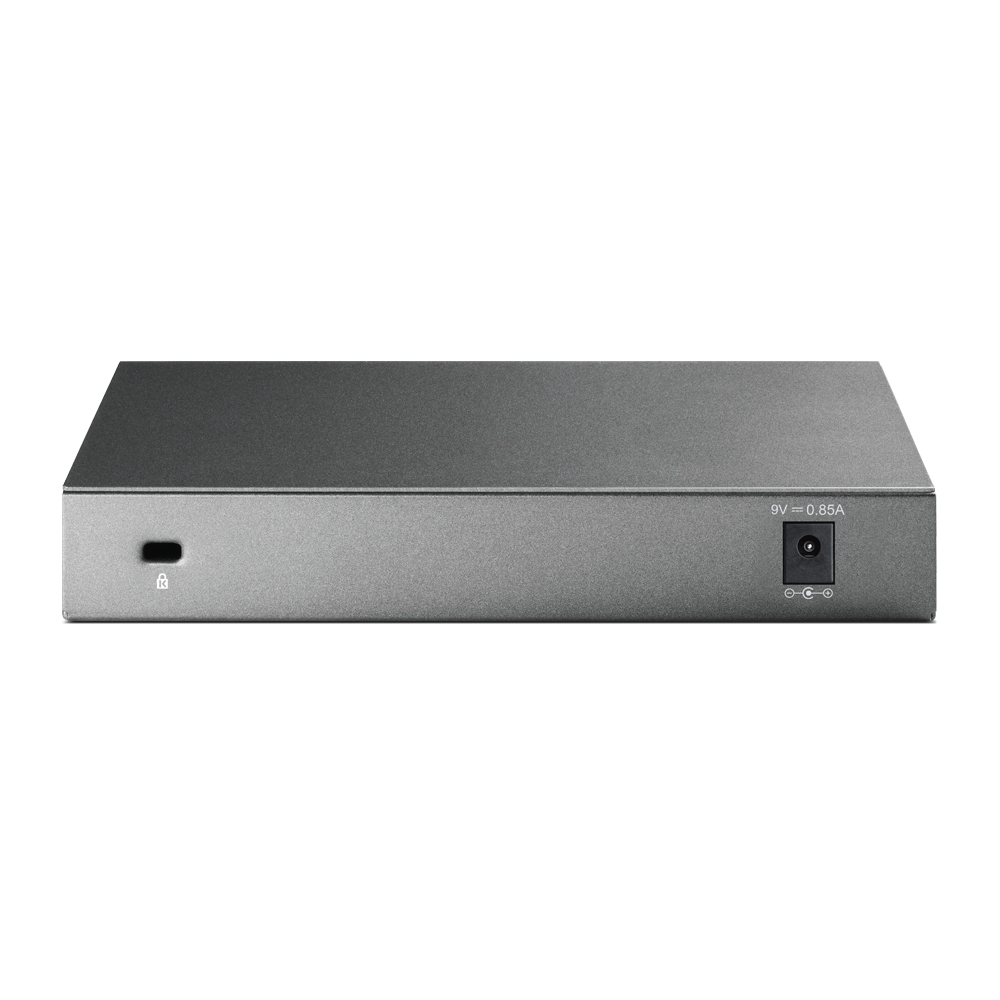

Power Supply External 9V/0.85A DC Adapter
Flash SPI 16MB
DRAM 128 MB
LED PWR, SYS, WAN, LAN
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

PERFORMANCE
Concurrent Session 25,000
IPsec VPN Throughput 41.5 Mbps

BASIC FUNCTIONS
WAN Connection Type • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
DHCP • DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces*

*Multi-IP Interfaces and Multi-Net DHCP are supported only in Controller Mode
MAC Clone Modify WAN/LAN MAC Address*

*LAN MAC Address can be modified only in Standalone Mode.
IPTV IGMP v2/v3 Proxy
IPv6 Developing*

*IPv6 is being developed and will be updated in the following software versions
VLAN 802.1Q VLAN

ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy Routing
Bandwidth Control • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing*, Failover)
• Online Detection

*The function is supported only in Standalone Mode.
NAT • One-to-One NAT*
• Multi-Net NAT
• Virtual Server
• Port Triggering*
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

*These function are supported only in Standalone Mode.
Security • SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session Limit IP-based Session Limit

VPN
IPsec VPN • 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2*
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
PPTP VPN • PPTP VPN Server
• 10 PPTP VPN Clients
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• 10 L2TP VPN Clients
• 16 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server*
• 10 OpenVPN Clients*
• 16 OpenVPN Tunnels*

*OpenVPN requires the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller

SECURITY
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Filtering WEB Group Filtering*
URL Filtering
Web Security*

*These functions are supported only in Standalone Mode.
ARP Inspection • Sending GARP Packets*
• ARP Scanning*
• IP-MAC Binding*

*These functions are supported only in Standalone Mode.
Access Control Source/Destination IP Based Access Control

AUTHENTICATION
Web Authentication • No Authentication
• Simple Password*
• Hotspot（Local User / Voucher* / SMS* / Radius*）
• External Radius Sever
• External Portal Sever*
• Facebook*

*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller

MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Maintenance • Time Setting
• Diagnostic
• Firmware Upgrade
• Factory Defaults/Reboot
• Backup&Restore
• System Log
• Remote Management
• Statistics
• Controller Settings
• SNMP
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)*

*Zero-Touch Provisioning is supported only when using Omada Cloud-Based Controller.

OTHERS
Certification CE, FCC, RoHS
Package Contents • TL-R605
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
System Requirements Microsoft® Windows® 10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
