SECURITY
Network Security SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 6 GHz Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server • OpenVPN Server
• PPTP VPN Server
• L2TP/IPSec VPN Server
VPN Client • OpenVPN Client
• PPTP VPN Client
• L2TP/IPSec VPN Client
WiFi Encryption WPA-Personal
WPA2-Personal
WPA3-Personal

HARDWARE
Ethernet Ports 1× 2.5 Gbps Port + 2× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button

SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App

TEST DATA
WiFi Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
<23 dBm (6 GHz)

FCC:
<30 dBm (2.4 GHz)
<30 dBm(5 GHz)
<30 dBm(6 GHz)

PHYSICAL
Dimensions (W×D×H) 4.1 × 4.1 × 6.7 in
(105 × 105 × 169 mm)

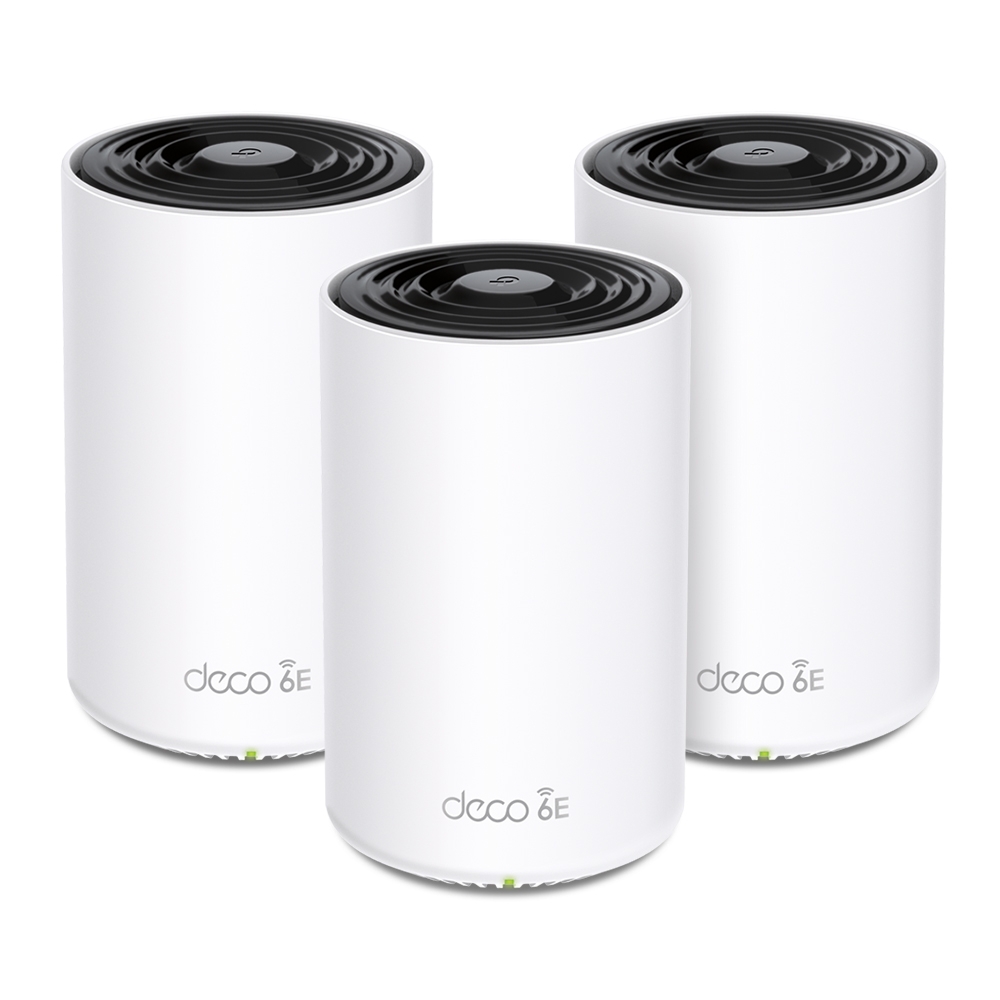

Package Contents Deco XE75 Pro (3-pack)
3 Deco XE75 Pro units
1 RJ45 Ethernet cable
3 Power adapters
1 Quick Installation Guide

Deco XE75 Pro (2-pack)
2 Deco XE75 Pro units
1 RJ45 Ethernet cable
2 Power adapters
1 Quick Installation Guide

Deco XE75 Pro (1-pack)
1 Deco XE75 Pro units
1 RJ45 Ethernet cable
1 Power adapters
1 Quick Installation Guide

OTHERS
Certifications CE, FCC, RoHS
Environment Operating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH

WIRELESS
Standards Wi-Fi 6E
IEEE 802.11ax 6 GHz
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AXE5400
6 GHz: 2402 Mbps (802.11ax, HE160)
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 4-7+ Bedroom Houses (3-pack)
3-5 Bedroom Houses (2-pack)
1-3 Bedroom Houses (1-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4× High-Gain Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Tri-Band
A newly-opened 6 GHz band brings more bandwidth and faster speeds

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Very High
Tri-Band
Distribute devices to different bands for optimal performance

2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

6 Streams
More than enough bandwidth for connected devices
Working Modes Router Mode
Access Point Mode
