Description

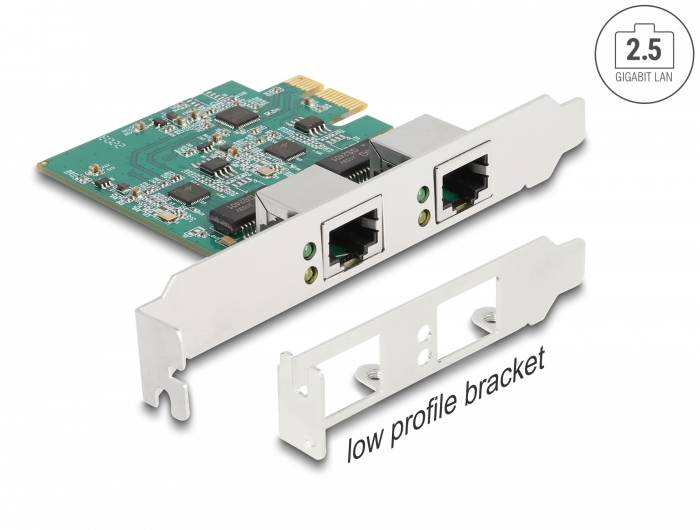

The PCI Express card by Delock offers two network ports with a data transfer rate up to 2500 Mbps.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

Specification

Connectors:
external: 2 x 2.5 Gigabit LAN RJ45 jack
internal: 1 x PCI Express x1, V2.1
Chipset: Realtek RTL8125B
Data transfer rate:
Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1000 Mbps
NBASE-T with up to 2.5 Gbps
PCI Express x1 up to 2.5 Gbps
Supports IEEE 802.3 / 802.3u / 802.3ab
Supports Wake On LAN (WOL)
Supports IEEE 802.1P layer 2 priority encoding
Supports IEEE 802.3x full duplex flow control
Supports IEEE 802.1Q Virtual LAN (VLAN)
Supports 16k Jumbo Frames
Supports PXE
LED indicator for link and activity

System requirements

Linux Kernel 3.2 or above
Windows 10/10-64/11
PC with one free PCI Express slot

Package content

PCI Express card
Low profile bracket
User manual

Package

Retail Box
