The DIGITUS® PCI Express Dual Port Gigabit Network Card with integrated Intel chipset offers the option to make two Gigabit ports for a server or a workstation available via a single PCI slot. Each port is fully compatible in accordance with IEEE802.3/u/ab standards and offers a full Gigabit connection. In addition to supporting IPv4 and IPv6 protocols, the card also supports jumbo frames as well as layer 2 functions such as IEEE802.1q VLAN and IEEE802.3x flow control. Its versatile configuration options make the card perfect for using with virtual machines or to set up a router/firewall. The low-profile slot bracket included in delivery also offers the option of integrating the card into compact computer cases in which standard slot brackets cannot be used.

Technical details

• Data transmission speed: 1 Gbps per port
• Connections: 2 x RJ45
• Chipset: Intel 82575EB (JL82575EB)
• PCIe slot: PCI Express X 1
• PCI Express channels: 1
• Additional low-profile slot, so that the card can be used in computers with little space
• Supports PCI bus power management interfaces rev 1.1 specifications
• Complies with IEEE802.3ab, IEEE802.3u and IEEE802.3 specifications
• Half-Duplex @ 10/100 Mbps, Full-Duplex @ 10/100/1000 Mbps
• Layer 2 functions: IEEE 802.3x Flow Control, IEEE 802.1q VLAN
• Supports auto MDI/MDIX crossover at all speeds
• Supports RSS (Receive Side Scaling)
• Supports IPv4, IPv6 protocols
• Supports jumbo frames up to 9.5K
• Supports UDP/TCP and IP checksum offloading
• Supports Virtual Machine Device Queues (VMDq)
• Supports VMDq - next generation (8VMs)
• Supports statistics for management and remote monitoring
• Driver support for MVMware ESXi 6.5 /6.5U1 / 6.5U2 / 6.5U3 / 6.7/ 6.7U1/ 6.7U2/ 6.7U3
• Operating temperature: 0 °C ~ 55 °C
• Operating humidity: 10 - 90% (non condensing)
• Storage temperature: -60 °C ~ 140 °C
• Storage humidity: 10 - 80% (non condensing)

Package content

• Gigabit Ethernet PCI Express card, 2-port

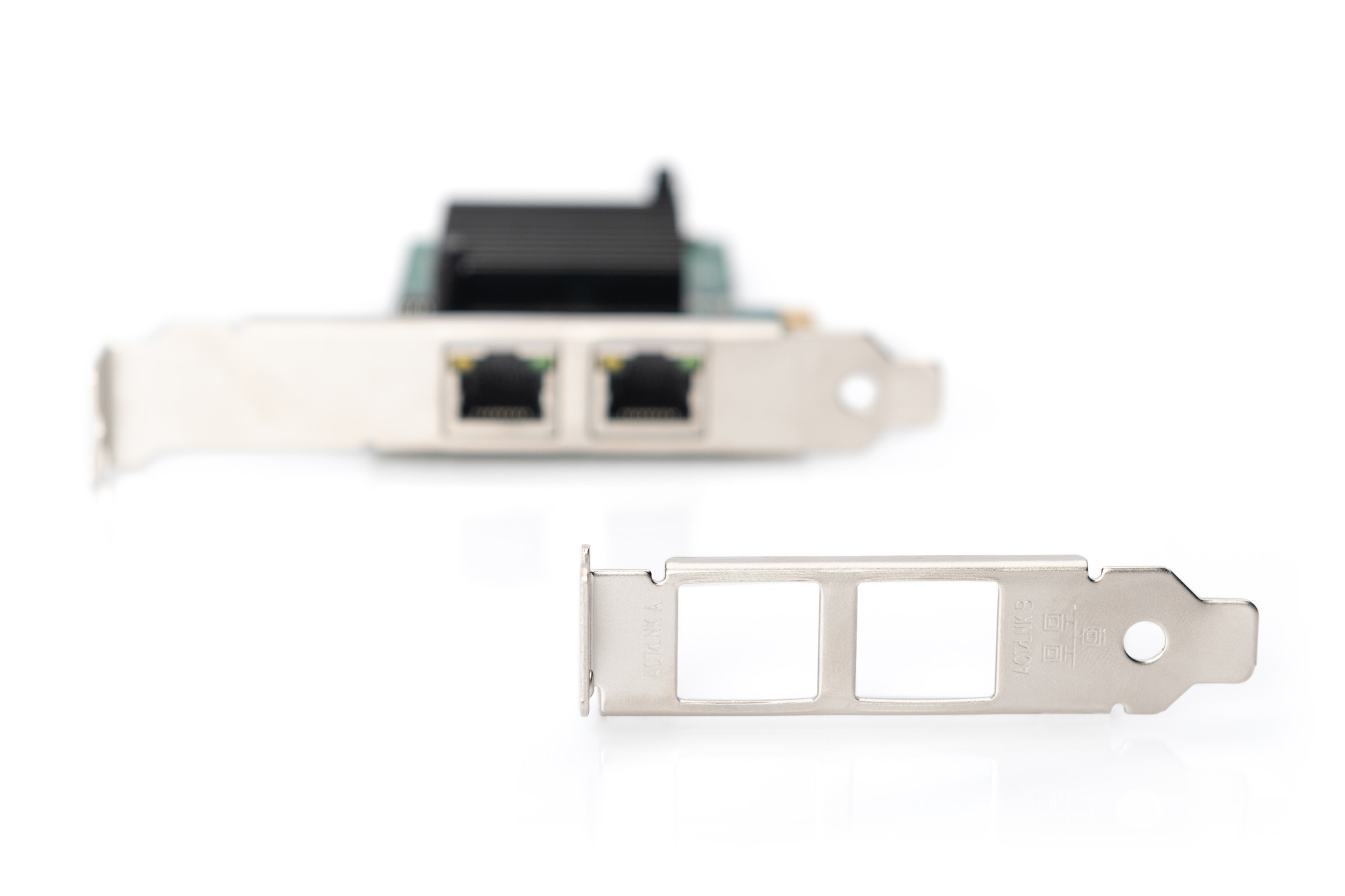

• Low-profile slot bracket
• Drivers on CD
• QIG
